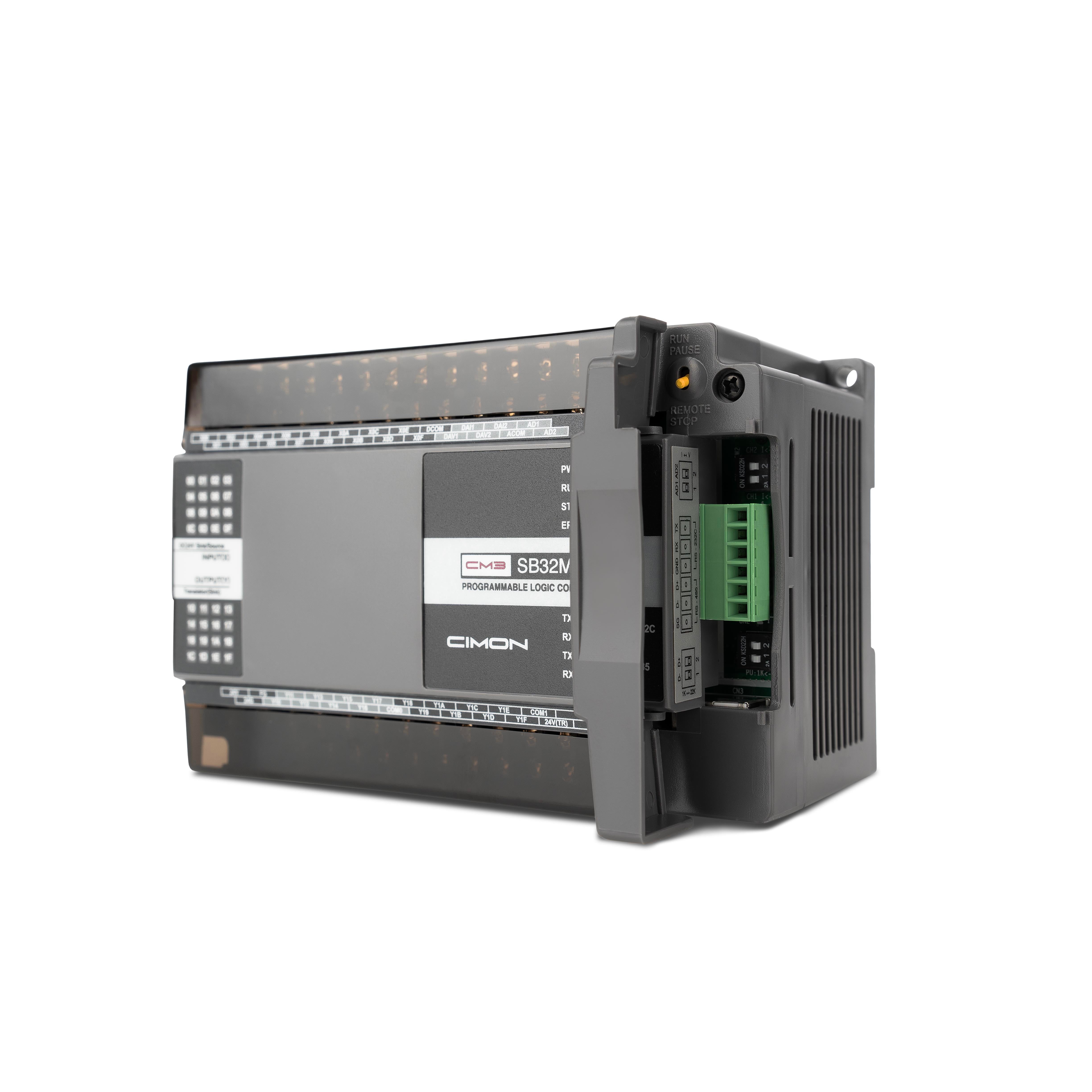

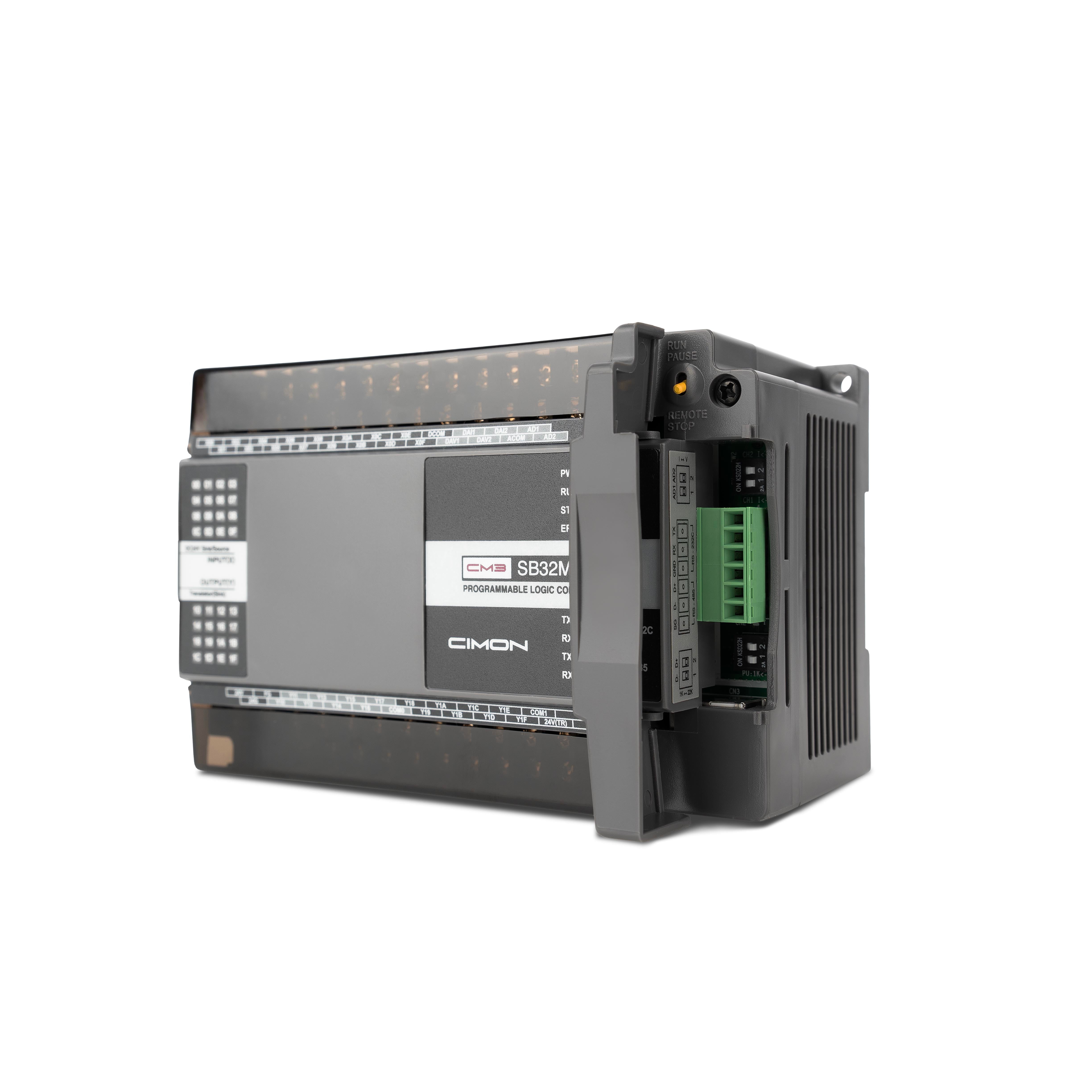

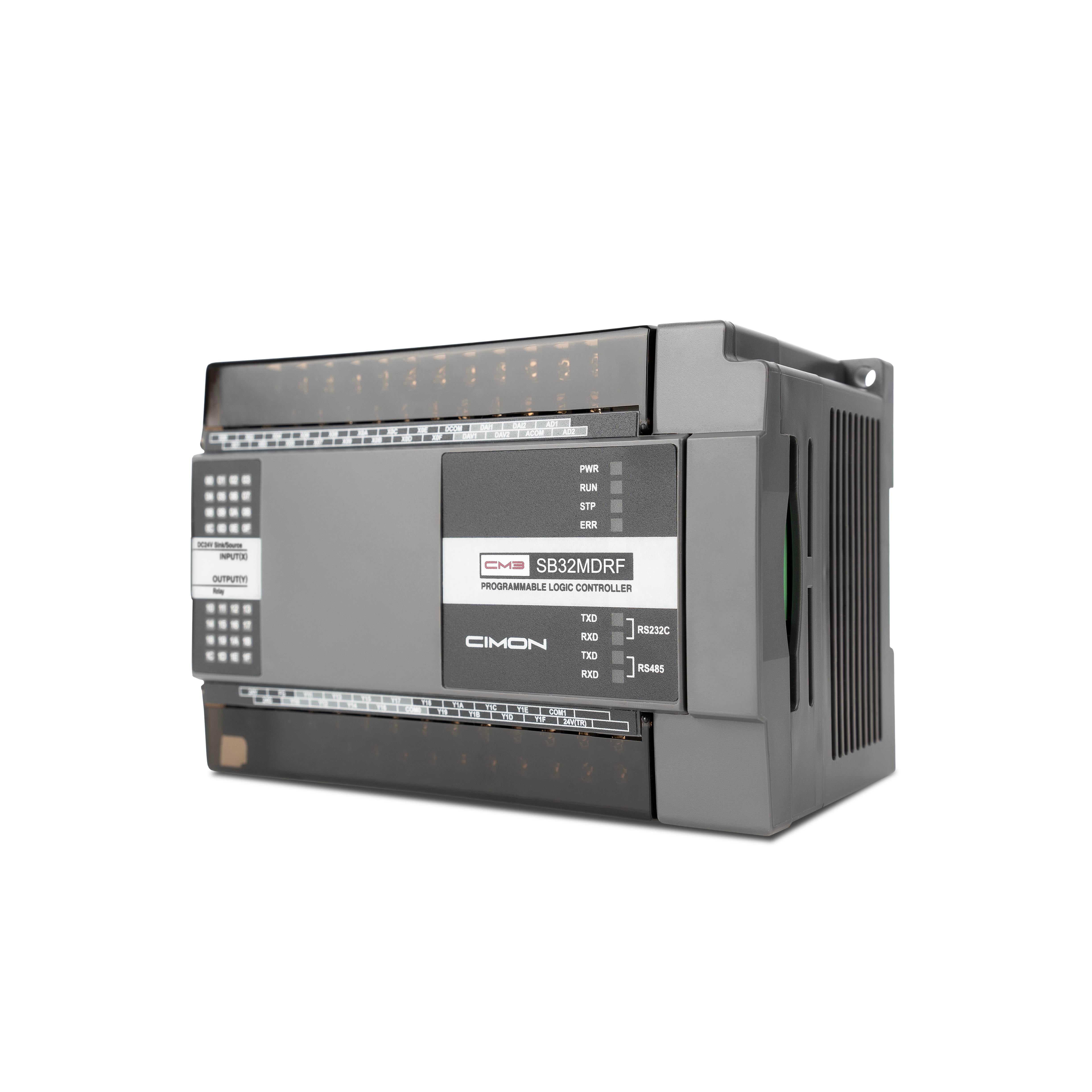

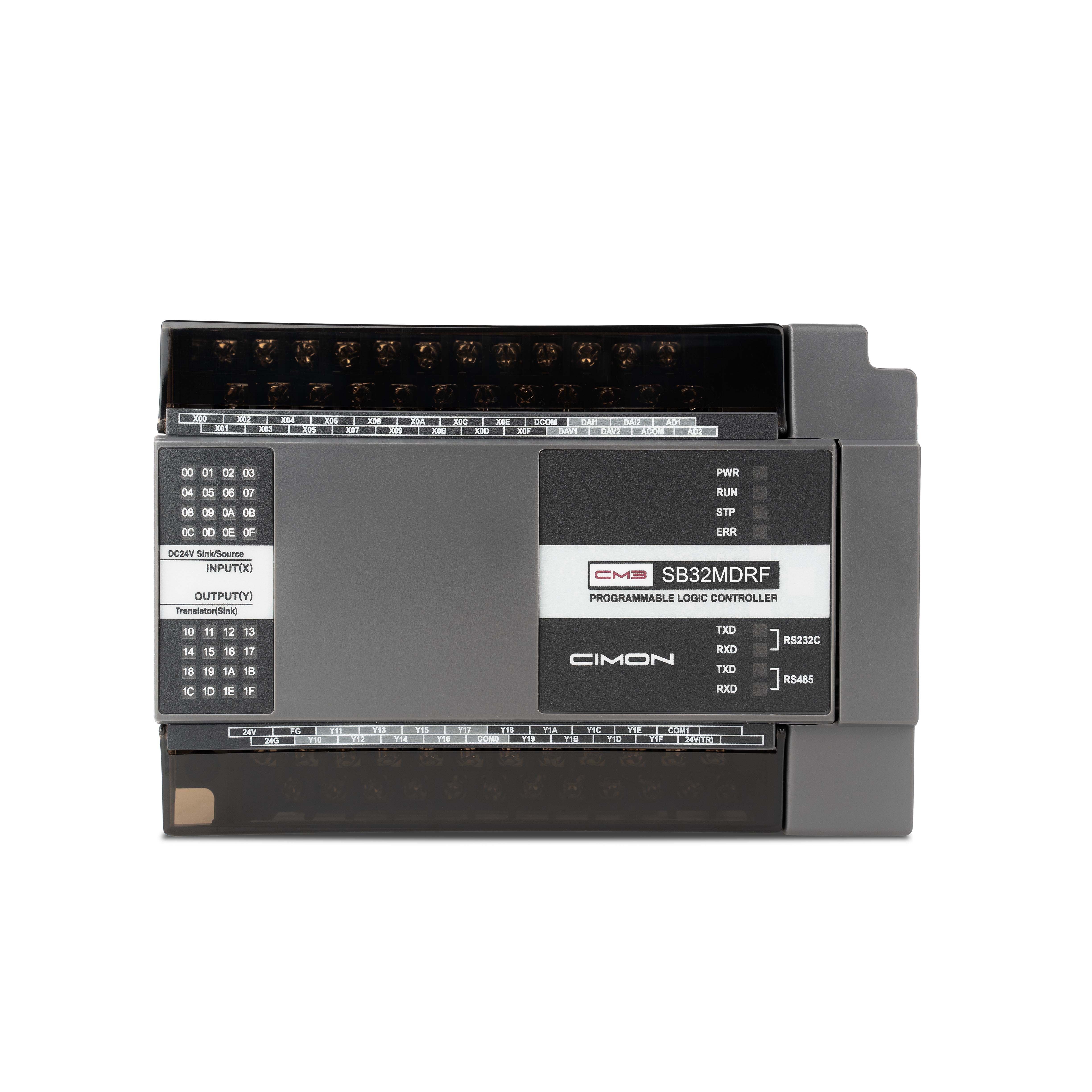

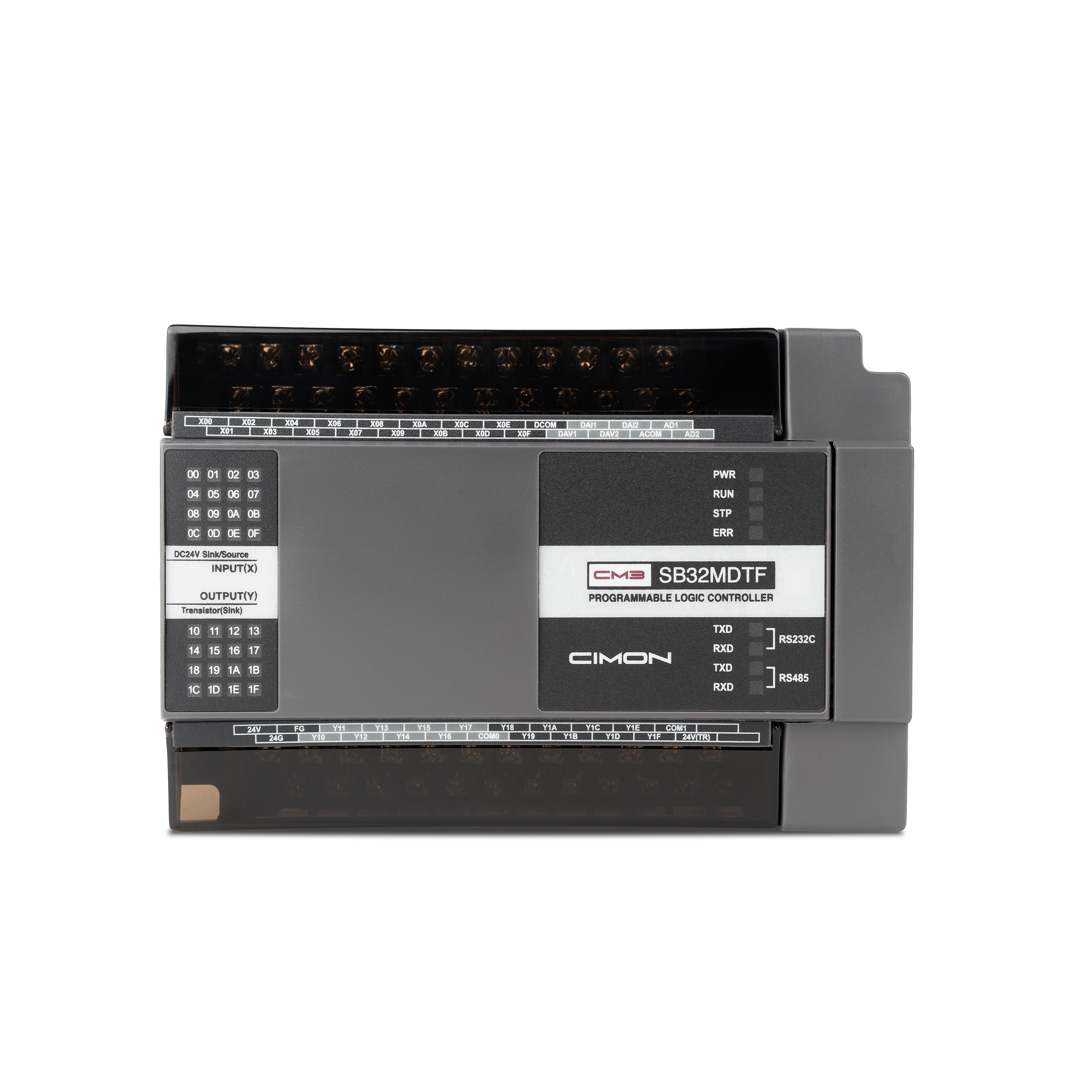

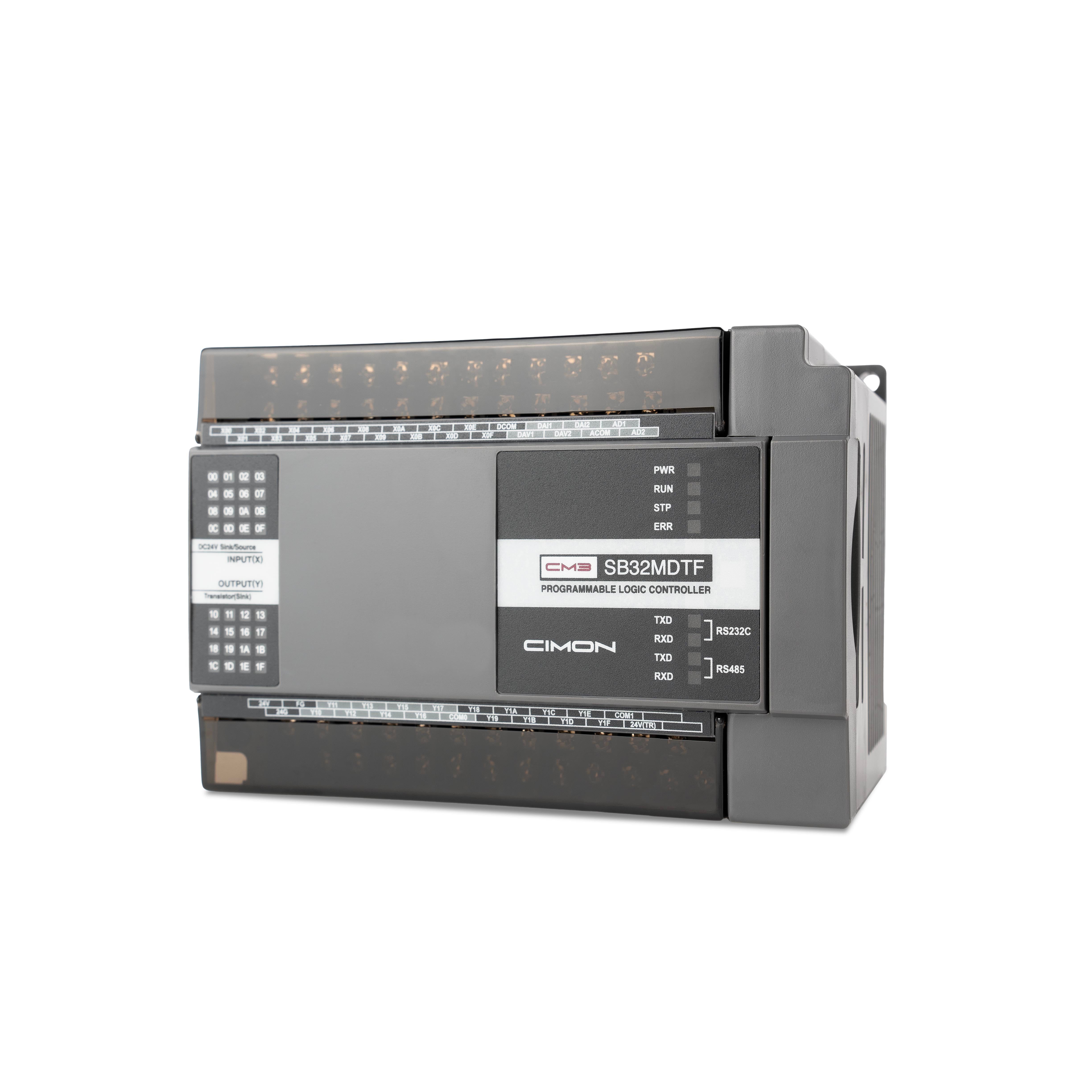

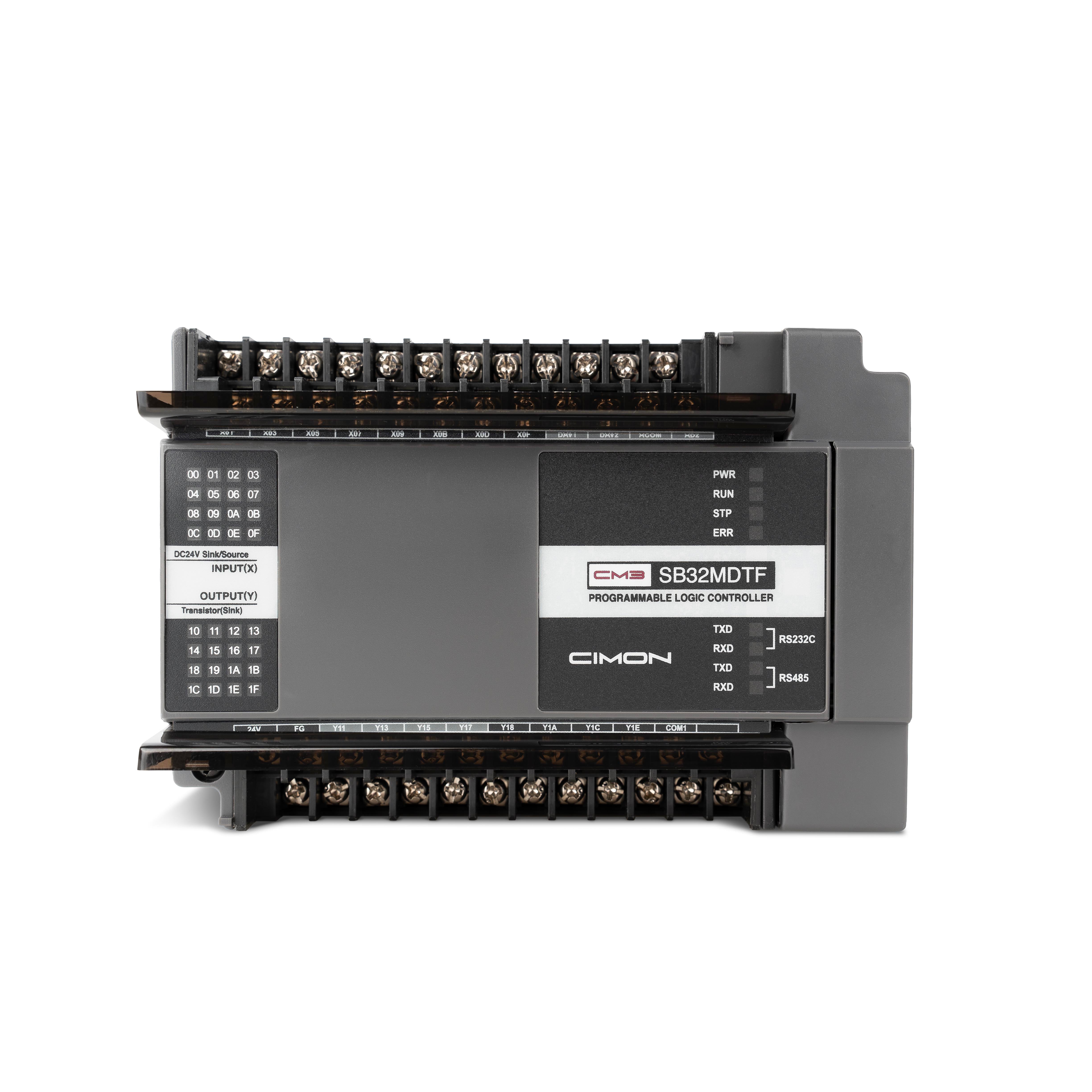

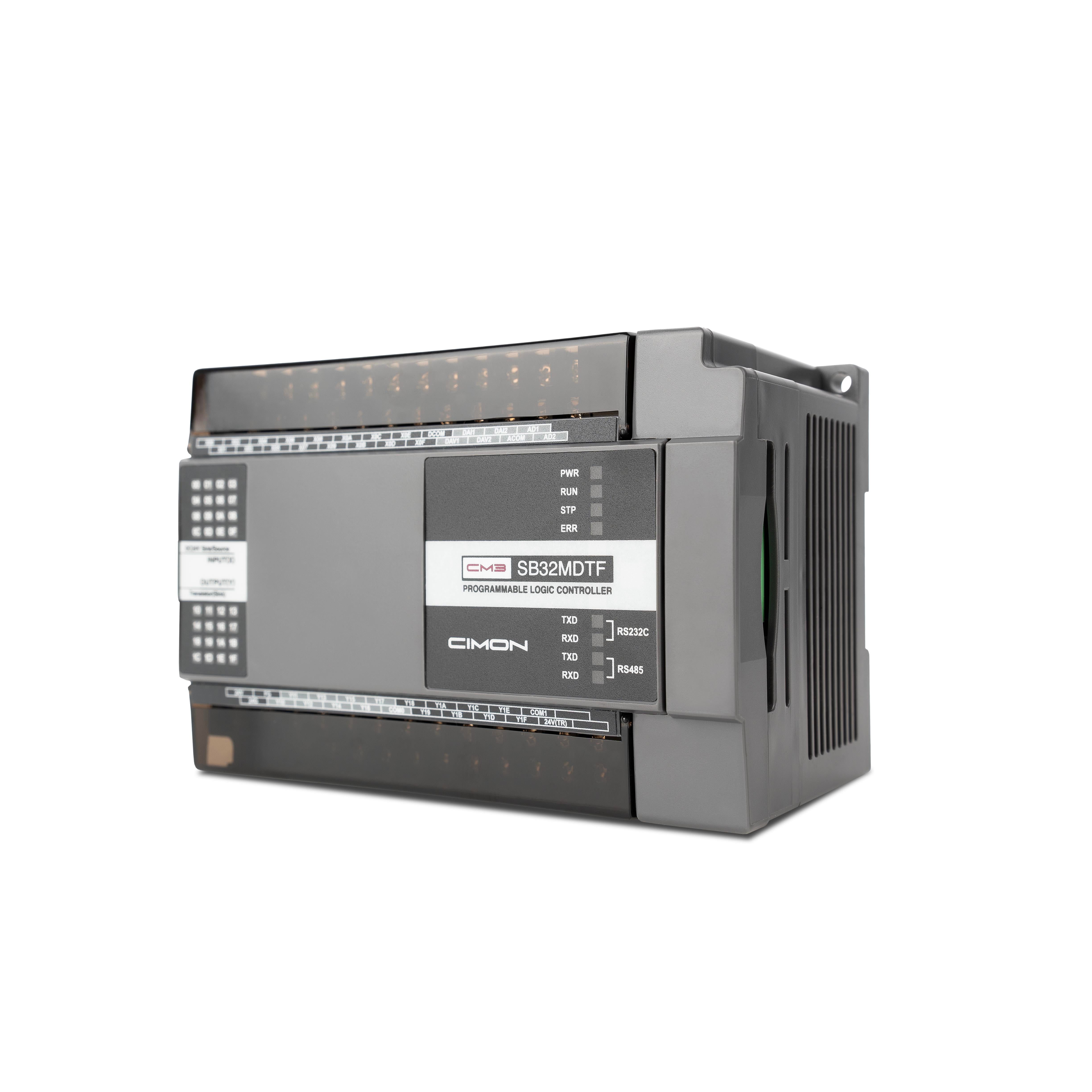

36 I/O Micro-S PLC
- Micro-S Brick PLC
- Power: 24 VDC
- Non-expandable
- (1) Ethernet
- (2) Serial
- (1) USB Mini-B Port
- Discrete Input: 16 Point, 12/24 VDC, Sink/Source
- Discrete Output: 16 Point, 12/24 VDC, Sink, 0.2 A/Point
- Analog Input: 2 Point, 0-10 V, 0-20 mA
- Analog Output: 2 Point, 0-10 V, 4-20 mA
- Screw-based terminals
%20Ethernet%0A(2)%20Serial%0A(1)%20USB%20Mini-B%20Port%0ADiscrete%20Input:%2016%20Point,%2012/24%20VDC,%20Sink/Source%0ADiscrete%20Output:%2016%20Point,%2012/24%20VDC,%20Sink,%200.2%20A/Poin...
){kind=link}
36 I/O Micro-S PLC
Sale price฿ 320.00
| SKU | CM3-SB32MDTF |
|---|---|
| Power Supply | 20–24 VDC, 0.33 A |
| Discrete Input Type | TR Sink/Source |
| Discrete Output Type | TR Sink |
| Analog Input Type | Voltage: 0–10 V Current: 0–20 mA |
| Analog Output Type |
Voltage: 0–10 V (Load resistance > 1 kΩ) Current: 4–20 mA (Load resistance < 600 Ω) |
| Number of Channels | 36 Total 16 Discrete Inputs, 16 Discrete Outputs, 2 Analog Inputs, 2 Analog Outputs |
| Rated Discrete Input Voltage | 12 or 24 VDC Note: 12 VDC is used for the HSC |
| Rated Discrete Input Current | 4 mA |
| Discrete Input Insulation Method | Photocoupler |
| Discrete Input Voltage/Current Thresholds |
ON: CH1–4: 10 VDC / 3 mA CH5–16: 14 VDC / 3 mA OFF: CH1–4: 8 VDC / 1 mA CH5–16: 12 VDC / 1 mA |
| Rated Discrete Output Voltage | 12, 24 VDC |
| Rated Discrete Output Current | 1 point = 0.2 A 1 COM = 1 A |
| Discrete Output Insulation Method | Photocoupler |

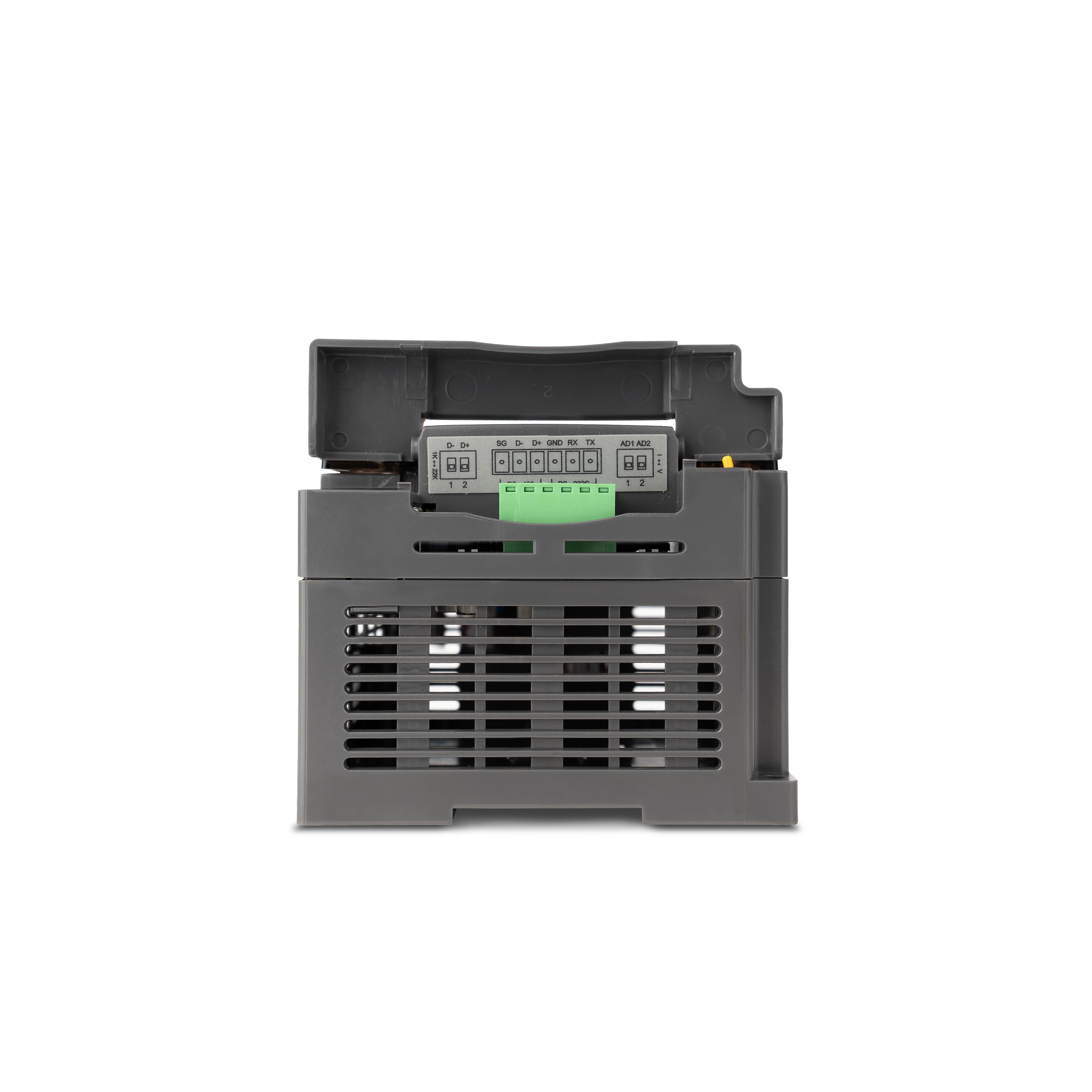

| Communication Ports |
RS-232: 1 Channel RS-422/485: 1 Channel Ethernet: 1 Port |
| Utility/Program Port | Mini-B USB, Ethernet, RS-232/422/488 |
