| SKU | CM-nXT07-D |
|---|
| LCD Size | 7 inch Wide TFT Color |
|---|
| Colors | 16.7M colors |
|---|
| Resolution | WVGA 800 × 480 |
|---|
| Backlight | LED, 1000 cd/m², 50,000 hours life |
|---|
| Touch Panel | Capacitive (5 points) |
|---|
| Memory | 1 GB DDR3 |
|---|
| Storage | 8 GB eMMC |
|---|

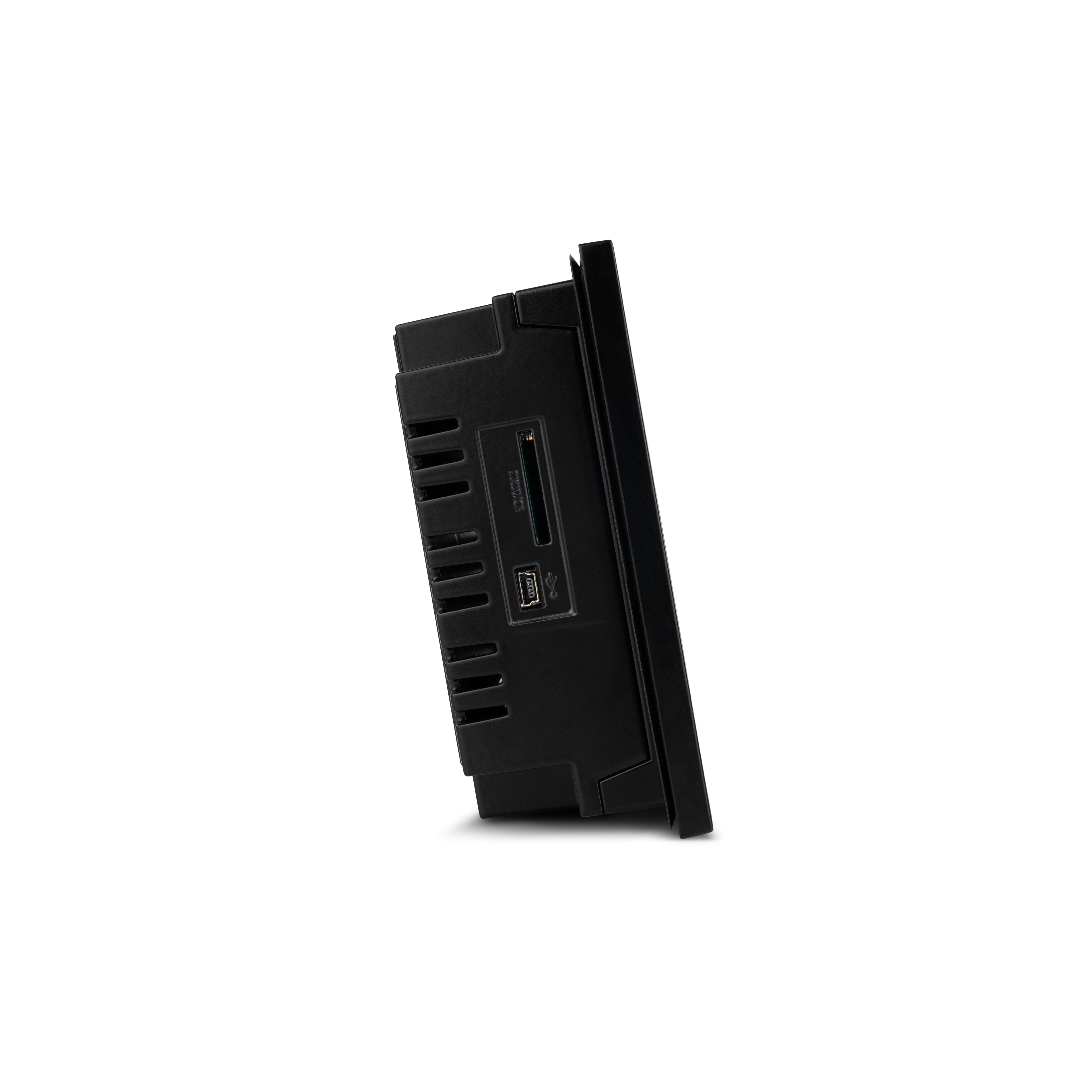

| SD Card | 1 SD slot |
|---|

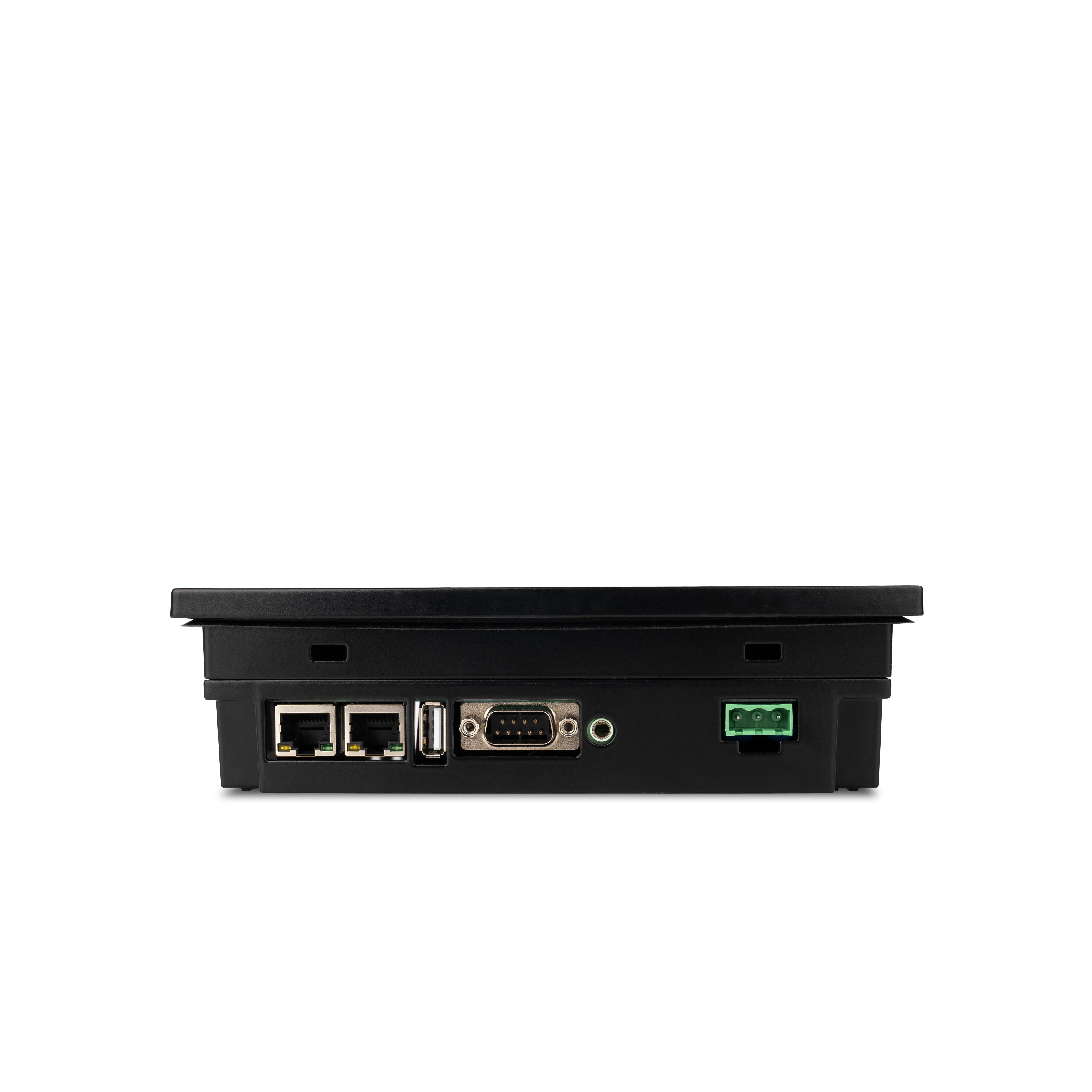

| COM Ports | COM1: RS-422/485
COM2: RS-232 |
|---|
| Ethernet | 2 × Gigabit (RJ45) |
|---|
| USB | 1 × USB Host
1 × USB mini-B (Tool Port) |
|---|
| Audio | 1 port |
|---|
| Front Bezel | Aluminum |
|---|
| Rated Voltage | DC24 V (Class 2) |
|---|
| Power Consumption | 9W (Max. 12W) |
|---|
| OS | Embedded Linux |
|---|
| Weight | 0.879 kg (1.94 lbs) |
|---|
| Dimension | 189 × 131 × 53.4 mm (7.44 × 5.16 × 2.10 in) |
|---|
| Panel Cut | 177 × 119 mm (6.97 × 4.69 in) |
|---|
| Operating Temperature | -20°C to 65°C (-4°F to 149°F) |
|---|
| Storage Temperature | -20°C to 65°C (-4°F to 149°F) |
|---|
| Operating Humidity | 10–90% RH (below 29°C, not condensed) |
|---|
| Storage Humidity | 10–90% RH (below 39°C, not condensed) |
|---|
| Environment | 800–1114 hPa (up to 2000 m / 6,500 ft) |
|---|
| Dust | ≤ 0.1 mg/m³ (No conductive dust) |
|---|
| Pollution Degree | ≤ Pollution Degree 2 |
|---|
| Ambience | No corrosive gas or dust |
|---|
| Noise Resistance | Impulse, EFT/Burst, Surge ±2 kV, 1 μs |
|---|
| Static Discharge | 4 kV (Contact), 8 kV (Air) (IEC 61000-4-2) |
|---|
| Concussion Resistance | JIS B 3502, IEC/EN 61131-2 compliant
147 m/s² (18 total hits, IEC/EN 61131-2) |
|---|
| Vibration Resistance | JIS B 3502, IEC/EN 61131-2 compliant
5–9 Hz: 3.5 mm
9–150 Hz: 9.8 m/s²
(X, Y, Z directions, 10 cycles) |
|---|
<div class="spec-table">
<table>
<tr><th>SKU</th><td>CM-nXT07-D</td></tr>
<tr><th>LCD Size</th><td>7 inch Wide TFT Color</td></tr>
<tr><th>Colors</th><td>16.7M colors</td></tr>
<tr><th>Resolution</th><td>WVGA 800 × 480</td></tr>
<tr><th>Backlight</th><td>LED, 1000 cd/m², 50,000 hours life</td></tr>
<tr><th>Touch Panel</th><td>Capacitive (5 points)</td></tr>
<tr><th>Memory</th><td>1 GB DDR3</td></tr>
<tr><th>Storage</th><td>8 GB eMMC</td></tr>
<tr><th>SD Card</th><td>1 SD slot</td></tr>
<tr><th>COM Ports</th><td>COM1: RS-422/485<br>COM2: RS-232</td></tr>
<tr><th>Ethernet</th><td>2 × Gigabit (RJ45)</td></tr>
<tr><th>USB</th><td>1 × USB Host<br>1 × USB mini-B (Tool Port)</td></tr>
<tr><th>Audio</th><td>1 port</td></tr>
<tr><th>Front Bezel</th><td>Aluminum</td></tr>
<tr><th>Rated Voltage</th><td>DC24 V (Class 2)</td></tr>
<tr><th>Power Consumption</th><td>9W (Max. 12W)</td></tr>
<tr><th>OS</th><td>Embedded Linux</td></tr>
<tr><th>Weight</th><td>0.879 kg (1.94 lbs)</td></tr>
<tr><th>Dimension</th><td>189 × 131 × 53.4 mm (7.44 × 5.16 × 2.10 in)</td></tr>
<tr><th>Panel Cut</th><td>177 × 119 mm (6.97 × 4.69 in)</td></tr>
<tr><th>Operating Temperature</th><td>-20°C to 65°C (-4°F to 149°F)</td></tr>
<tr><th>Storage Temperature</th><td>-20°C to 65°C (-4°F to 149°F)</td></tr>
<tr><th>Operating Humidity</th><td>10–90% RH (below 29°C, not condensed)</td></tr>
<tr><th>Storage Humidity</th><td>10–90% RH (below 39°C, not condensed)</td></tr>
<tr><th>Environment</th><td>800–1114 hPa (up to 2000 m / 6,500 ft)</td></tr>
<tr><th>Dust</th><td>≤ 0.1 mg/m³ (No conductive dust)</td></tr>
<tr><th>Pollution Degree</th><td>≤ Pollution Degree 2</td></tr>
<tr><th>Ambience</th><td>No corrosive gas or dust</td></tr>
<tr><th>Noise Resistance</th><td>Impulse, EFT/Burst, Surge ±2 kV, 1 μs</td></tr>
<tr><th>Static Discharge</th><td>4 kV (Contact), 8 kV (Air) (IEC 61000-4-2)</td></tr>
<tr><th>Concussion Resistance</th><td>JIS B 3502, IEC/EN 61131-2 compliant<br>147 m/s² (18 total hits, IEC/EN 61131-2)</td></tr>
<tr><th>Vibration Resistance</th><td>JIS B 3502, IEC/EN 61131-2 compliant<br>5–9 Hz: 3.5 mm<br>9–150 Hz: 9.8 m/s²<br>(X, Y, Z directions, 10 cycles)</td></tr>
</table>
</div>
