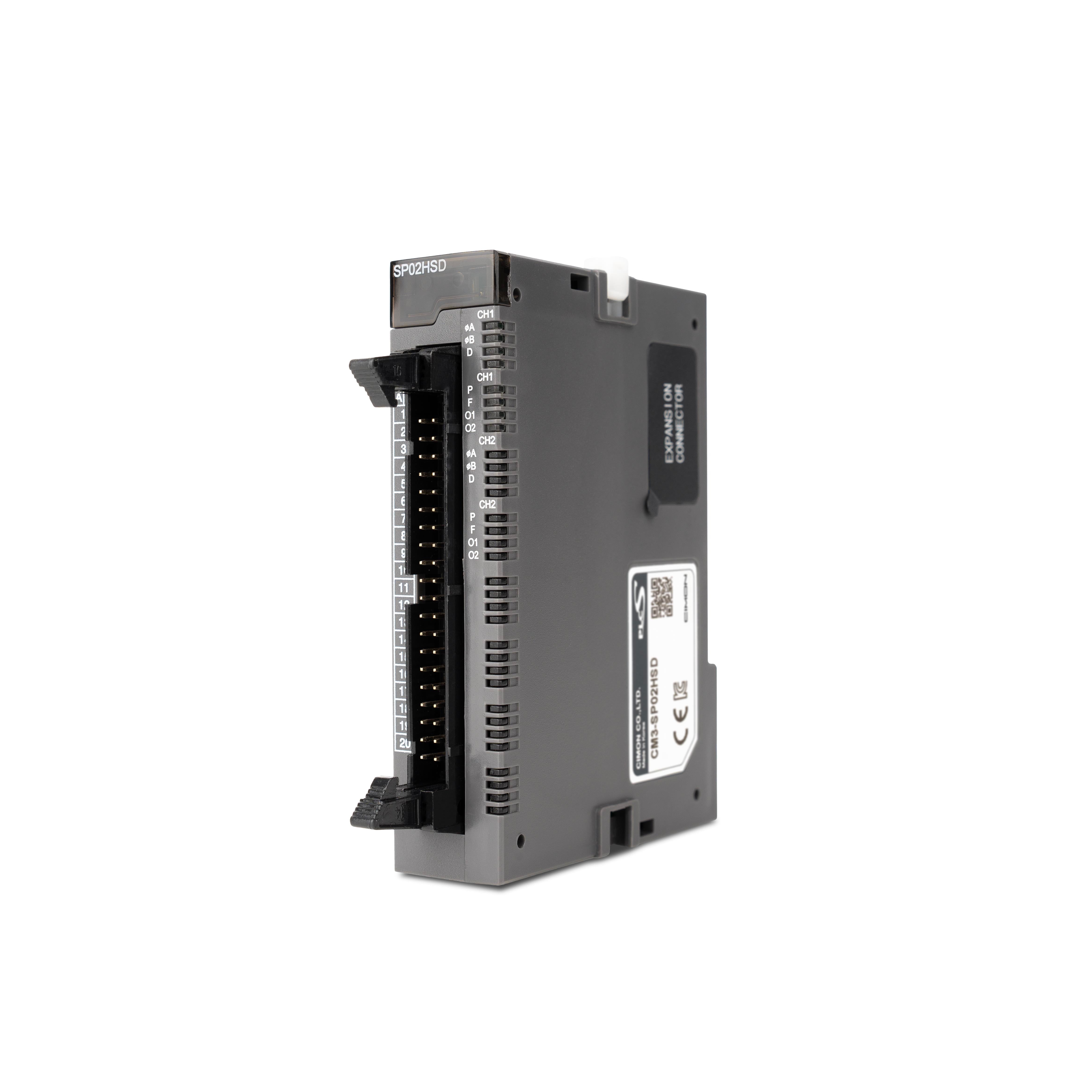

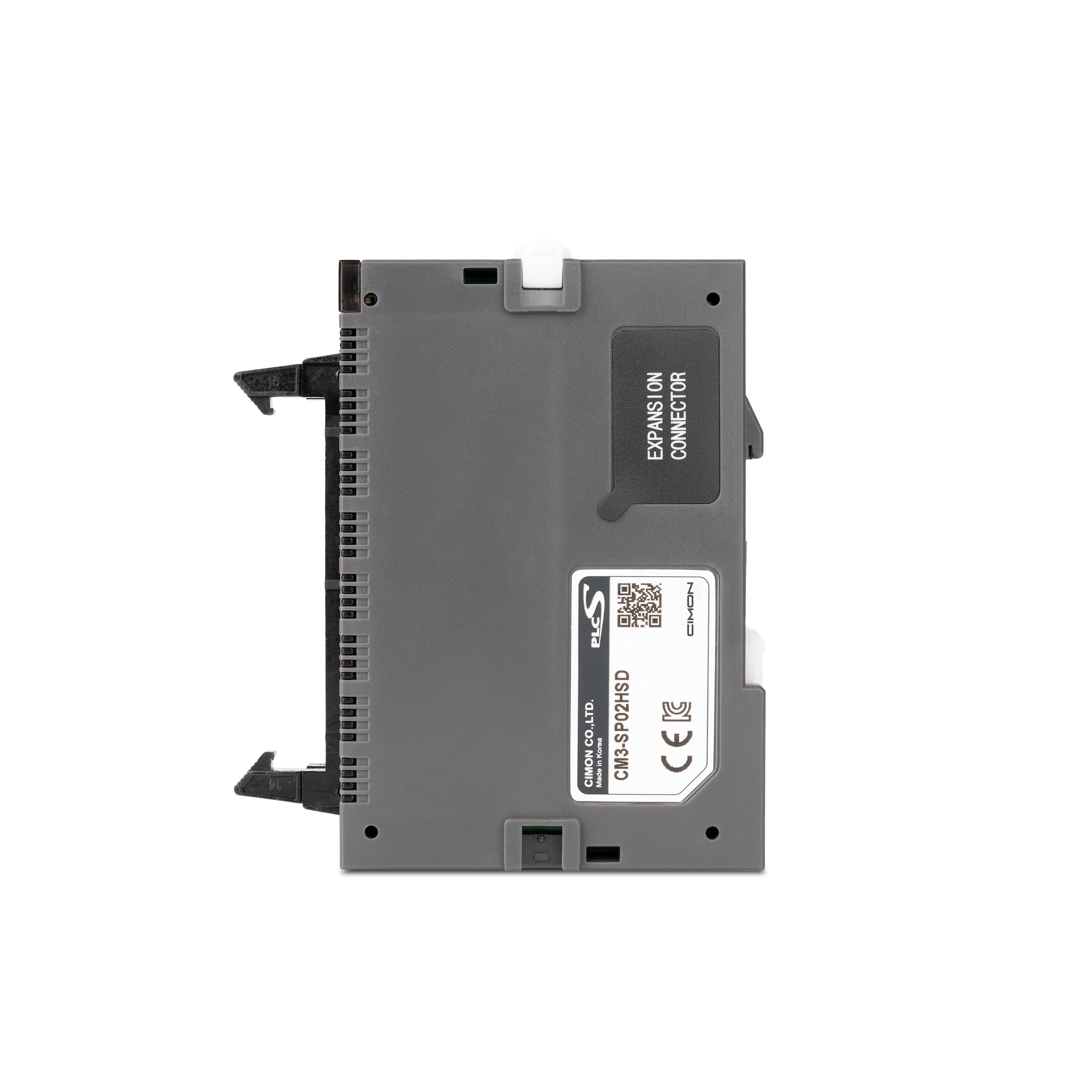

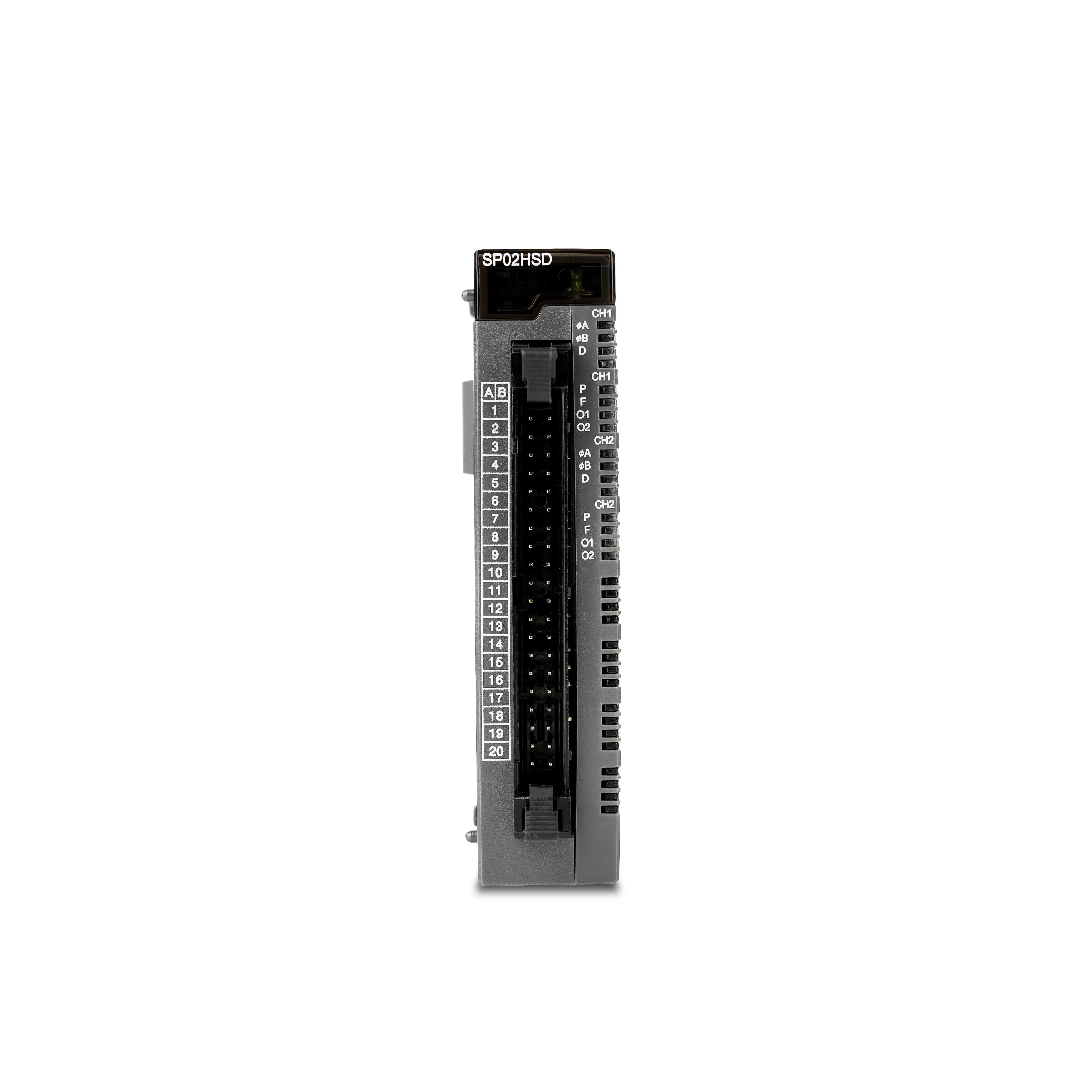

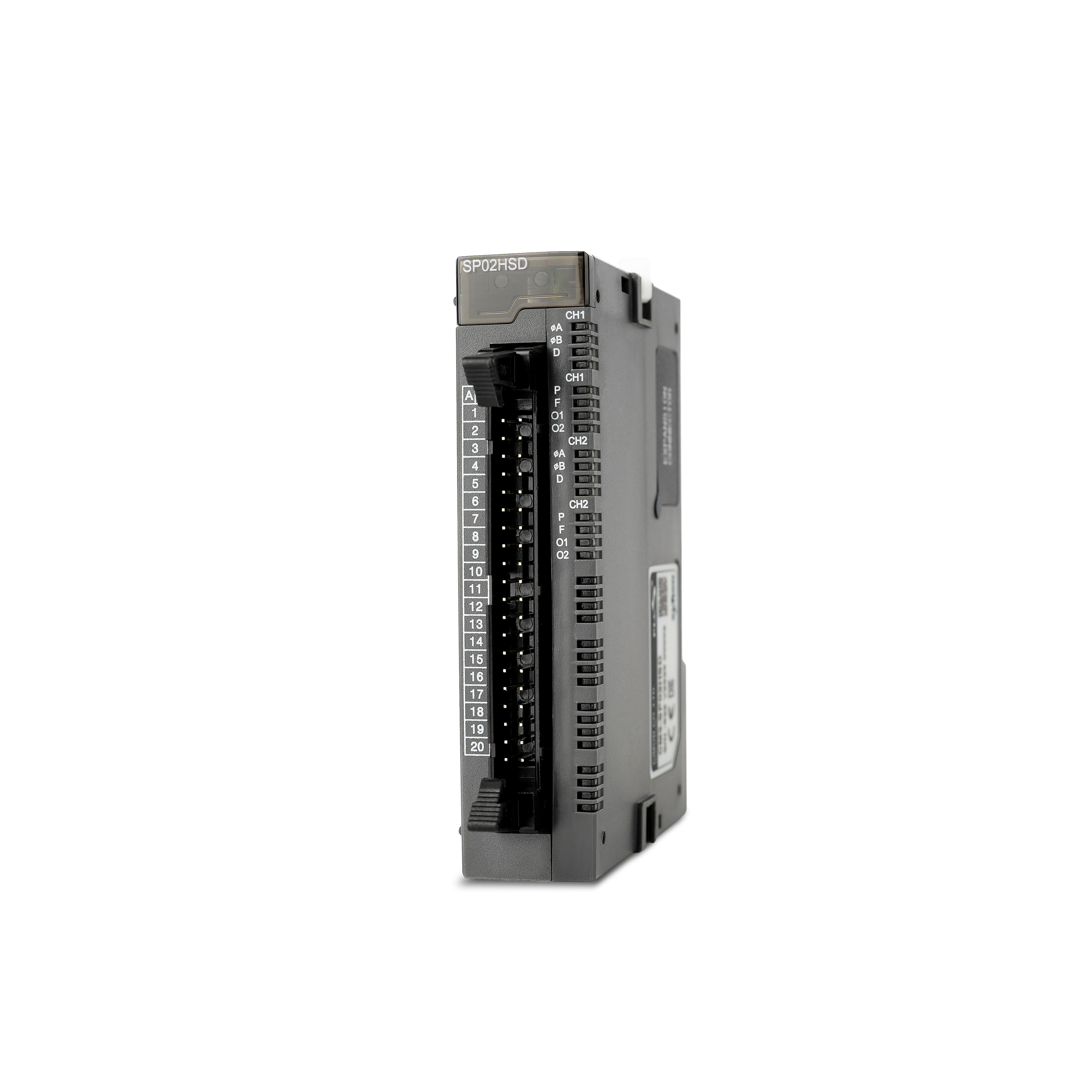

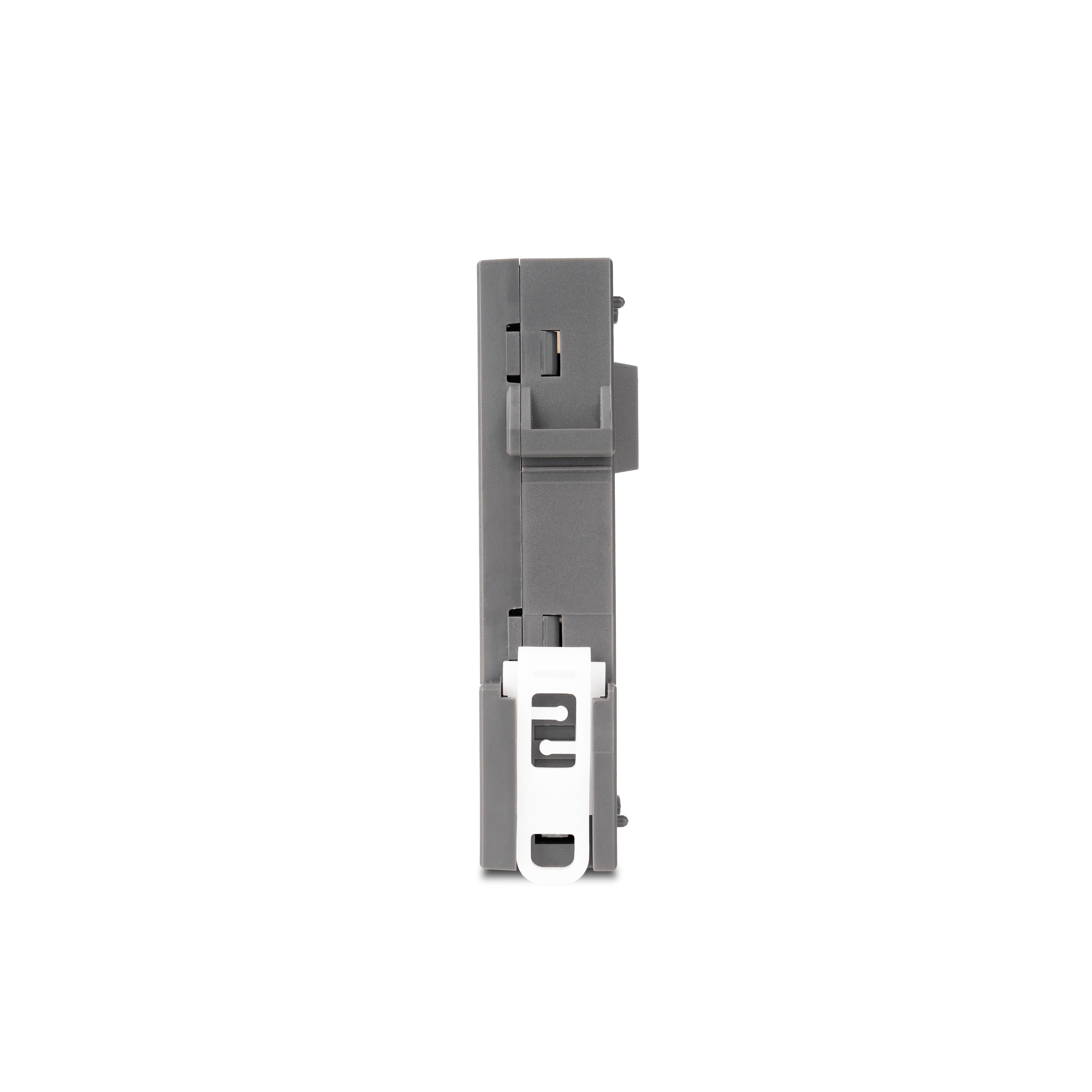

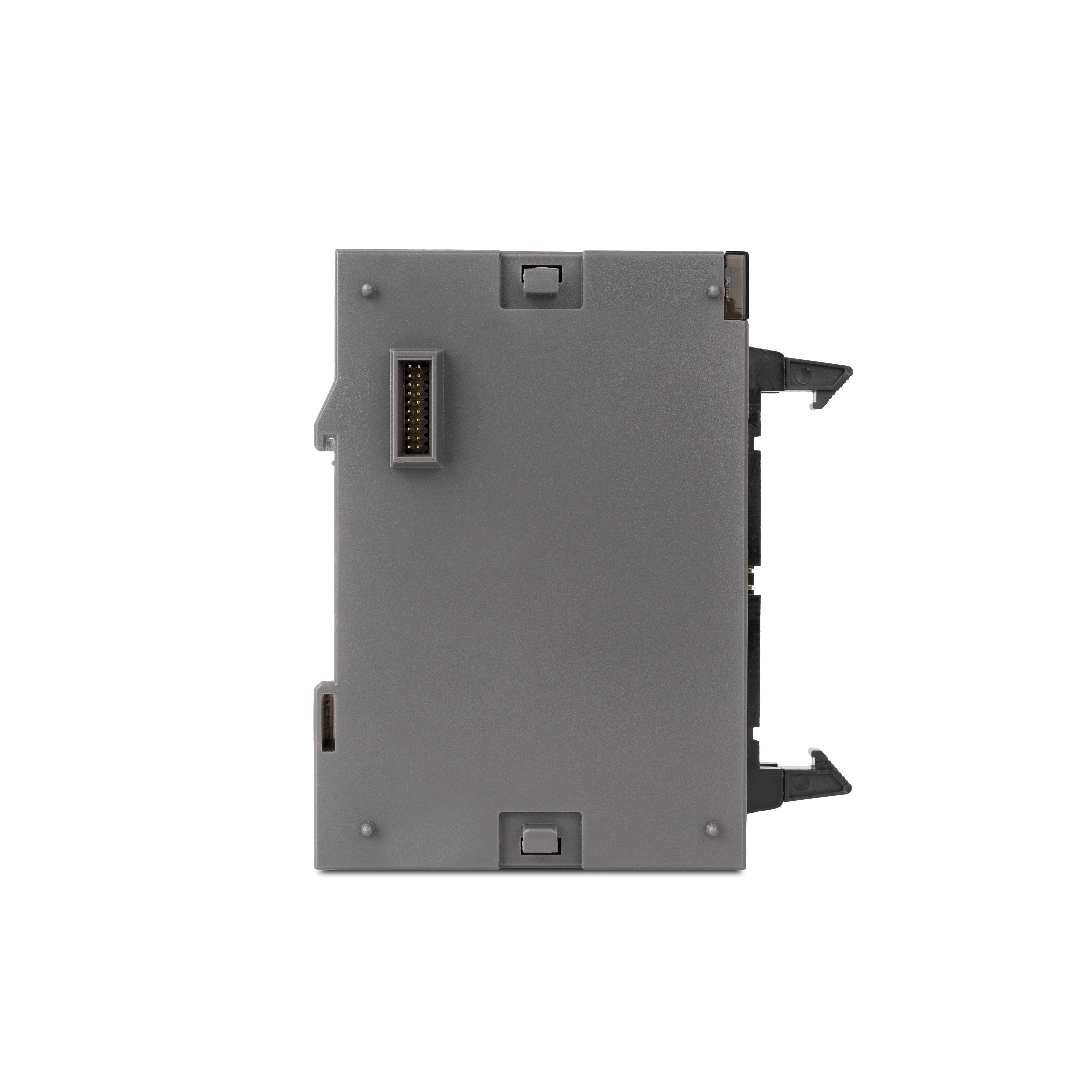

High-Speed Counter Expansion Module, Line Drive Input
- PLC-S High-Speed Counter (HSC) Module
- 2-Channel
- 250/500 kHz
- 5/24 VDC
- HTL/RS-422A Line Drive
- CM0-TB32M terminal block and CM0-SCB15M connection cable required




High-Speed Counter Expansion Module, Line Drive Input
Sale price฿ 250.00
SKU | CM3-SP02HSD |
---|---|
I/O Points | 16 points |
Sensor | 2 channels |
Count Input Signal - Phase | 1 Phase input / 2 Phase input |
Count Input Signal - Level (фA, фB) | RS-422A Line Drive (5 V) / HTL Line Drive (24 V) |
Count Input Signal - Types | Line Drive (Differential Input) |
Count - Speed | RS-422A Line Driver: 500 kpps HTL Line Driver: 250 kpps |
Count - Range | 32-bit signed binary values (-2,147,483,648 to 2,147,483,647) |
Count - Mode | Up/Down Preset Counter + Ring Counter |
Compared - Compared Range | 32-bit signed binary values |
Output - Comparison |
Compared value < Present value Compared value = Present value Compared value > Present value |
External Input | 5/12/24 V DC, 2–5 mA |
External Output | TR (SINK Type) Output, 12–24 V |
Power Consumption | 105 mA |
