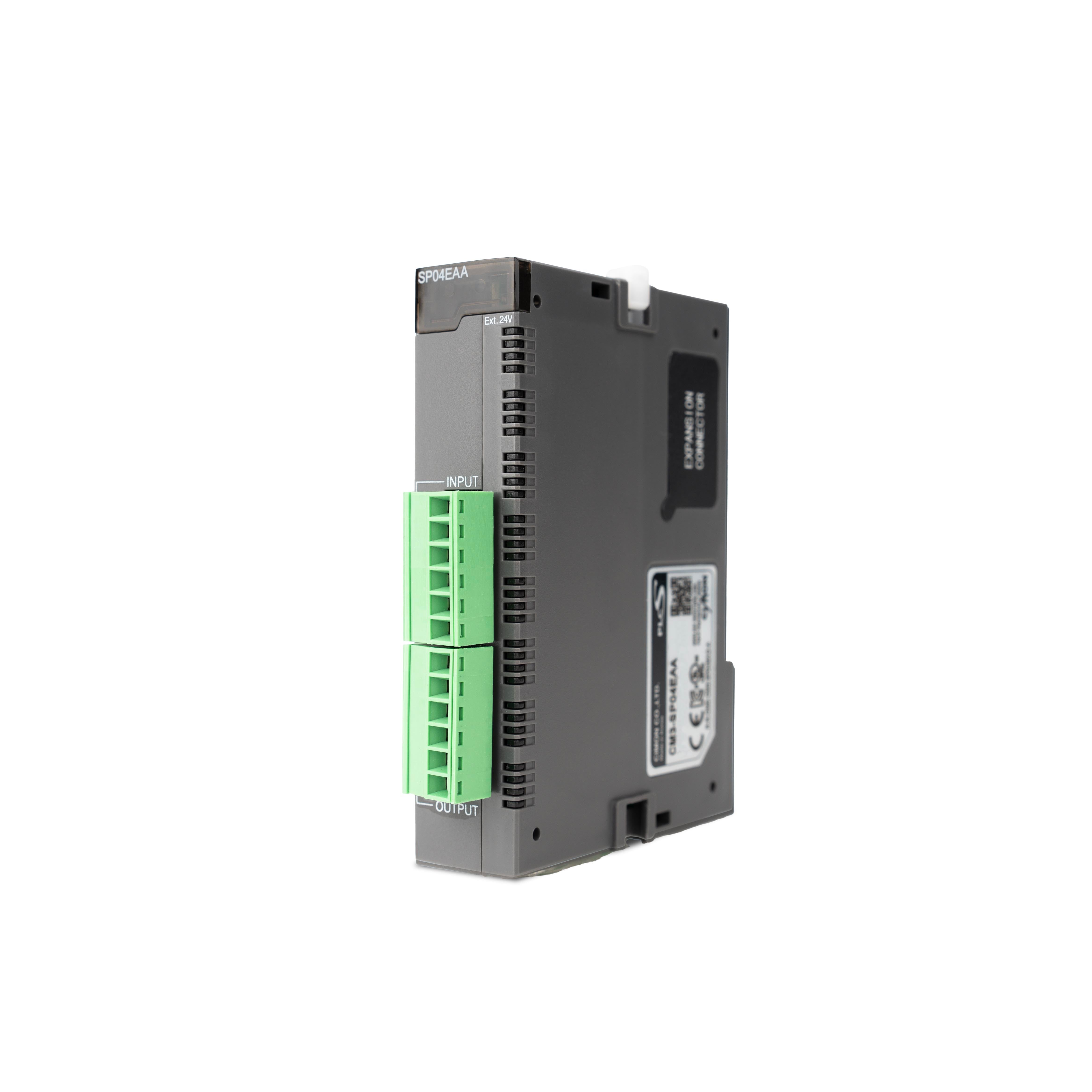

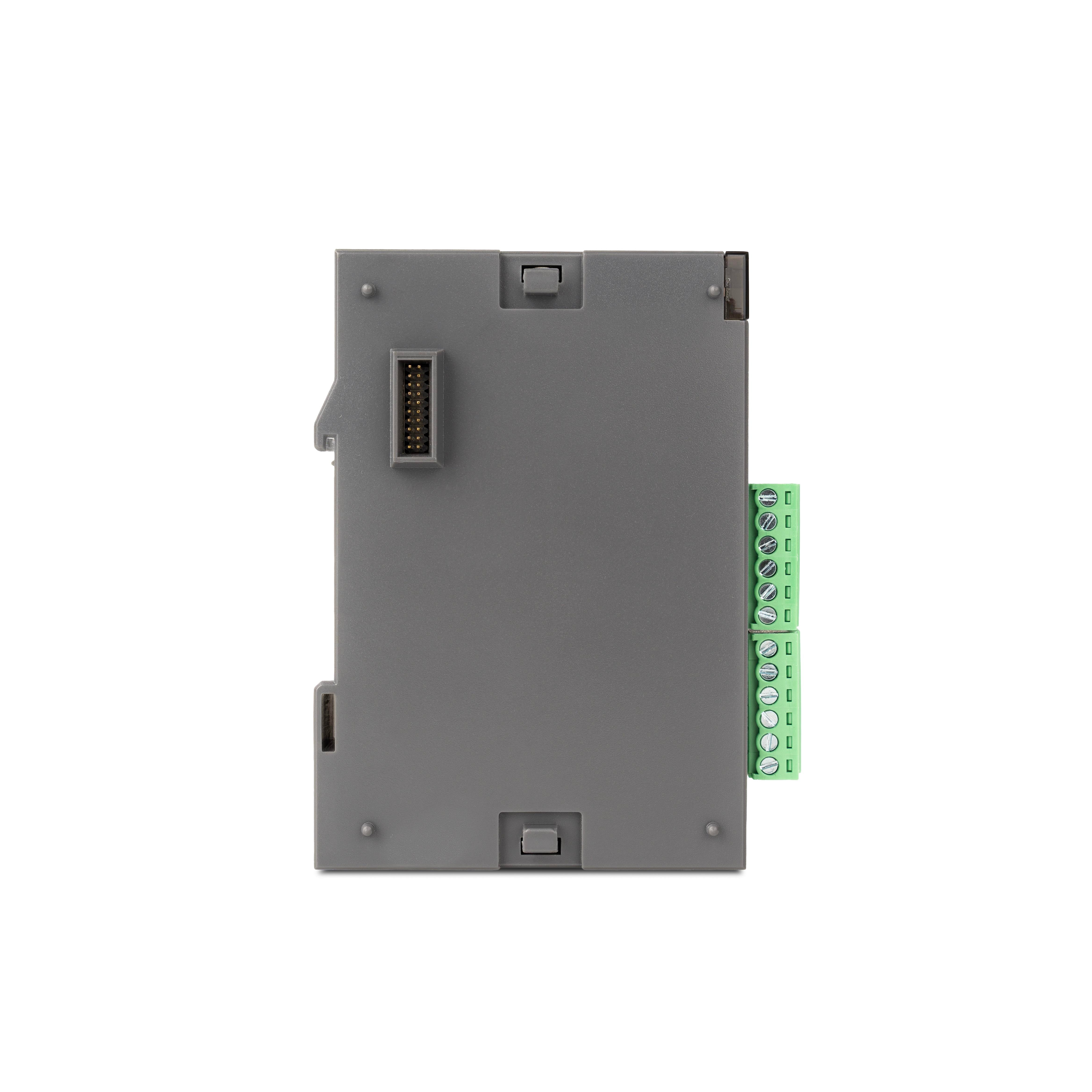

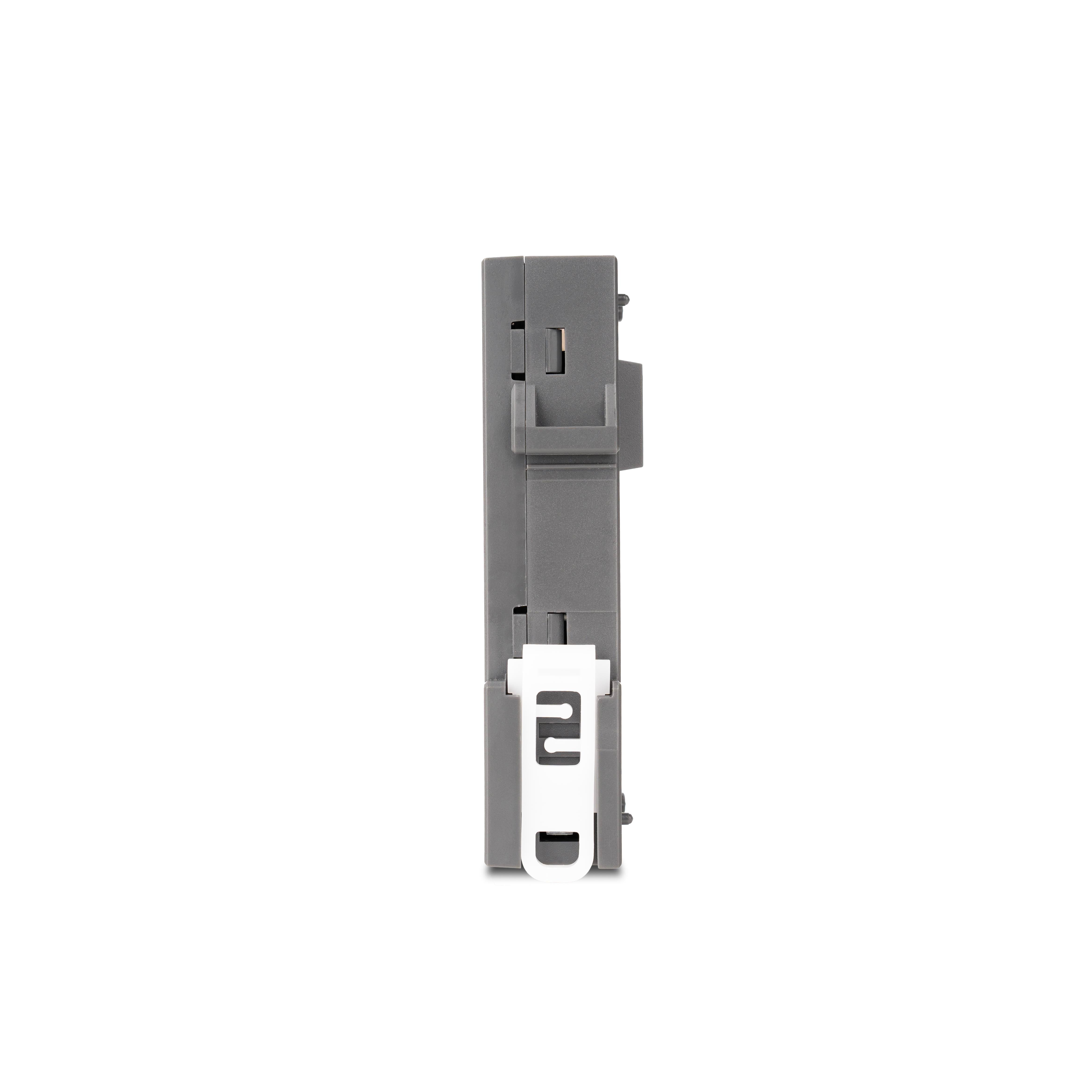

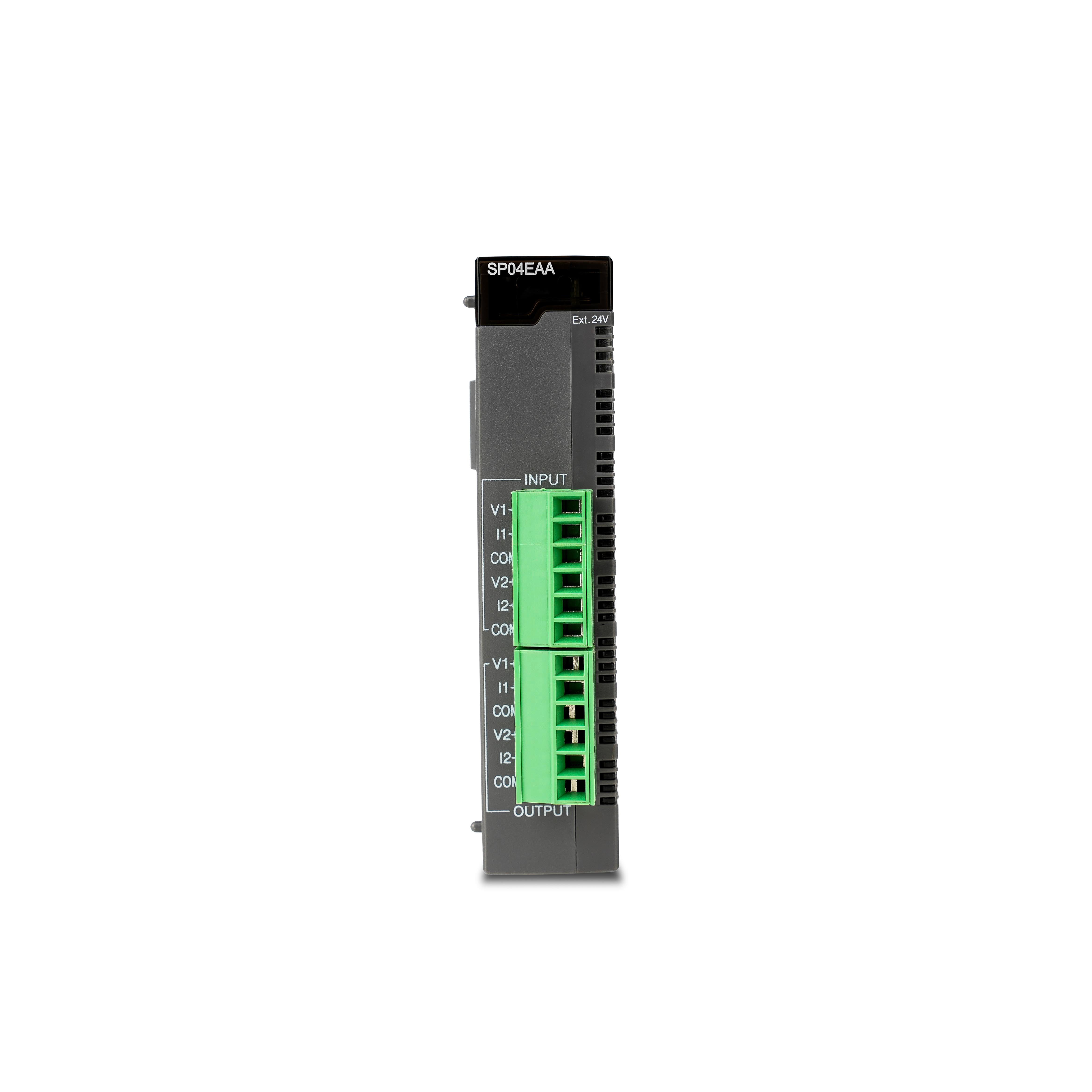

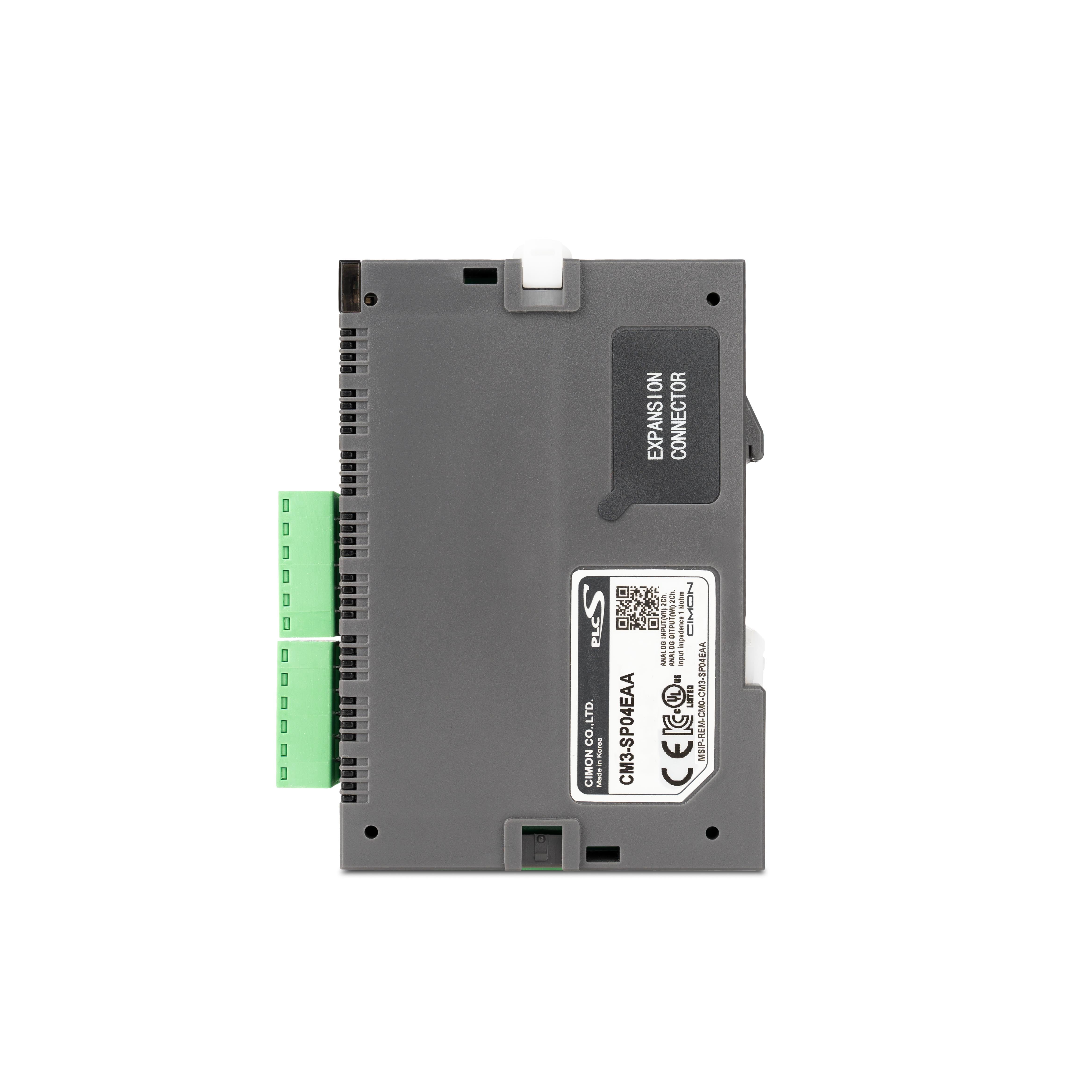

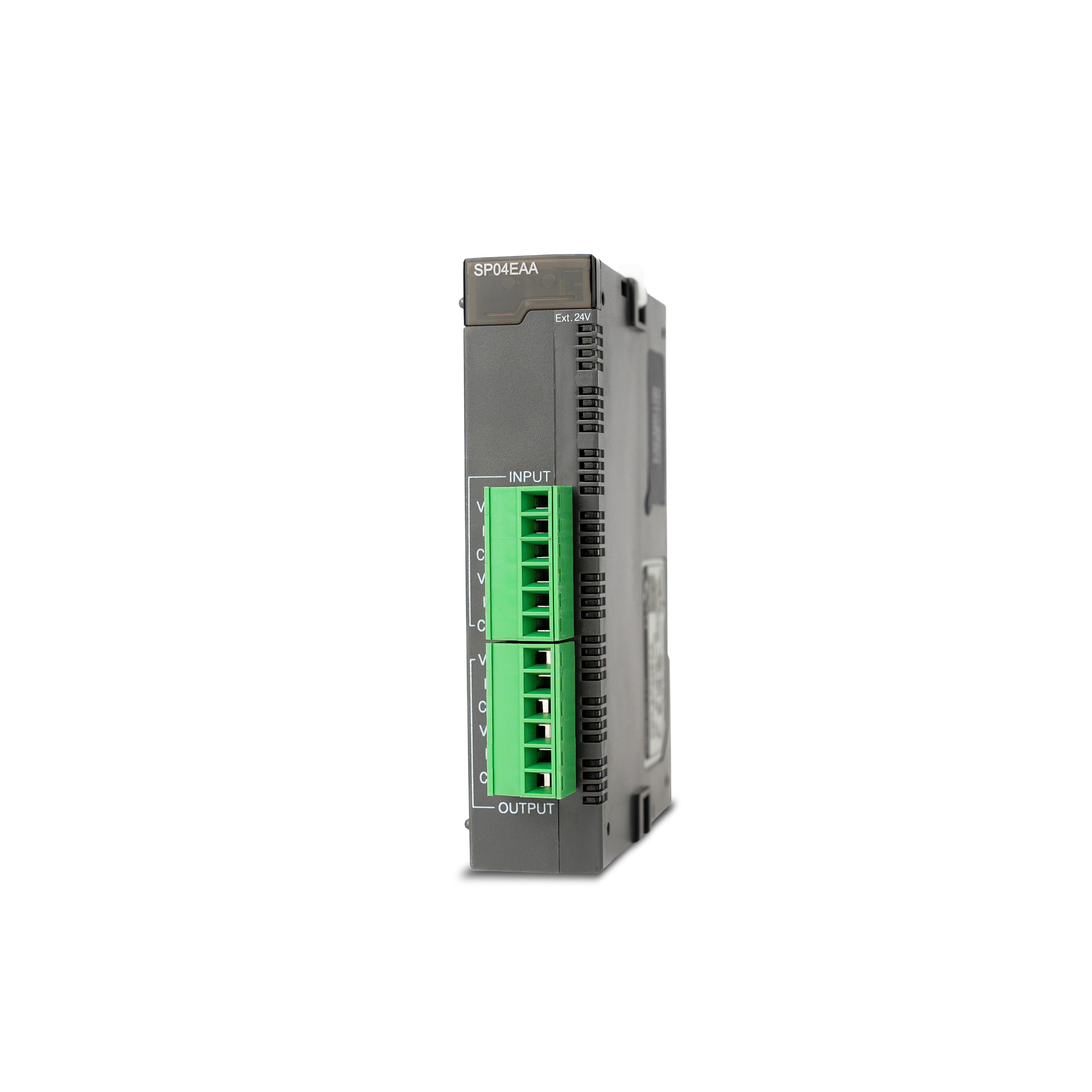

Analog Combo Expansion Module

CM3-SP04EAA-A

฿ 210.00

PLC-S Analog Combo Module
Input: 2-Channel, Current/Voltage, 0-20 mA, +/-10 V, 16-bit
Output: 2-Channel, Current/Voltage, 0-20 mA, +/-10 V
External 24 VDC Required
Removable screw-based terminal blocks

Quantity:

฿ 210.00

Specifications

SKU	CM3-SP04EAA-A
Category	Analog Input / Analog Output Module
I/O Points	2 Current/Voltage Inputs, 2 Current/Voltage Outputs
Detail	Input: 0 – 20 mA, -10 – +10 V Output: 0 – 20 mA, -10 – +10 V Screw-based Connector
Analog Input Points	2 Points
Analog Output Points	2 Points
Analog Input	Voltage: 0 – 5 V, 1 – 5 V, 0 – 10 V, -10 – 10 V Current: 0 – 20 mA, 4 – 20 mA
Analog Output	Voltage: 0 – 5 V, 1 – 5 V, 0 – 10 V, -10 – 10 V Current: 0 – 20 mA, 4 – 20 mA
Minimum Load Impedance	1 kΩ
Resolution	14-bit (0–16000), 16-bit (0–64000)
Accuracy	Input: ±0.3% (Full Scale) Output: ±0.05% (Full Scale)
Conversion Speed	Input: < 0.5 ms Output: < 2 ms
Insulation Method	Photocoupler
Power Supply	External 24 VDC
Current Consumption (Internal)	@3.3 VDC, 45 mA
Current Consumption (External)	@24 VDC, 75 mA
Operating Temperature	-10 – +60 °C (+14 – +140 °F)
Storage Temperature	-25 – +80 °C (-13 – +176 °F)
Operating/Storage Humidity	5 – 95% RH (Non-condensing)
Shock	15G (IEC 60068-2-64)
Vibration	0.5G - Continuous 1G - Discontinuous (IEC60068-2-64, IEC60068-2-6)
Square Wave Impulse Noise	±2 kV (CIMON Standard)
ESD Immunity	±4 kV - Contact Discharges ±8 kV - Air Discharges (IEC 61131-2, IEC 61000-4-2)
Radiated Electromagnetic Immunity	80–1000 MHz, 10 V/m (IEC 61131-2, IEC 61000-4-3)
Surge Transient Immunity	2 kV - CPU, Power 2 kV - Discrete I/O (VAC) 1 kV - Discrete I/O (VDC) 1 kV - Communication (IEC 61131-2, IEC 61000-4-4)

<div class="spec-table">
<table>
<tr><th>SKU</th><td>CM3-SP04EAA-A</td></tr>
<tr><th>Category</th><td>Analog Input / Analog Output Module</td></tr>
<tr><th>I/O Points</th><td>2 Current/Voltage Inputs, 2 Current/Voltage Outputs</td></tr>
<tr><th>Detail</th>
<td>
Input: 0 – 20 mA, -10 – +10 V<br>
Output: 0 – 20 mA, -10 – +10 V<br>
Screw-based Connector
</td>
</tr>
<tr><th>Analog Input Points</th><td>2 Points</td></tr>
<tr><th>Analog Output Points</th><td>2 Points</td></tr>
<tr><th>Analog Input</th>
<td>
Voltage: 0 – 5 V, 1 – 5 V, 0 – 10 V, -10 – 10 V<br>
Current: 0 – 20 mA, 4 – 20 mA
</td>
</tr>
<tr><th>Analog Output</th>
<td>
Voltage: 0 – 5 V, 1 – 5 V, 0 – 10 V, -10 – 10 V<br>
Current: 0 – 20 mA, 4 – 20 mA
</td>
</tr>
<tr><th>Minimum Load Impedance</th><td>1 kΩ</td></tr>
<tr><th>Resolution</th><td>14-bit (0–16000), 16-bit (0–64000)</td></tr>
<tr><th>Accuracy</th>
<td>
Input: ±0.3% (Full Scale)<br>
Output: ±0.05% (Full Scale)
</td>
</tr>
<tr><th>Conversion Speed</th>
<td>
Input: < 0.5 ms<br>
Output: < 2 ms
</td>
</tr>
<tr><th>Insulation Method</th><td>Photocoupler</td></tr>
<tr><th>Power Supply</th><td>External 24 VDC</td></tr>
<tr><th>Current Consumption (Internal)</th><td>@3.3 VDC, 45 mA</td></tr>
<tr><th>Current Consumption (External)</th><td>@24 VDC, 75 mA</td></tr>
<tr><th>Operating Temperature</th><td>-10 – +60 °C (+14 – +140 °F)</td></tr>
<tr><th>Storage Temperature</th><td>-25 – +80 °C (-13 – +176 °F)</td></tr>
<tr><th>Operating/Storage Humidity</th><td>5 – 95% RH (Non-condensing)</td></tr>
<tr><th>Shock</th><td>15G (IEC 60068-2-64)</td></tr>
<tr><th>Vibration</th>
<td>0.5G - Continuous<br>1G - Discontinuous<br>(IEC60068-2-64, IEC60068-2-6)</td>
</tr>
<tr><th>Square Wave Impulse Noise</th><td>±2 kV (CIMON Standard)</td></tr>
<tr><th>ESD Immunity</th>
<td>±4 kV - Contact Discharges<br>±8 kV - Air Discharges<br>(IEC 61131-2, IEC 61000-4-2)</td>
</tr>
<tr><th>Radiated Electromagnetic Immunity</th><td>80–1000 MHz, 10 V/m (IEC 61131-2, IEC 61000-4-3)</td></tr>
<tr><th>Surge Transient Immunity</th>
<td>
2 kV - CPU, Power<br>
2 kV - Discrete I/O (VAC)<br>
1 kV - Discrete I/O (VDC)<br>
1 kV - Communication<br>
(IEC 61131-2, IEC 61000-4-4)
</td>
</tr>
</table>
</div>
