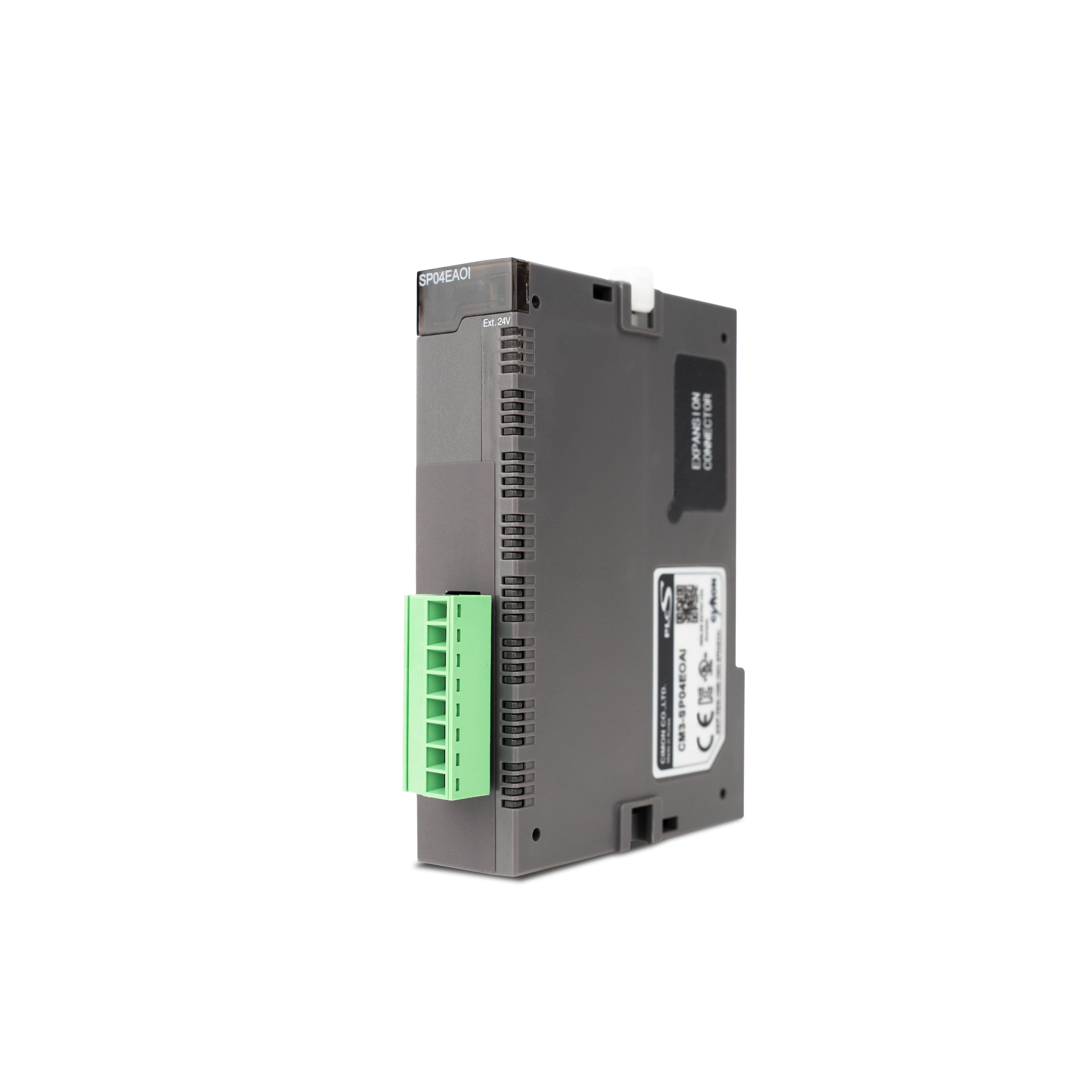

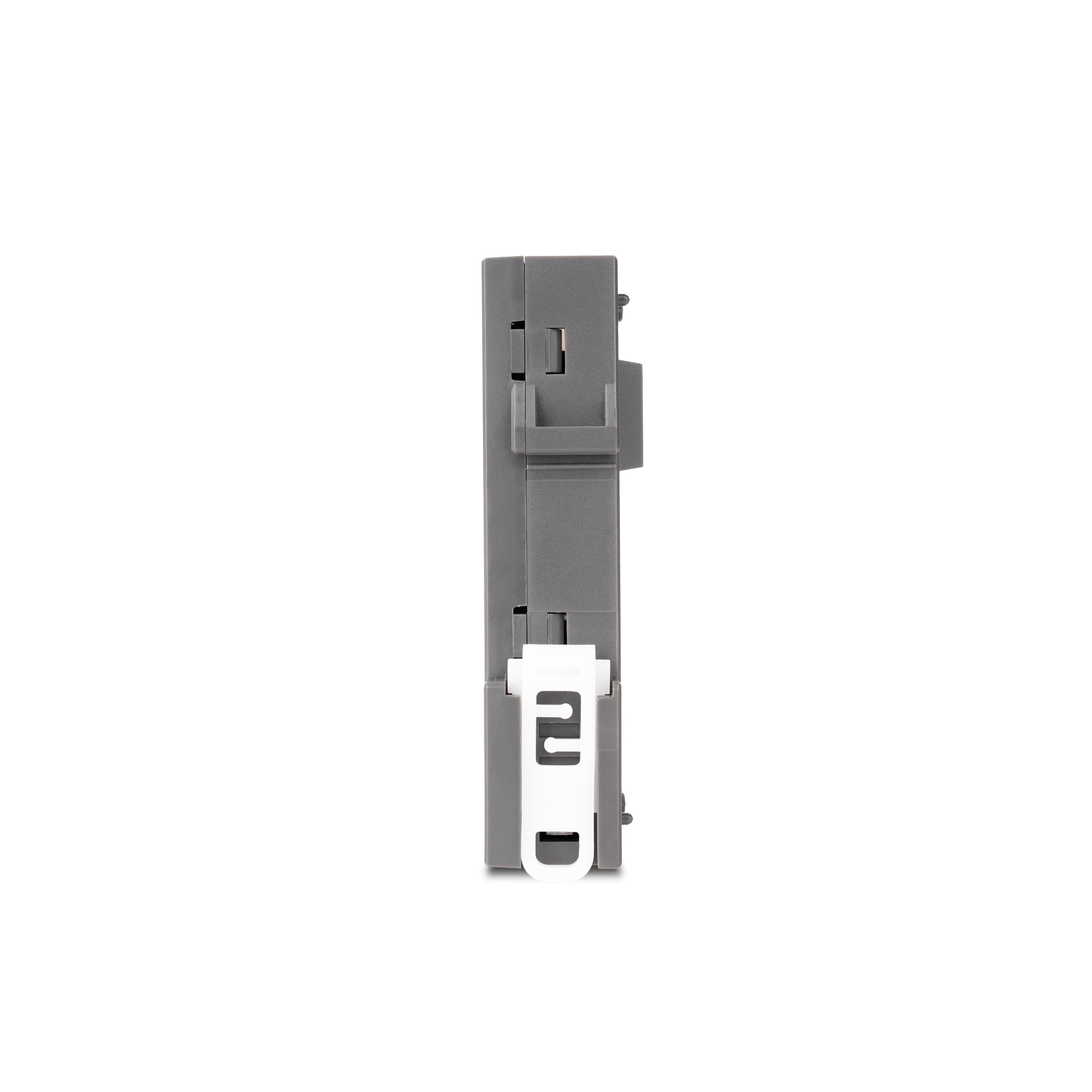

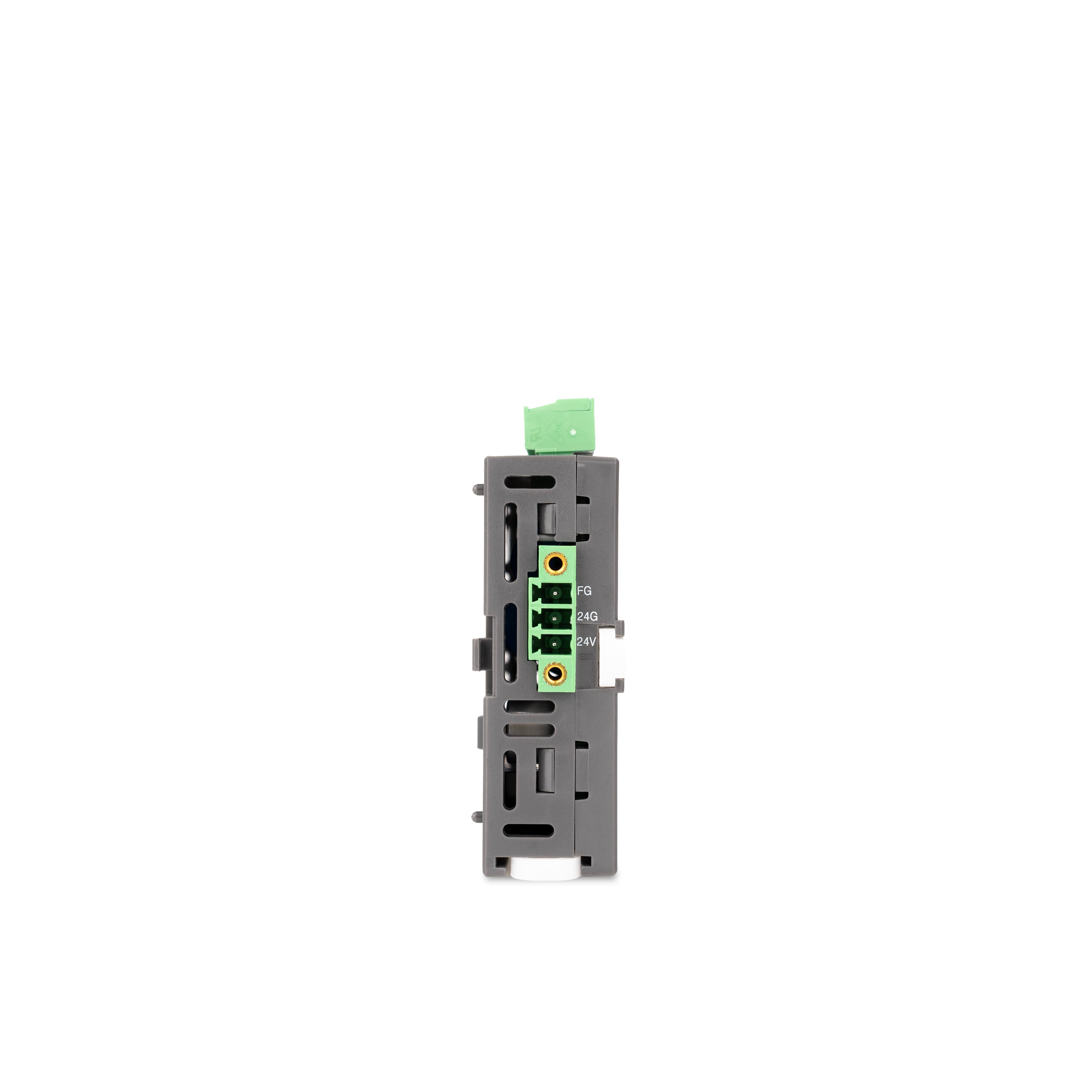

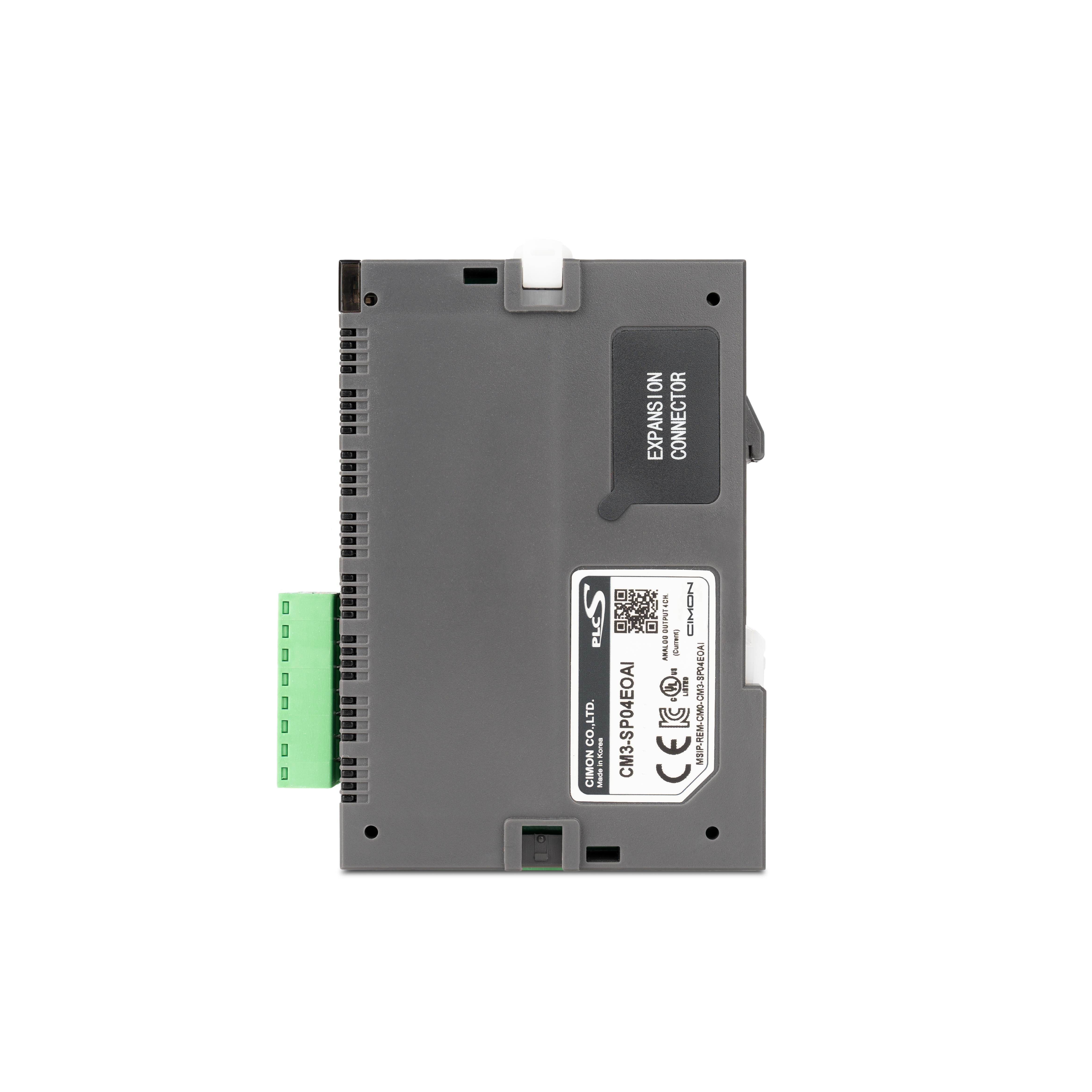

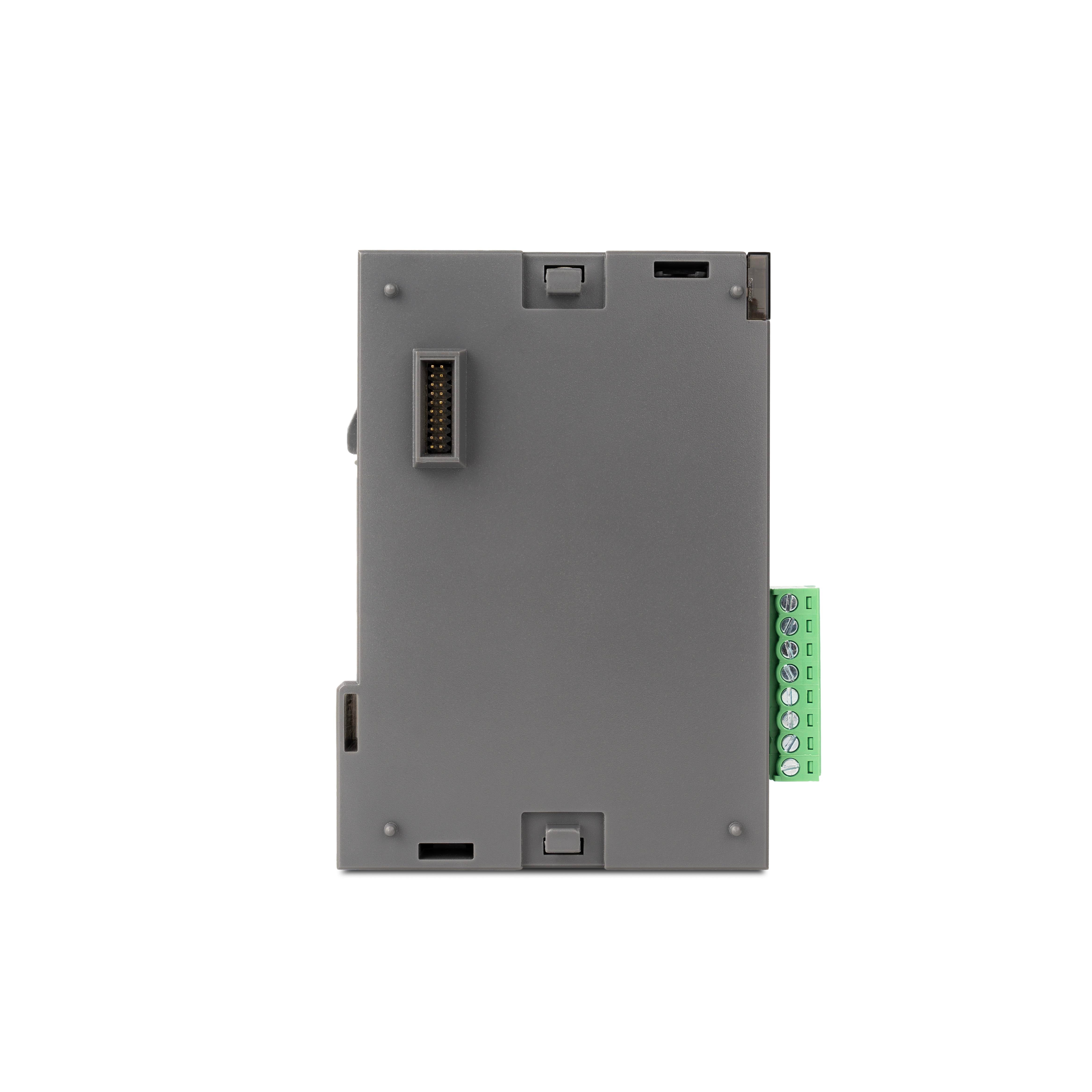

| SKU | CM3-SP04EOAI |
|---|
| Category | Analog Output Module |
|---|
| I/O Points | 4 Current Outputs |
|---|
| Detail | 4 – 20 mA, Screw-based Connector |
|---|
| Analog Output Points | 4 Points |
|---|
| Analog Output | 4 – 20 mA |
|---|
| Minimum Load Impedance | - |
|---|
| Resolution | 14-bit, 0 – 16000 |
|---|
| Accuracy | ±0.01% (Full Scale) |
|---|
| Conversion Speed | <2 ms |
|---|
| Insulation Method | Photocoupler |
|---|
| Power Supply | External 24 VDC |
|---|
| Current Consumption (Internal) | @3.3 VDC, 40 mA |
|---|
| Current Consumption (External) | @24 VDC, 90 mA |
|---|
| Operating Temperature | -10 – +60 °C (+14 – +140 °F) |
|---|
| Storage Temperature | -25 – +80 °C (-13 – +176 °F) |
|---|
| Operating/Storage Relative Humidity | 5 – 95% Non-condensing |
|---|
| Shock | 15G (Standards: IEC 60068-2-64) |
|---|
| Vibration | 0.5G - Continuous, 1G - Discontinuous (Standards: IEC60068-2-64, IEC60068-2-6) |
|---|
| Square Wave Impulse Noise | ±2 kV (Standards: CIMON Standard) |
|---|
| ESD Immunity | ±4 kV - Contact Discharges, ±8 kV - Air Discharges (Standards: IEC 61131-2, IEC 61000-4-2) |
|---|
| Radiated Electromagnetic Immunity | 80–1000 MHz, 10 V/m (Standards: IEC 61131-2, IEC 61000-4-3) |
|---|
| Surge Transient Immunity | 2 kV - CPU, Power; 2 kV - Discrete I/O (VAC); 1 kV - Discrete I/O (VDC); 1 kV - Communication (Standards: IEC 61131-2, IEC 61000-4-4) |
|---|
