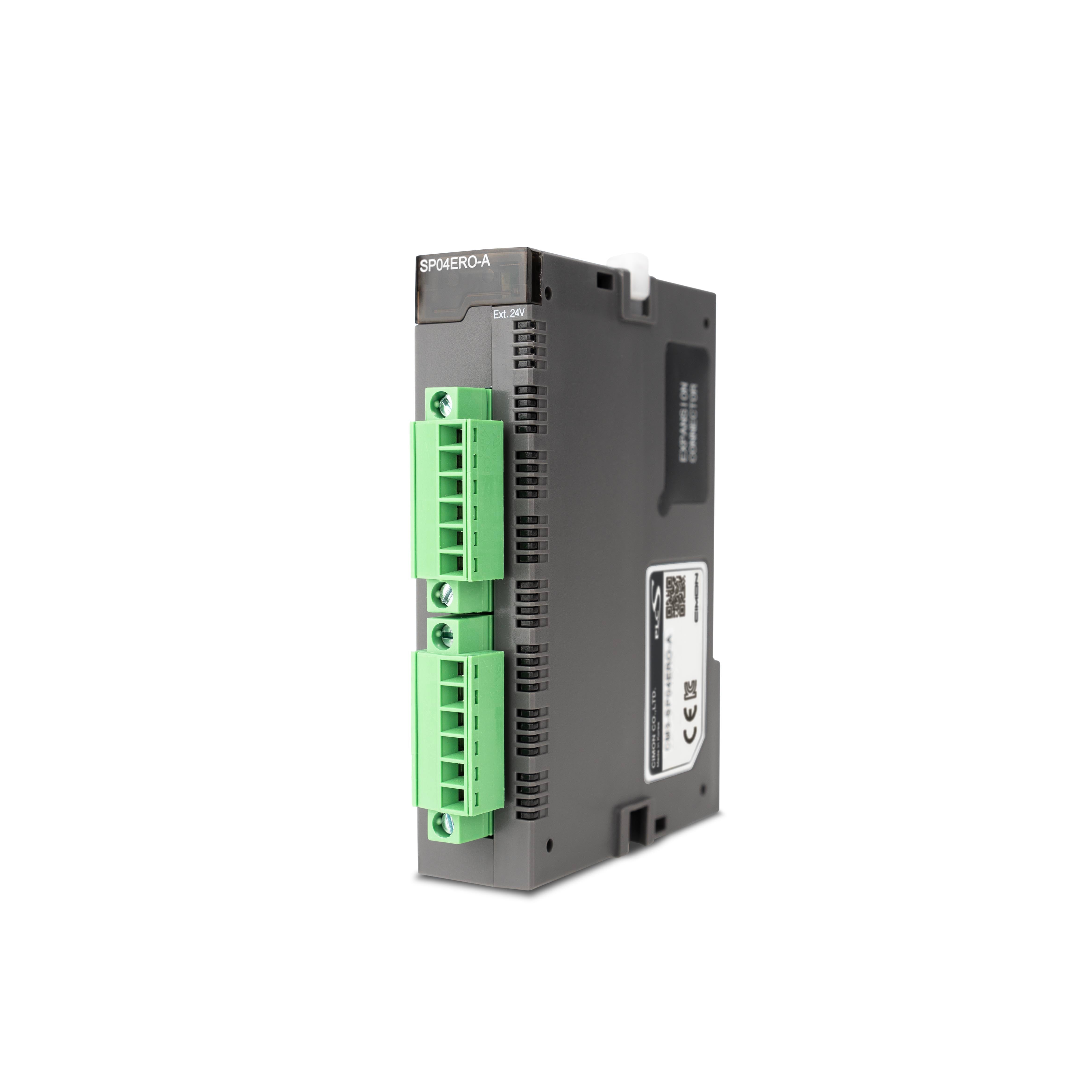

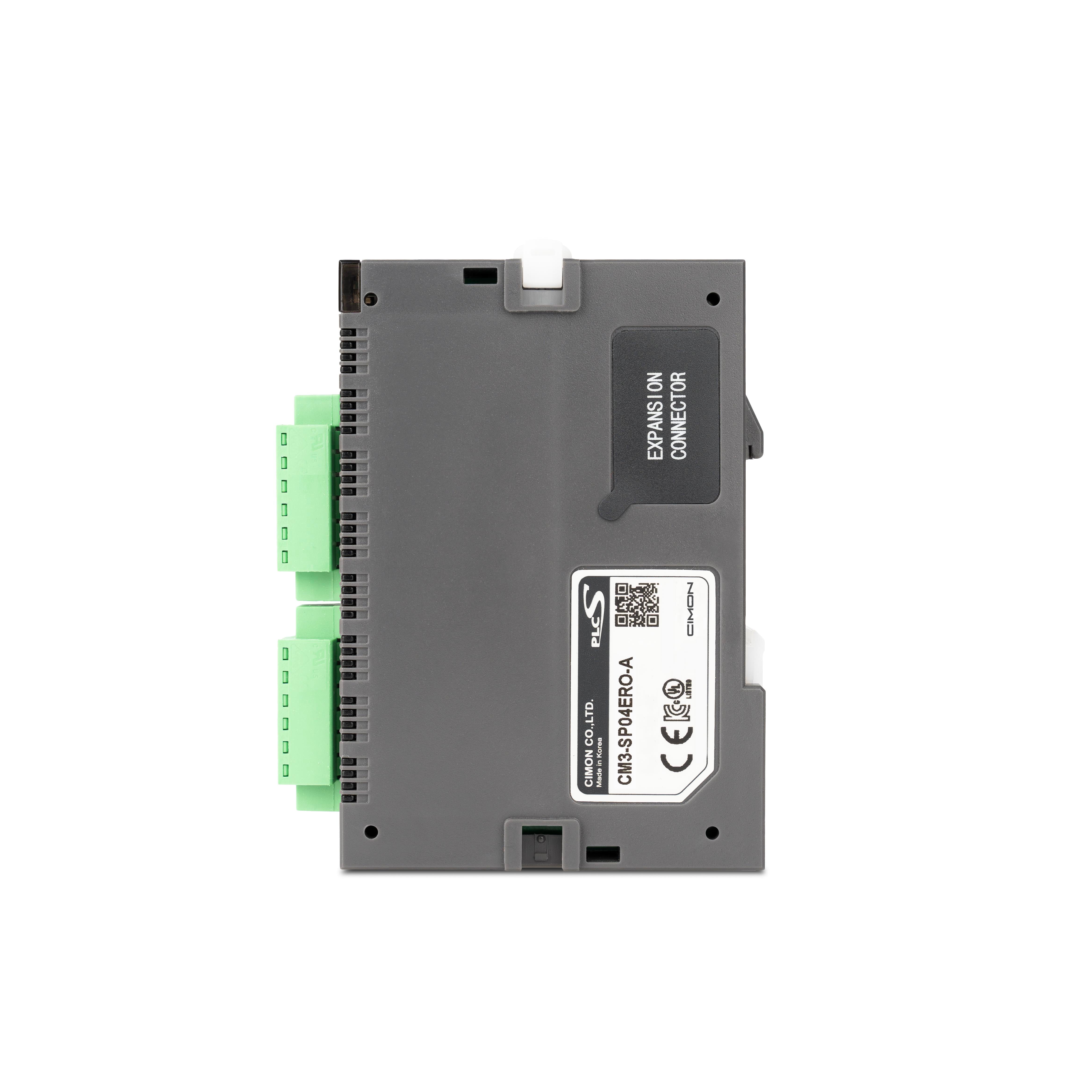

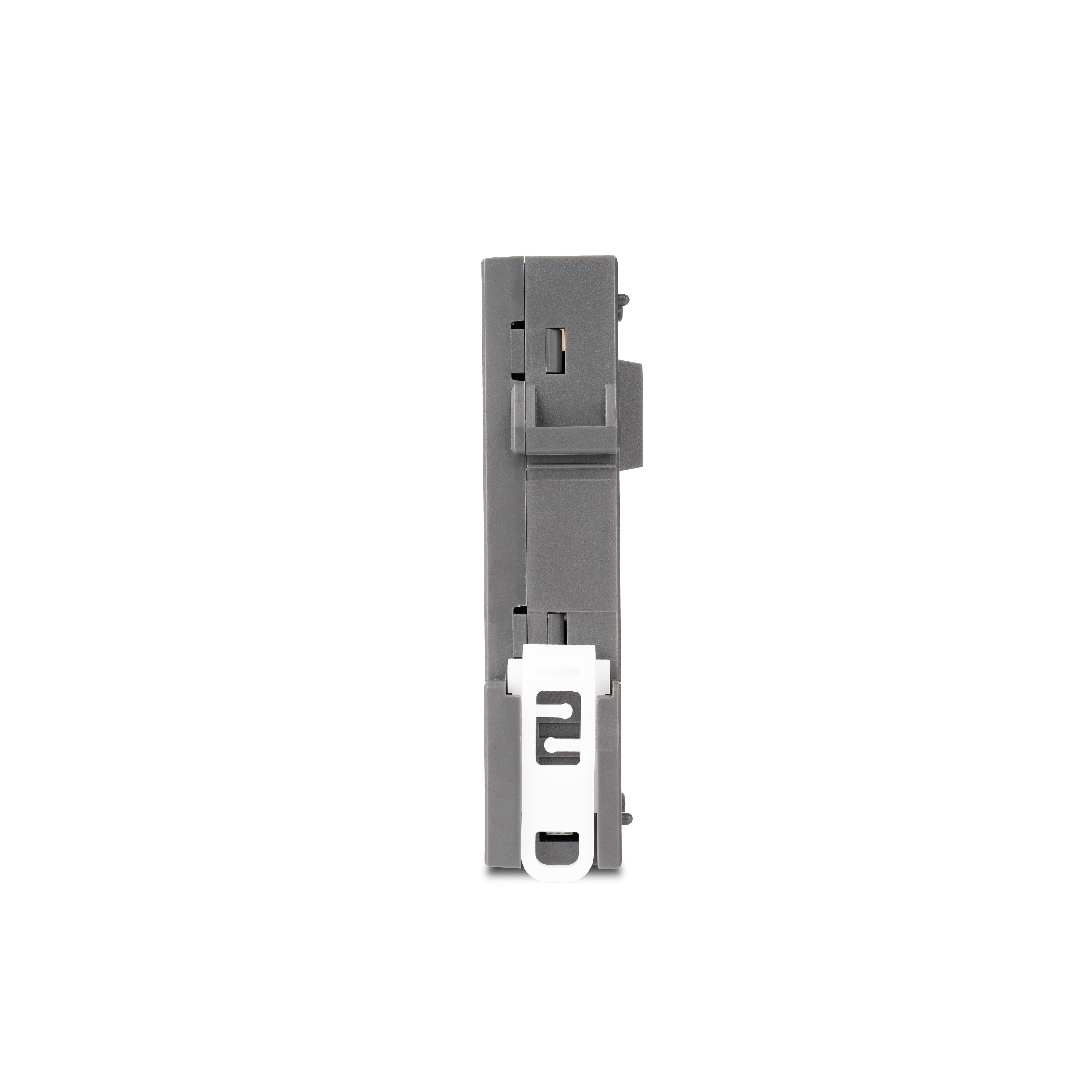

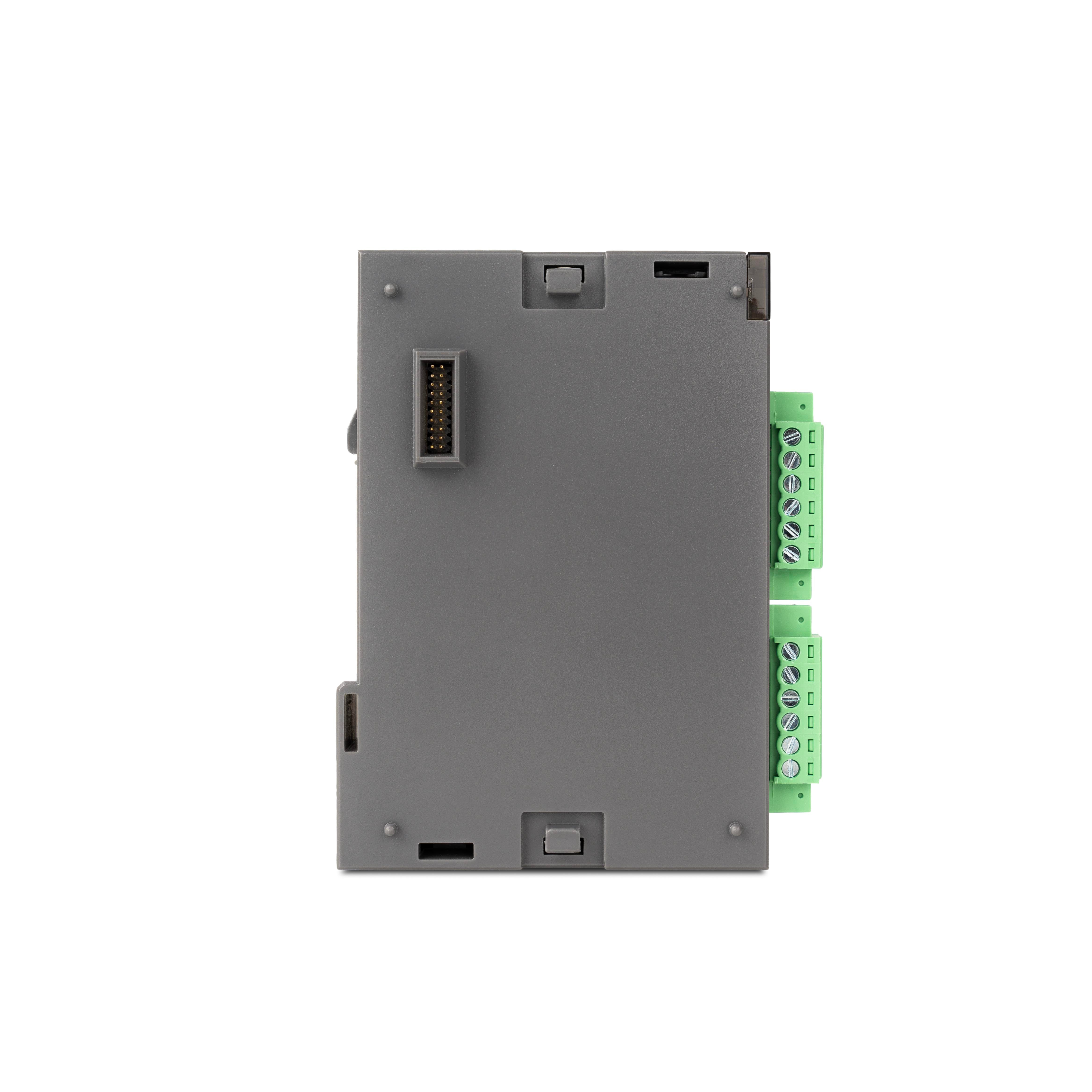

| SKU | CM3-SP04ERO-A |
|---|
| Type | RTD |
|---|
| Sensor | PT100, JPT100, PT1000, Ni1000 (DIN 43760), Ni1000 (TCR 5000) |
|---|
| Temperature Input Range |
PT100: -200.0 – 600°C (18.52 – 313.71 Ω)
JPT100: -200.0 – 600°C (17.14 – 317.31 Ω)
PT1000: -200.0 – 600°C (185.2 – 3137.1 Ω)
Ni1000 (DIN 43760): -50.0 – 160°C (742.6 – 2065.9 Ω)
Ni1000 (TCR 5000): -50.0 – 160°C (790.9 – 1863.6 Ω)
|
|---|
| Digital Conversion |
Digital converted value (14-bit): -192 – 16191 (-8192 – 8191, 0 – 16000, -8000 – 8000)
Digital converted value (16-bit): 0 – 65000 (-32768 – 32767, 0 – 64000, -32000 – 32000)
Detected Temp. value: -2000 – 6000 (First decimal place value × 10)
or -500 – 1600 (First decimal place value × 10)
|
|---|
| Wire Disconnection Detection | 3 wires per channel |
|---|
| Accuracy | ±0.1% (full scale) |
|---|
| Max Conversion Rate | 40 ms / 4 Channels |
|---|
| Number of Input Channels | 4 |
|---|
| Insulation Type | Photocoupler between input terminal and PLC power |
|---|

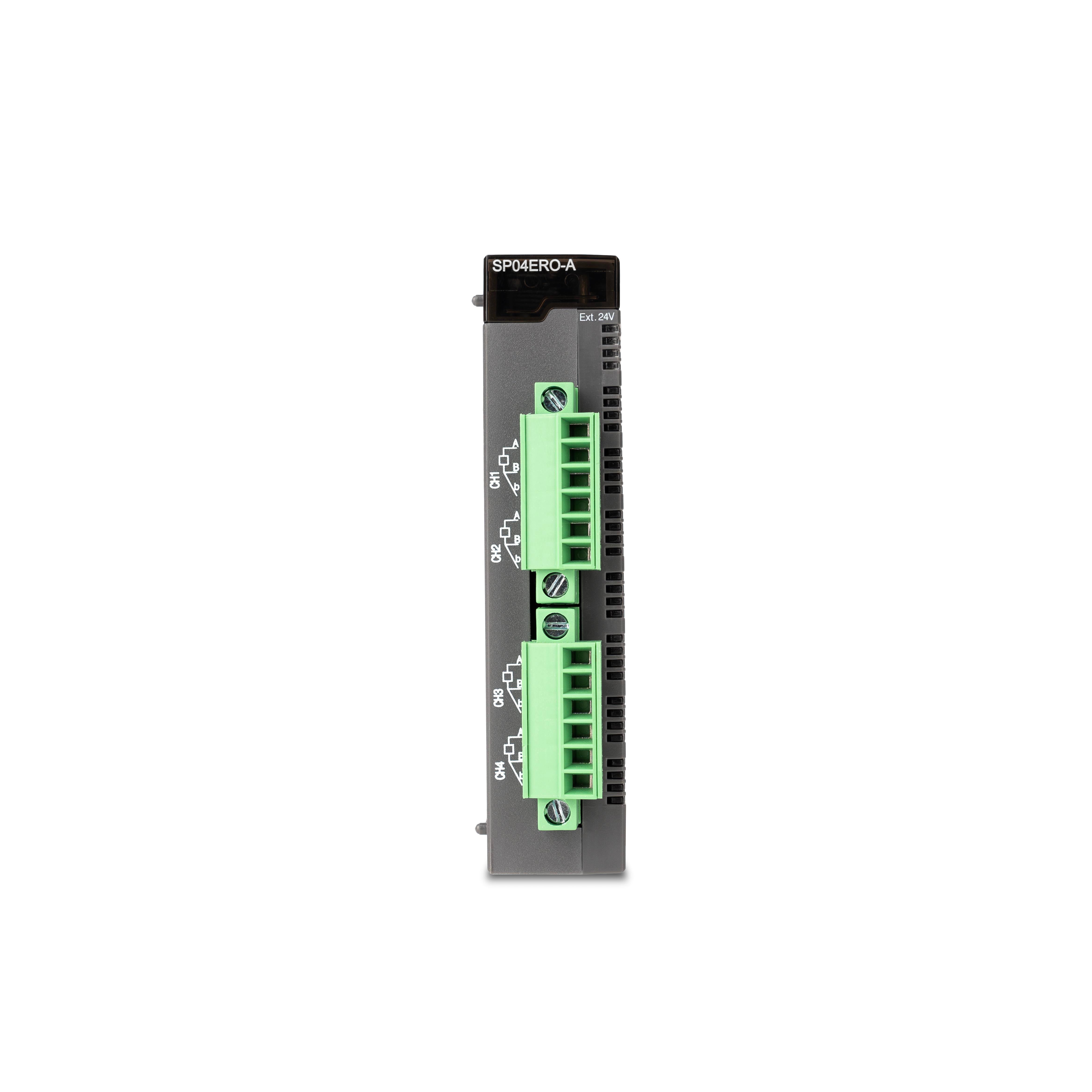

| Terminal Block | 12 points Terminal Block |
|---|
| Current Consumption +3.3V | 40 mA |
|---|

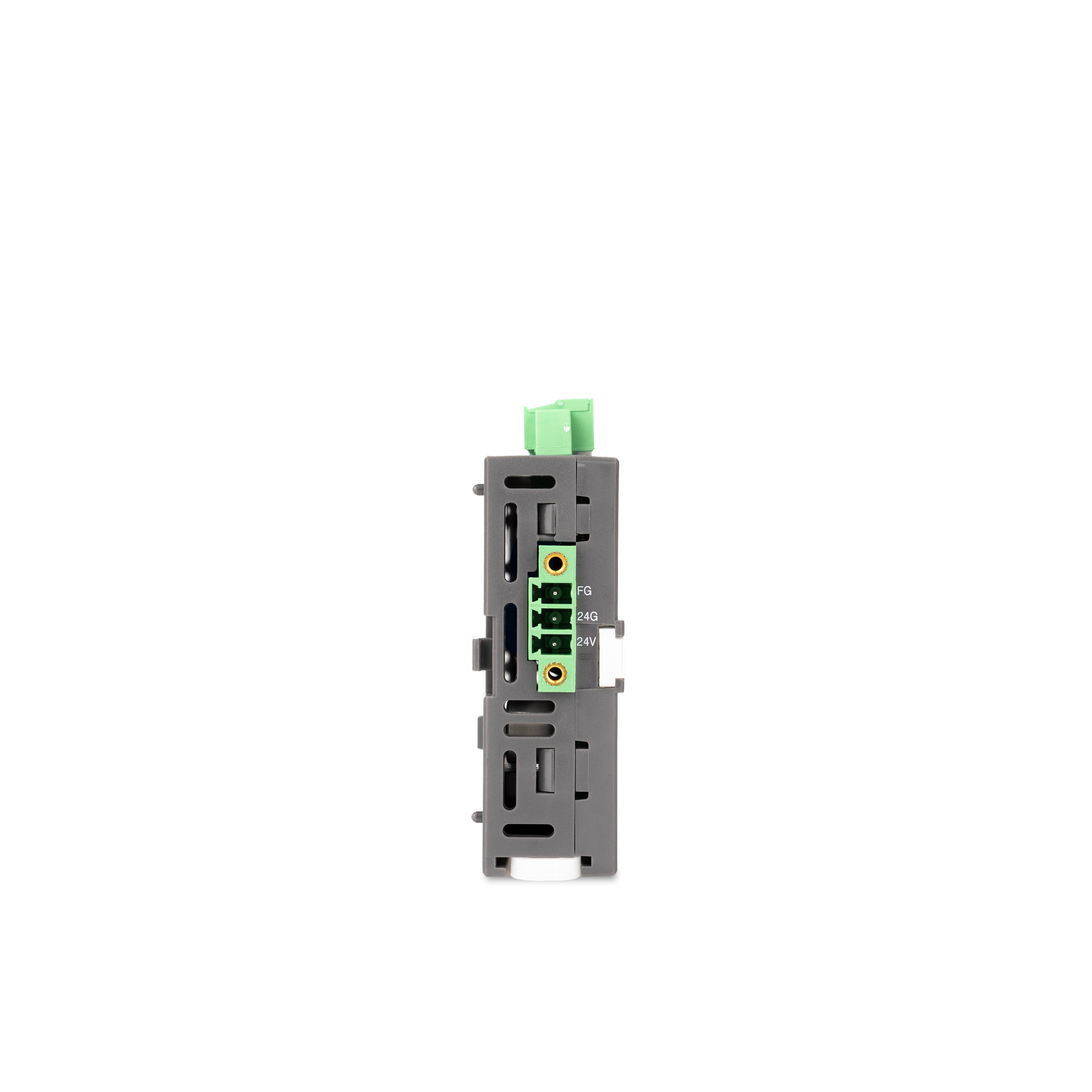

| Current Consumption +24V | 10 mA |
|---|
<div class="spec-table">
<table>
<tr><th>SKU</th><td>CM3-SP04ERO-A</td></tr>
<tr><th>Type</th><td>RTD</td></tr>
<tr><th>Sensor</th><td>PT100, JPT100, PT1000, Ni1000 (DIN 43760), Ni1000 (TCR 5000)</td></tr>
<tr><th>Temperature Input Range</th>
<td>
PT100: -200.0 – 600°C (18.52 – 313.71 Ω)<br>
JPT100: -200.0 – 600°C (17.14 – 317.31 Ω)<br>
PT1000: -200.0 – 600°C (185.2 – 3137.1 Ω)<br>
Ni1000 (DIN 43760): -50.0 – 160°C (742.6 – 2065.9 Ω)<br>
Ni1000 (TCR 5000): -50.0 – 160°C (790.9 – 1863.6 Ω)
</td>
</tr>
<tr><th>Digital Conversion</th>
<td>
Digital converted value (14-bit): -192 – 16191 (-8192 – 8191, 0 – 16000, -8000 – 8000)<br>
Digital converted value (16-bit): 0 – 65000 (-32768 – 32767, 0 – 64000, -32000 – 32000)<br>
Detected Temp. value: -2000 – 6000 (First decimal place value × 10)<br>
or -500 – 1600 (First decimal place value × 10)
</td>
</tr>
<tr><th>Wire Disconnection Detection</th><td>3 wires per channel</td></tr>
<tr><th>Accuracy</th><td>±0.1% (full scale)</td></tr>
<tr><th>Max Conversion Rate</th><td>40 ms / 4 Channels</td></tr>
<tr><th>Number of Input Channels</th><td>4</td></tr>
<tr><th>Insulation Type</th><td>Photocoupler between input terminal and PLC power</td></tr>
<tr><th>Terminal Block</th><td>12 points Terminal Block</td></tr>
<tr><th>Current Consumption +3.3V</th><td>40 mA</td></tr>
<tr><th>Current Consumption +24V</th><td>10 mA</td></tr>
</table>
</div>
