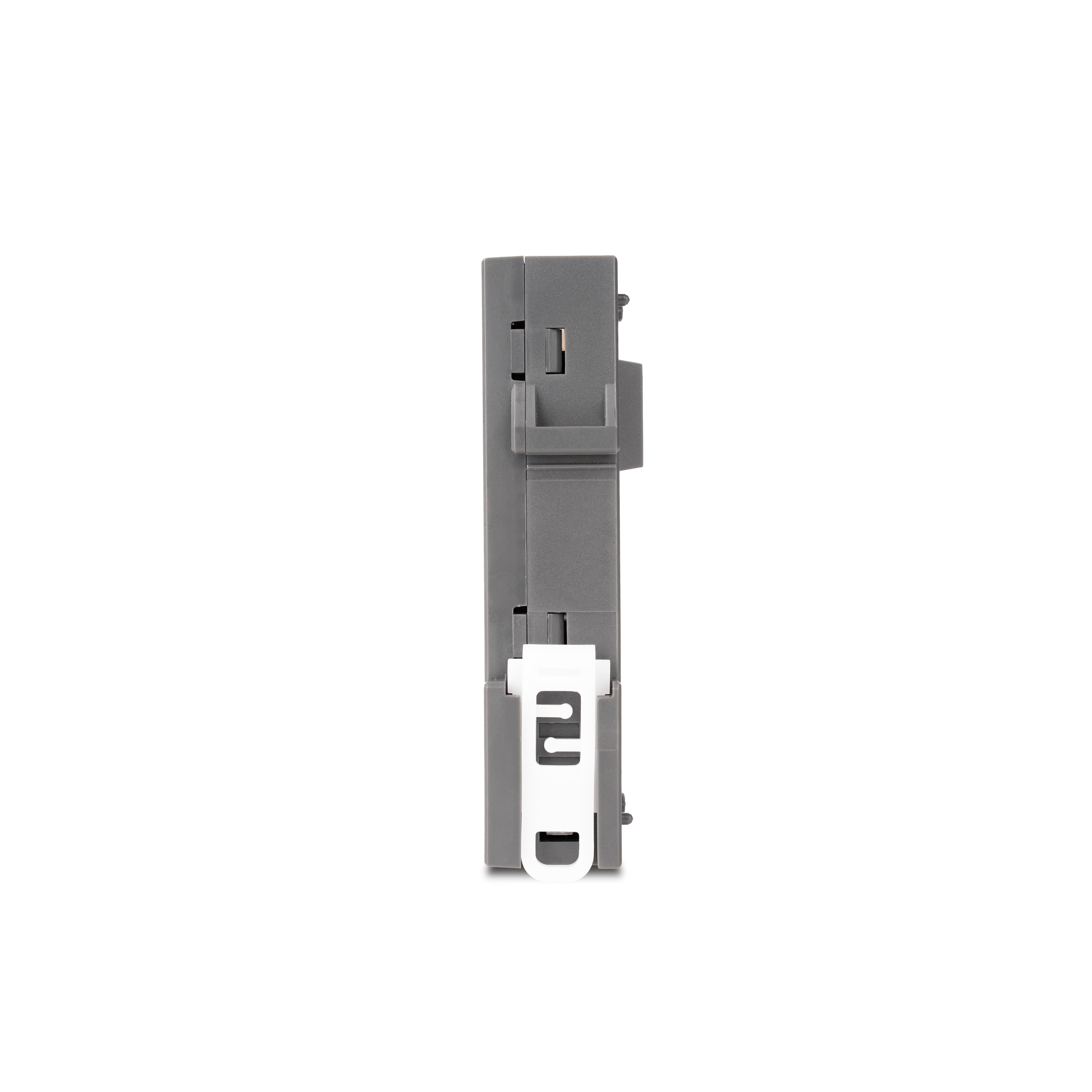

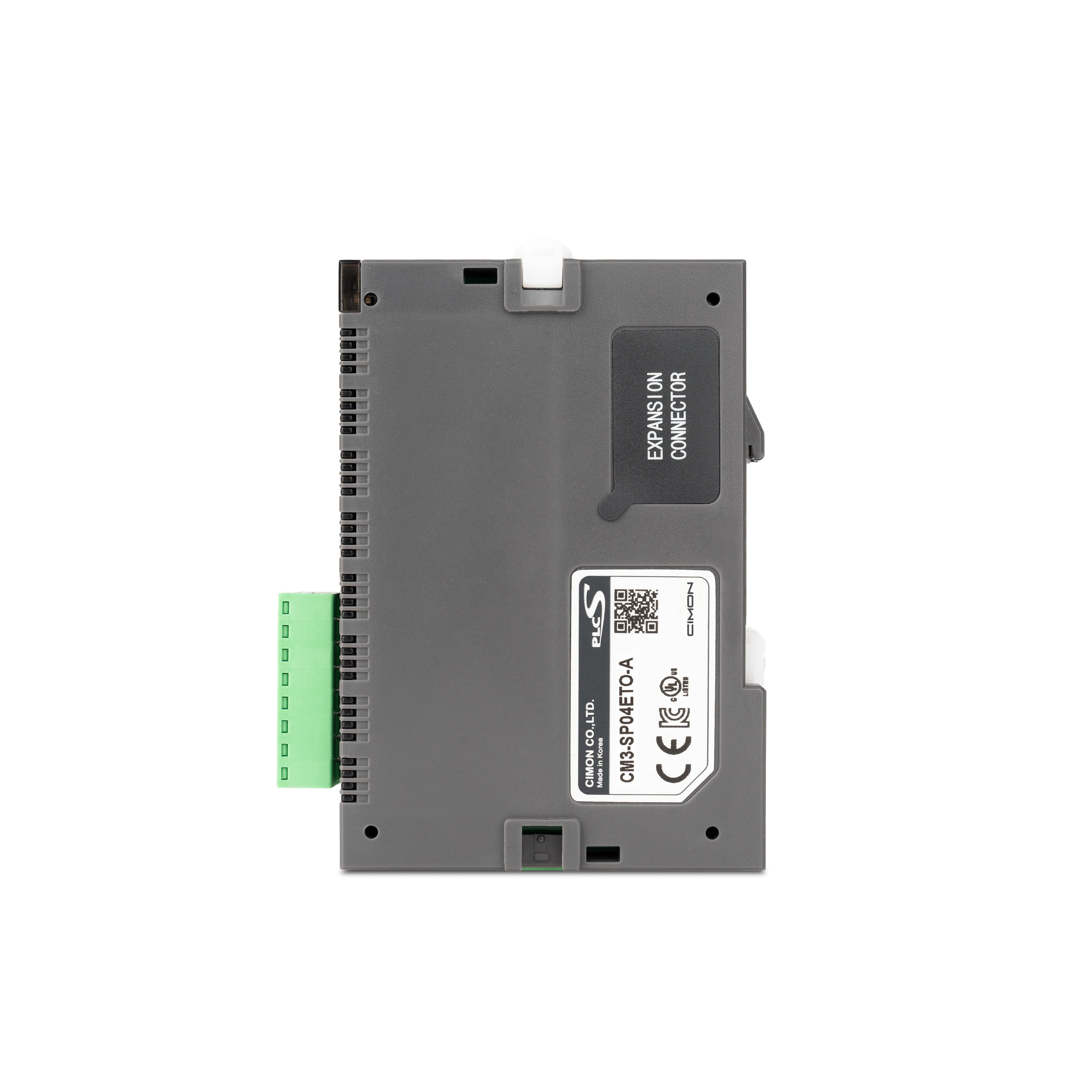

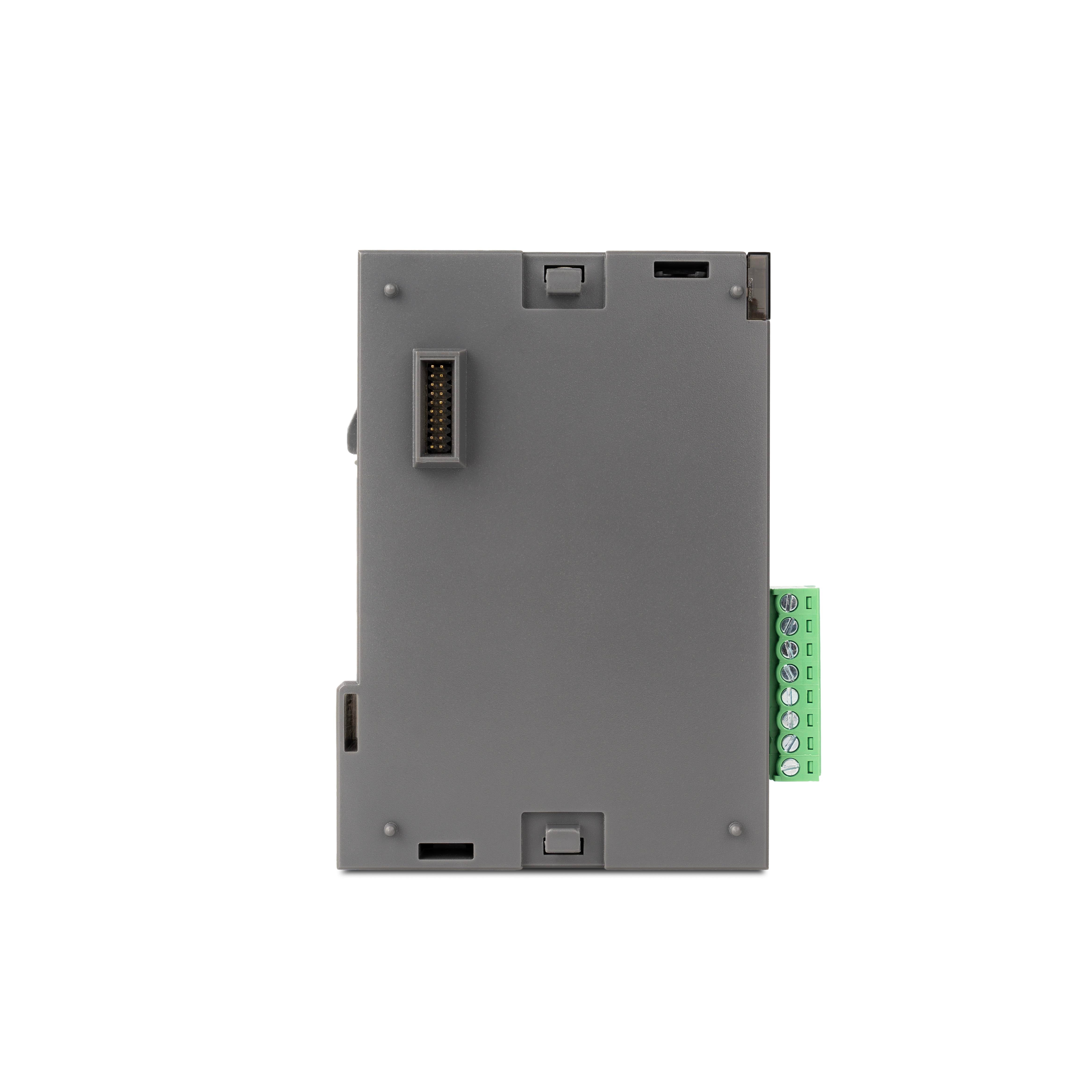

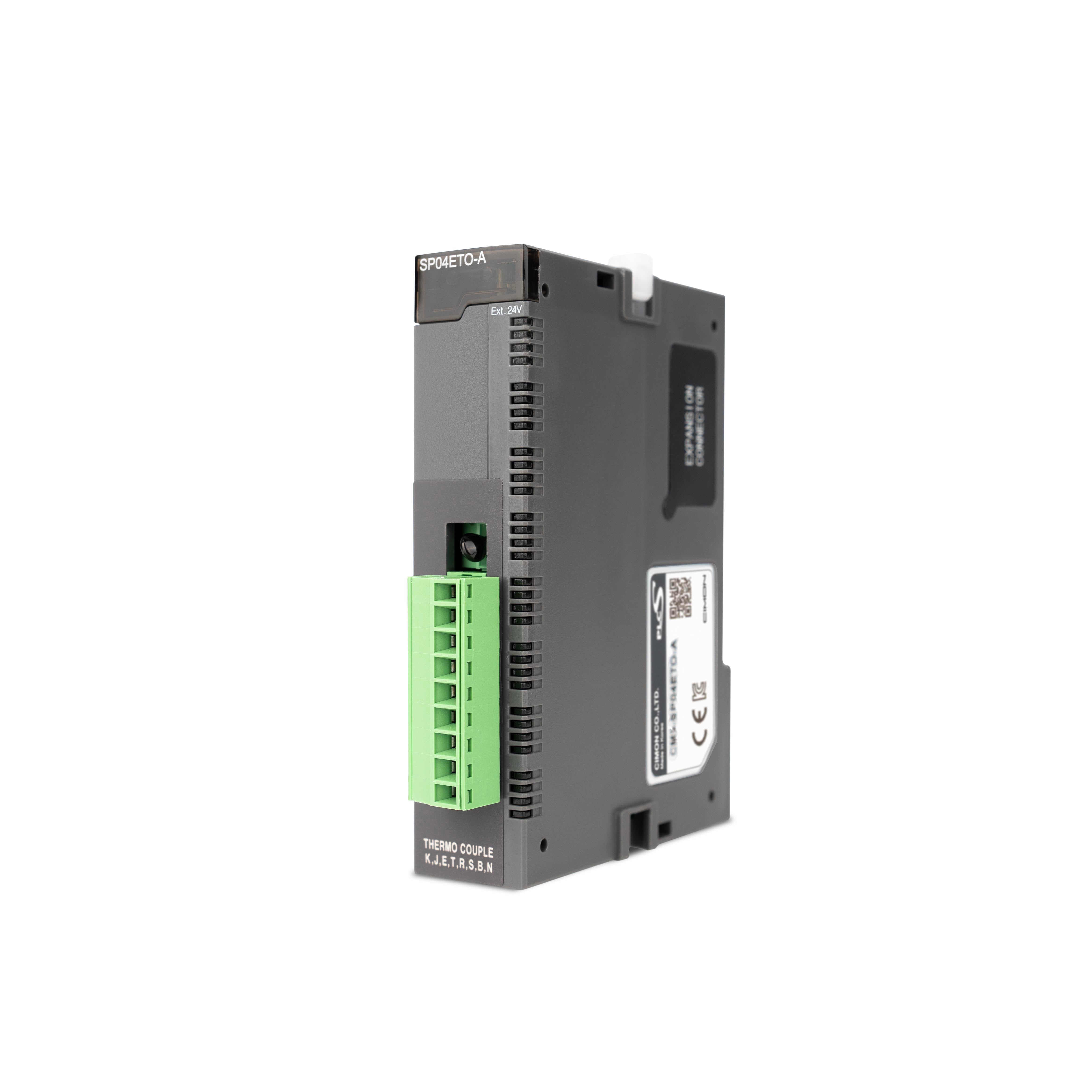

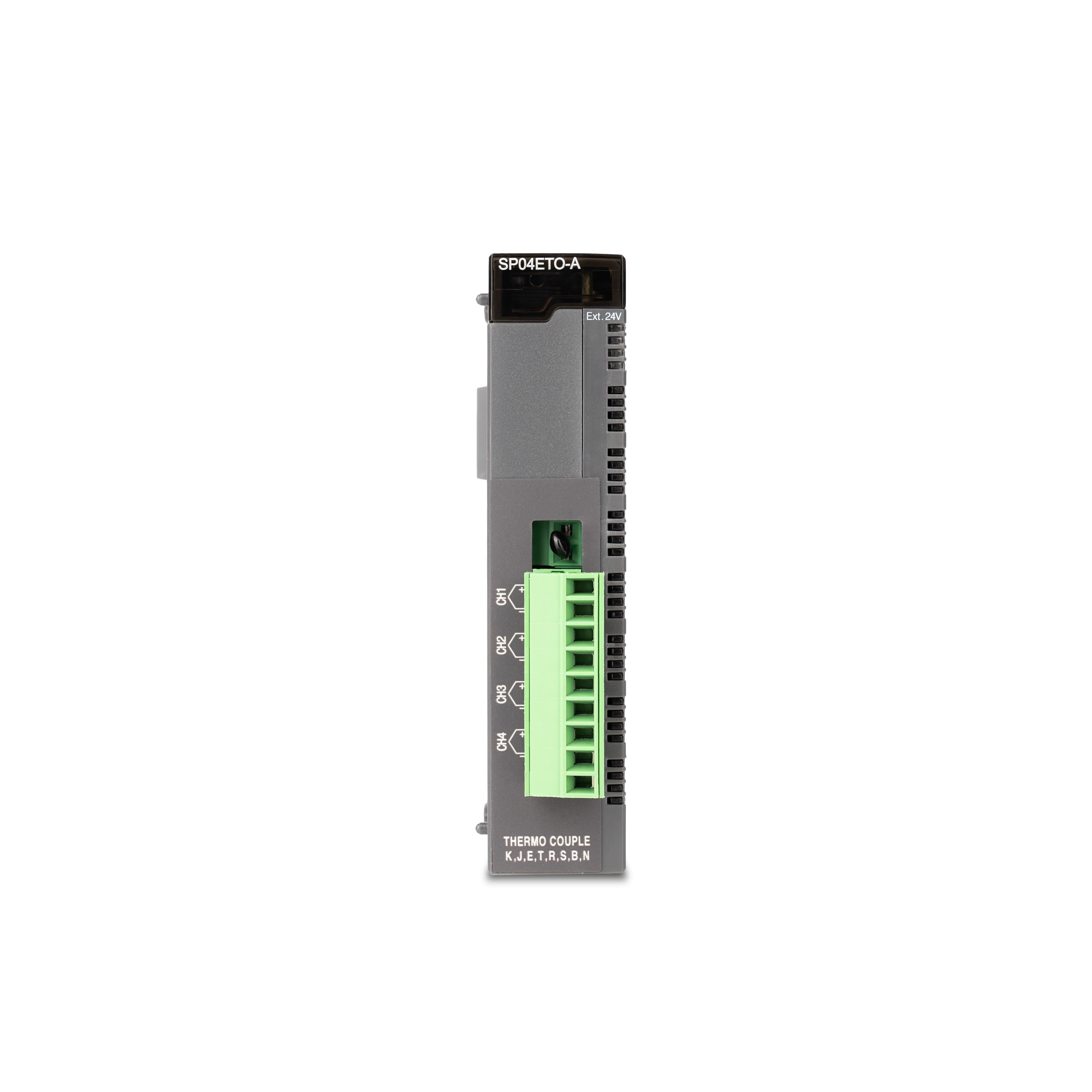

Analog Input Expansion Module, Thermocouple

Analog Input Expansion Module, Thermocouple

CM3-SP04ETO-A

฿ 200.00

PLC-S Analog Input Module
TC
4-Channel
14-bit
Removable screw-based terminal blocks

Quantity:

Analog Input Expansion Module, Thermocouple

฿ 200.00

Specifications

SKU	CM3-SP04ETO-A
Type	Thermocouple
Sensor	K, J, E, T, B, R, S, N type
Temperature Input Range	K: -200.0 - 1200.0°C (-5891 - 48838 uV) J: -200.0 - 800.0°C (-7890 - 48494 uV) E: -200.0 - 600.0°C (-8825 - 45093 uV) T: -200.0 - 400.0°C (-5603 - 20872 uV) B: 400.0 - 1800.0°C (787 - 13591 uV) R: 0.0 - 1750.0°C (0 - 20877 uV) S: 0.0 - 1750.0°C (0 - 18503 uV) N: -200.0 - 1250.0°C (-3990 - 45694 uV)
Digital Conversion	Digitally converted value: 0–16000 (-8000–8000) / -192–16191 (-8192–8191) Converted temperature value: Range of measured temperature (one digit after the decimal point × 10)
Wire Disconnection Detection	Each channel
Accuracy	±[(Full Scale) x 0.3% + 1°C (RJC Error)]
Max Conversion Rate	50 ms / 4 Channels
Number of Input Channels	4
Insulation Type	Photocoupler between input terminal and PLC power
Terminal Block	9 points Terminal Block
Current Consumption +3.3V	40 mA
Current Consumption +24V	10 mA

<div class="spec-table">
<table>
<tr><th>SKU</th><td>CM3-SP04ETO-A</td></tr>
<tr><th>Type</th><td>Thermocouple</td></tr>
<tr><th>Sensor</th><td>K, J, E, T, B, R, S, N type</td></tr>
<tr><th>Temperature Input Range</th>
<td>
K: -200.0 - 1200.0°C (-5891 - 48838 uV)<br>
J: -200.0 - 800.0°C (-7890 - 48494 uV)<br>
E: -200.0 - 600.0°C (-8825 - 45093 uV)<br>
T: -200.0 - 400.0°C (-5603 - 20872 uV)<br>
B: 400.0 - 1800.0°C (787 - 13591 uV)<br>
R: 0.0 - 1750.0°C (0 - 20877 uV)<br>
S: 0.0 - 1750.0°C (0 - 18503 uV)<br>
N: -200.0 - 1250.0°C (-3990 - 45694 uV)
</td>
</tr>
<tr><th>Digital Conversion</th>
<td>
Digitally converted value: 0–16000 (-8000–8000) / -192–16191 (-8192–8191)<br>
Converted temperature value: Range of measured temperature (one digit after the decimal point × 10)
</td>
</tr>
<tr><th>Wire Disconnection Detection</th><td>Each channel</td></tr>
<tr><th>Accuracy</th><td>±[(Full Scale) x 0.3% + 1°C (RJC Error)]</td></tr>
<tr><th>Max Conversion Rate</th><td>50 ms / 4 Channels</td></tr>
<tr><th>Number of Input Channels</th><td>4</td></tr>
<tr><th>Insulation Type</th><td>Photocoupler between input terminal and PLC power</td></tr>
<tr><th>Terminal Block</th><td>9 points Terminal Block</td></tr>
<tr><th>Current Consumption +3.3V</th><td>40 mA</td></tr>
<tr><th>Current Consumption +24V</th><td>10 mA</td></tr>
</table>
</div>
