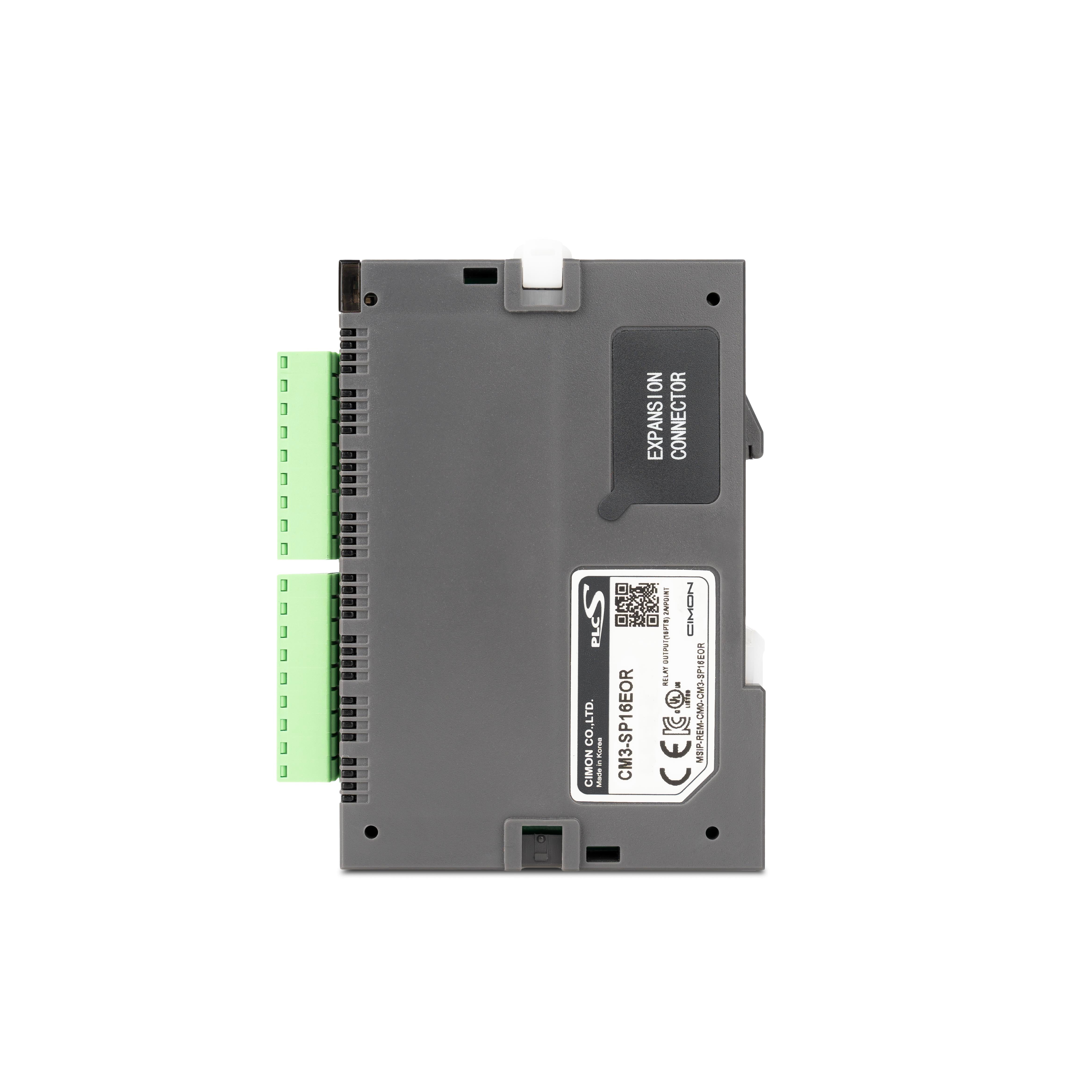

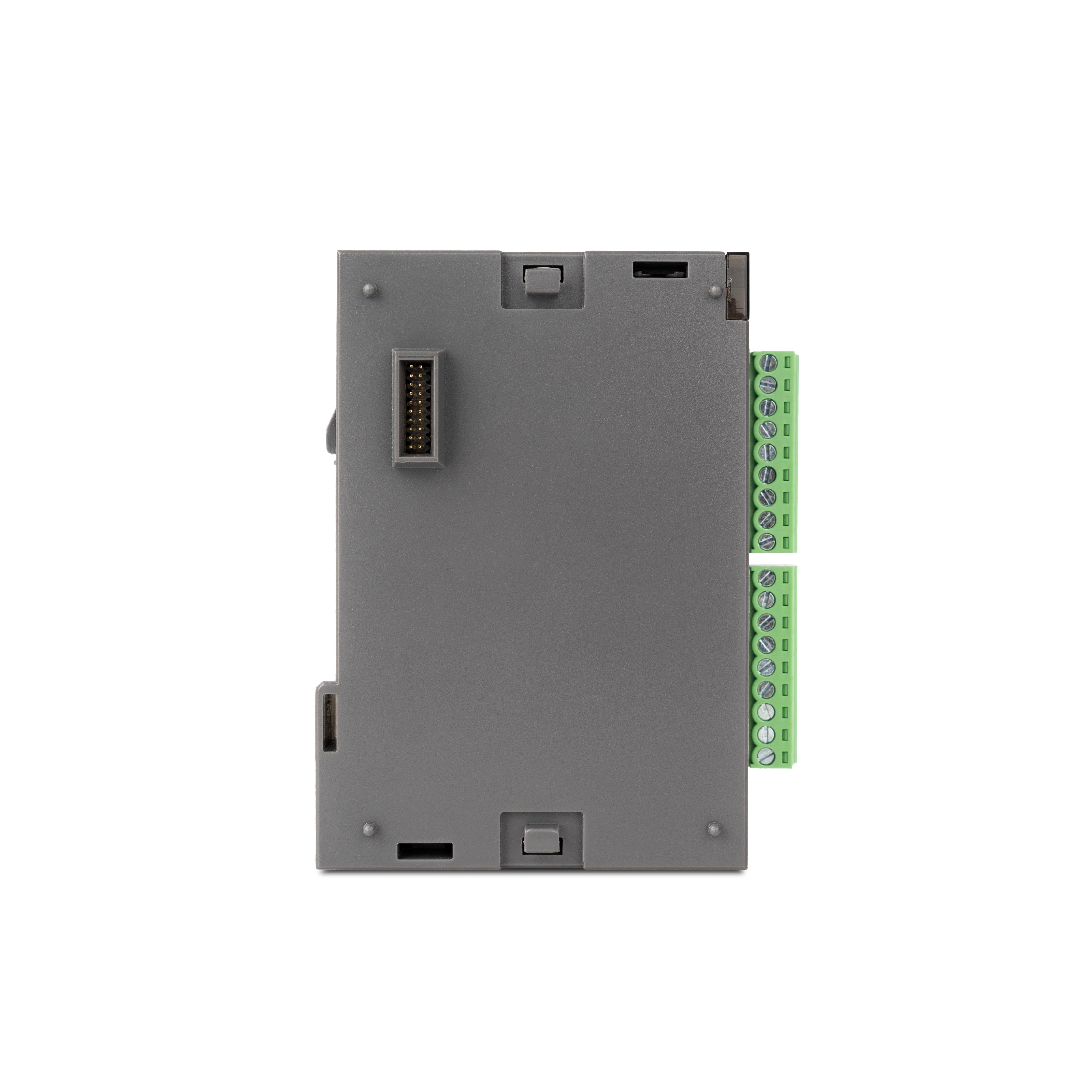

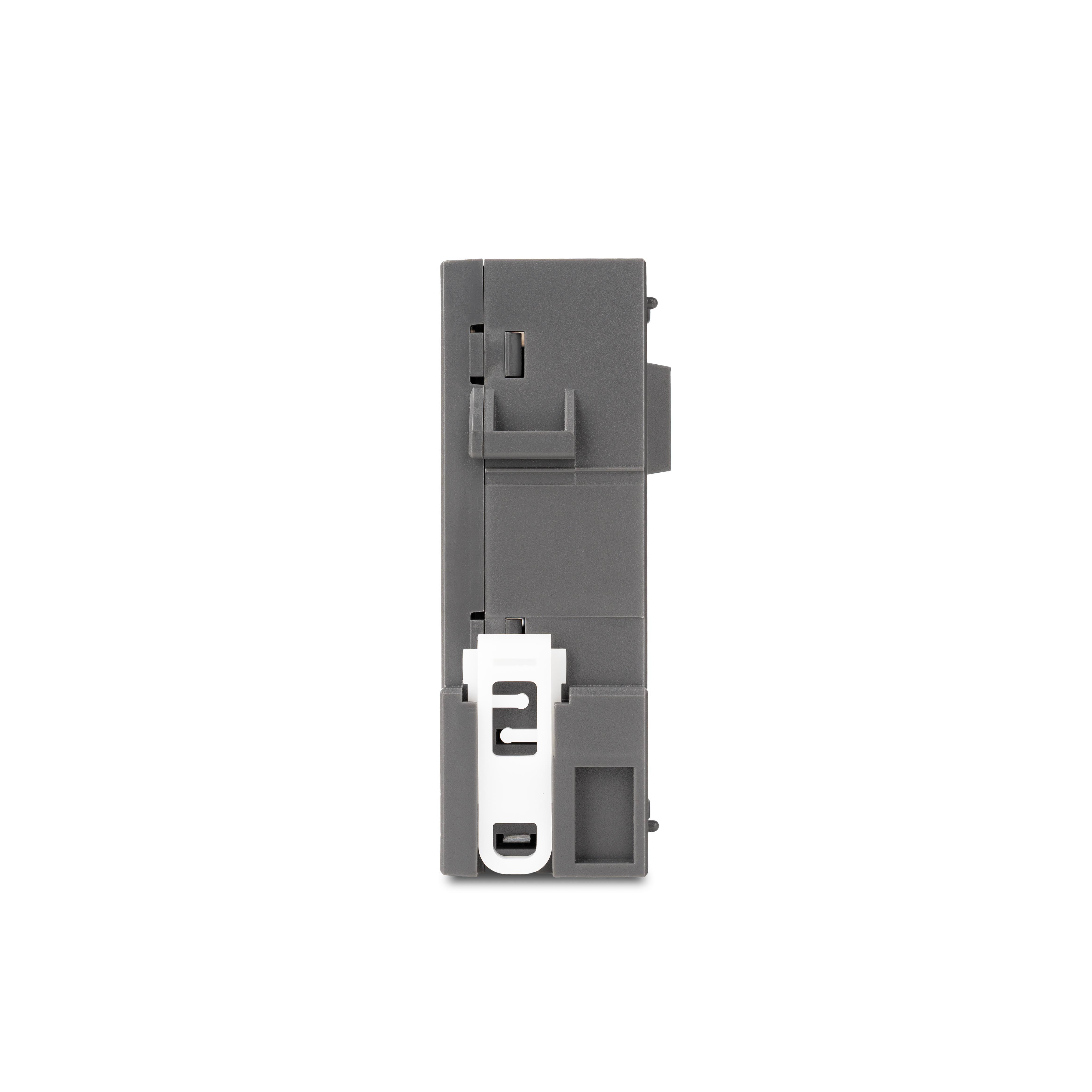

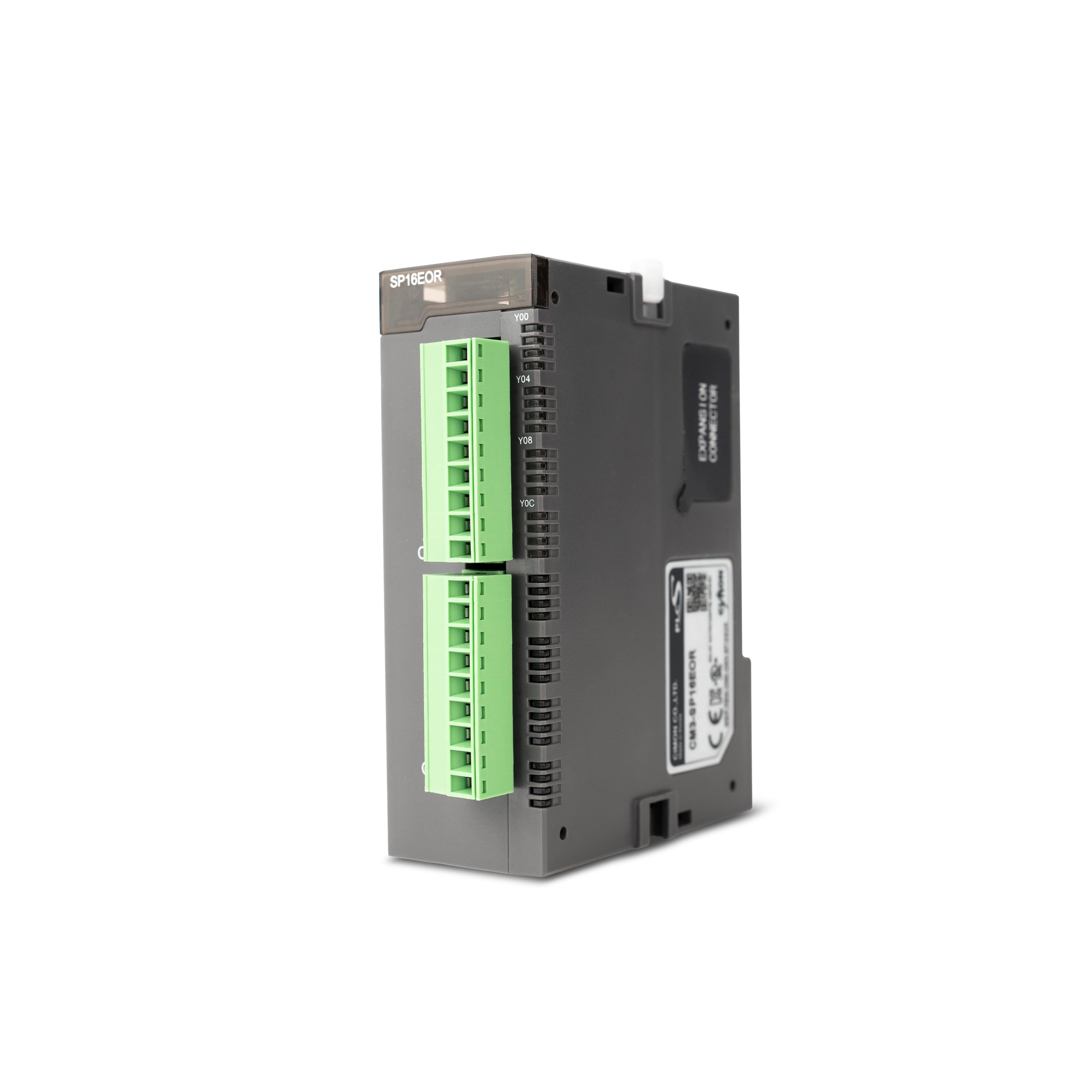

| SKU | CM3-SP16EOR |
|---|
| Category | Discrete Output Module |
|---|
| I/O Points | 16 Relay Outputs |
|---|
| Details | 24 VDC / 250 VAC, Screw-based Terminals |
|---|
| Rated I/O Voltage | 24 VDC / 250 VAC |
|---|
| Rated I/O Current | 1 point = 2 A
1 COM = 5 A |
|---|
| Response Time: Off → On | 10 ms or less |
|---|
| Response Time: On → Off | 5 ms or less |
|---|
| Insulation Method | Relay |
|---|
| Discrete Input Voltage/Current Thresholds | - |
|---|
| Operating Temperature | -10 – +65 °C (+14 – +149 °F) |
|---|
| Storage Temperature | -25 – +80 °C (-13 – +176 °F) |
|---|
| Operating/Storage Relative Humidity | 5 – 95% Non-condensing |
|---|
| Shock | 15G (Standards: IEC 61131-2) |
|---|
| Vibration | 0.5G - Continuous
1G - Discontinuous (Standards: IEC 61131-2) |
|---|
| Square Wave Impulse Noise | ±2 kV (Standards: CIMON Standard) |
|---|
| ESD Immunity |
±4 kV - Contact Discharges
±8 kV - Air Discharges
(Standards: IEC 61131-2, IEC 61000-4-2) |
|---|
| Radiated Electromagnetic Immunity |
80–1000 MHz, 10 V/m (Standards: IEC 61131-2, IEC 61000-4-3) |
|---|
| Surge Transient Immunity |
2 kV - CPU, Power
2 kV - Discrete I/O (VAC)
1 kV - Discrete I/O (VDC)
1 kV - Communication
(Standards: IEC 61131-2, IEC 61000-4-4)
|
|---|
<div class="spec-table">
<table>
<tr><th>SKU</th><td>CM3-SP16EOR</td></tr>
<tr><th>Category</th><td>Discrete Output Module</td></tr>
<tr><th>I/O Points</th><td>16 Relay Outputs</td></tr>
<tr><th>Details</th><td>24 VDC / 250 VAC, Screw-based Terminals</td></tr>
<tr><th>Rated I/O Voltage</th><td>24 VDC / 250 VAC</td></tr>
<tr><th>Rated I/O Current</th><td>1 point = 2 A<br>1 COM = 5 A</td></tr>
<tr><th>Response Time: Off → On</th><td>10 ms or less</td></tr>
<tr><th>Response Time: On → Off</th><td>5 ms or less</td></tr>
<tr><th>Insulation Method</th><td>Relay</td></tr>
<tr><th>Discrete Input Voltage/Current Thresholds</th><td>-</td></tr>
<tr><th>Operating Temperature</th><td>-10 – +65 °C (+14 – +149 °F)</td></tr>
<tr><th>Storage Temperature</th><td>-25 – +80 °C (-13 – +176 °F)</td></tr>
<tr><th>Operating/Storage Relative Humidity</th><td>5 – 95% Non-condensing</td></tr>
<tr><th>Shock</th><td>15G (Standards: IEC 61131-2)</td></tr>
<tr><th>Vibration</th><td>0.5G - Continuous<br>1G - Discontinuous (Standards: IEC 61131-2)</td></tr>
<tr><th>Square Wave Impulse Noise</th><td>±2 kV (Standards: CIMON Standard)</td></tr>
<tr><th>ESD Immunity</th>
<td>±4 kV - Contact Discharges<br>±8 kV - Air Discharges<br>(Standards: IEC 61131-2, IEC 61000-4-2)</td>
</tr>
<tr><th>Radiated Electromagnetic Immunity</th>
<td>80–1000 MHz, 10 V/m (Standards: IEC 61131-2, IEC 61000-4-3)</td>
</tr>
<tr><th>Surge Transient Immunity</th>
<td>
2 kV - CPU, Power<br>
2 kV - Discrete I/O (VAC)<br>
1 kV - Discrete I/O (VDC)<br>
1 kV - Communication<br>
(Standards: IEC 61131-2, IEC 61000-4-4)
</td>
</tr>
</table>
</div>
