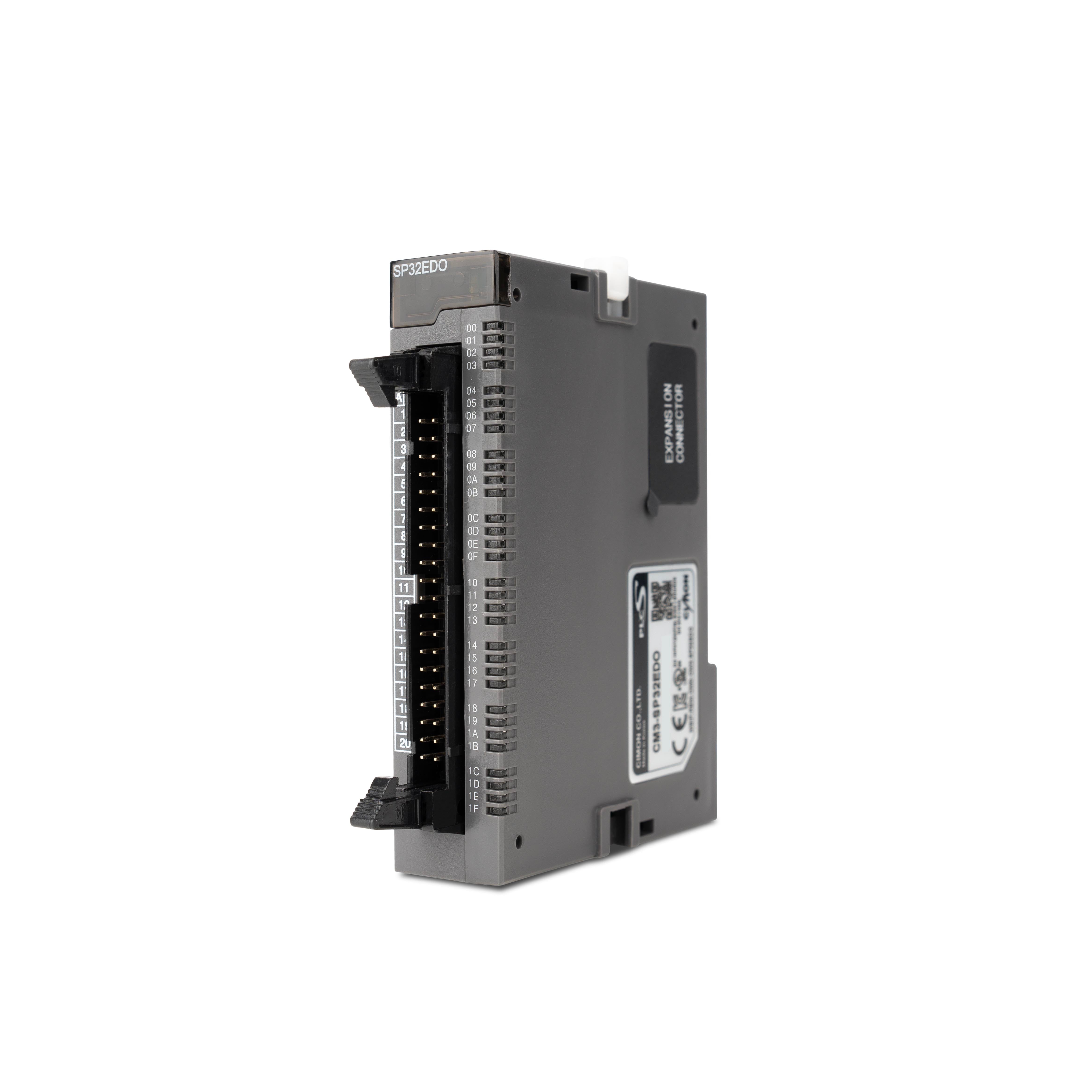

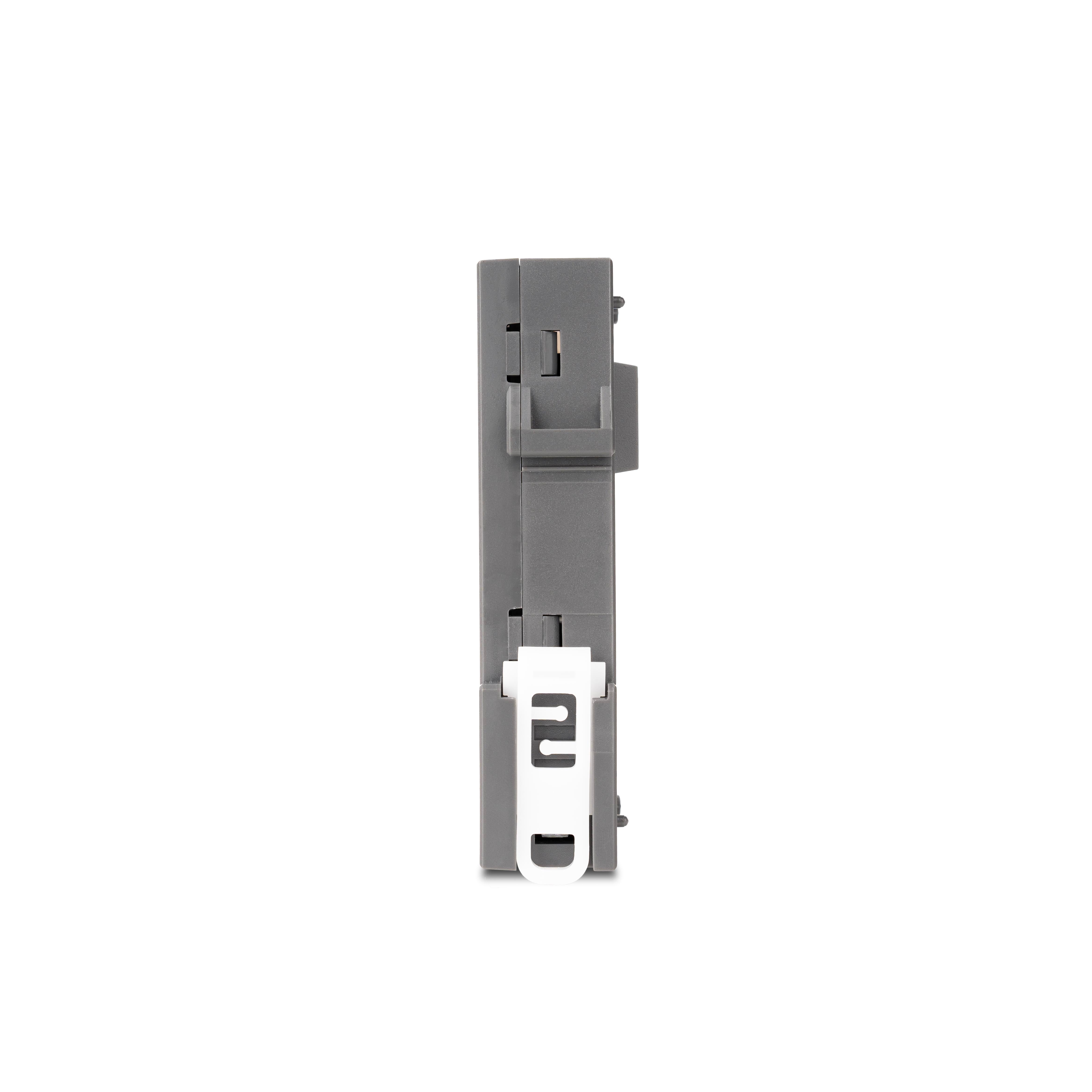

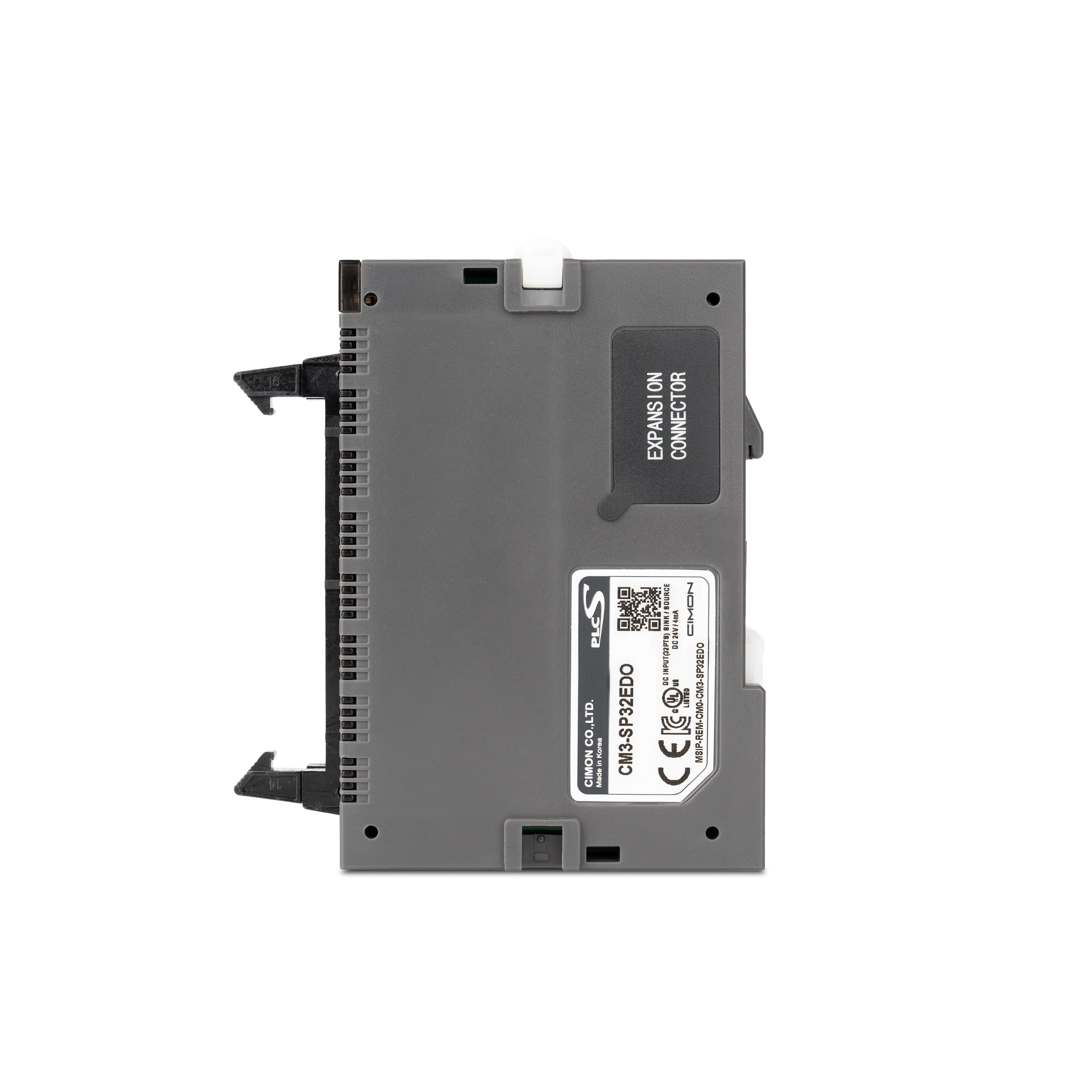

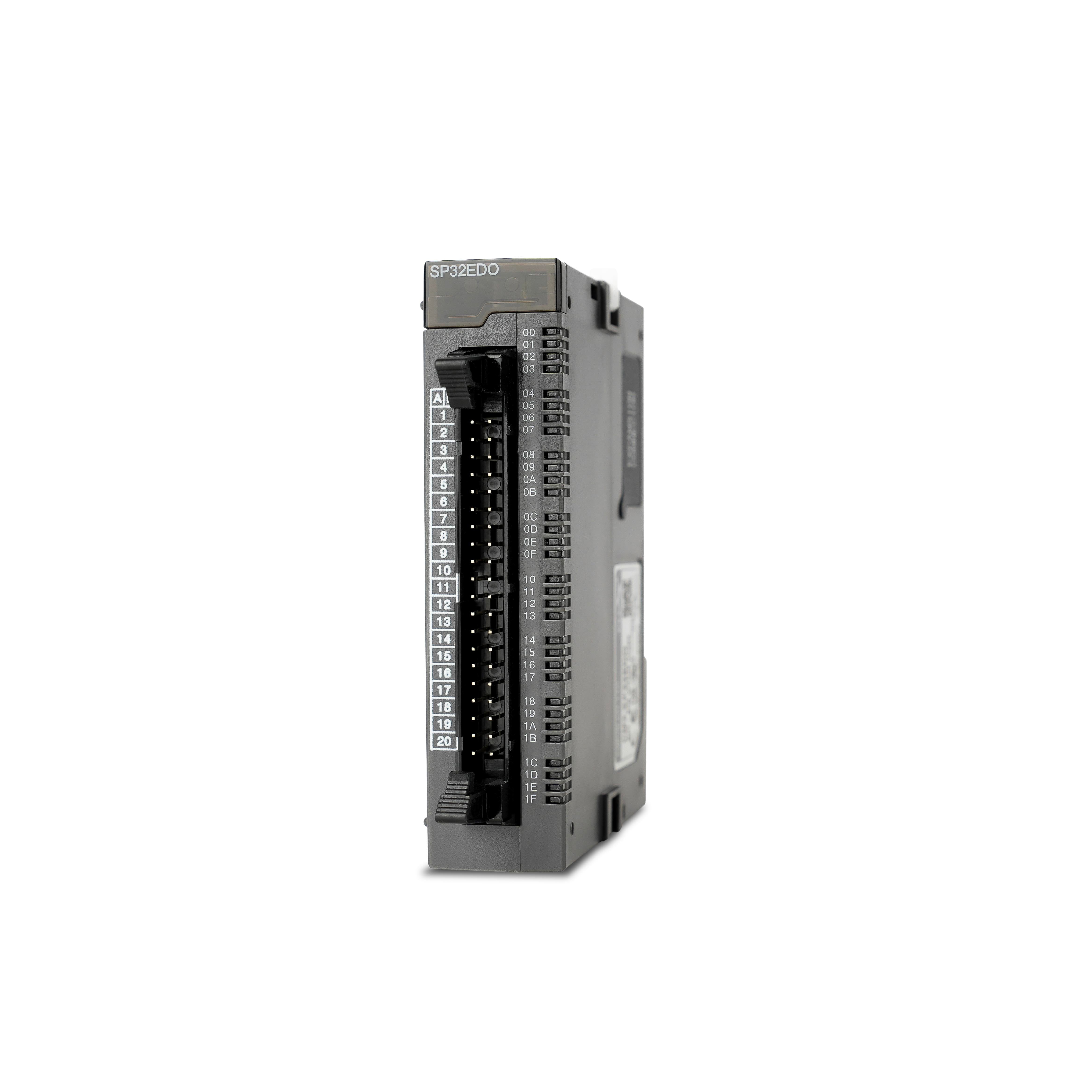

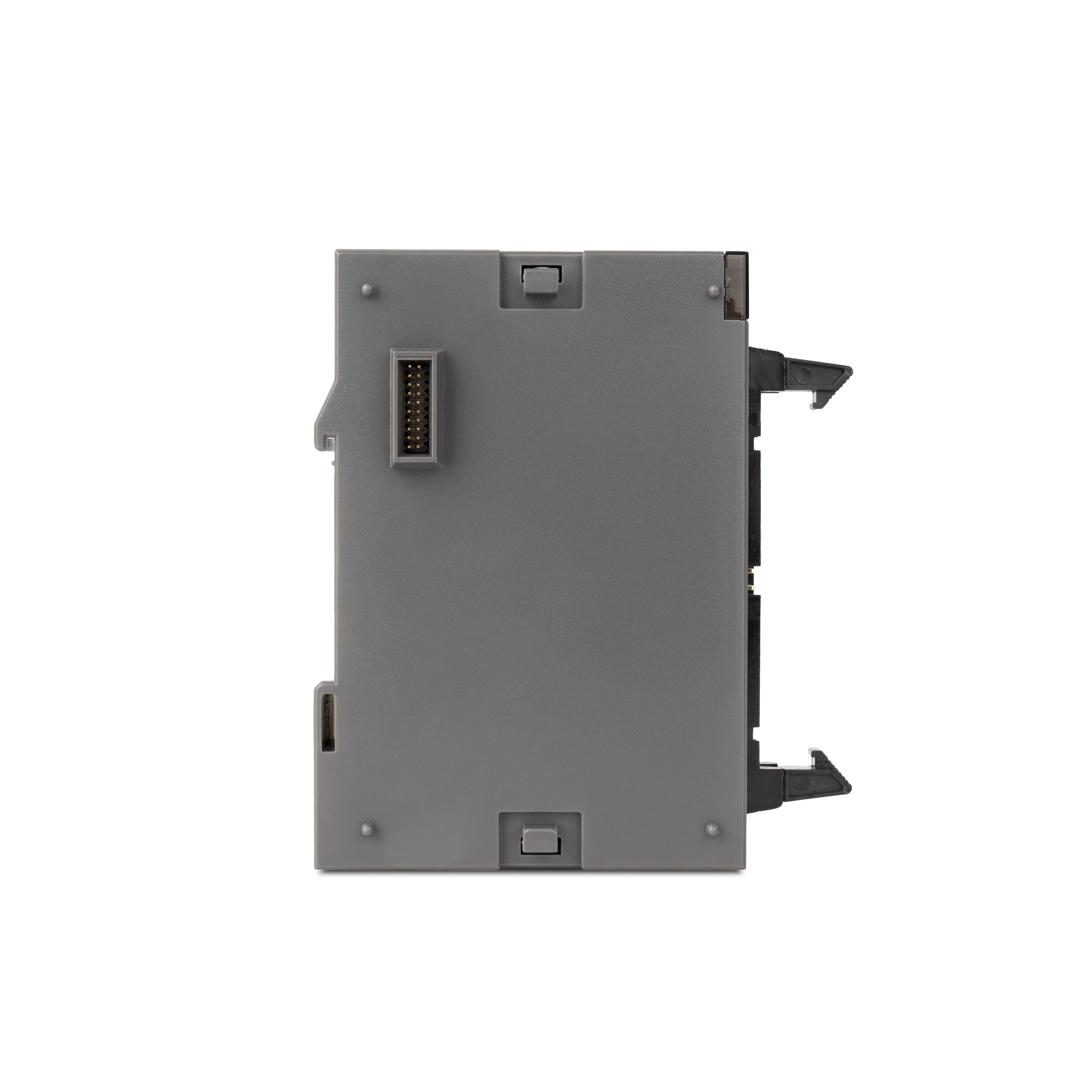

Digital Input Expansion Module, Sinking/Sourcing Input

Digital Input Expansion Module, Sinking/Sourcing Input

CM3-SP32EDO

฿ 200.00

PLC-S Discrete Input Module
32 Point
24 VDC
Sink/Source
CM0-TB32M terminal block and CM0-SCB15M connection cable required

Quantity:

Digital Input Expansion Module, Sinking/Sourcing Input

฿ 200.00

Specifications

SKU	CM3-SP32EDO
Category	Discrete Input Module
I/O Points	32 TR Sink/Source Inputs
Details	24 VDC, Terminal Block and Cable Required
Rated I/O Voltage	24 VDC
Rated I/O Current	4 mA
Response Time: Off → On	3 ms or less
Response Time: On → Off	3 ms or less
Insulation Method	Photocoupler
Discrete Input Voltage/Current Thresholds	ON: 19 VDC / 3 mA OFF: 6 VDC / 1 mA
Operating Temperature	-10 – +65 °C (+14 – +149 °F)
Storage Temperature	-25 – +80 °C (-13 – +176 °F)
Operating/Storage Relative Humidity	5 – 95% Non-condensing
Shock	15G (Standards: IEC 61131-2)
Vibration	0.5G - Continuous, 1G - Discontinuous (Standards: IEC 61131-2)
Square Wave Impulse Noise	±2 kV (Standards: CIMON Standard)
ESD Immunity	±4 kV Contact Discharges, ±8 kV Air Discharges (Standards: IEC 61131-2, IEC 61000-4-2)
Radiated Electromagnetic Immunity	80–1000 MHz, 10 V/m (Standards: IEC 61131-2, IEC 61000-4-3)
Surge Transient Immunity	2 kV - CPU, Power 2 kV - Discrete I/O (VAC) 1 kV - Discrete I/O (VDC) 1 kV - Communication (Standards: IEC 61131-2, IEC 61000-4-4)

<div class="spec-table">
<table>
<tr><th>SKU</th><td>CM3-SP32EDO</td></tr>
<tr><th>Category</th><td>Discrete Input Module</td></tr>
<tr><th>I/O Points</th><td>32 TR Sink/Source Inputs</td></tr>
<tr><th>Details</th><td>24 VDC, Terminal Block and Cable Required</td></tr>
<tr><th>Rated I/O Voltage</th><td>24 VDC</td></tr>
<tr><th>Rated I/O Current</th><td>4 mA</td></tr>
<tr><th>Response Time: Off → On</th><td>3 ms or less</td></tr>
<tr><th>Response Time: On → Off</th><td>3 ms or less</td></tr>
<tr><th>Insulation Method</th><td>Photocoupler</td></tr>
<tr><th>Discrete Input Voltage/Current Thresholds</th>
<td>
ON: 19 VDC / 3 mA<br>
OFF: 6 VDC / 1 mA
</td>
</tr>
<tr><th>Operating Temperature</th><td>-10 – +65 °C (+14 – +149 °F)</td></tr>
<tr><th>Storage Temperature</th><td>-25 – +80 °C (-13 – +176 °F)</td></tr>
<tr><th>Operating/Storage Relative Humidity</th><td>5 – 95% Non-condensing</td></tr>
<tr><th>Shock</th><td>15G (Standards: IEC 61131-2)</td></tr>
<tr><th>Vibration</th><td>0.5G - Continuous, 1G - Discontinuous (Standards: IEC 61131-2)</td></tr>
<tr><th>Square Wave Impulse Noise</th><td>±2 kV (Standards: CIMON Standard)</td></tr>
<tr><th>ESD Immunity</th><td>±4 kV Contact Discharges, ±8 kV Air Discharges (Standards: IEC 61131-2, IEC 61000-4-2)</td></tr>
<tr><th>Radiated Electromagnetic Immunity</th><td>80–1000 MHz, 10 V/m (Standards: IEC 61131-2, IEC 61000-4-3)</td></tr>
<tr><th>Surge Transient Immunity</th>
<td>
2 kV - CPU, Power<br>
2 kV - Discrete I/O (VAC)<br>
1 kV - Discrete I/O (VDC)<br>
1 kV - Communication<br>
(Standards: IEC 61131-2, IEC 61000-4-4)
</td>
</tr>
</table>
</div>
