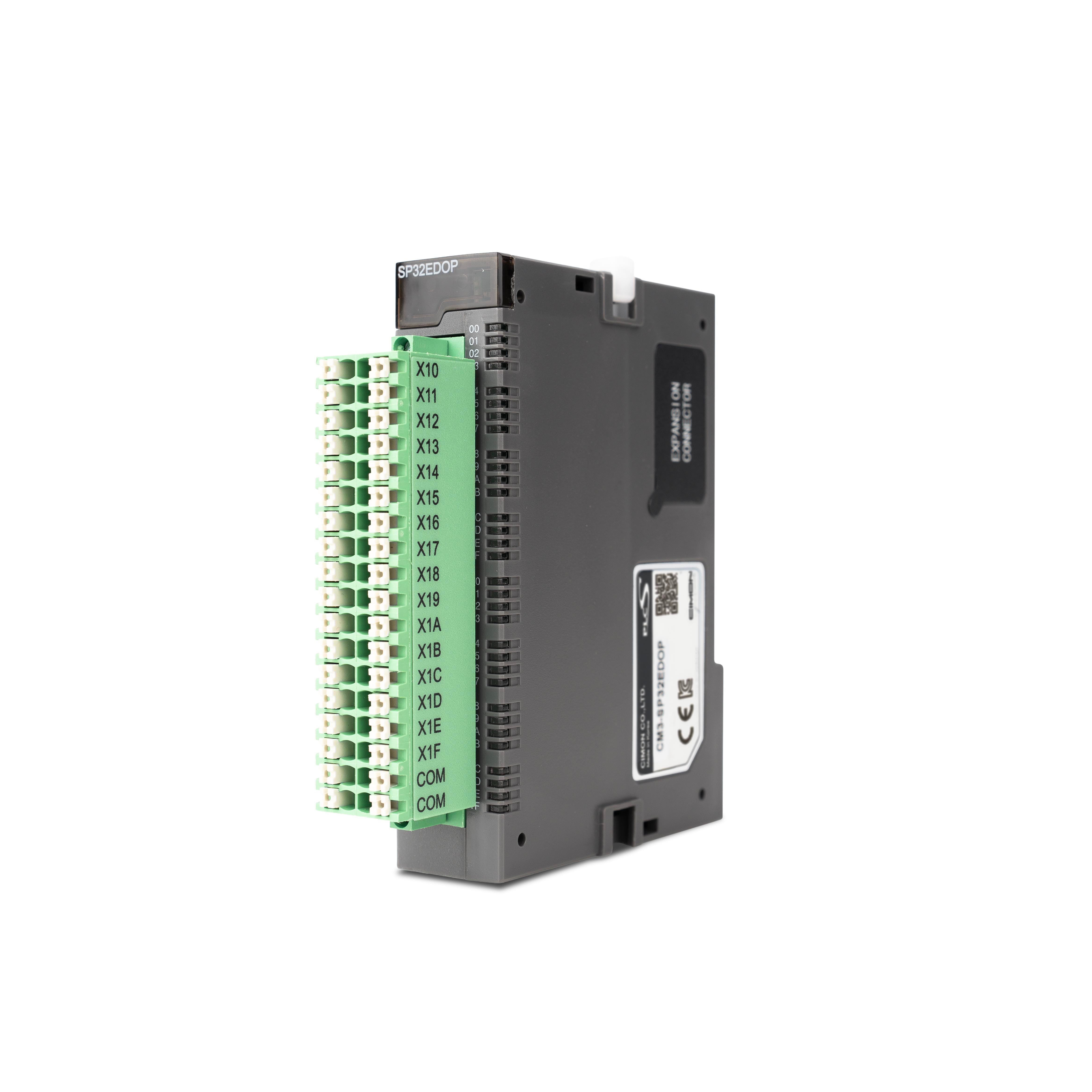

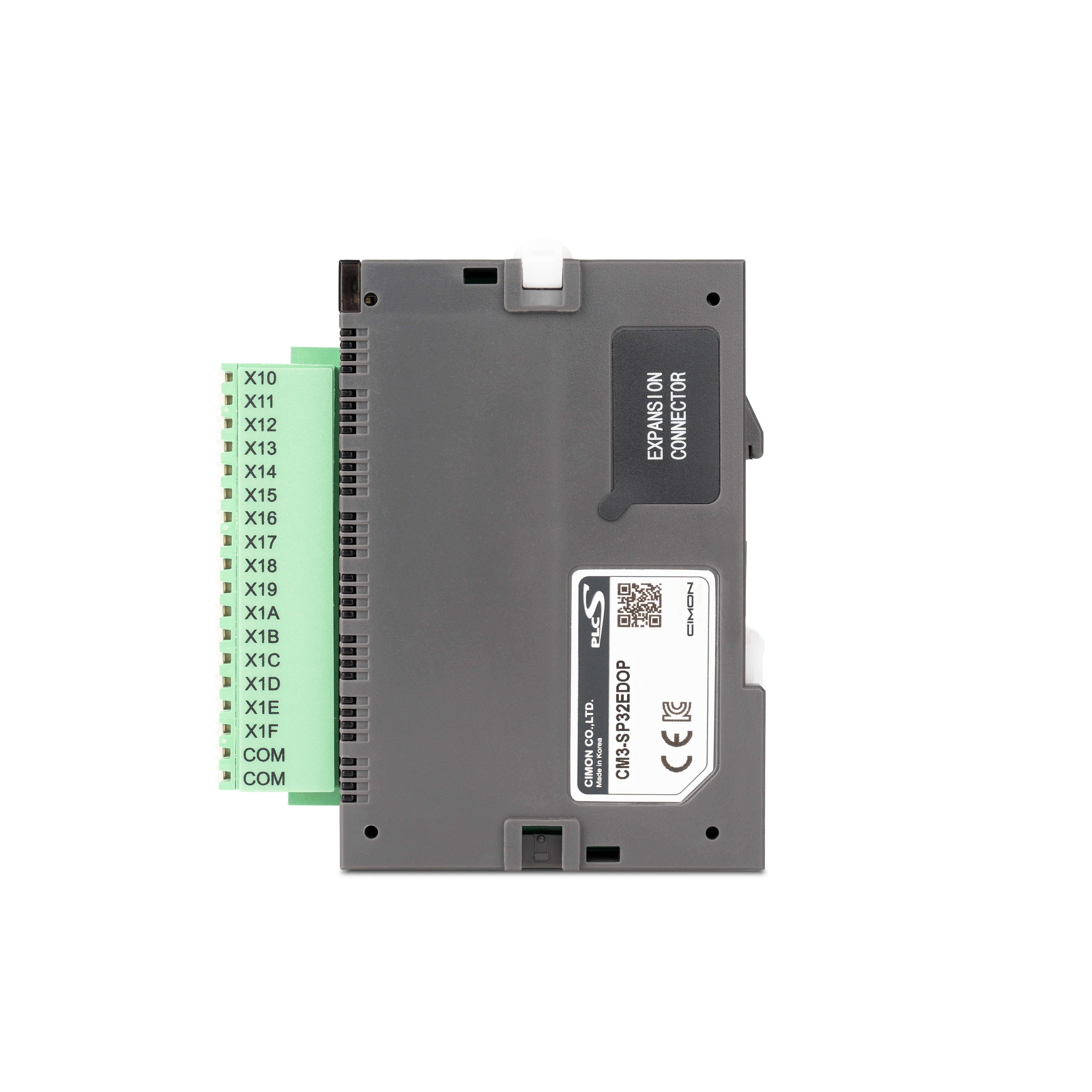

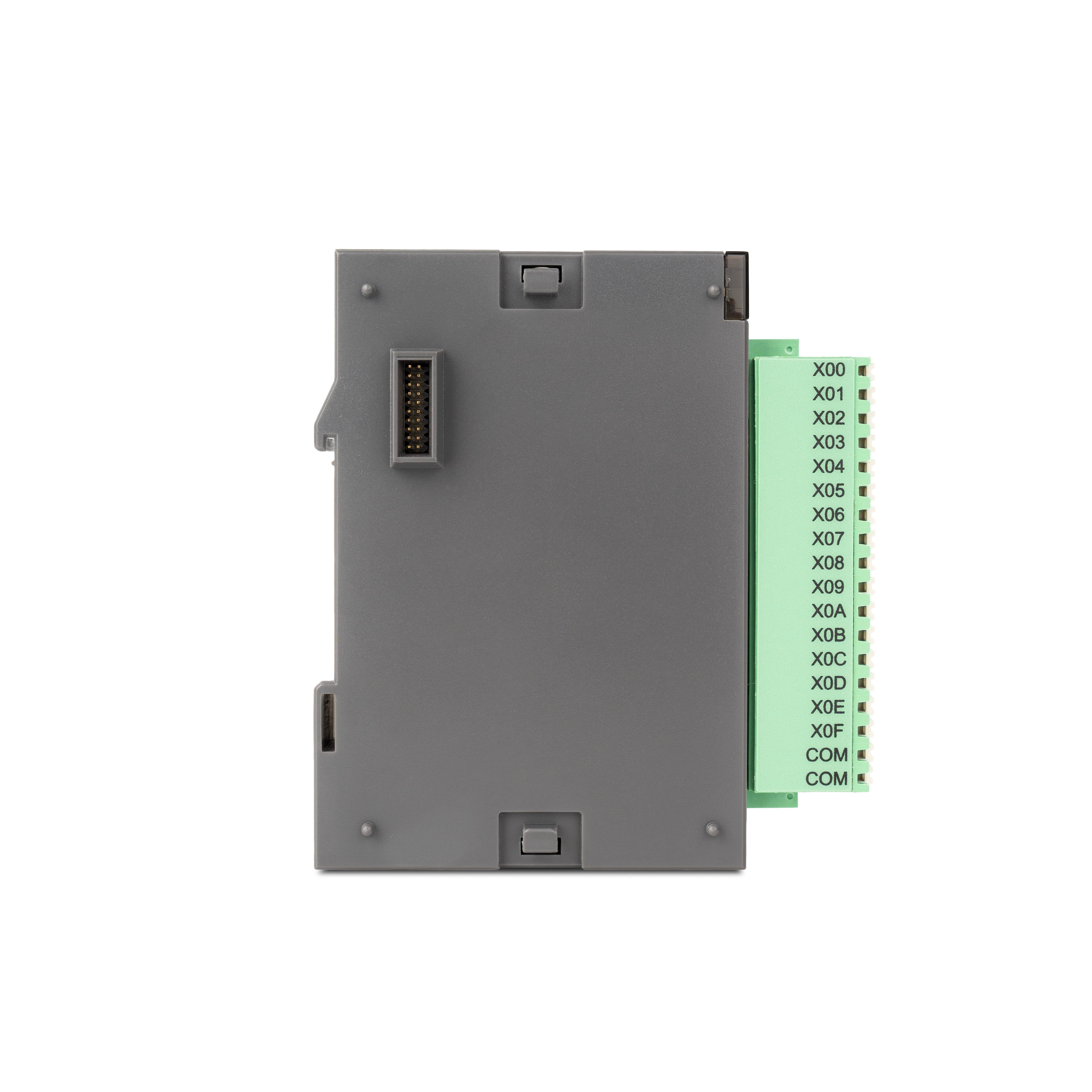

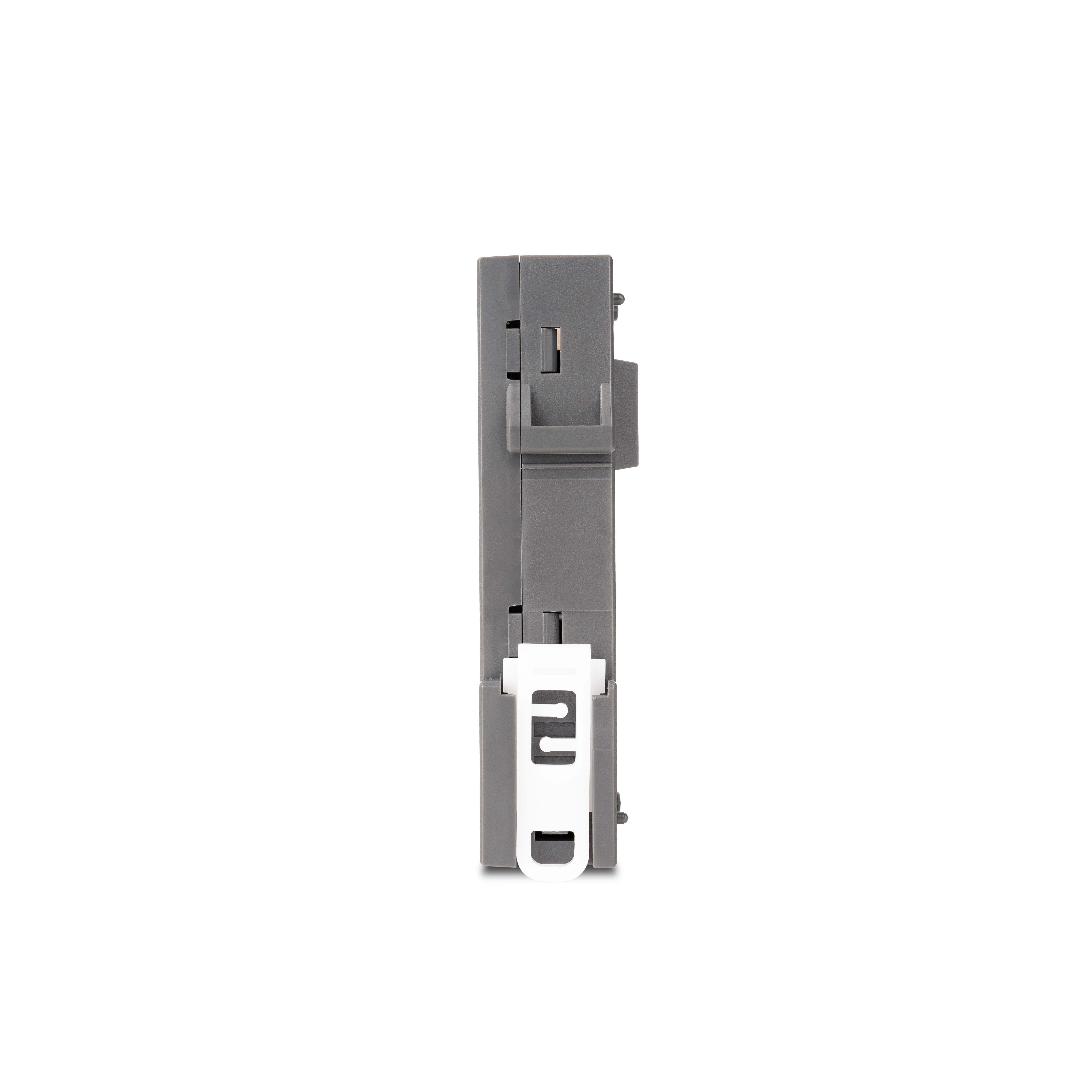

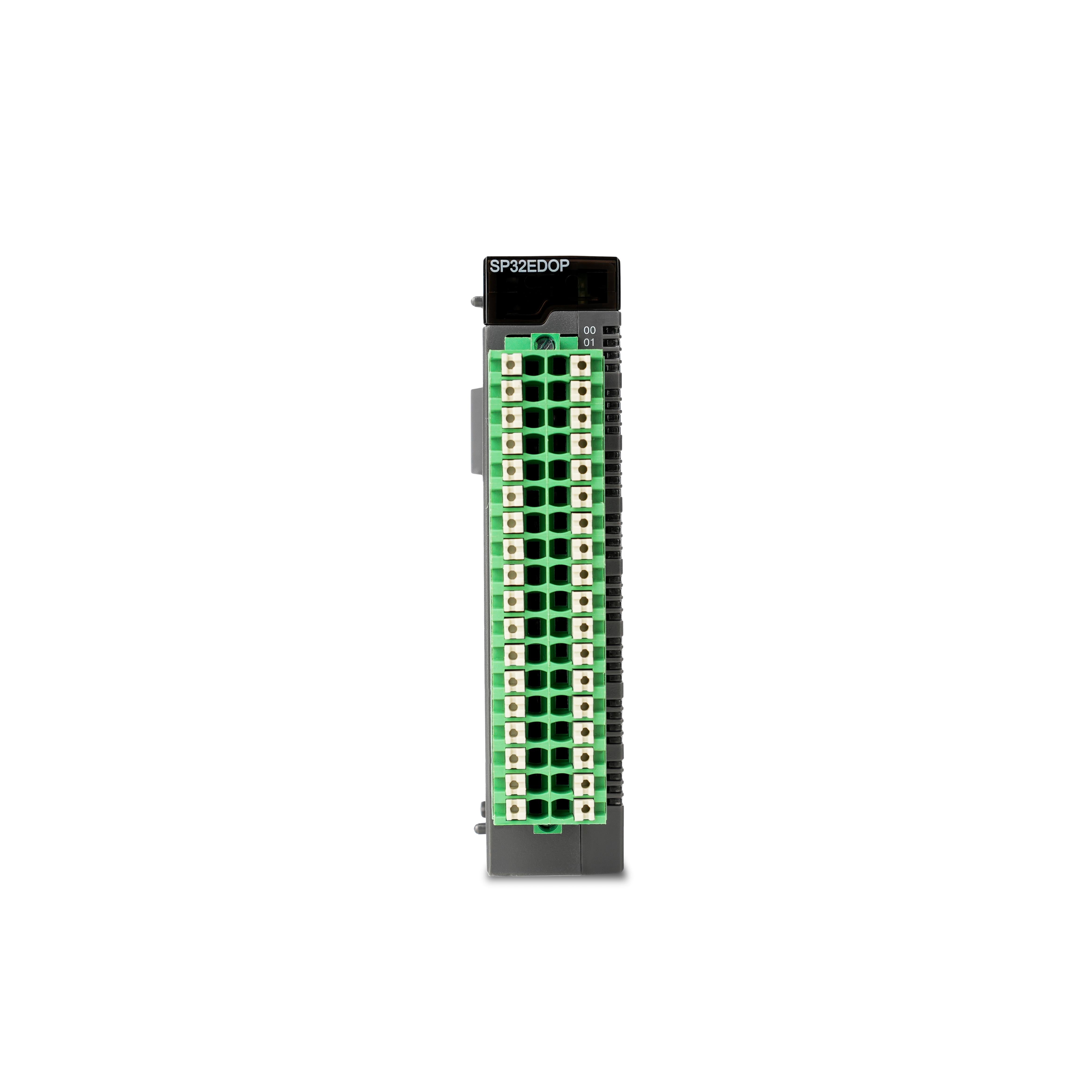

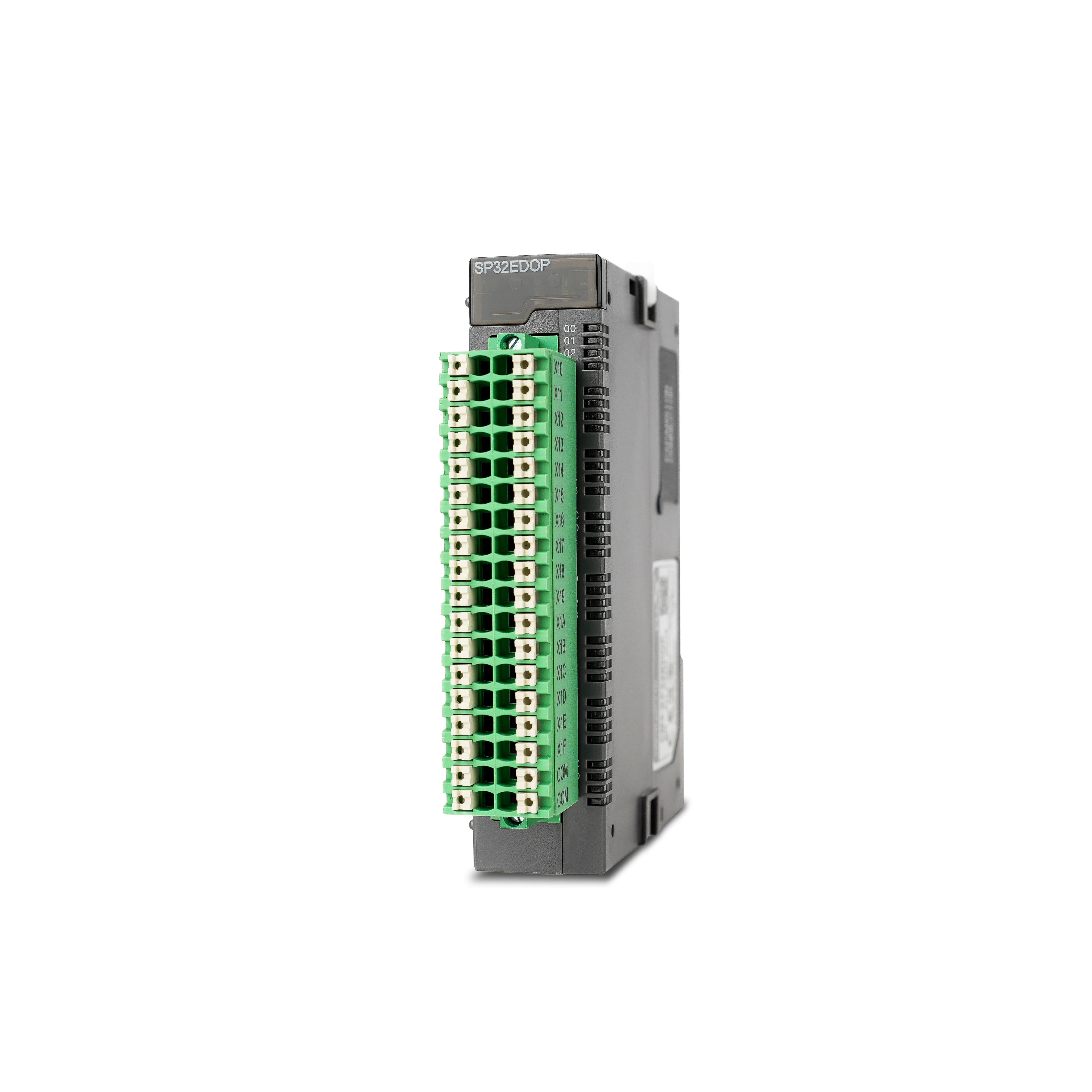

Digital Input Expansion Module, Sinking/Sourcing Input, Push-in terminal
- PLC-S Discrete Input Module
- 32 Point
- 24 VDC
- Sink/Source
- Removable push-in terminal blocks
Digital Input Expansion Module, Sinking/Sourcing Input, Push-in terminal
Sale price฿ 190.00
| SKU | CM3-SP32EDOP |
|---|---|
| Category | Discrete Input Module |
| I/O Points | 32 TR Sink/Source Inputs |
| Details | 24 VDC, Push-in Terminal Connector |
| Rated I/O Voltage | 24 VDC |
| Rated I/O Current | 4 mA |
| Response Time: Off → On | 3 ms or less |
| Response Time: On → Off | 3 ms or less |
| Insulation Method | Photocoupler |
| Discrete Input Voltage/Current Thresholds |
ON: 19 VDC / 3 mA OFF: 6 VDC / 1 mA |
| Operating Temperature | -10 – +65 °C (+14 – +149 °F) |
| Storage Temperature | -25 – +80 °C (-13 – +176 °F) |
| Operating/Storage Relative Humidity | 5 – 95% Non-condensing |
| Shock | 15G (Standards: IEC 61131-2) |
| Vibration | 0.5G - Continuous, 1G - Discontinuous (Standards: IEC 61131-2) |
| Square Wave Impulse Noise | ±2 kV (Standards: CIMON Standard) |
| ESD Immunity | ±4 kV Contact Discharges, ±8 kV Air Discharges (Standards: IEC 61131-2, IEC 61000-4-2) |
| Radiated Electromagnetic Immunity | 80–1000 MHz, 10 V/m (Standards: IEC 61131-2, IEC 61000-4-3) |
| Surge Transient Immunity |
2 kV - CPU, Power 2 kV - Discrete I/O (VAC) 1 kV - Discrete I/O (VDC) 1 kV - Communication (Standards: IEC 61131-2, IEC 61000-4-4) |
