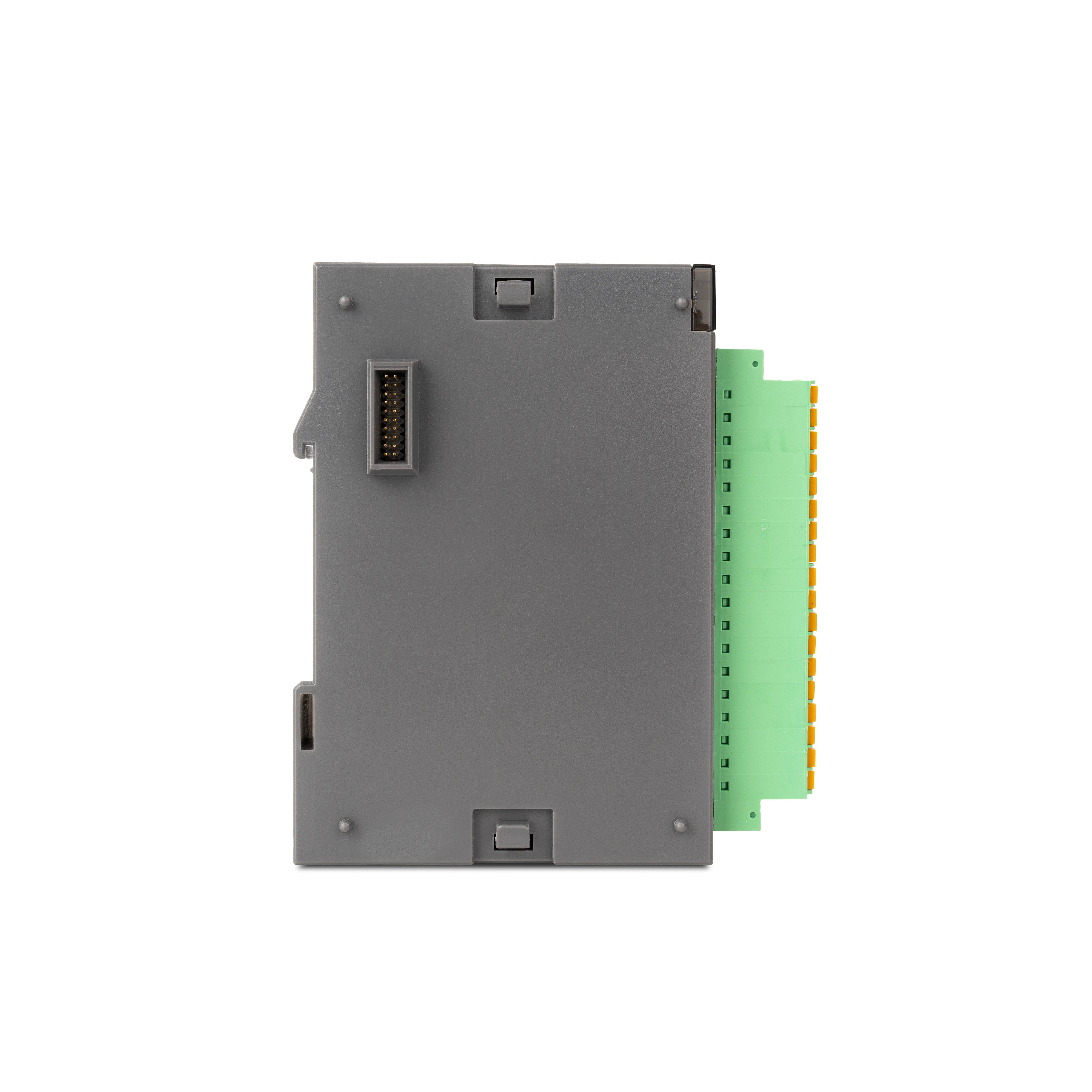

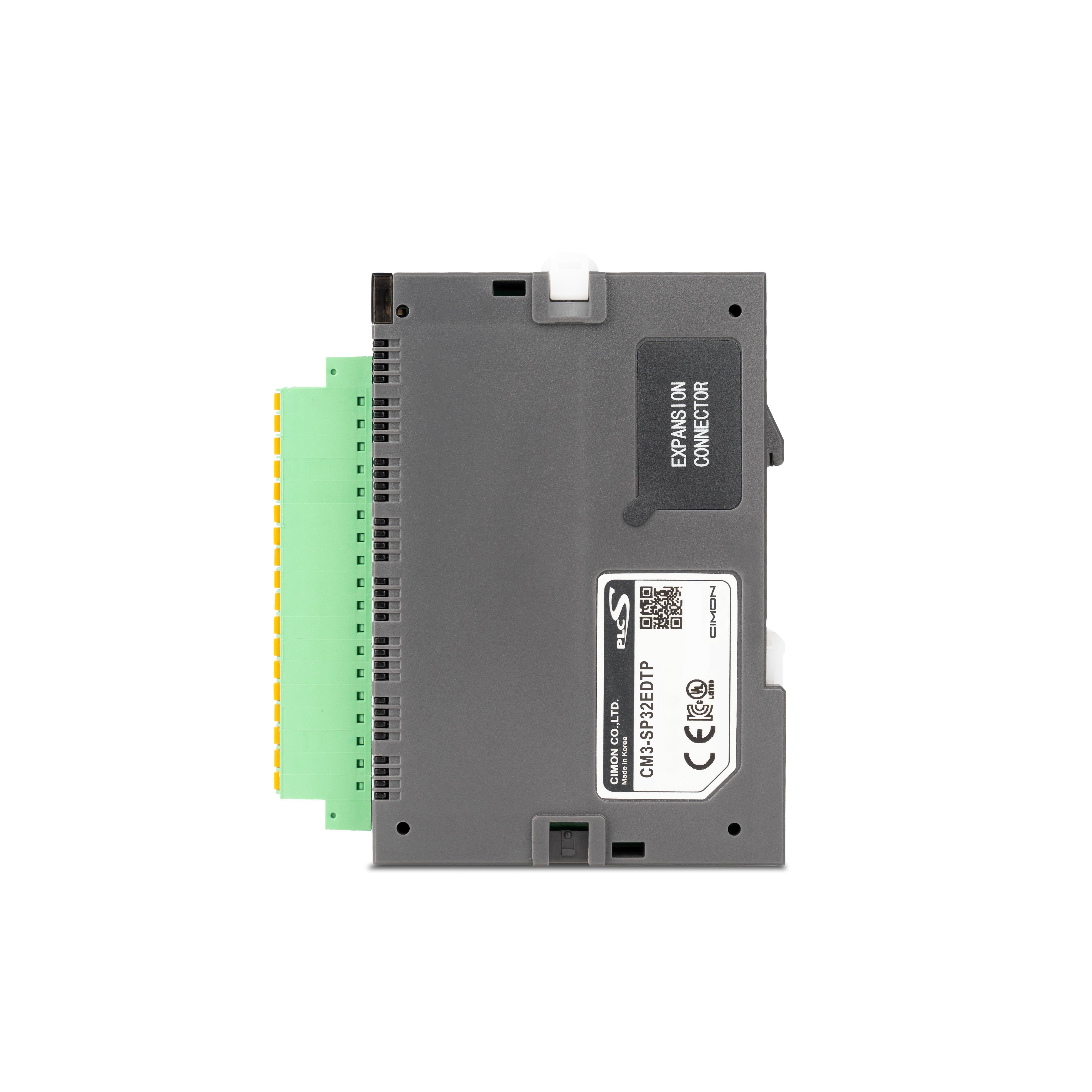

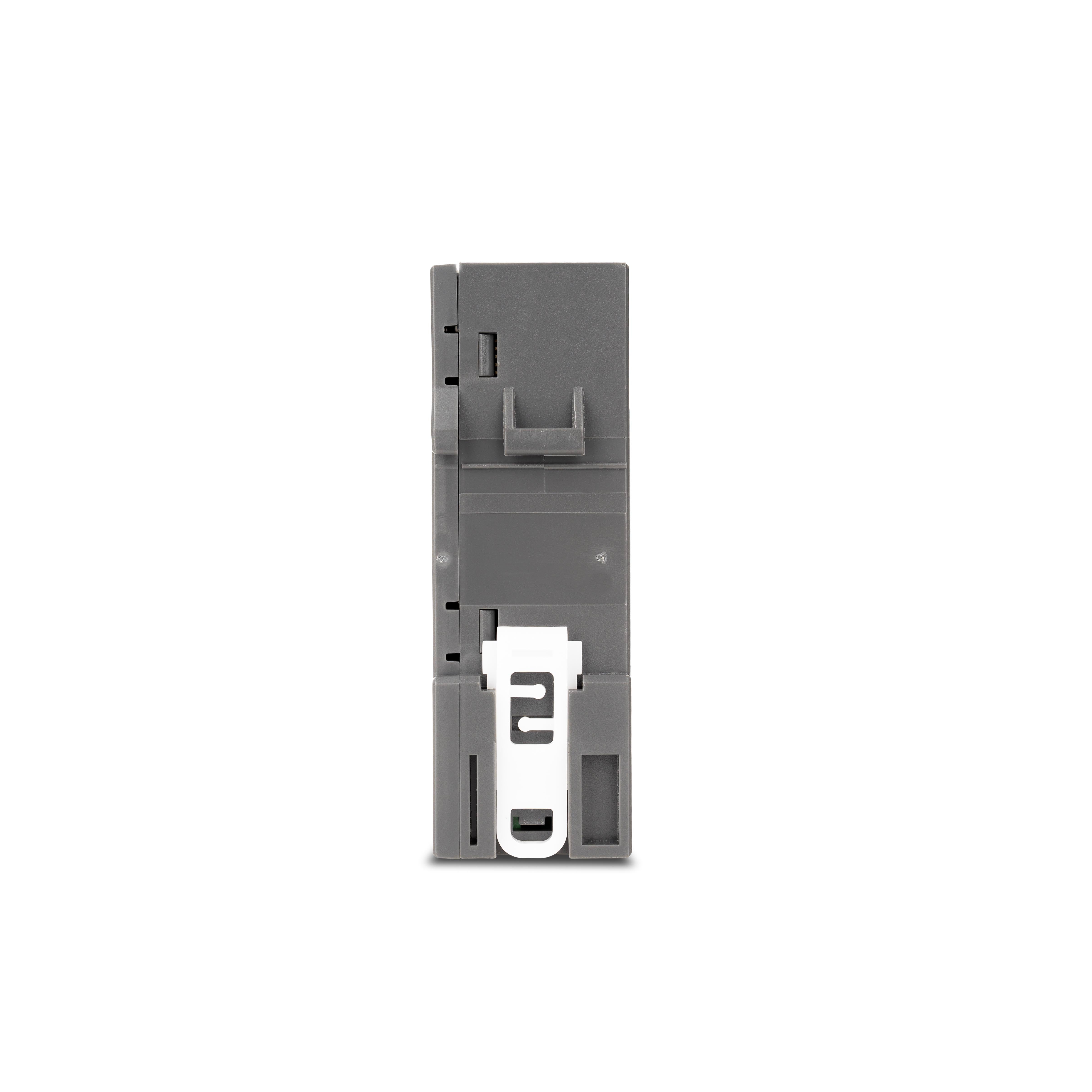

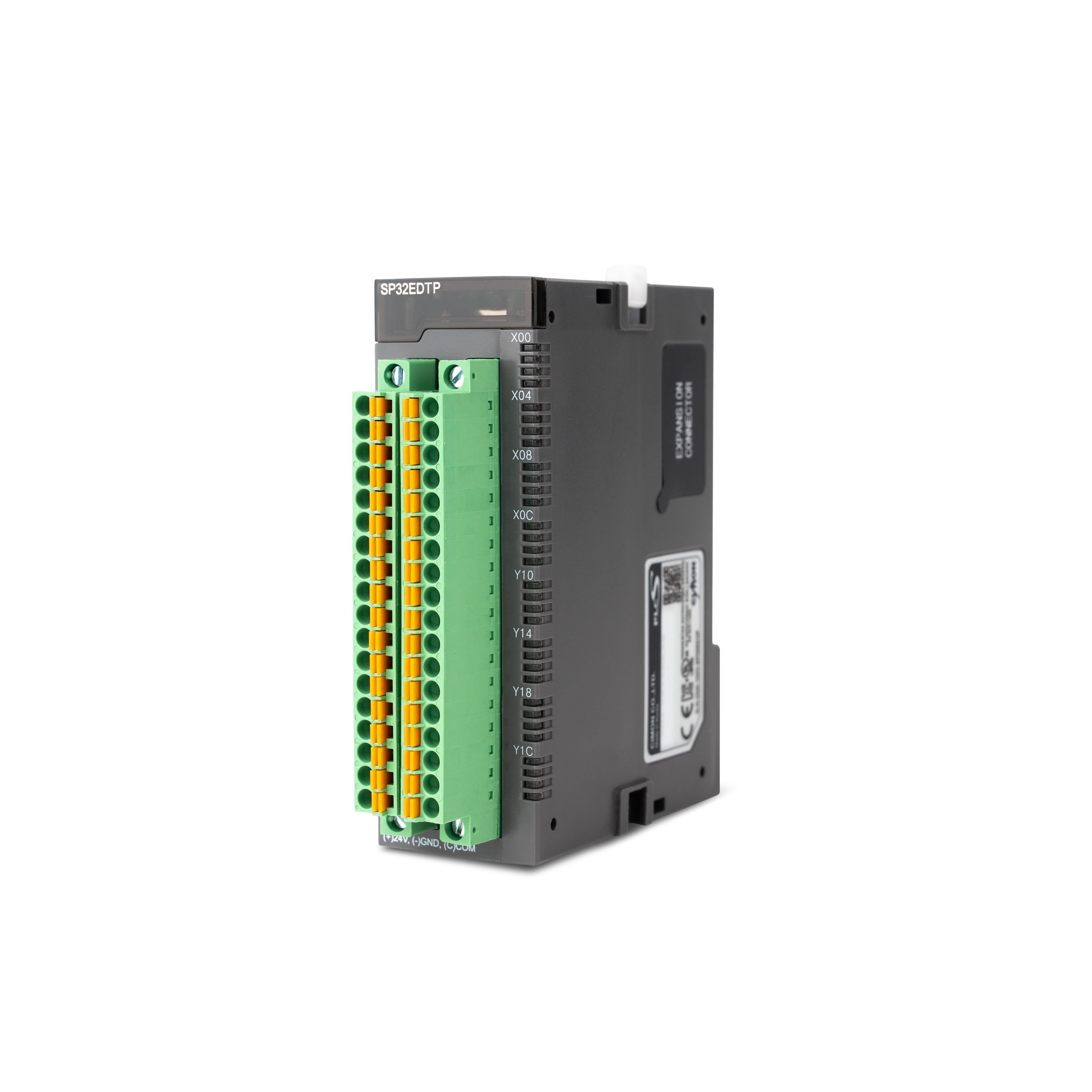

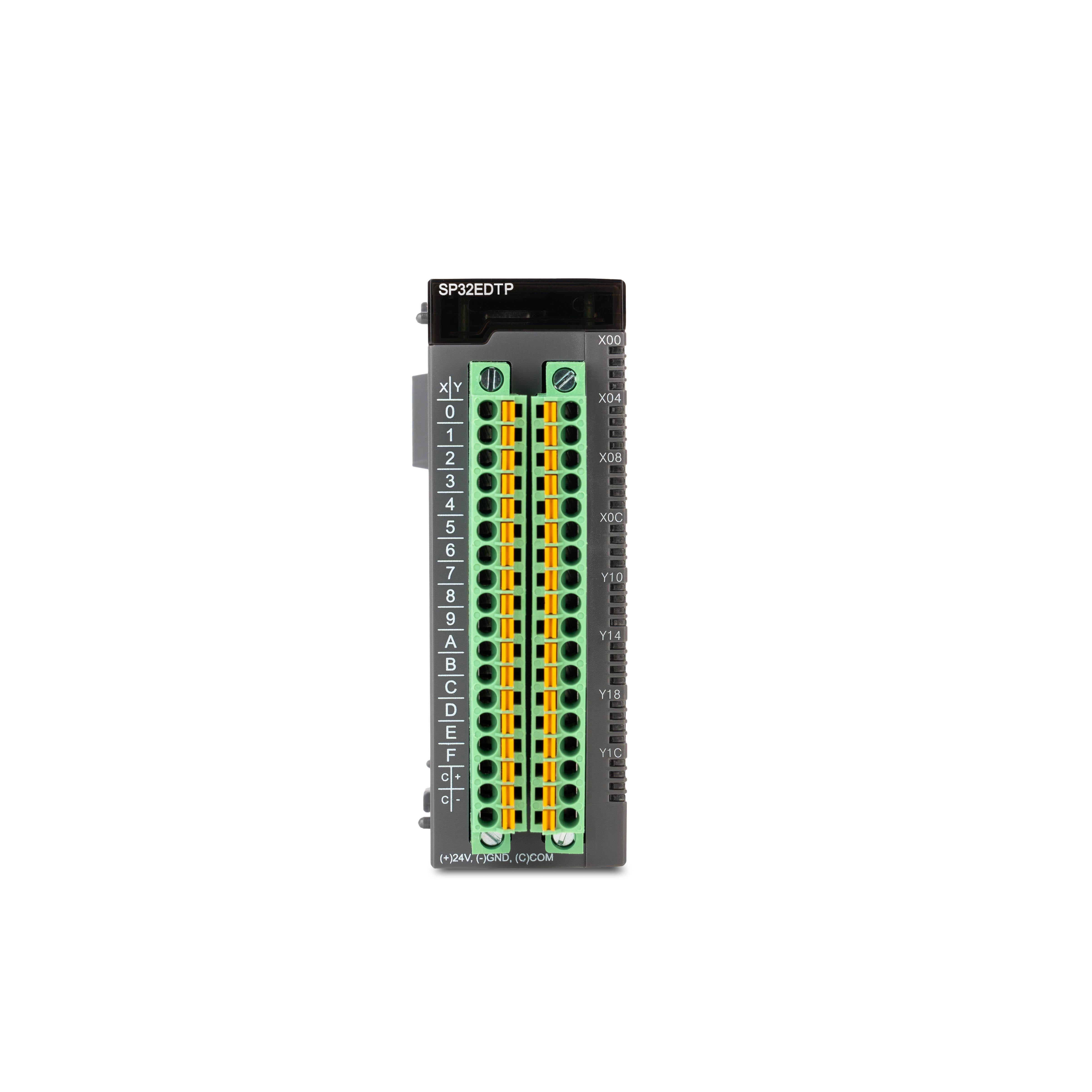

Digital Combo Expansion Module, Sinking/Sourcing Input & Sinking Output, Push-in terminal
- PLC-S Discrete Combo Module
- Input: 8 Point, 24 VDC, Sink/Source
- Output: 8 Point, 24 VDC/240 VAC, Relay, 2 A/Point
- Removable screw-based terminal blocks
| SKU | CM3-SP32EDTP |
|---|---|
| Category | Discrete Input / Discrete Output Module |
| I/O Points | 16 TR Sink/Source Inputs, 16 TR Sink Outputs |
| Details | 24 VDC, Push-in Terminal Connector |
| Rated I/O Voltage |
TR Sink/Source Inputs: 24 VDC TR Sink Outputs: 12/24 VDC |
| Rated I/O Current |
TR Sink/Source Inputs: 4 mA TR Sink Outputs: 1 point = 0.2 A, 1 COM = 2 A |
| Response Time: Off → On |
TR Sink/Source Inputs: 3 ms or less TR Sink Outputs: 1 ms or less |
| Response Time: On → Off |
TR Sink/Source Inputs: 3 ms or less TR Sink Outputs: 1 ms or less |
| Insulation Method |
TR Sink/Source Inputs: Photocoupler TR Sink Outputs: Photocoupler |
| Discrete Input Voltage/Current Thresholds |
TR Sink/Source Inputs: ON: 19 VDC / 3 mA OFF: 6 VDC / 1 mA TR Sink Outputs: ON: 19 VDC / 3 mA OFF: 6 VDC / 1 mA |
| Operating Temperature | -10 – +65 °C (+14 – +149 °F) |
| Storage Temperature | -25 – +80 °C (-13 – +176 °F) |
| Operating/Storage Relative Humidity | 5 – 95% Non-condensing |
| Shock | 15G (Standards: IEC 61131-2) |
| Vibration | 0.5G - Continuous, 1G - Discontinuous (Standards: IEC 61131-2) |
| Square Wave Impulse Noise | ±2 kV (Standards: CIMON Standard) |
| ESD Immunity | ±4 kV - Contact Discharges, ±8 kV - Air Discharges (Standards: IEC 61131-2, IEC 61000-4-2) |
| Radiated Electromagnetic Immunity | 80–1000 MHz, 10 V/m (Standards: IEC 61131-2, IEC 61000-4-3) |
| Surge Transient Immunity |
2 kV - CPU, Power 2 kV - Discrete I/O (VAC) 1 kV - Discrete I/O (VDC) 1 kV - Communication (Standards: IEC 61131-2, IEC 61000-4-4) |
