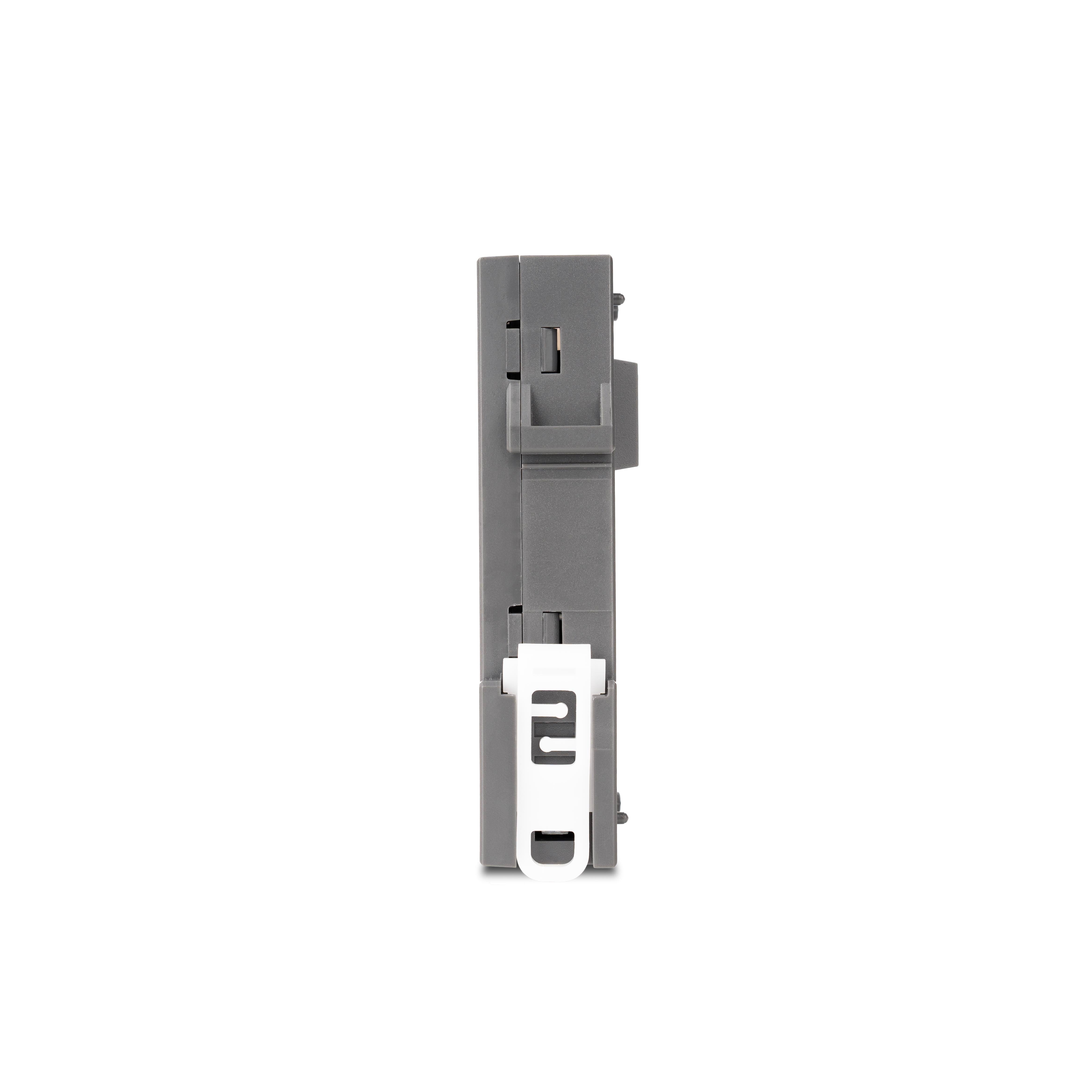

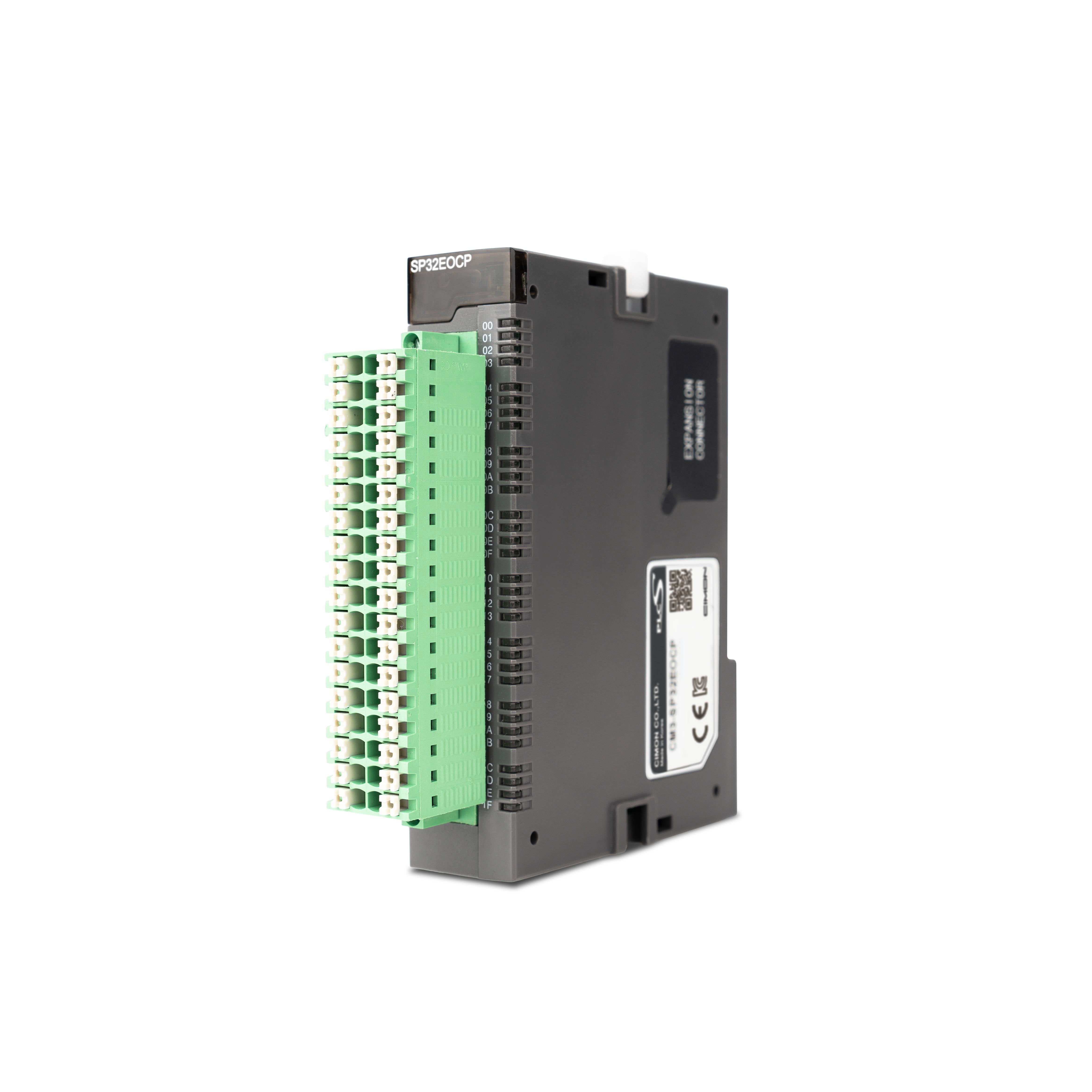

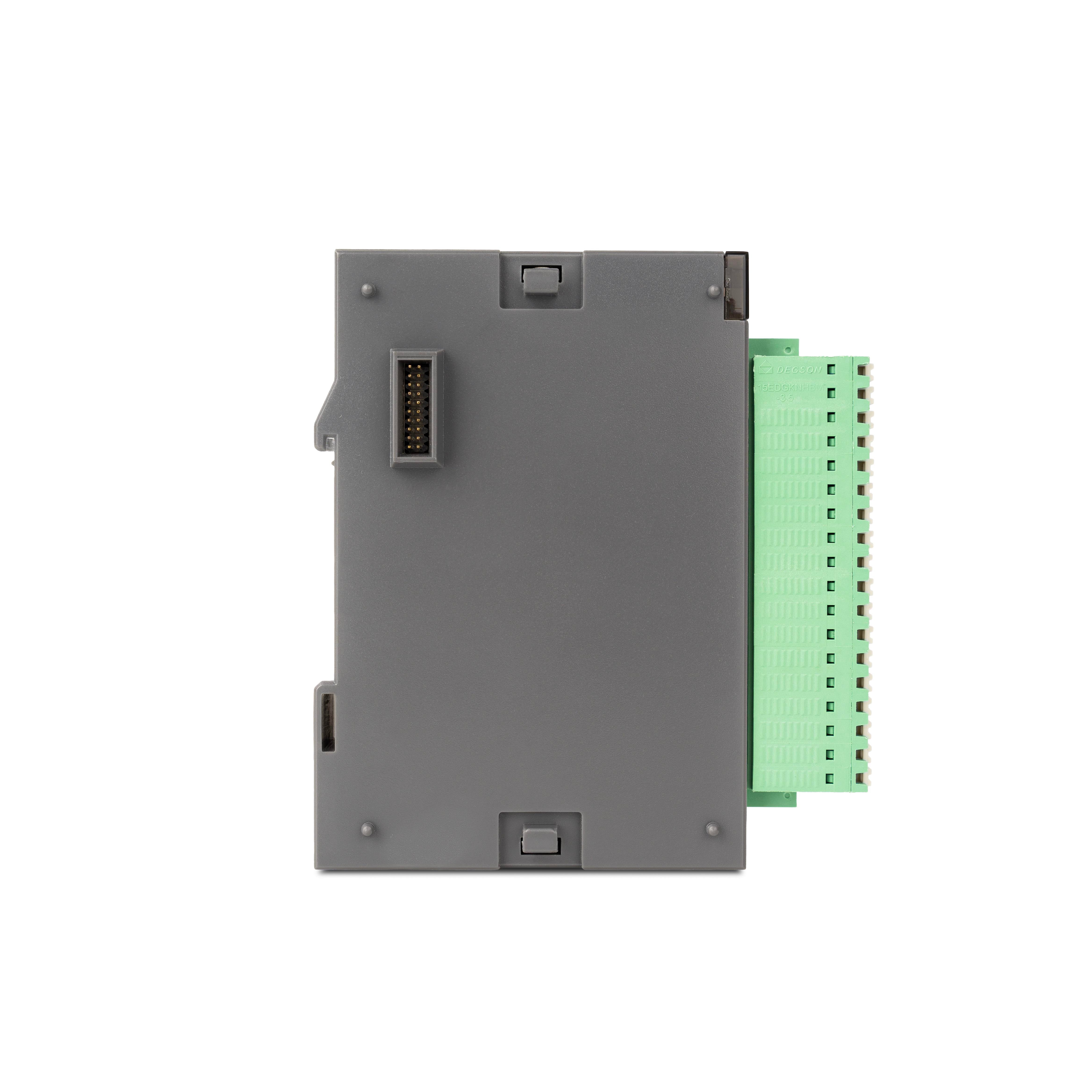

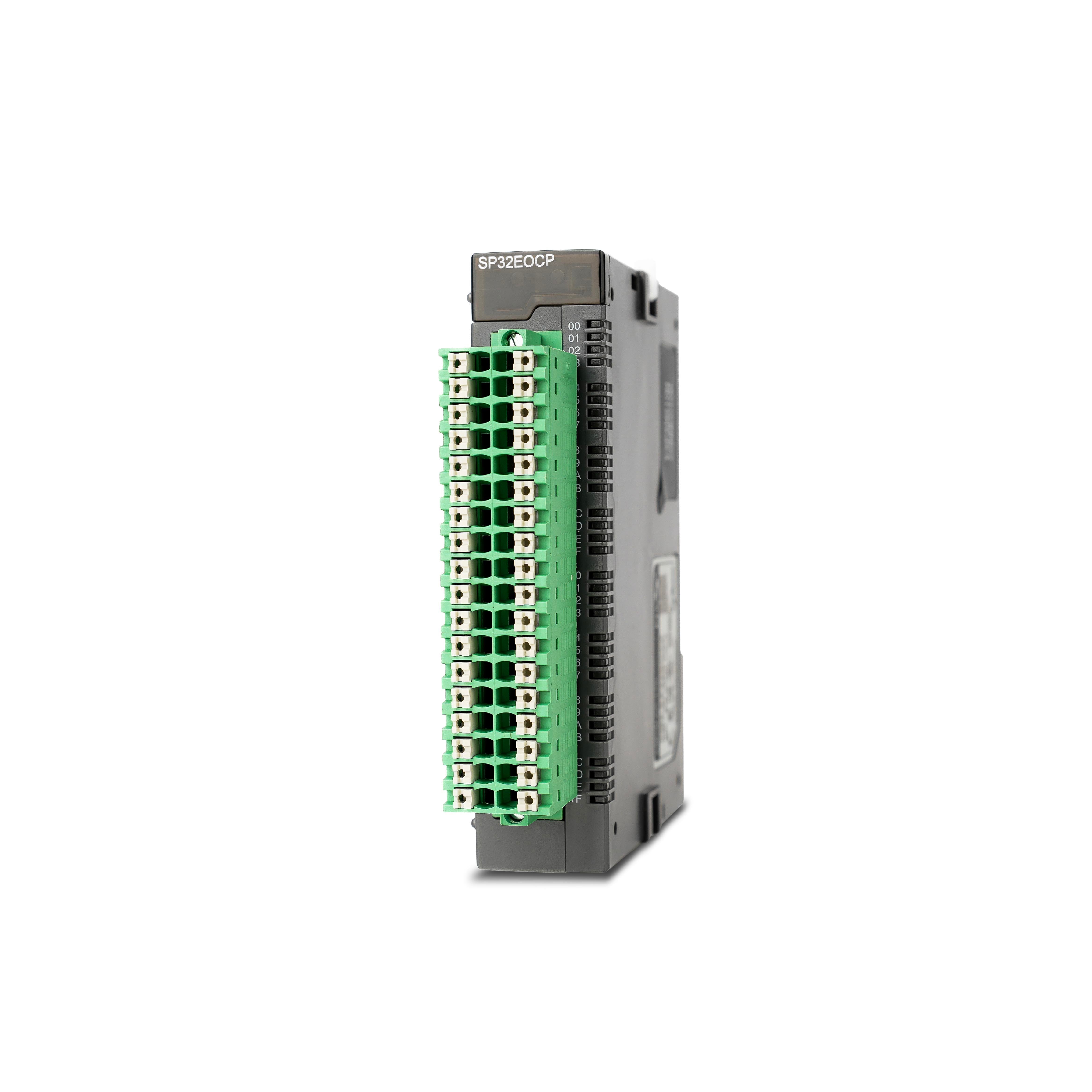

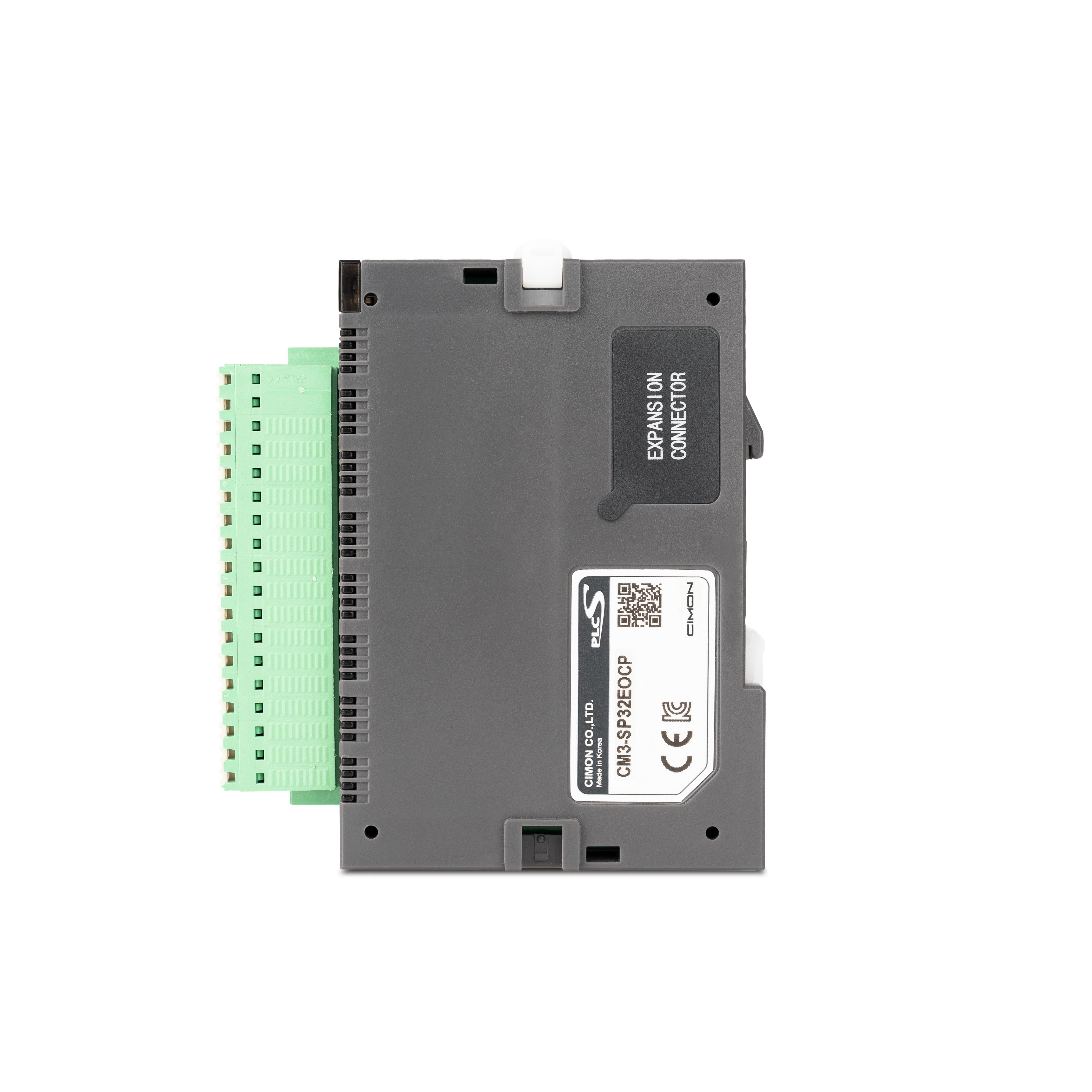

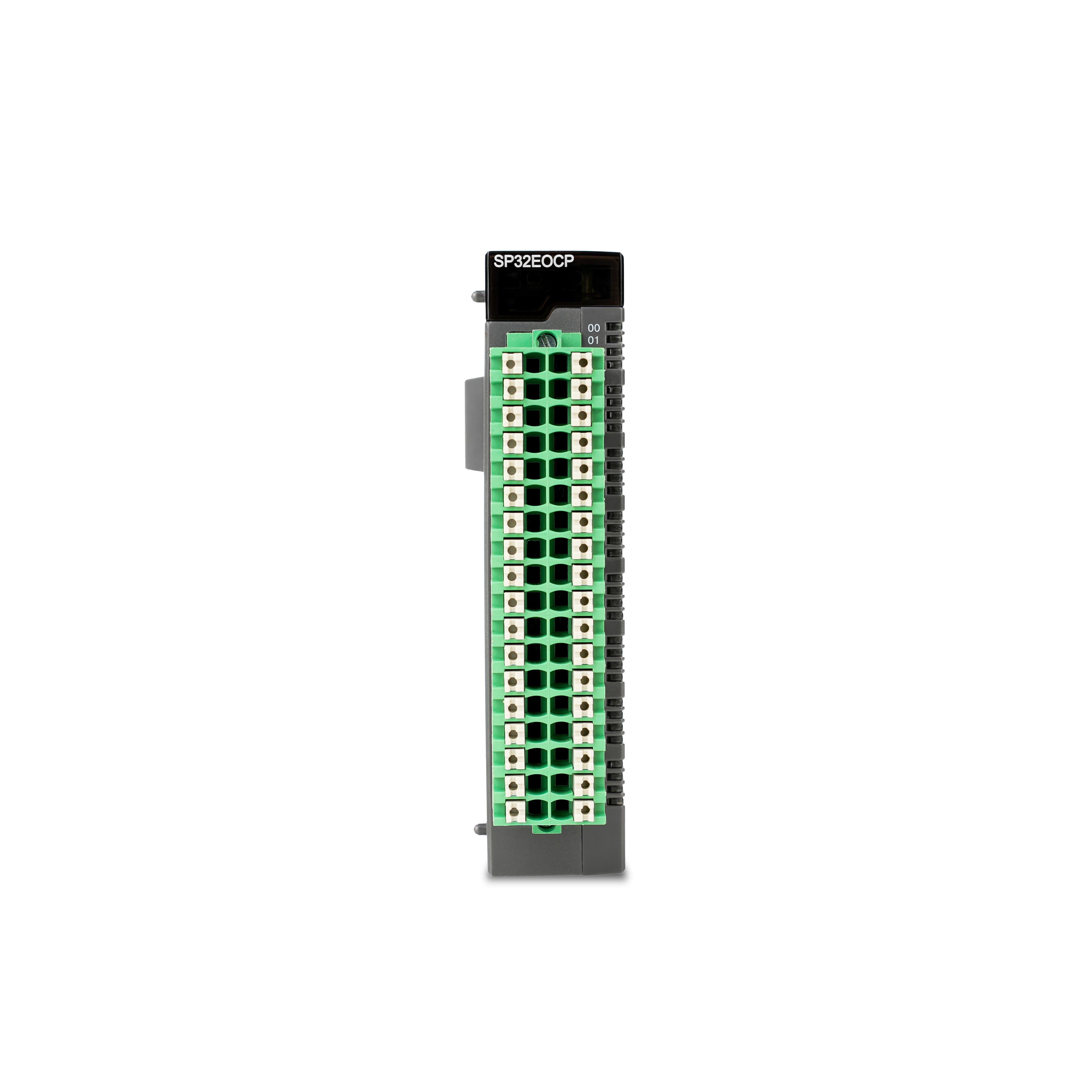

Digital Output Expansion Module, Sourcing Output, Push-in terminal

Digital Output Expansion Module, Sourcing Output, Push-in terminal

CM3-SP32EOCP

฿ 210.00

PLC-S Discrete Output Module
32 Point
12/24 VDC
Source
0.2 A/Point
Removable push-in terminal blocks

Quantity:

Digital Output Expansion Module, Sourcing Output, Push-in terminal

฿ 210.00

Specifications

SKU	CM3-SP32EOCP
Category	Discrete Output Module
I/O Points	32 TR Source Outputs
Details	24 VDC, Push-in Terminal Connector
Rated I/O Voltage	12/24 VDC
Rated I/O Current	1 point = 0.2 A 1 COM = 2 A
Response Time: Off → On	1 ms or less
Response Time: On → Off	1 ms or less
Insulation Method	Photocoupler
Discrete Input Voltage/Current Thresholds	ON: 19 VDC / 3 mA OFF: 6 VDC / 1 mA
Operating Temperature	-10 – +65 °C (+14 – +149 °F)
Storage Temperature	-25 – +80 °C (-13 – +176 °F)
Operating/Storage Relative Humidity	5 – 95% Non-condensing
Shock	15G (Standards: IEC 61131-2)
Vibration	0.5G - Continuous 1G - Discontinuous (Standards: IEC 61131-2)
Square Wave Impulse Noise	±2 kV (Standards: CIMON Standard)
ESD Immunity	±4 kV - Contact Discharges ±8 kV - Air Discharges (Standards: IEC 61131-2, IEC 61000-4-2)
Radiated Electromagnetic Immunity	80–1000 MHz, 10 V/m (Standards: IEC 61131-2, IEC 61000-4-3)
Surge Transient Immunity	2 kV - CPU, Power 2 kV - Discrete I/O (VAC) 1 kV - Discrete I/O (VDC) 1 kV - Communication (Standards: IEC 61131-2, IEC 61000-4-4)

<div class="spec-table">
<table>
<tr><th>SKU</th><td>CM3-SP32EOCP</td></tr>
<tr><th>Category</th><td>Discrete Output Module</td></tr>
<tr><th>I/O Points</th><td>32 TR Source Outputs</td></tr>
<tr><th>Details</th><td>24 VDC, Push-in Terminal Connector</td></tr>
<tr><th>Rated I/O Voltage</th><td>12/24 VDC</td></tr>
<tr><th>Rated I/O Current</th><td>1 point = 0.2 A<br>1 COM = 2 A</td></tr>
<tr><th>Response Time: Off → On</th><td>1 ms or less</td></tr>
<tr><th>Response Time: On → Off</th><td>1 ms or less</td></tr>
<tr><th>Insulation Method</th><td>Photocoupler</td></tr>
<tr><th>Discrete Input Voltage/Current Thresholds</th><td>ON: 19 VDC / 3 mA<br>OFF: 6 VDC / 1 mA</td></tr>
<tr><th>Operating Temperature</th><td>-10 – +65 °C (+14 – +149 °F)</td></tr>
<tr><th>Storage Temperature</th><td>-25 – +80 °C (-13 – +176 °F)</td></tr>
<tr><th>Operating/Storage Relative Humidity</th><td>5 – 95% Non-condensing</td></tr>
<tr><th>Shock</th><td>15G (Standards: IEC 61131-2)</td></tr>
<tr><th>Vibration</th><td>0.5G - Continuous<br>1G - Discontinuous (Standards: IEC 61131-2)</td></tr>
<tr><th>Square Wave Impulse Noise</th><td>±2 kV (Standards: CIMON Standard)</td></tr>
<tr><th>ESD Immunity</th>
<td>±4 kV - Contact Discharges<br>±8 kV - Air Discharges<br>(Standards: IEC 61131-2, IEC 61000-4-2)</td>
</tr>
<tr><th>Radiated Electromagnetic Immunity</th>
<td>80–1000 MHz, 10 V/m (Standards: IEC 61131-2, IEC 61000-4-3)</td>
</tr>
<tr><th>Surge Transient Immunity</th>
<td>
2 kV - CPU, Power<br>
2 kV - Discrete I/O (VAC)<br>
1 kV - Discrete I/O (VDC)<br>
1 kV - Communication<br>
(Standards: IEC 61131-2, IEC 61000-4-4)
</td>
</tr>
</table>
</div>
