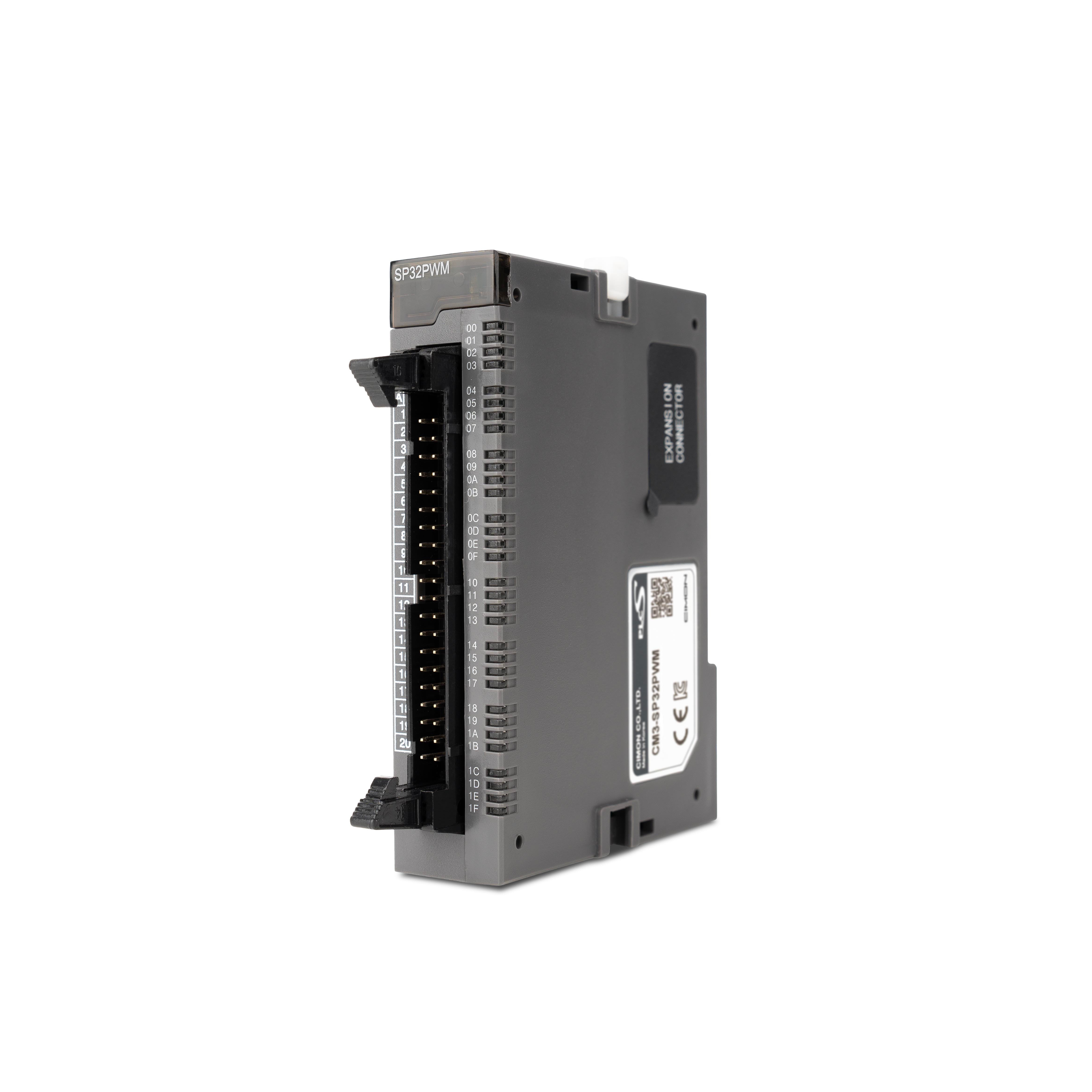

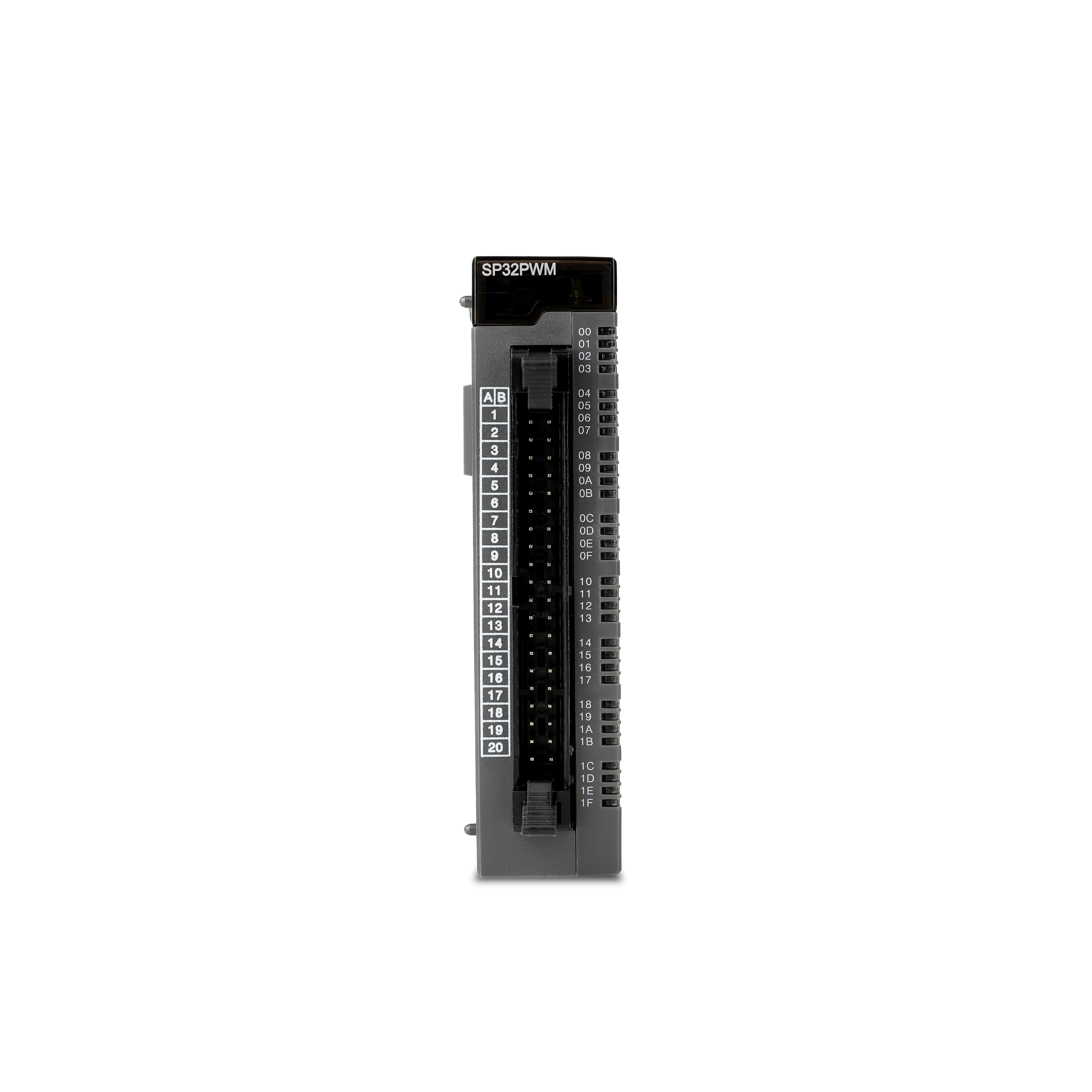

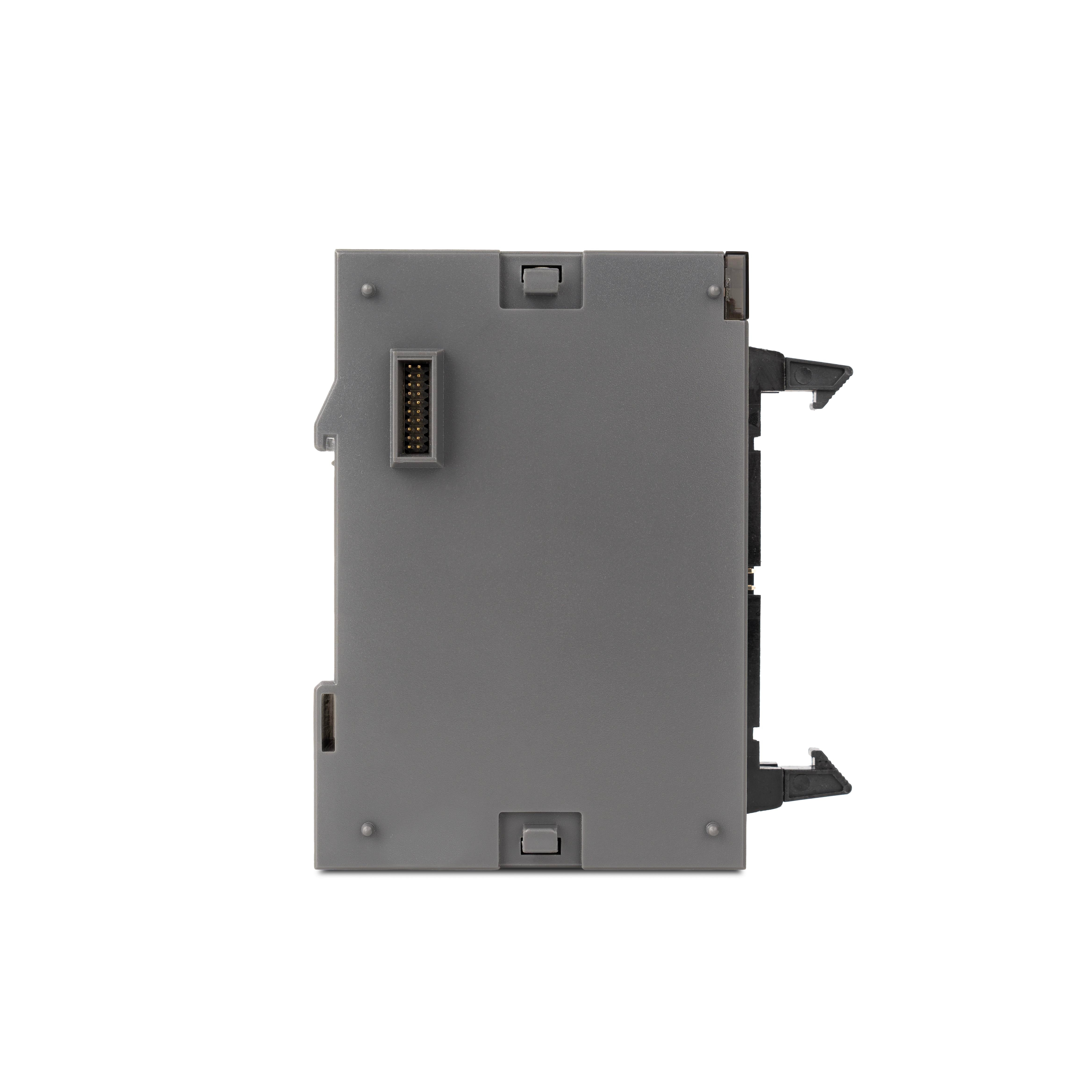

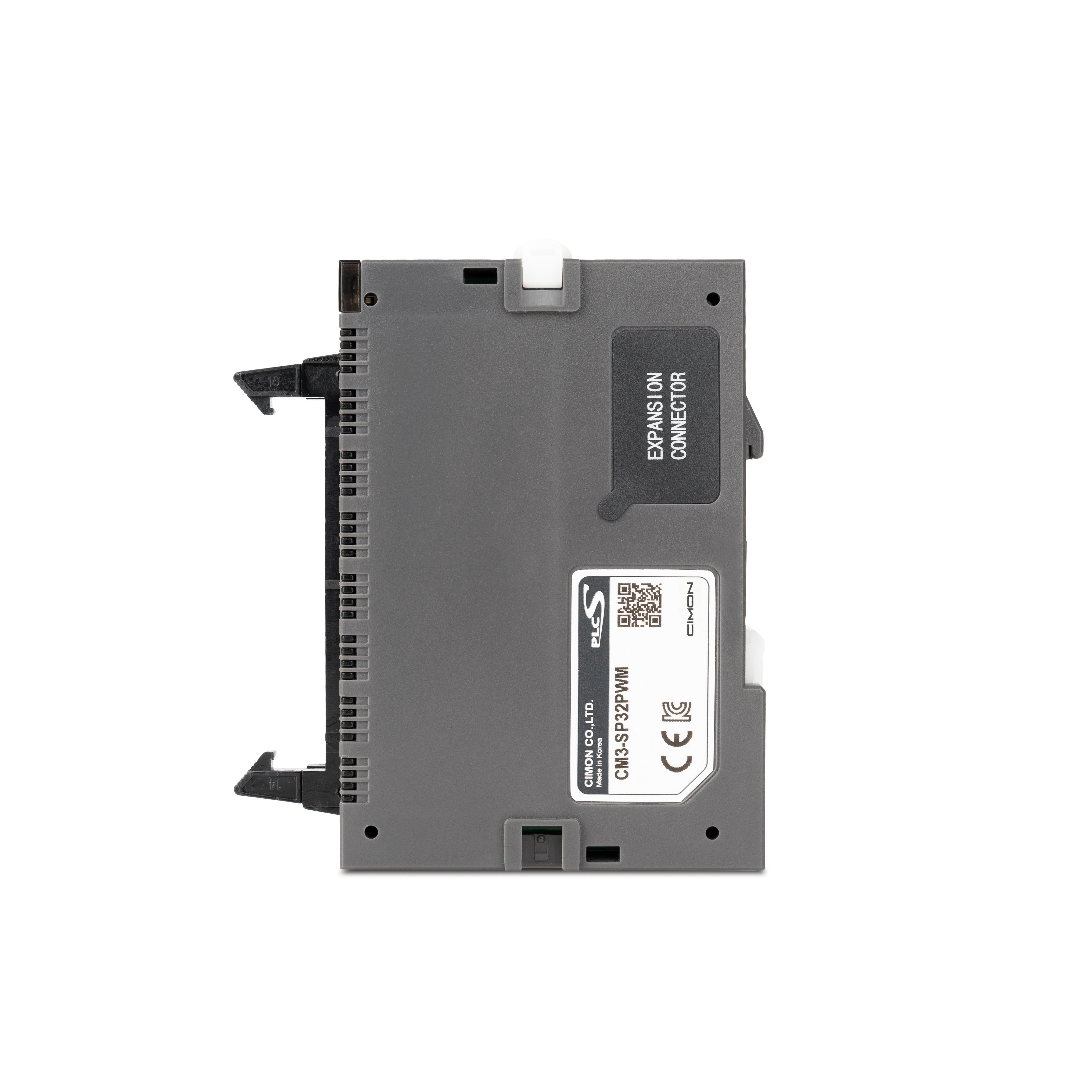

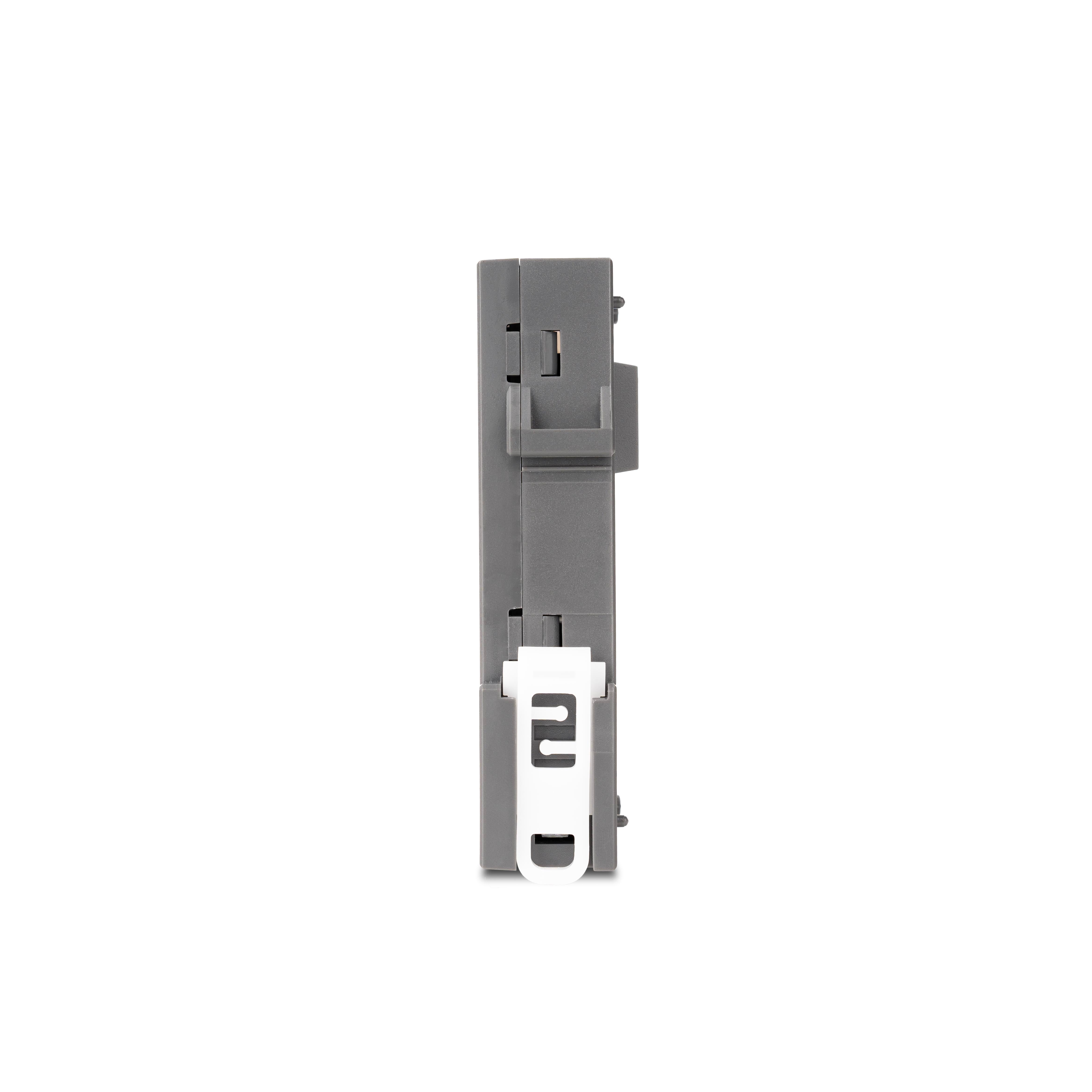

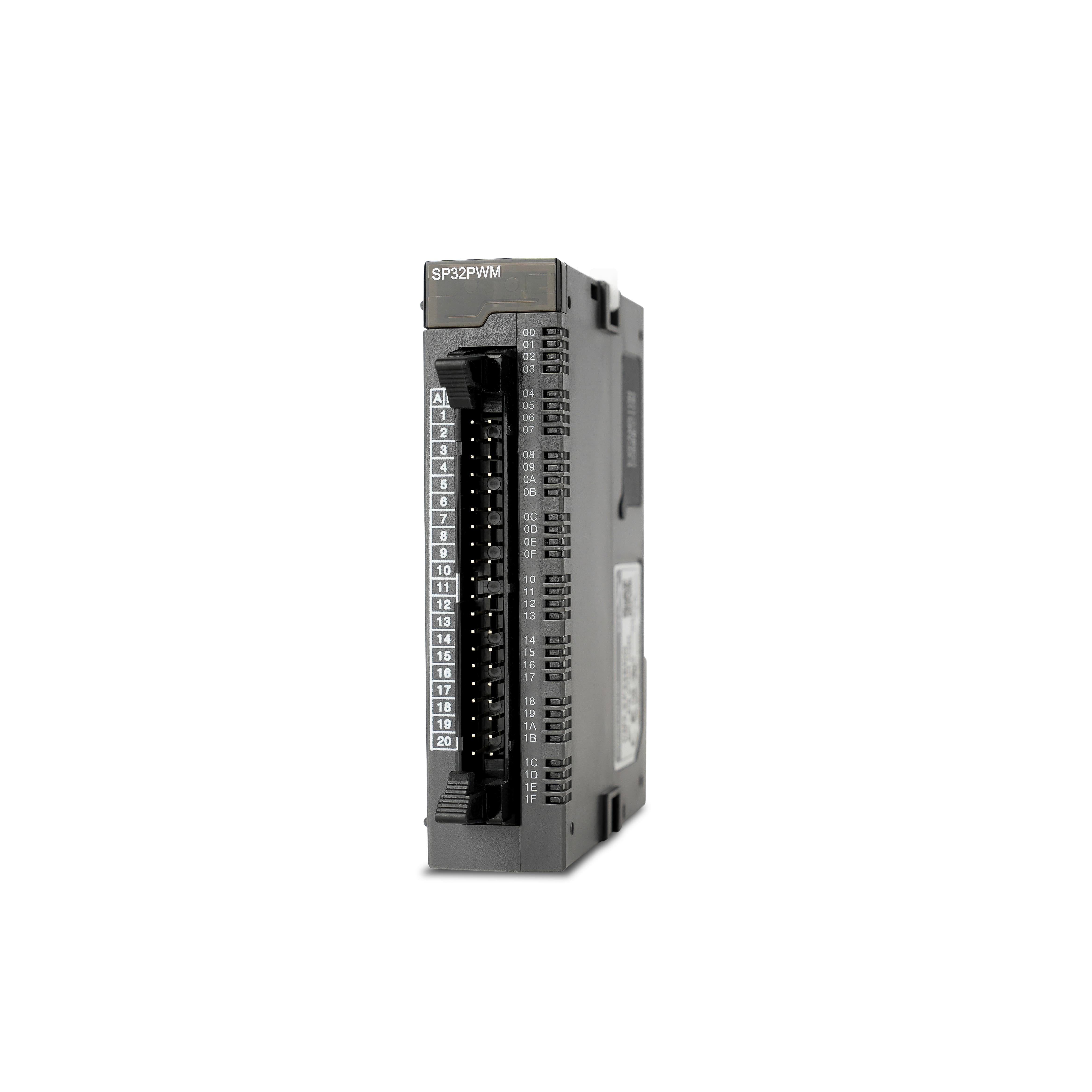

Pulse-Width Modulation Expansion Module

CM3-SP32PWM

฿ 340.00

PLC-S Pulse-Width Modulation (PWM) Module
3-Channel
4 kHz
0-95% Duty Cycle
32 Discrete Points
12/24 VDC
Source
0.2 A/Point
CM0-TB32M terminal block and CM0-SCB15M connection cable required

Quantity:

฿ 340.00

Specifications

SKU	CM3-SP32PWM
Category	Discrete Output Module
I/O Points	32 TR Source Outputs (Includes 12 PWM Outputs)
Details	24 VDC, Terminal Block and Cable Required
Frequency Range (Guaranteed Duty Cycle)	1 – 4000 Hz (pps)
Maximum Frequency	65 kHz (kpps)
Duty Cycle Resolution	0.0 – 100.0% (1/1000)
RAMP Control	Frequency RAMP, Duty Cycle RAMP Control
Operating Temperature	-10 – +65 °C (+14 – +149 °F)
Storage Temperature	-25 – +80 °C (-13 – +176 °F)
Operating/Storage Relative Humidity	5 – 95% Non-condensing
Shock	15G (Standards: IEC 61131-2)
Vibration	0.5G - Continuous 1G - Discontinuous (Standards: IEC 61131-2)
Square Wave Impulse Noise	±2 kV (Standards: CIMON Standard)
ESD Immunity	±4 kV - Contact Discharges ±8 kV - Air Discharges (Standards: IEC 61131-2, IEC 61000-4-2)
Radiated Electromagnetic Immunity	80–1000 MHz, 10 V/m (Standards: IEC 61131-2, IEC 61000-4-3)
Surge Transient Immunity	2 kV - CPU, Power 2 kV - Discrete I/O (VAC) 1 kV - Discrete I/O (VDC) 1 kV - Communication (Standards: IEC 61131-2, IEC 61000-4-4)

<div class="spec-table">
<table>
<tr><th>SKU</th><td>CM3-SP32PWM</td></tr>
<tr><th>Category</th><td>Discrete Output Module</td></tr>
<tr><th>I/O Points</th><td>32 TR Source Outputs (Includes 12 PWM Outputs)</td></tr>
<tr><th>Details</th><td>24 VDC, Terminal Block and Cable Required</td></tr>
<tr><th>Frequency Range (Guaranteed Duty Cycle)</th><td>1 – 4000 Hz (pps)</td></tr>
<tr><th>Maximum Frequency</th><td>65 kHz (kpps)</td></tr>
<tr><th>Duty Cycle Resolution</th><td>0.0 – 100.0% (1/1000)</td></tr>
<tr><th>RAMP Control</th><td>Frequency RAMP, Duty Cycle RAMP Control</td></tr>
<tr><th>Operating Temperature</th><td>-10 – +65 °C (+14 – +149 °F)</td></tr>
<tr><th>Storage Temperature</th><td>-25 – +80 °C (-13 – +176 °F)</td></tr>
<tr><th>Operating/Storage Relative Humidity</th><td>5 – 95% Non-condensing</td></tr>
<tr><th>Shock</th><td>15G (Standards: IEC 61131-2)</td></tr>
<tr><th>Vibration</th>
<td>
0.5G - Continuous<br>
1G - Discontinuous<br>
(Standards: IEC 61131-2)
</td>
</tr>
<tr><th>Square Wave Impulse Noise</th><td>±2 kV (Standards: CIMON Standard)</td></tr>
<tr><th>ESD Immunity</th>
<td>
±4 kV - Contact Discharges<br>
±8 kV - Air Discharges<br>
(Standards: IEC 61131-2, IEC 61000-4-2)
</td>
</tr>
<tr><th>Radiated Electromagnetic Immunity</th>
<td>
80–1000 MHz, 10 V/m<br>
(Standards: IEC 61131-2, IEC 61000-4-3)
</td>
</tr>
<tr><th>Surge Transient Immunity</th>
<td>
2 kV - CPU, Power<br>
2 kV - Discrete I/O (VAC)<br>
1 kV - Discrete I/O (VDC)<br>
1 kV - Communication<br>
(Standards: IEC 61131-2, IEC 61000-4-4)
</td>
</tr>
</table>
</div>
