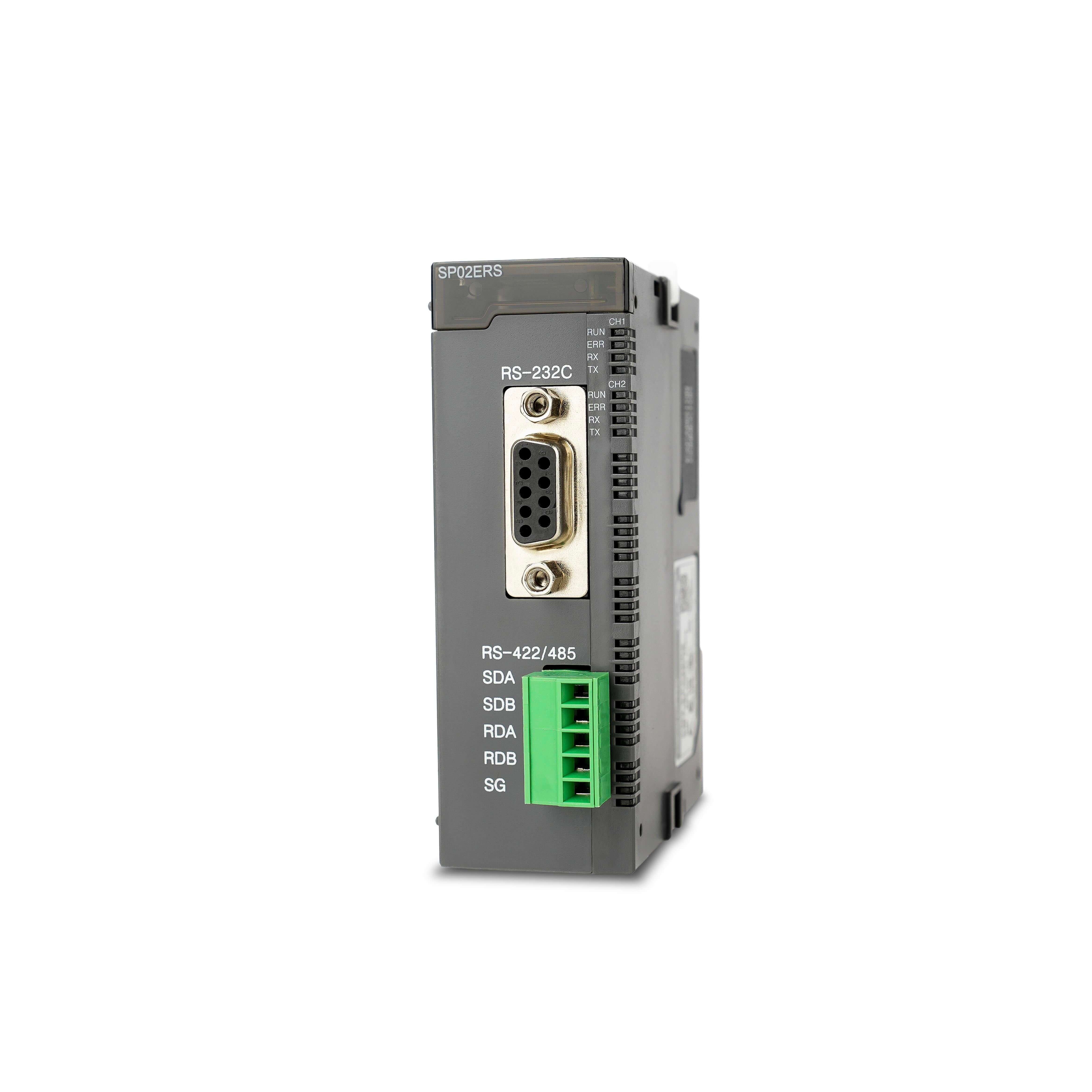

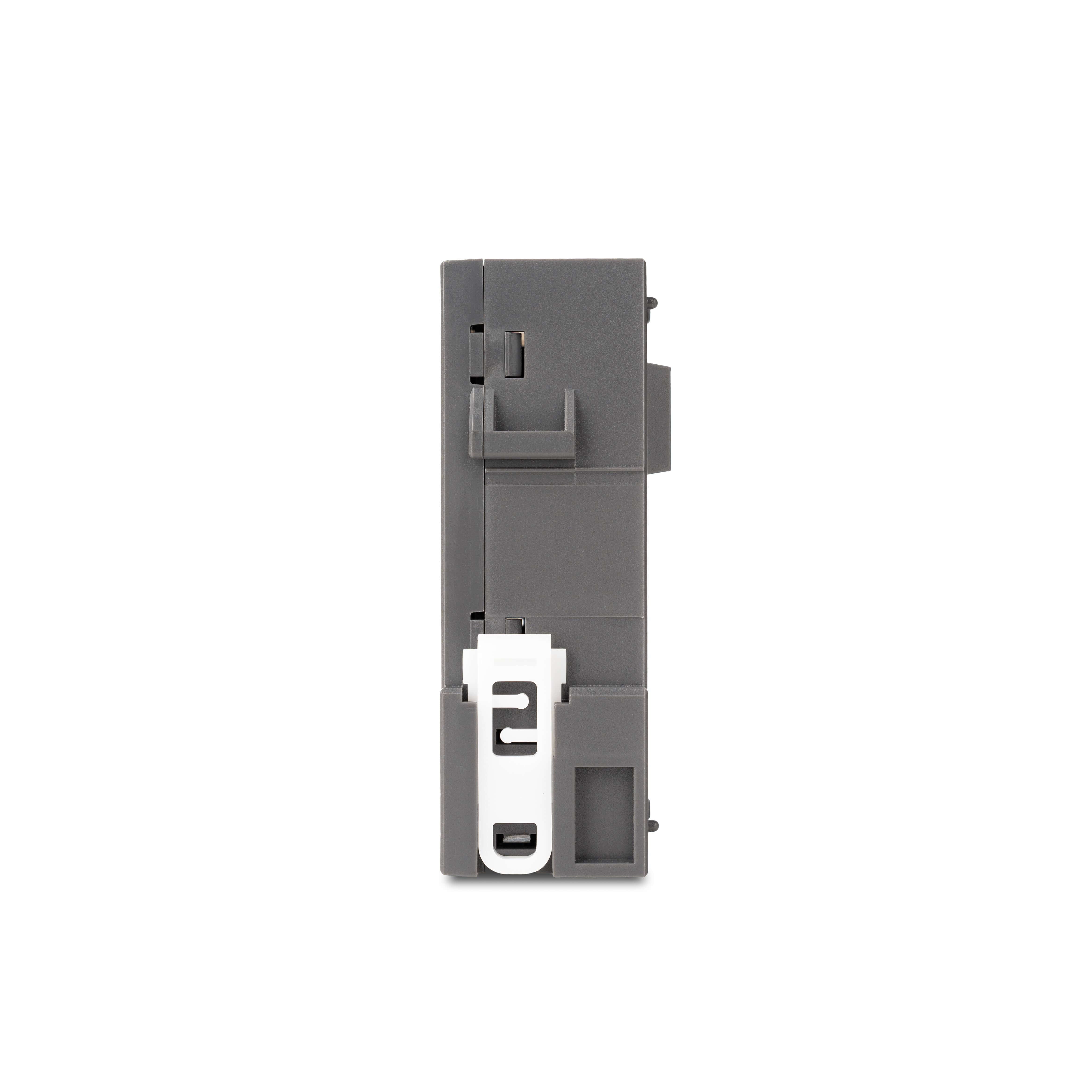

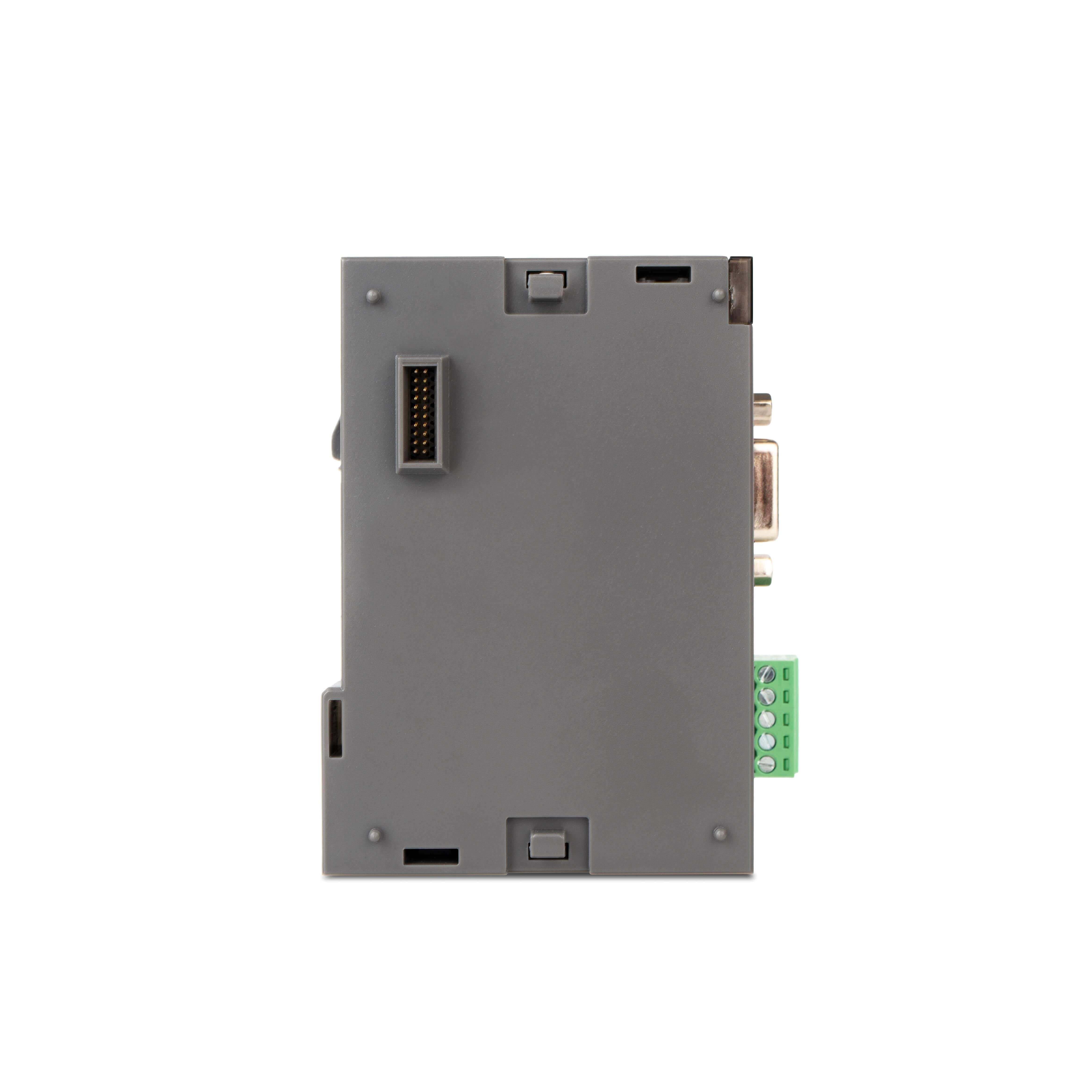

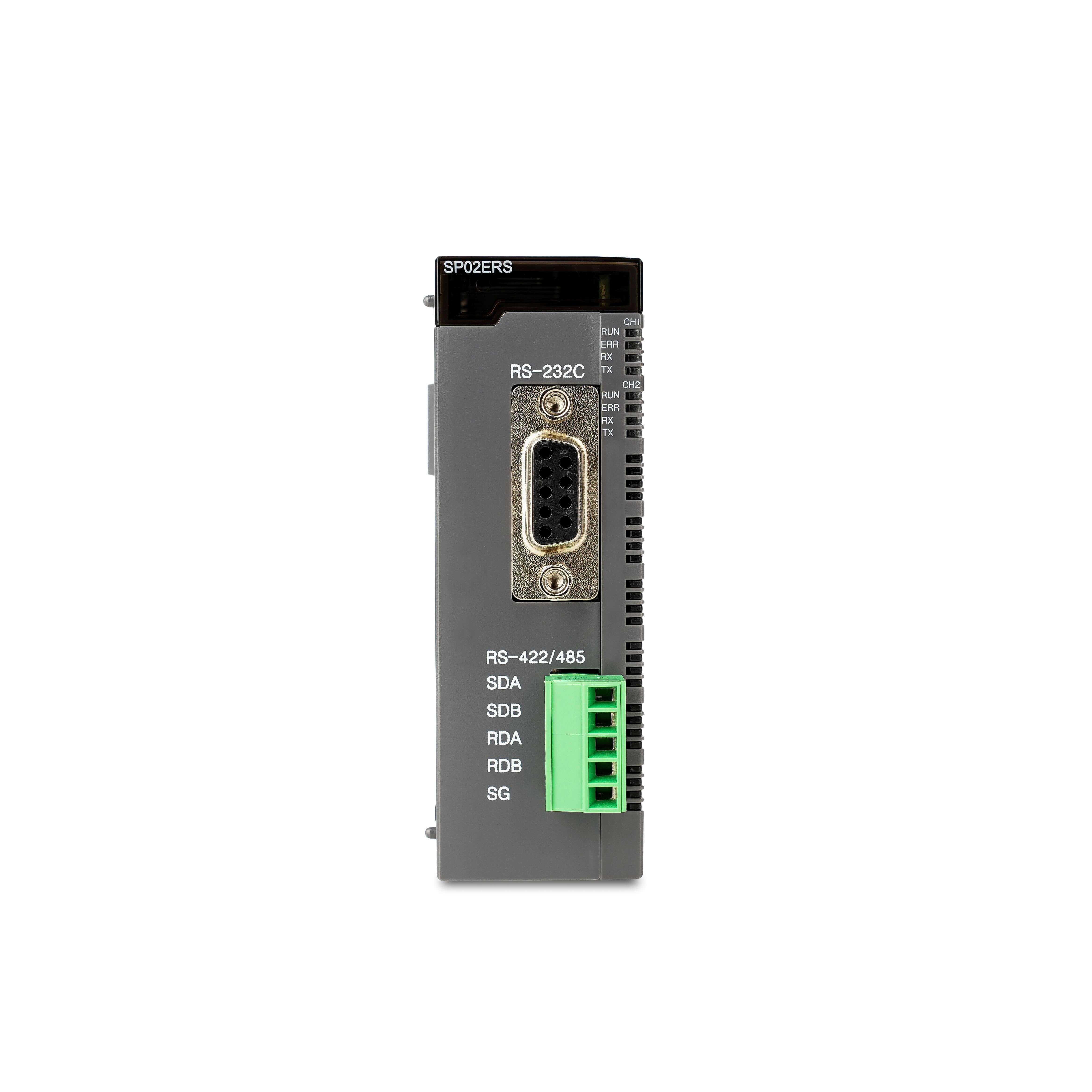

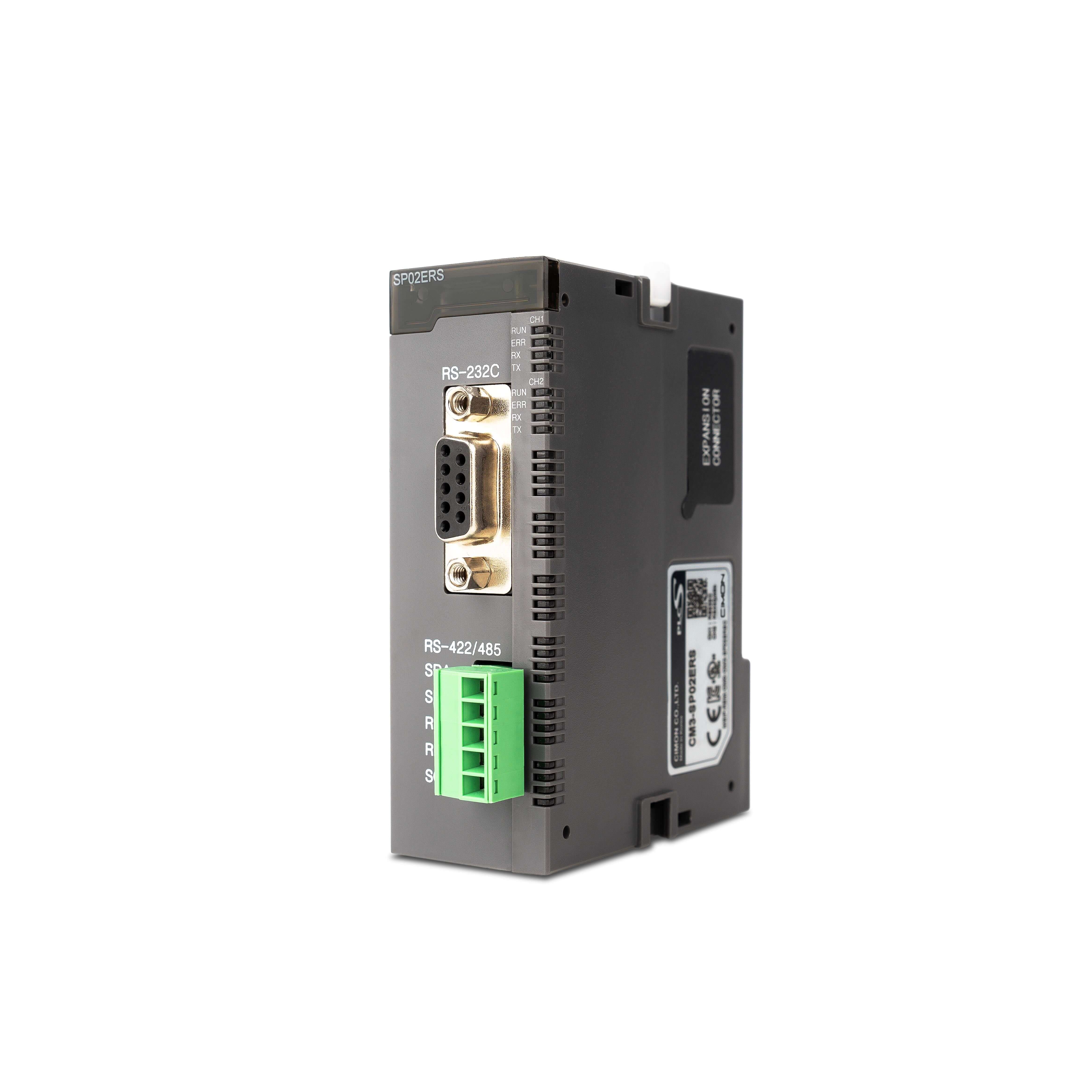

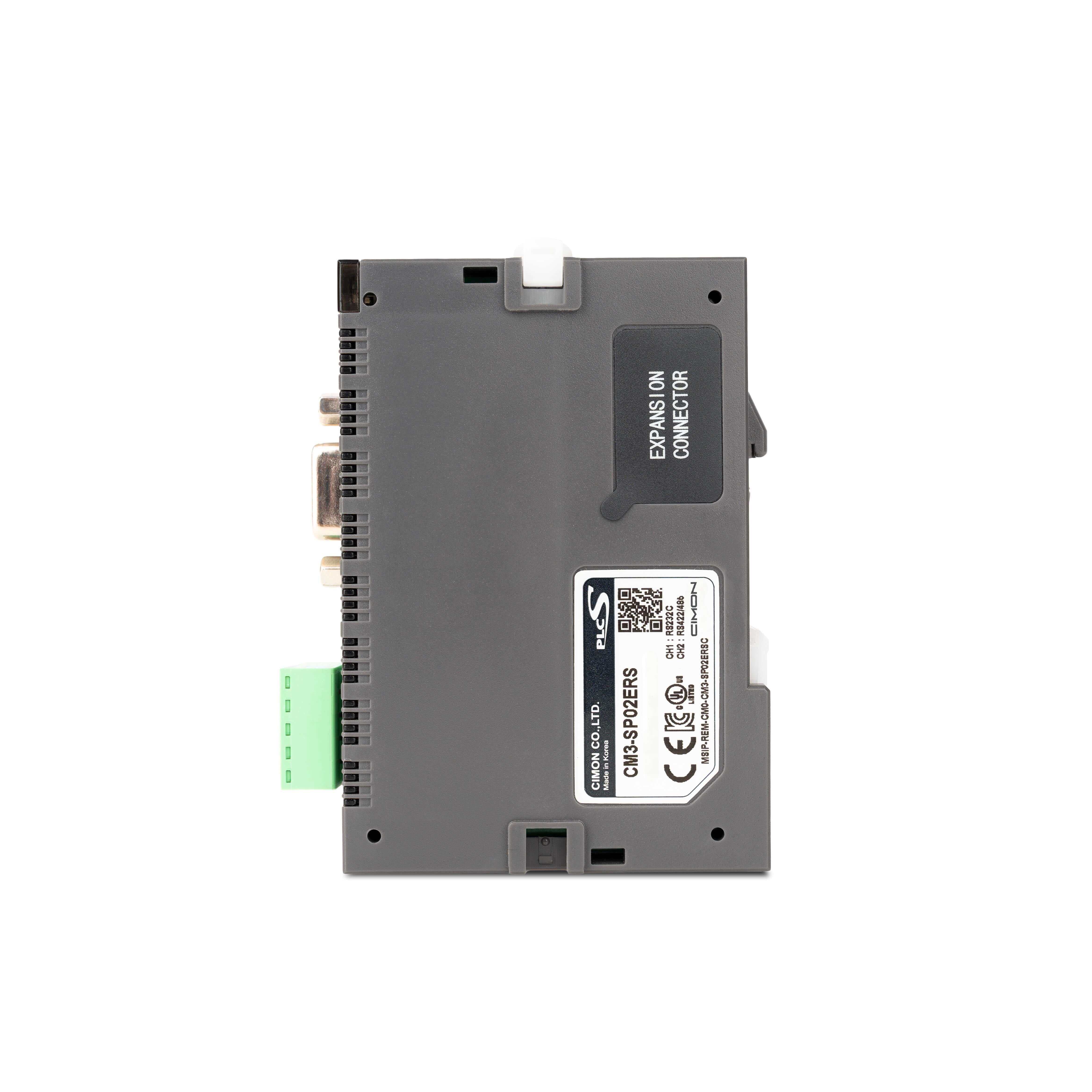

Refurbished Serial Expansion Module, RS-232, RS-422/485

Refurbished Serial Expansion Module, RS-232, RS-422/485

Name: Refurbished Serial Expansion Module, RS-232, RS-422/485
Brand: CIMON
SKU: CM3-SP02ERS-RFB
Price: 185.25 THB
Availability: InStock

CM3-SP02ERS-RFB

฿ 185.25

฿ 247.00

Save ฿ 61.75

PLC-S Serial Communication Module
1 RS232-C
1 RS422/485
User Protocol RTU
Modbus Master/Slave RTU
Removable screw-based terminal blocks

Quantity:

Refurbished Serial Expansion Module, RS-232, RS-422/485

฿ 185.25

฿ 247.00

Specifications

SKU	CM3-SP02ERS
Interface - Channel 1	RS-232C
Interface - Channel 2	RS-422/485
Transmission Speed	1,200 - 38,400 bps
Maximum Distance	-
Service - CIMON HMI	Yes
Service - CIMON Loader	Yes
Service - Modbus Master	Yes
Service - Modbus Slave	Yes
Service - User Protocol	Yes
Service - PLC Link	No
Service - High-Speed PLC Link	No
Service - DHCP	-

<div class="spec-table">
<table>
<tr><th>SKU</th><td>CM3-SP02ERS</td></tr>
<tr><th>Interface - Channel 1</th><td>RS-232C</td></tr>
<tr><th>Interface - Channel 2</th><td>RS-422/485</td></tr>
<tr><th>Transmission Speed</th><td>1,200 - 38,400 bps</td></tr>
<tr><th>Maximum Distance</th><td>-</td></tr>
<tr><th>Service - CIMON HMI</th><td>Yes</td></tr>
<tr><th>Service - CIMON Loader</th><td>Yes</td></tr>
<tr><th>Service - Modbus Master</th><td>Yes</td></tr>
<tr><th>Service - Modbus Slave</th><td>Yes</td></tr>
<tr><th>Service - User Protocol</th><td>Yes</td></tr>
<tr><th>Service - PLC Link</th><td>No</td></tr>
<tr><th>Service - High-Speed PLC Link</th><td>No</td></tr>
<tr><th>Service - DHCP</th><td>-</td></tr>
</table>
</div>

Resources

UL Listed File (Canada)

2D CAD
