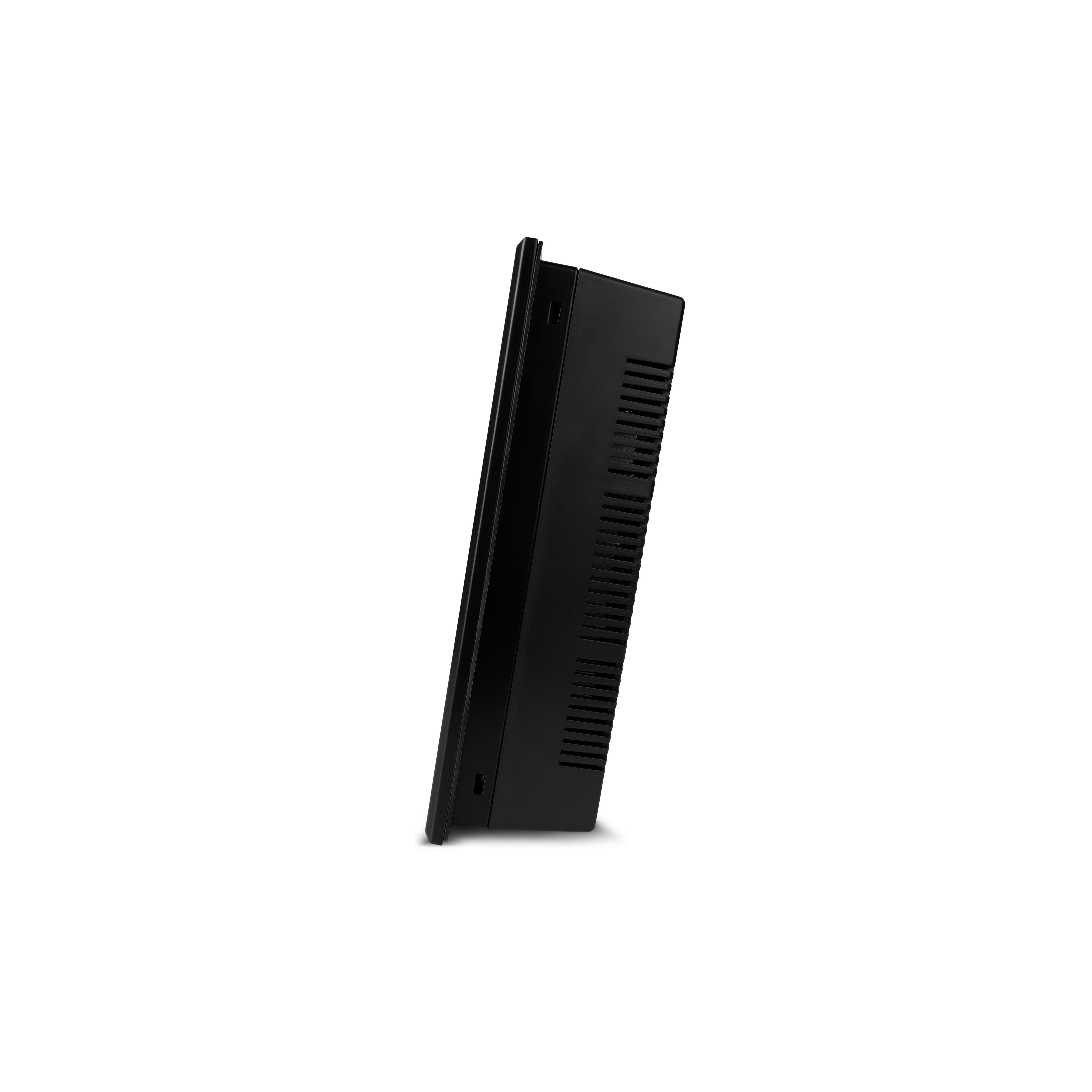

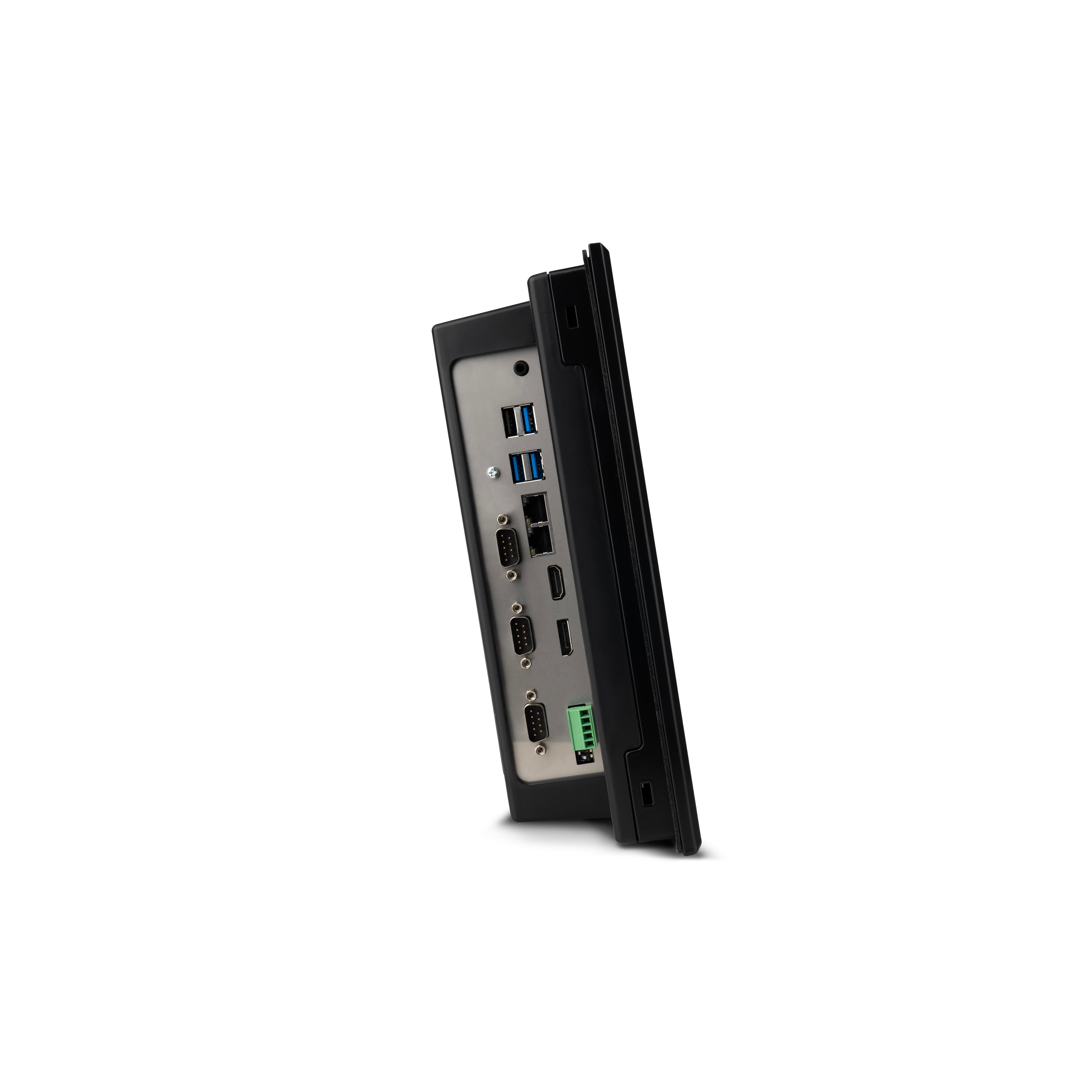

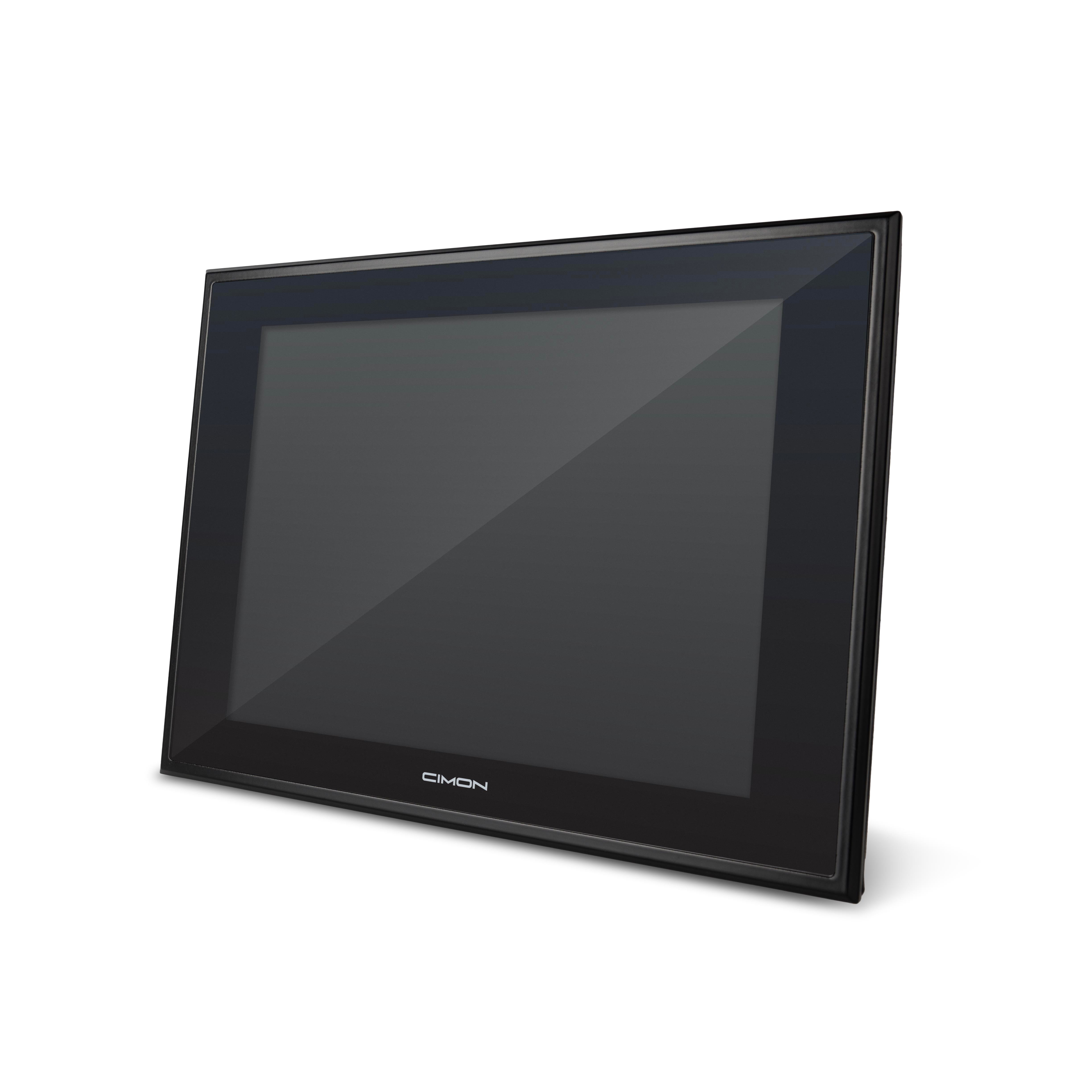

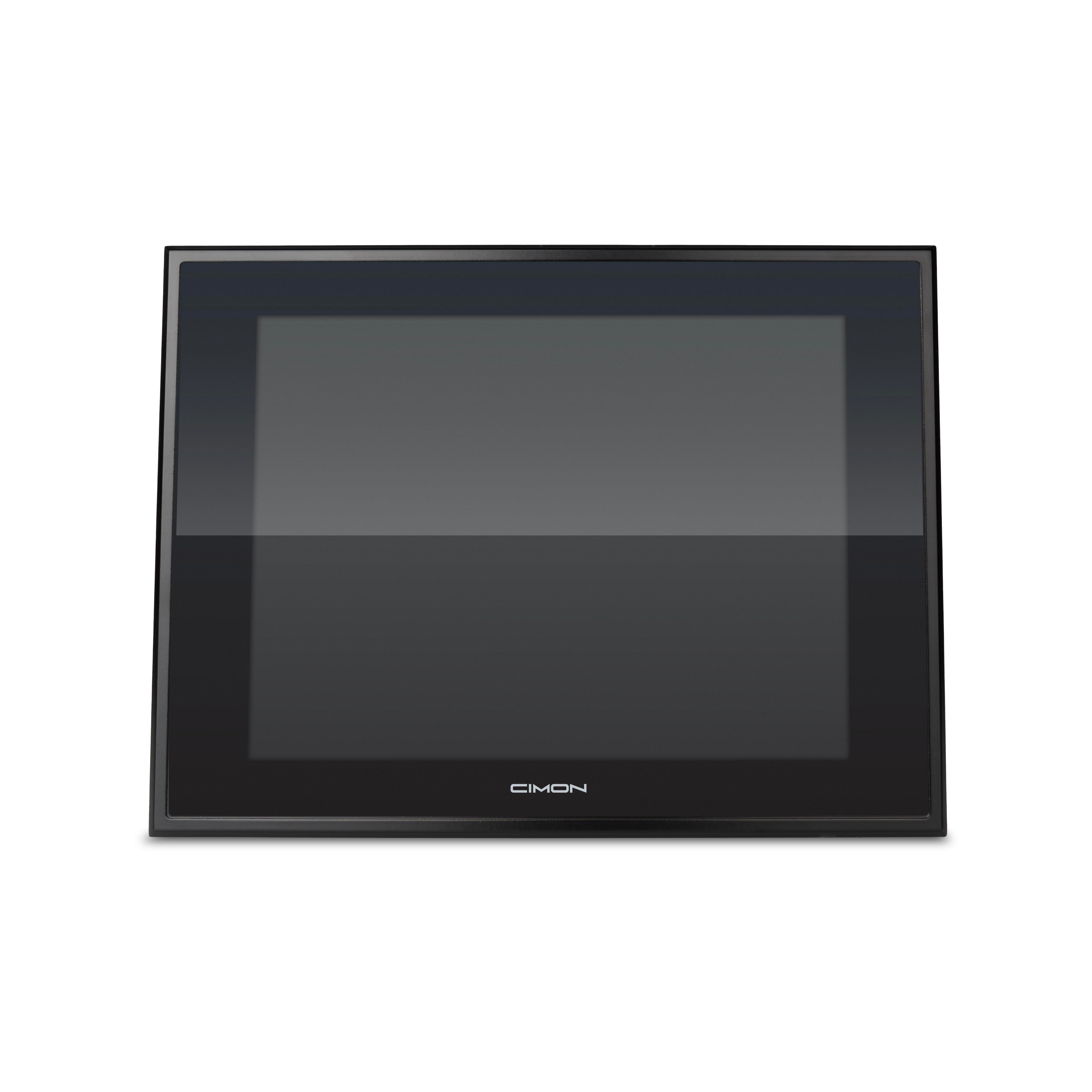

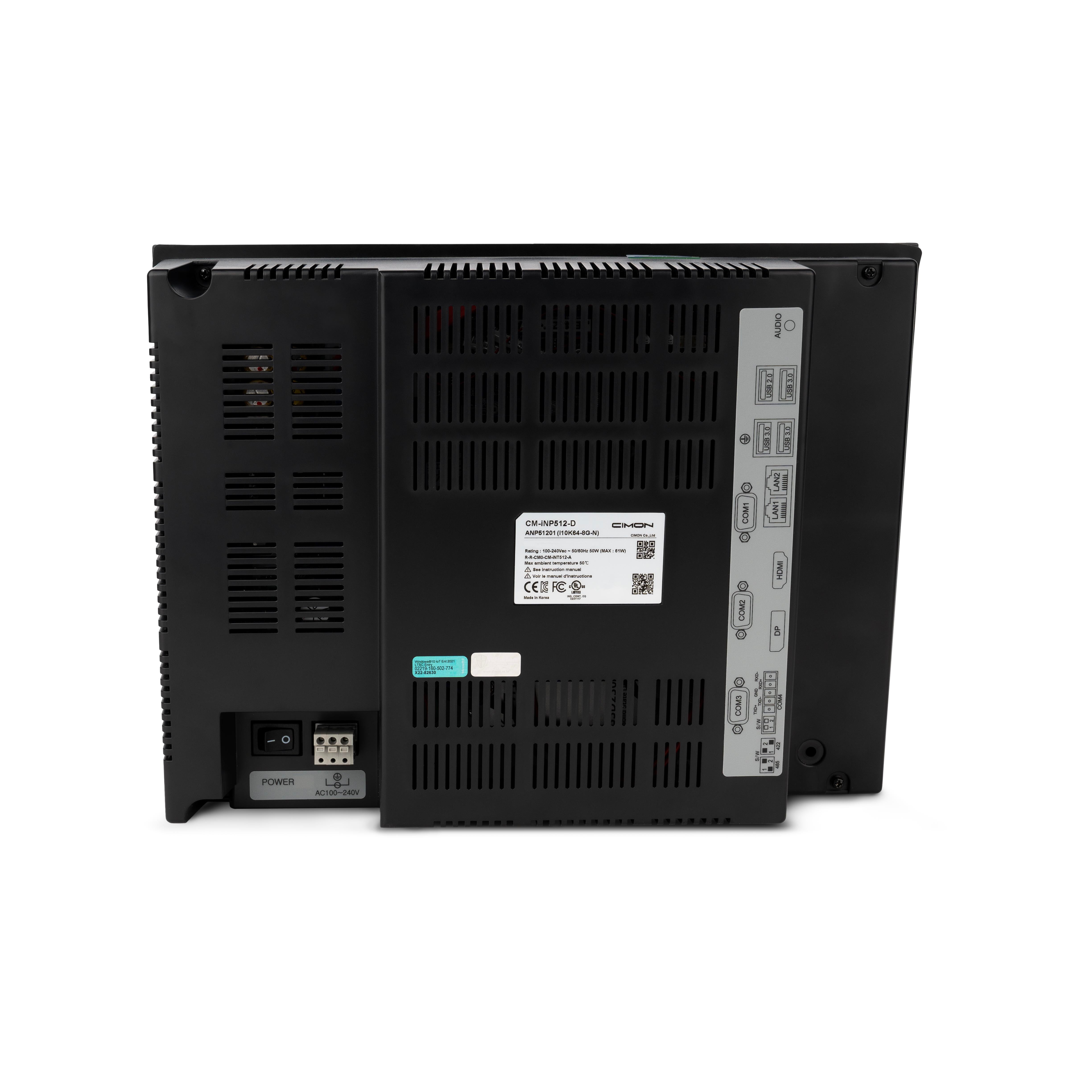

12 Inch Intel Celeron J6412 Fanless Industrial Panel PC

฿ 1,240.00

Specifications

SKU	CM-iNP512-D
CPU	Intel® Celeron® Quad-Core J6412 SoC (FANLESS)
Memory	DDR4 SDRAM 8GB (Max. 32GB)
Graphic	Integrated Intel HD Graphic
Display	12.1" TFT LCD
Resolution	XGA (1024×768)
LCD Brightness	600 cd/m²
Backlight Life	50,000 hours
Backlight Unit	LED
Touch	Analog Resistive
Storage	SATA × 1 (SSD 120G Byte)
External Storage	M.2(2280) NVMe type × 1
Serial	COM1 : RS232/422/485 -1 Port (default : RS232) COM2~COM3 : RS232 -2 Ports COM4 : RS422/485 -1 Port
Ethernet	Gigabit Ethernet : 2 Ports
USB	USB 2.0 : 1 Port, USB 3.0 : 3 Ports
Audio	Line-Out, Line-In : 1 Port
External Video	HDMI, DP : 1 Port each
Operating System (Selectable)	Windows 10 IoT Enterprise (default) Windows 10 Pro / Windows 10 Enterprise / Windows 11 Pro
Utility Program	UWF, Winclon 6.0 (Recovery System)
Power Consumption	51 W (MAX : 65 W)
Power Input	DC24V

<div class="spec-table">
<table>
<tr><th>SKU</th><td>CM-iNP512-D</td></tr>
<tr><th>CPU</th><td>Intel® Celeron® Quad-Core J6412 SoC (FANLESS)</td></tr>
<tr><th>Memory</th><td>DDR4 SDRAM 8GB (Max. 32GB)</td></tr>
<tr><th>Graphic</th><td>Integrated Intel HD Graphic</td></tr>
<tr><th>Display</th><td>12.1" TFT LCD</td></tr>
<tr><th>Resolution</th><td>XGA (1024×768)</td></tr>
<tr><th>LCD Brightness</th><td>600 cd/m²</td></tr>
<tr><th>Backlight Life</th><td>50,000 hours</td></tr>
<tr><th>Backlight Unit</th><td>LED</td></tr>
<tr><th>Touch</th><td>Analog Resistive</td></tr>
<tr><th>Storage</th><td>SATA × 1 (SSD 120G Byte)</td></tr>
<tr><th>External Storage</th><td>M.2(2280) NVMe type × 1</td></tr>
<tr><th>Serial</th><td>
COM1 : RS232/422/485 -1 Port (default : RS232)<br>
COM2~COM3 : RS232 -2 Ports<br>
COM4 : RS422/485 -1 Port
</td></tr>
<tr><th>Ethernet</th><td>Gigabit Ethernet : 2 Ports</td></tr>
<tr><th>USB</th><td>USB 2.0 : 1 Port, USB 3.0 : 3 Ports</td></tr>
<tr><th>Audio</th><td>Line-Out, Line-In : 1 Port</td></tr>
<tr><th>External Video</th><td>HDMI, DP : 1 Port each</td></tr>
<tr><th>Operating System (Selectable)</th><td>
Windows 10 IoT Enterprise (default)<br>
Windows 10 Pro / Windows 10 Enterprise / Windows 11 Pro
</td></tr>
<tr><th>Utility Program</th><td>UWF, Winclon 6.0 (Recovery System)</td></tr>
<tr><th>Power Consumption</th><td>51 W (MAX : 65 W)</td></tr>
<tr><th>Power Input</th><td>DC24V</td></tr>
</table>
</div>

Resources

UL Listed File (Canada)

2D CAD

CE

12 Inch Intel Celeron J6412 Fanless Industrial Panel PC
