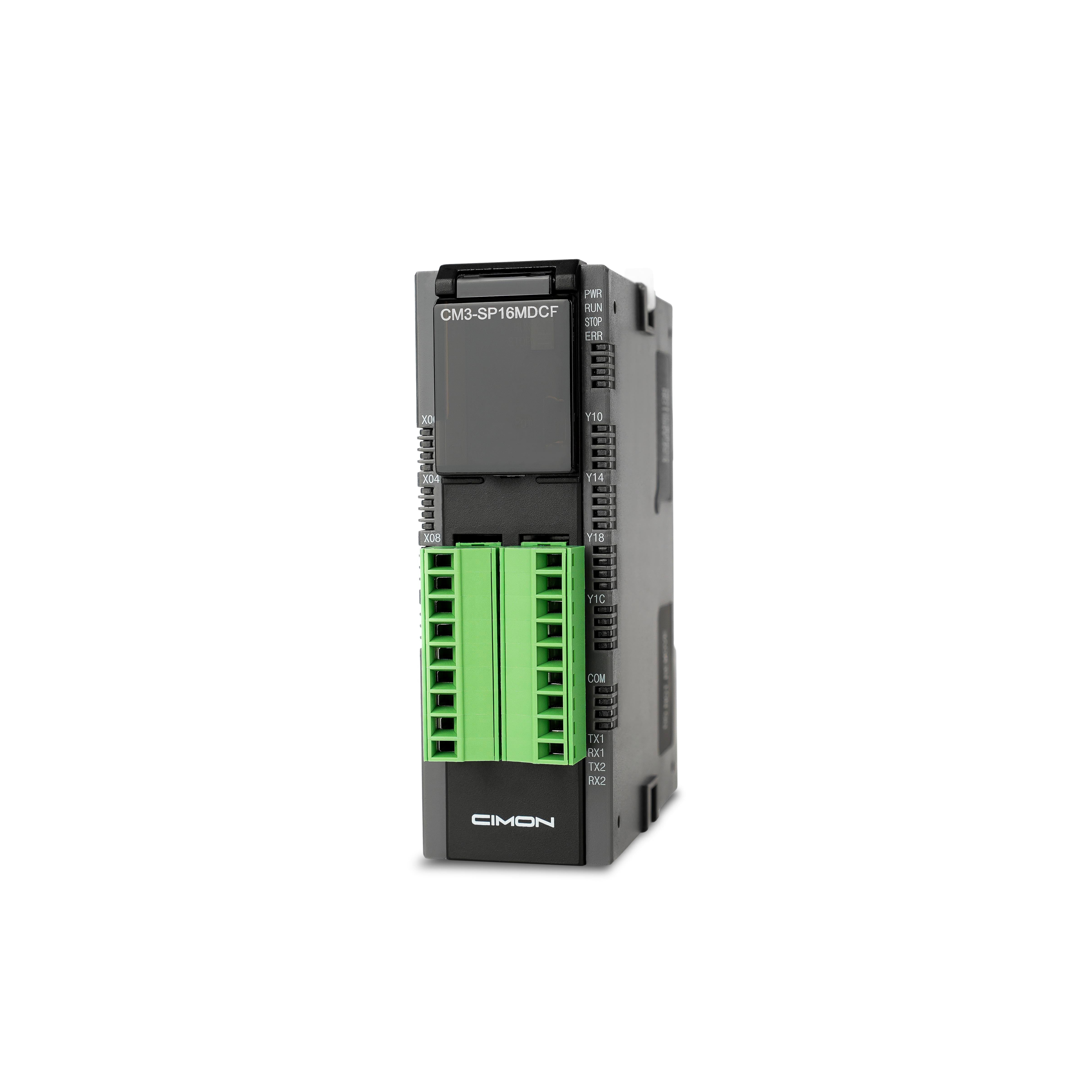

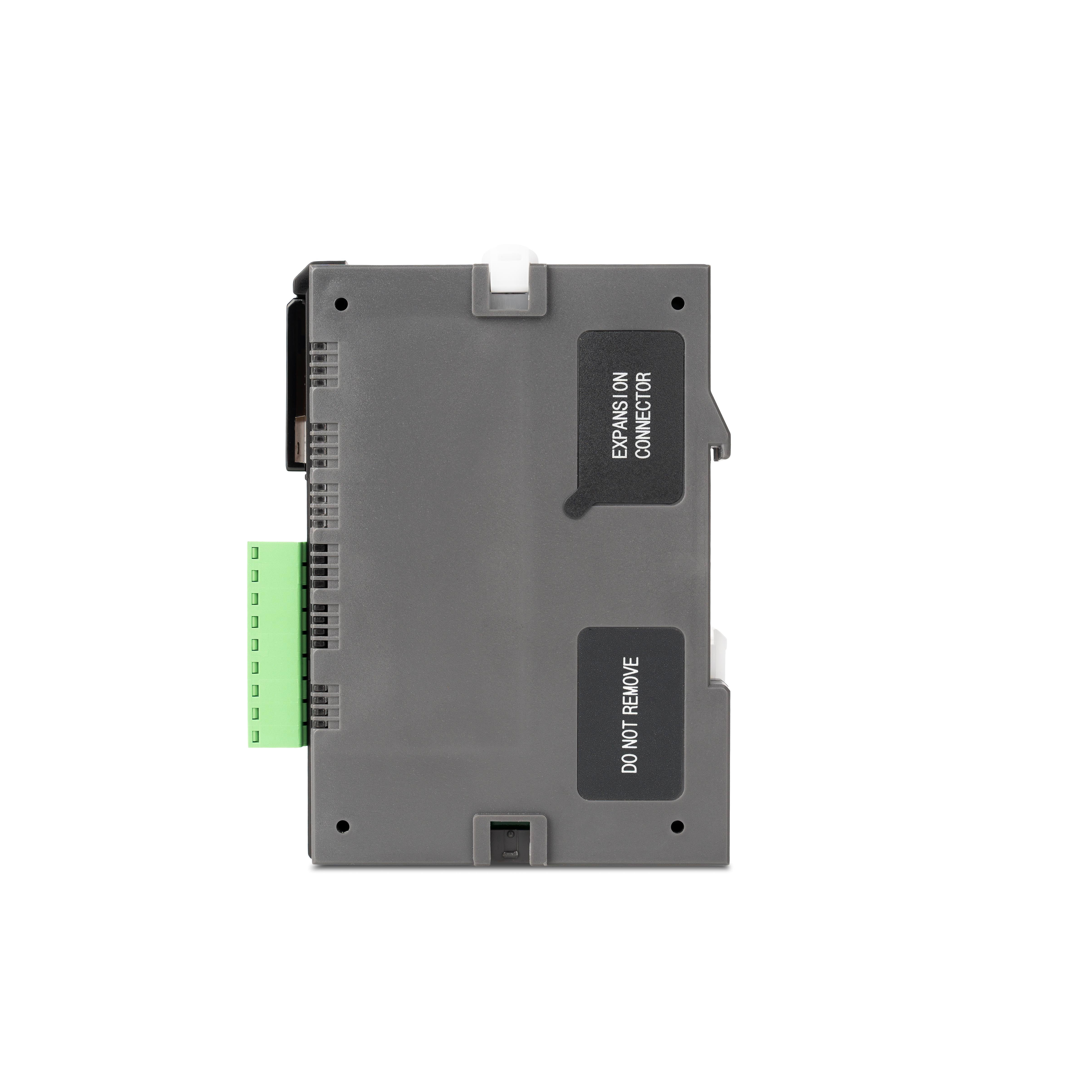

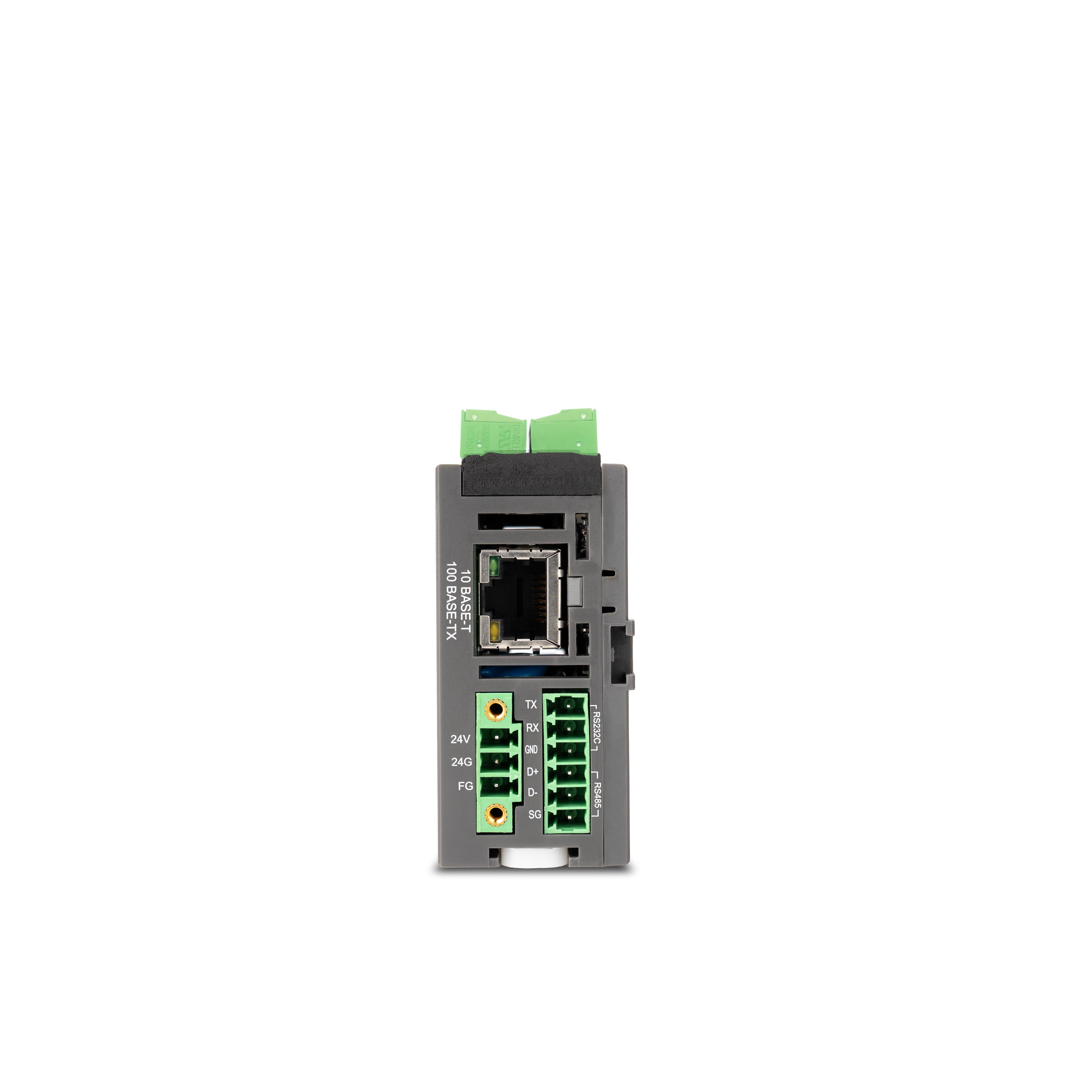

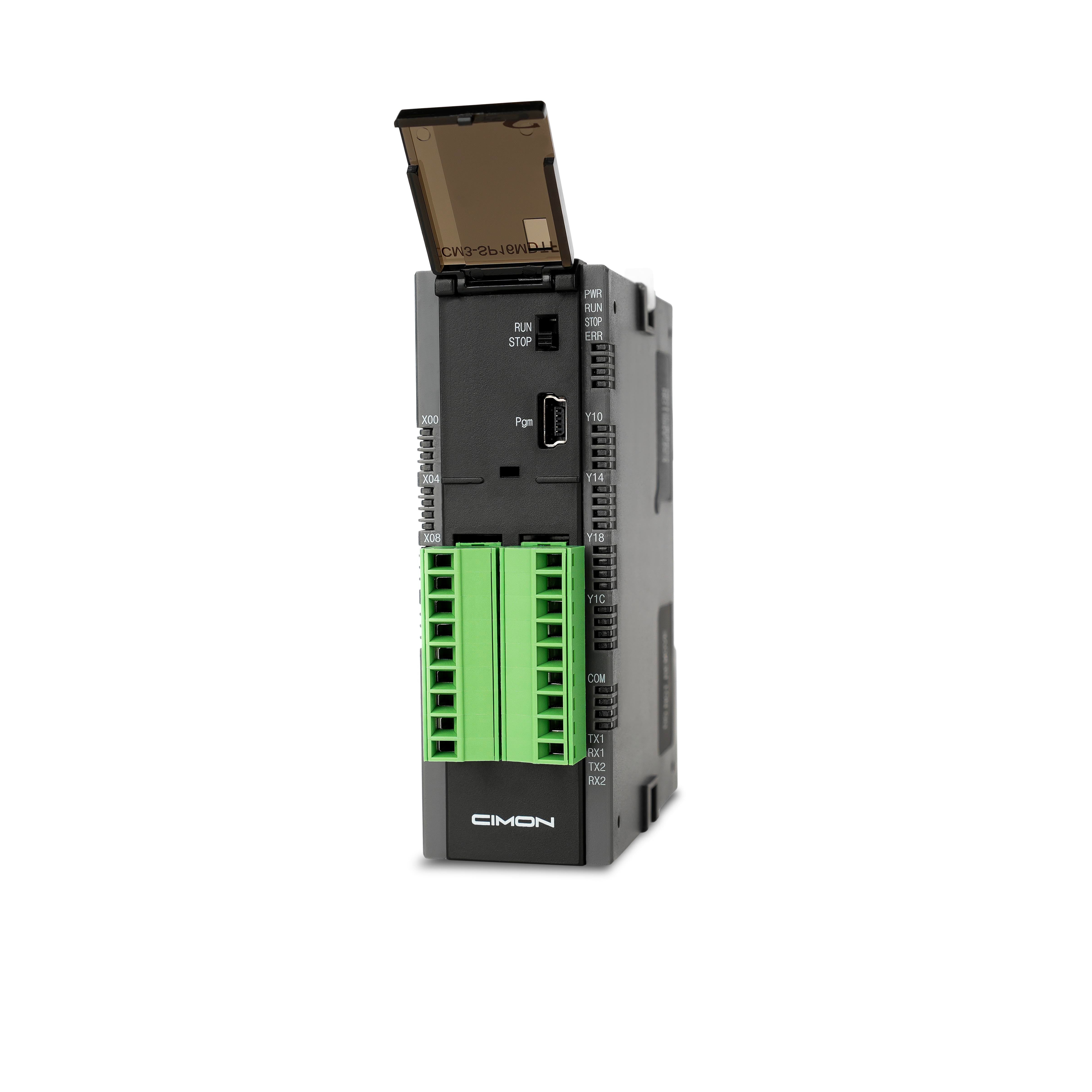

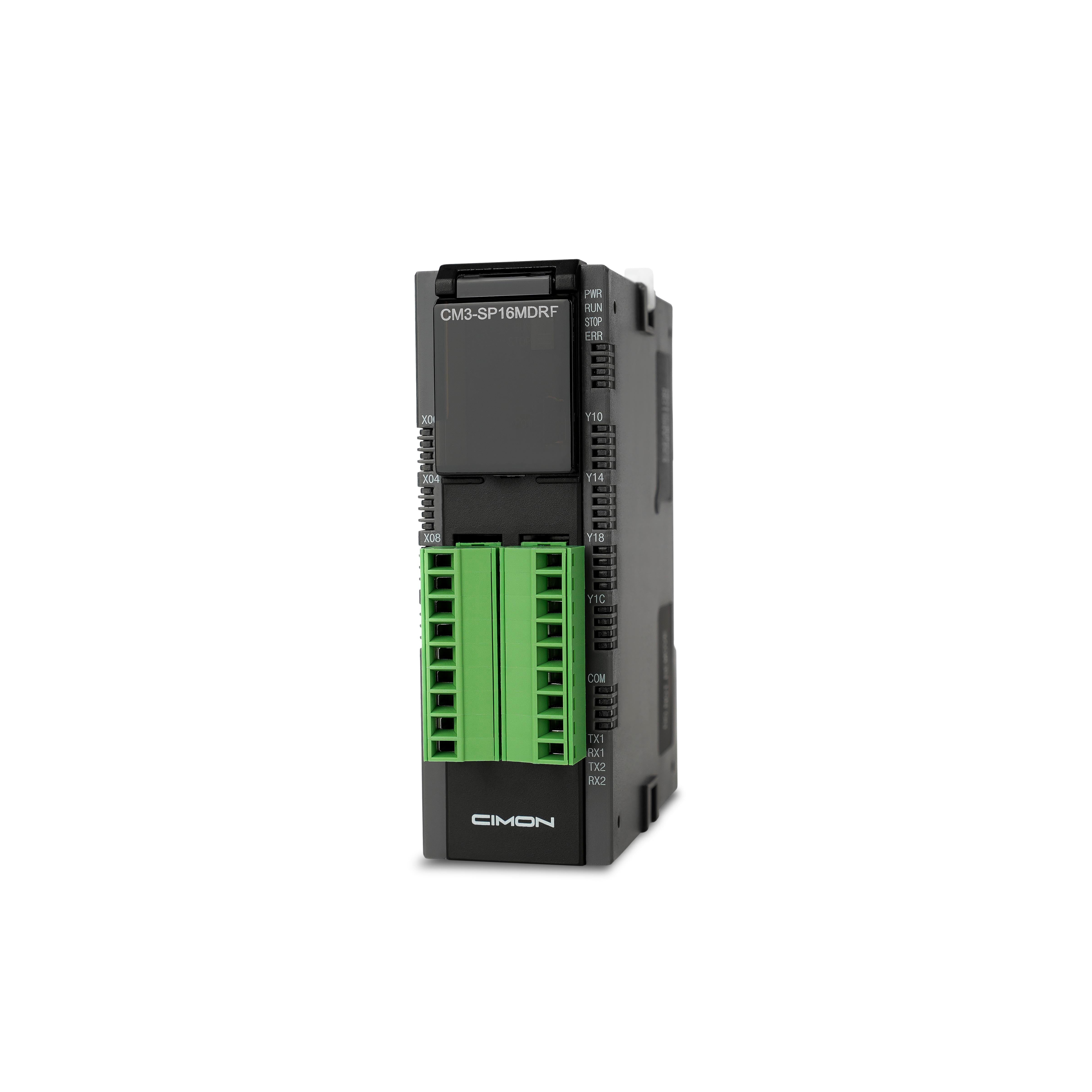

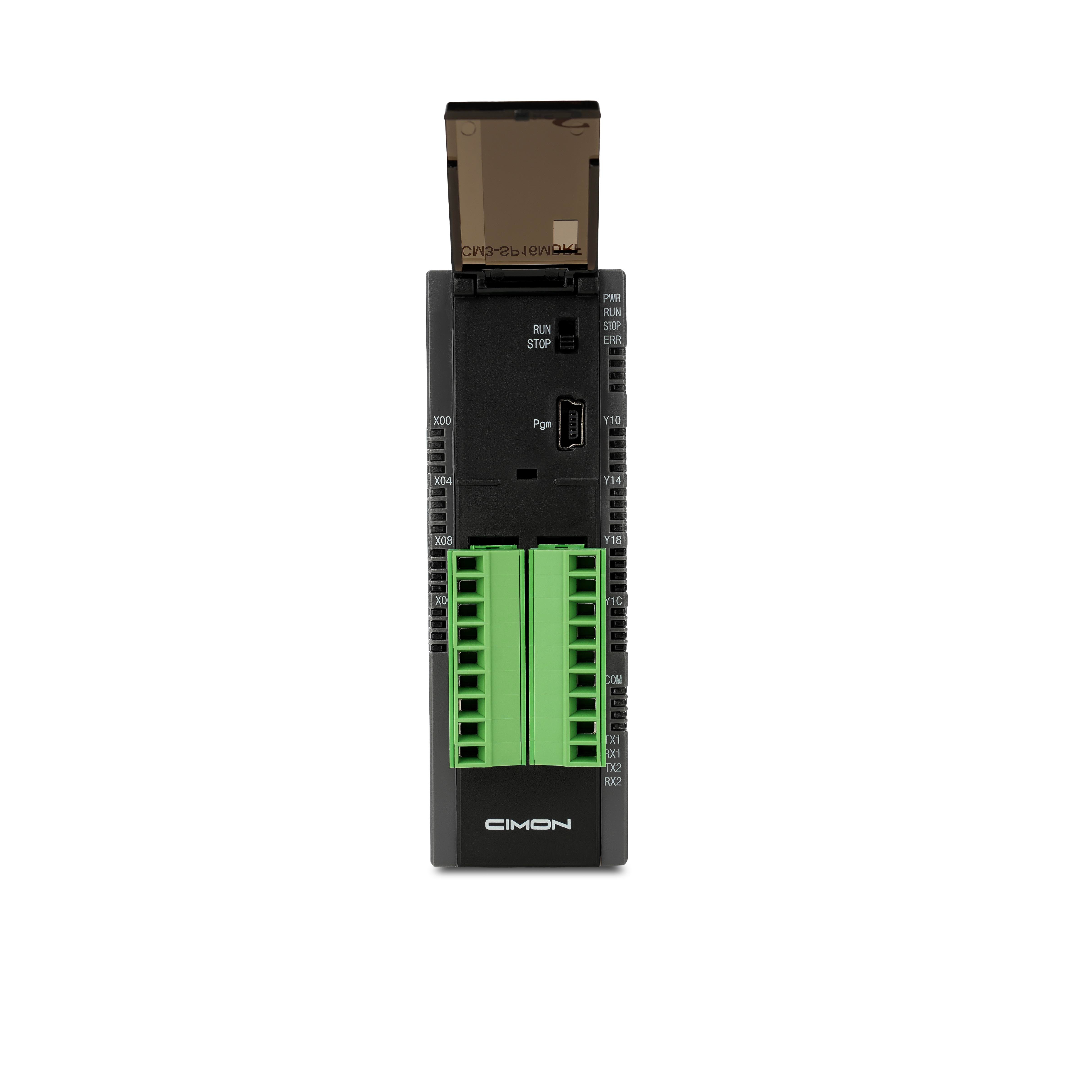

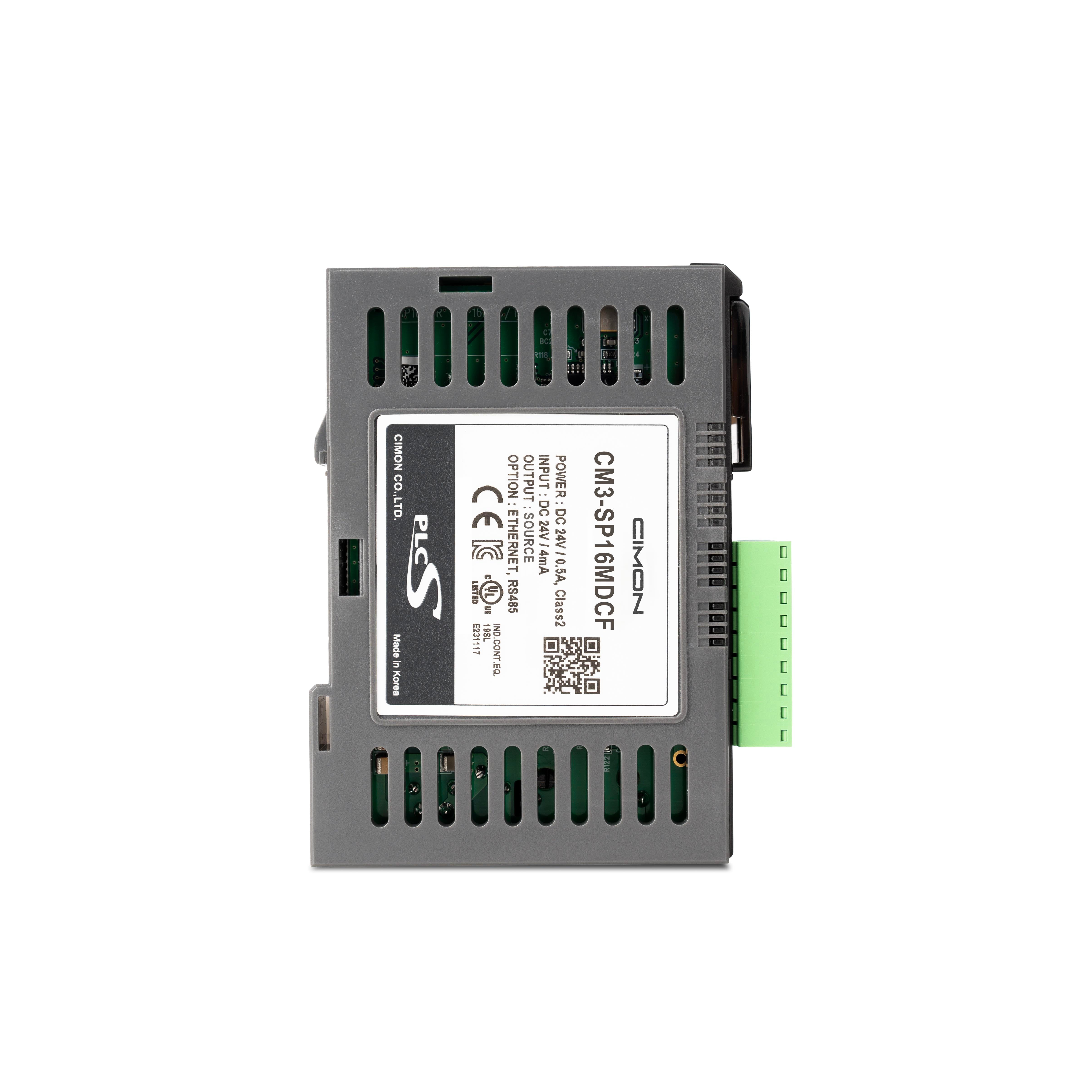

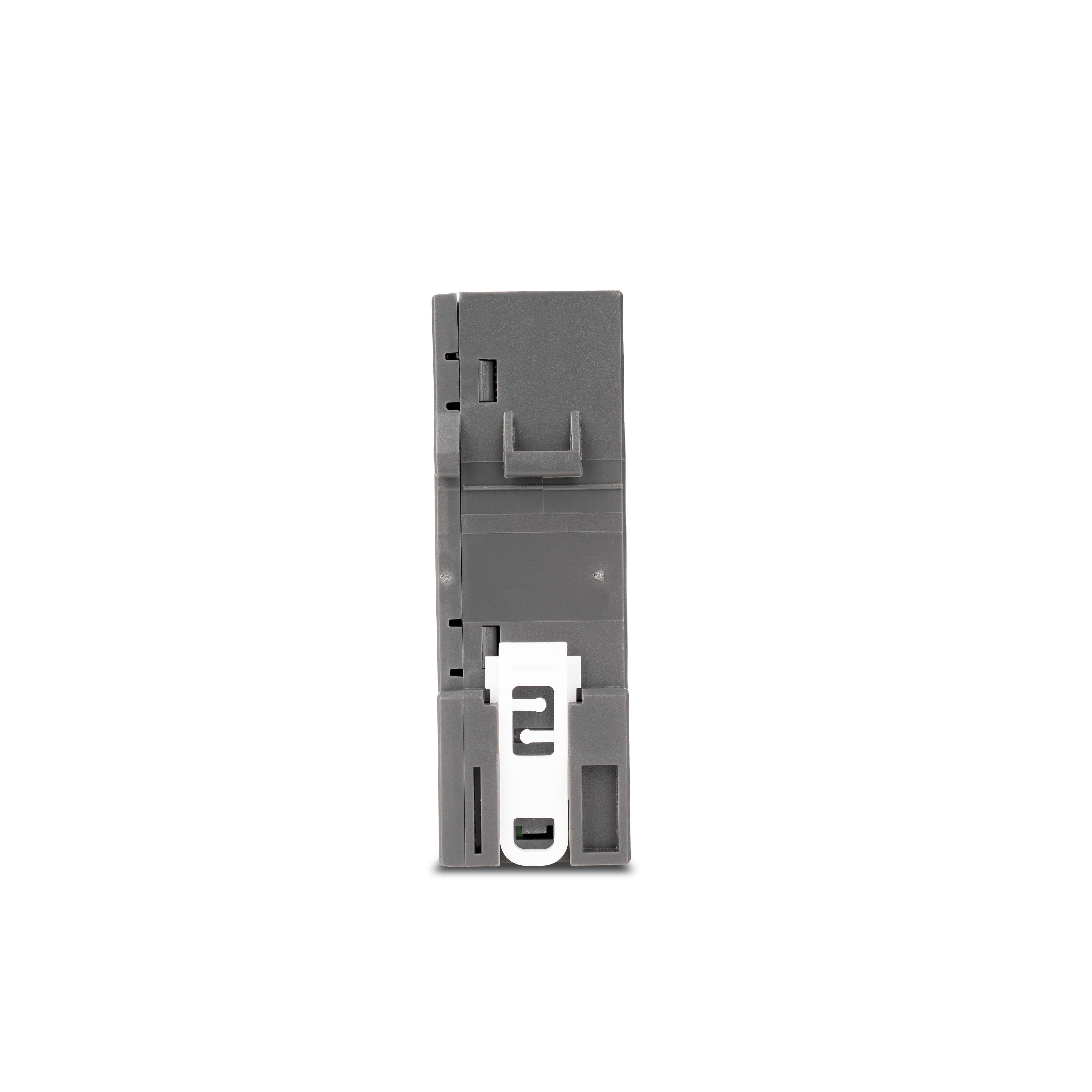

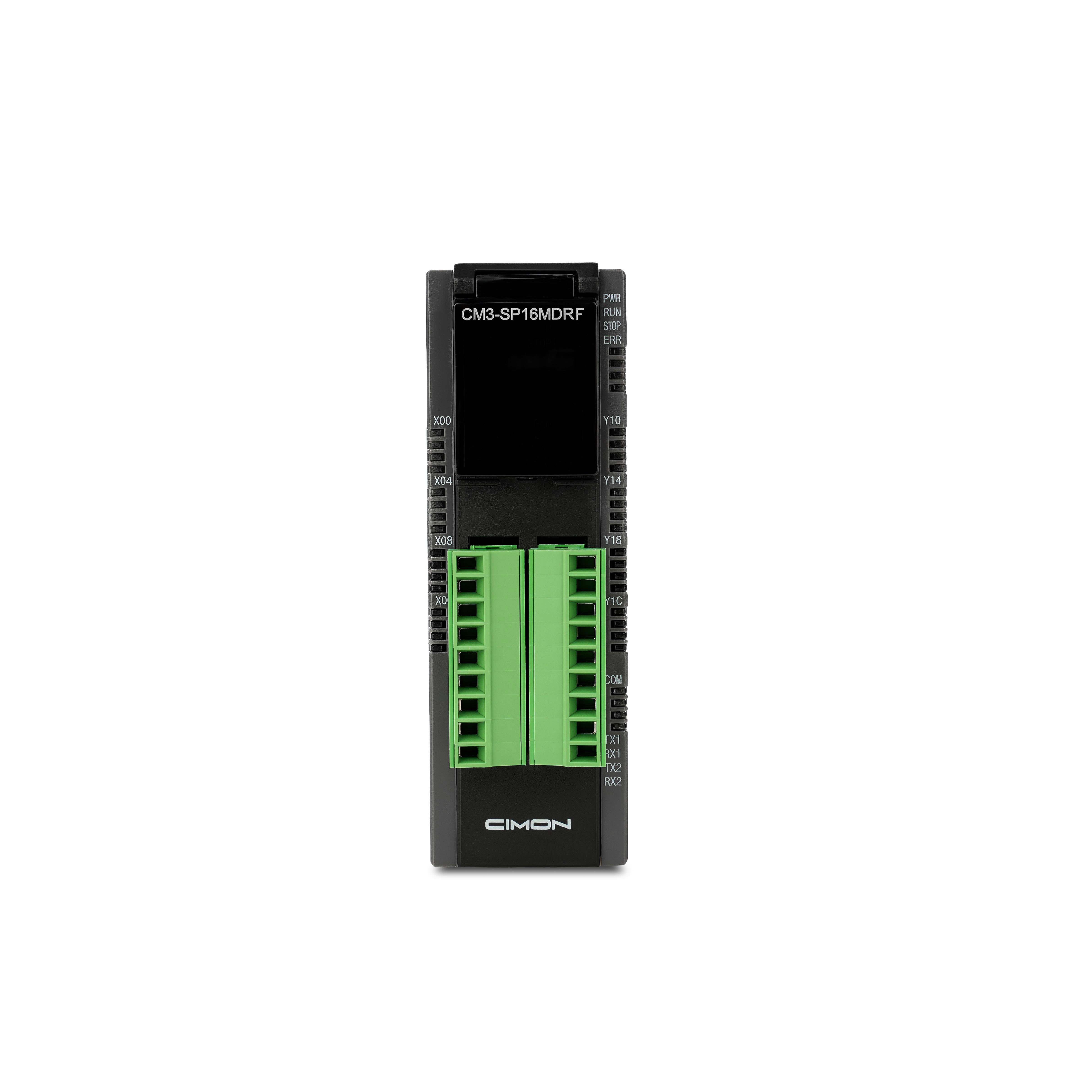

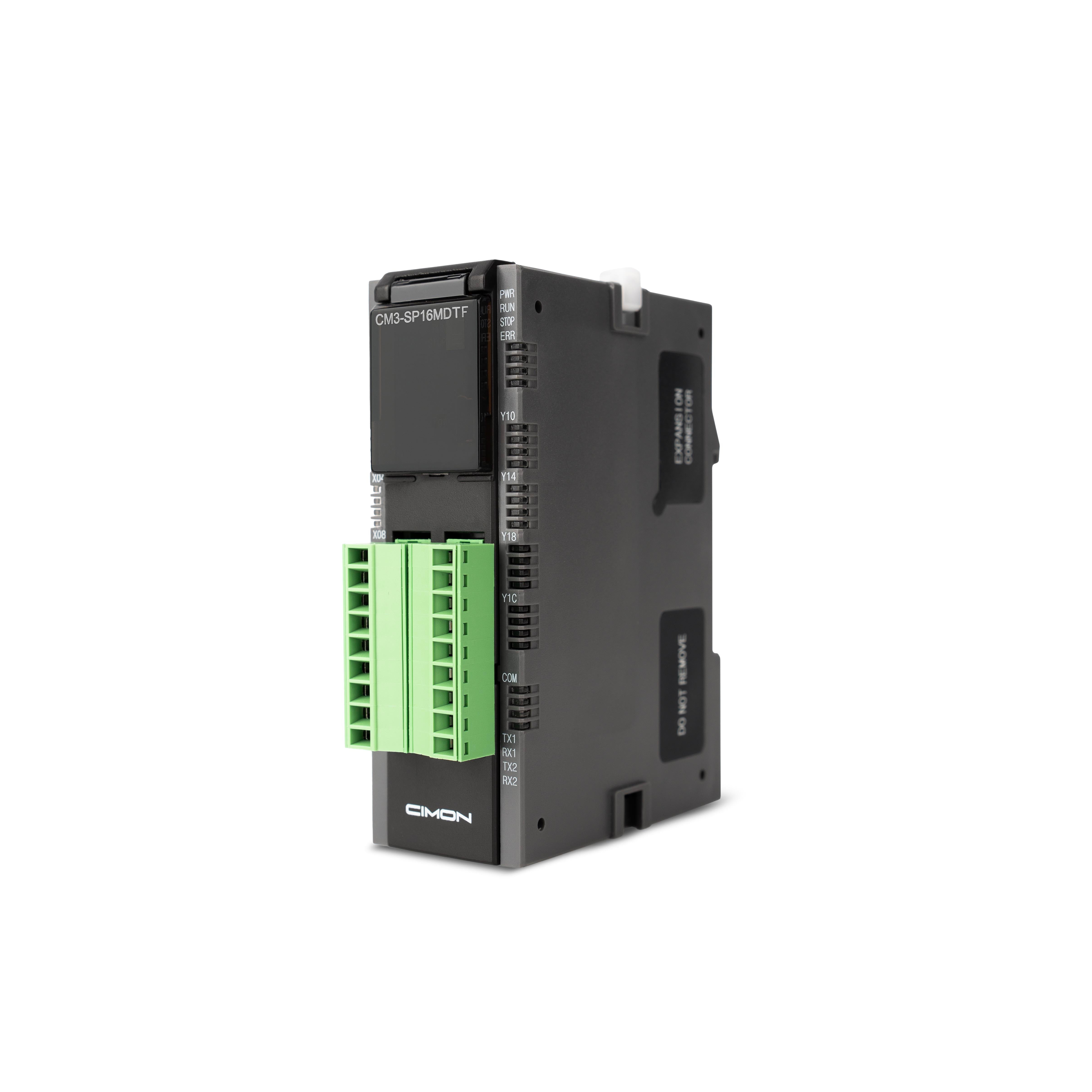

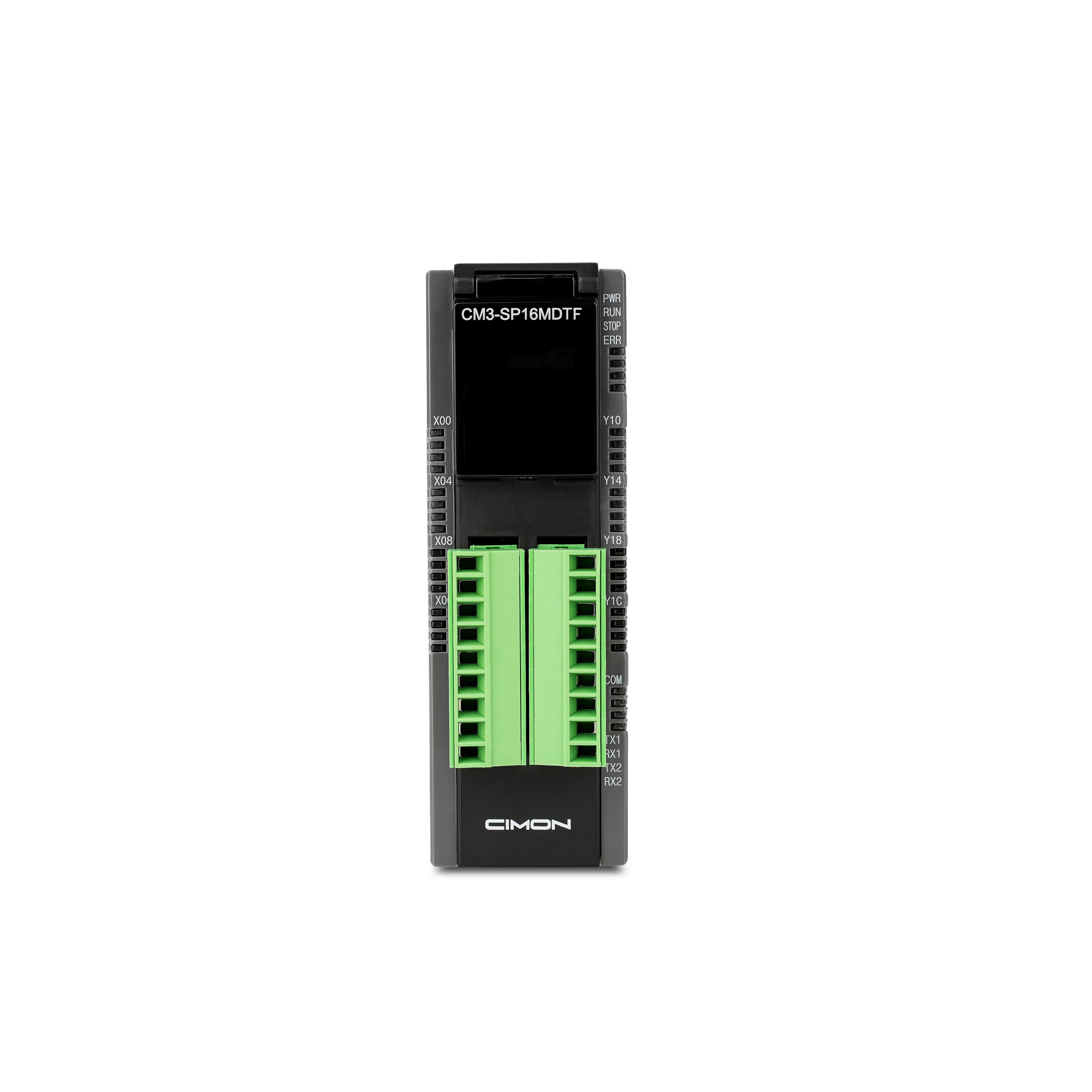

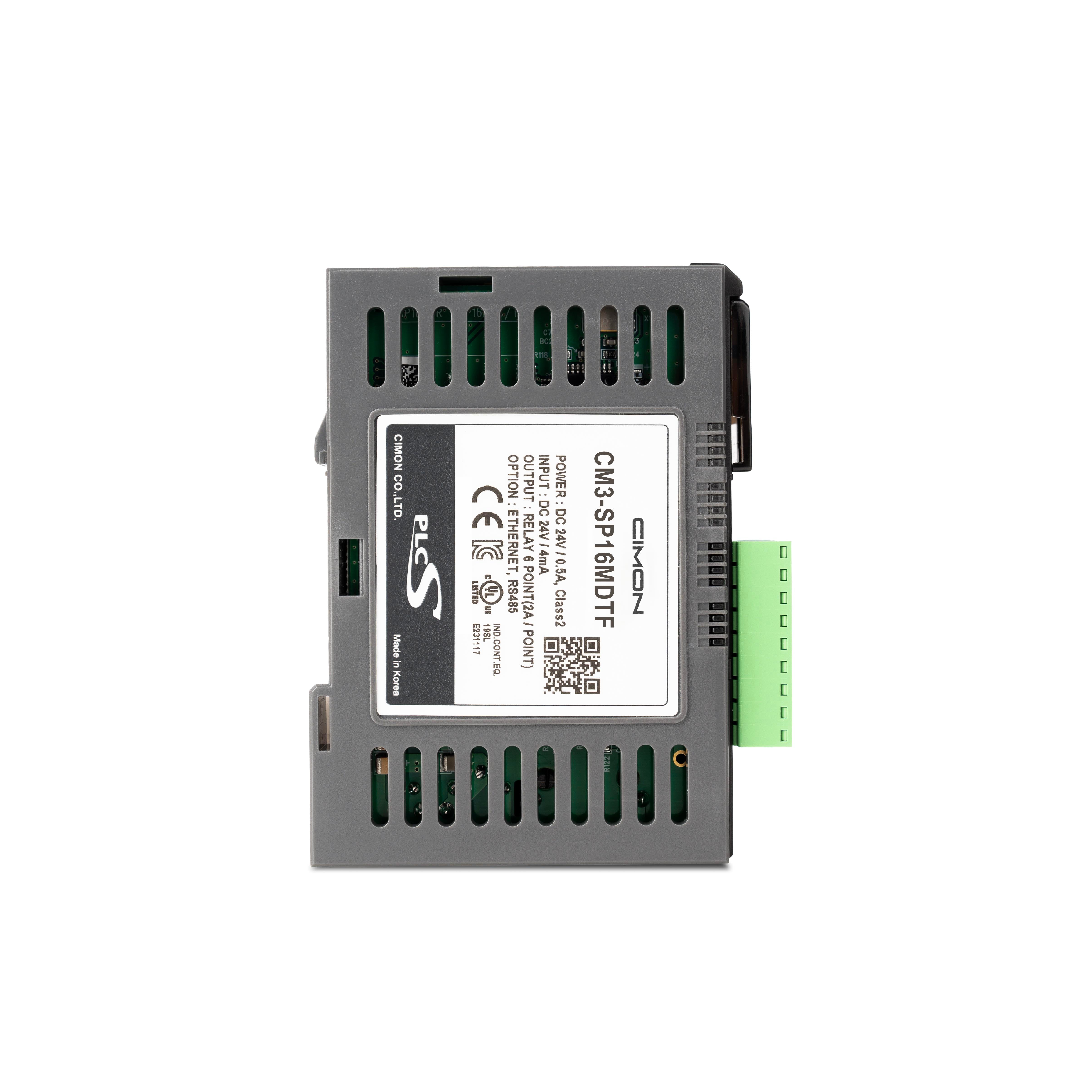

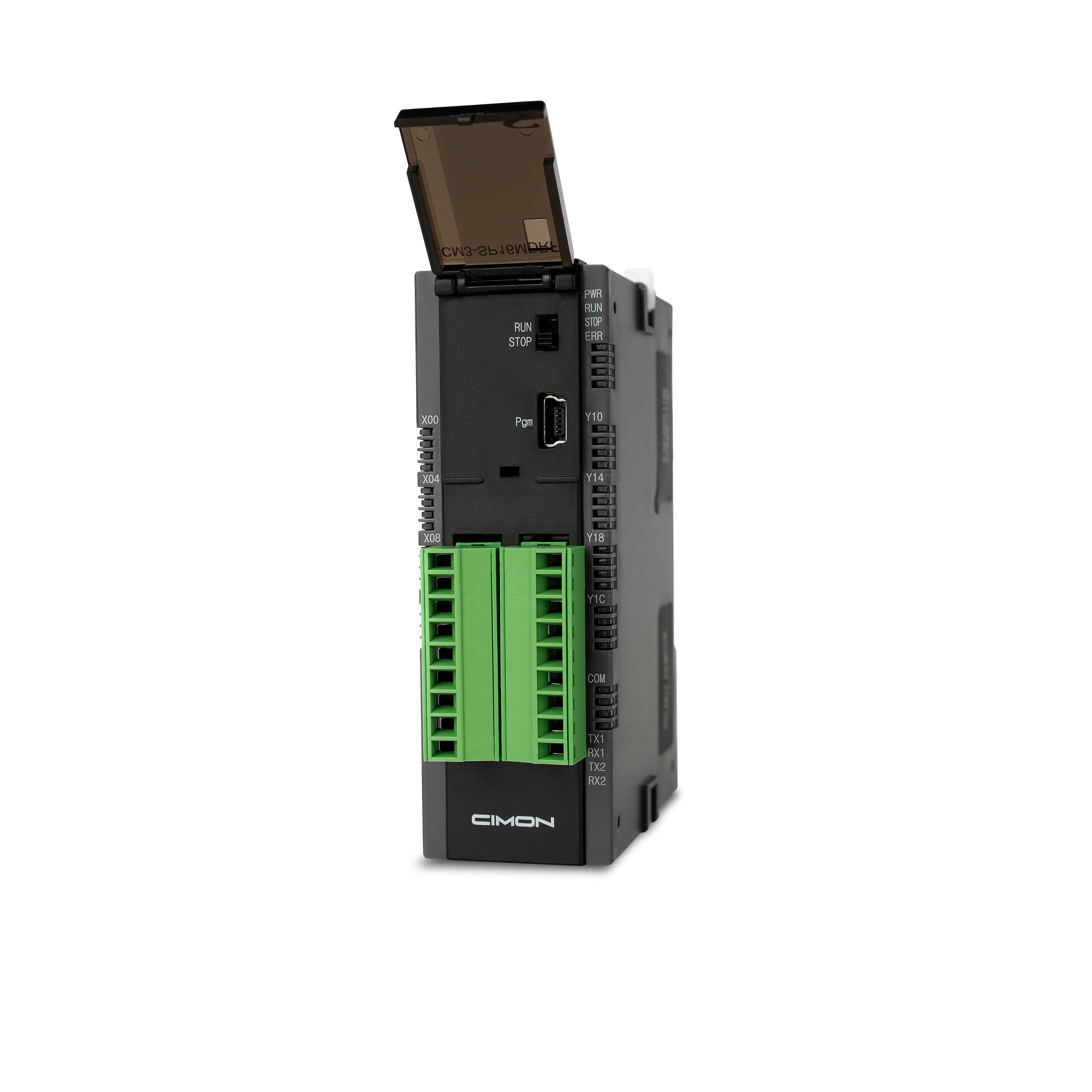

PLC-S CPU Module (16 I/O, Source/Sink Output)
- PLC-S Mini-Modular PLC
- Power: 12/24 VDC
- Expandable
- (1) Ethernet
- (2) Serial
- (1) USB Mini-B Port
- Discrete Input: 8 Point, 12/24 VDC, Sink/Source
- Discrete Output: 8 Point, 12/24 VDC, Sink, 0.2 A/Point
- Removable screw-based terminal blocks
%20Ethernet%0A(2)%20Serial%0A(1)%20USB%20Mini-B%20Port%0ADiscrete%20Input:%208%20Point,%2012/24%20VDC,%20Sink/Source%0ADiscrete%20Output:%208%20Point,%2012/24%20VDC,%20Sink,%200.2%20A/Po...
){kind=link}
PLC-S CPU Module (16 I/O, Source/Sink Output)
Sale price฿ 380.00
| SKU | CM3-SP16MDTF |
|---|---|
| Power Consumption | 12 W, 24 VDC, 0.5 A |
| Input Type | TR Sink/Source |
| Output Type | TR Sink |
| Number of Channels | 8 Discrete Inputs, 8 Discrete Outputs (16 Total) |
| Rated Input Voltage | 12 or 24 VDC (12 VDC used for HSC) |
| Rated Input Current | 4 mA |
| Input Insulation Method | Photocoupler |
| Input Voltage/Current Thresholds |
ON: CH1–4: 10 VDC / 4 mA CH5–8: 14 VDC / 4 mA OFF: CH1–4: 6 VDC / 1 mA CH5–8: 12 VDC / 1 mA |
| Rated Output Voltage | 12, 24 VDC |
| Rated Output Current | 1 point = 0.2 A, 1 COM = 2 A |
| Output Insulation Method | Photocoupler |
| Communication Ports |
RS-232 (1 Channel) RS-422/485 (1 Channel) Ethernet (1 Port) |
| Utility/Program Port | Mini-B USB, Ethernet, RS-232/422/485 |
