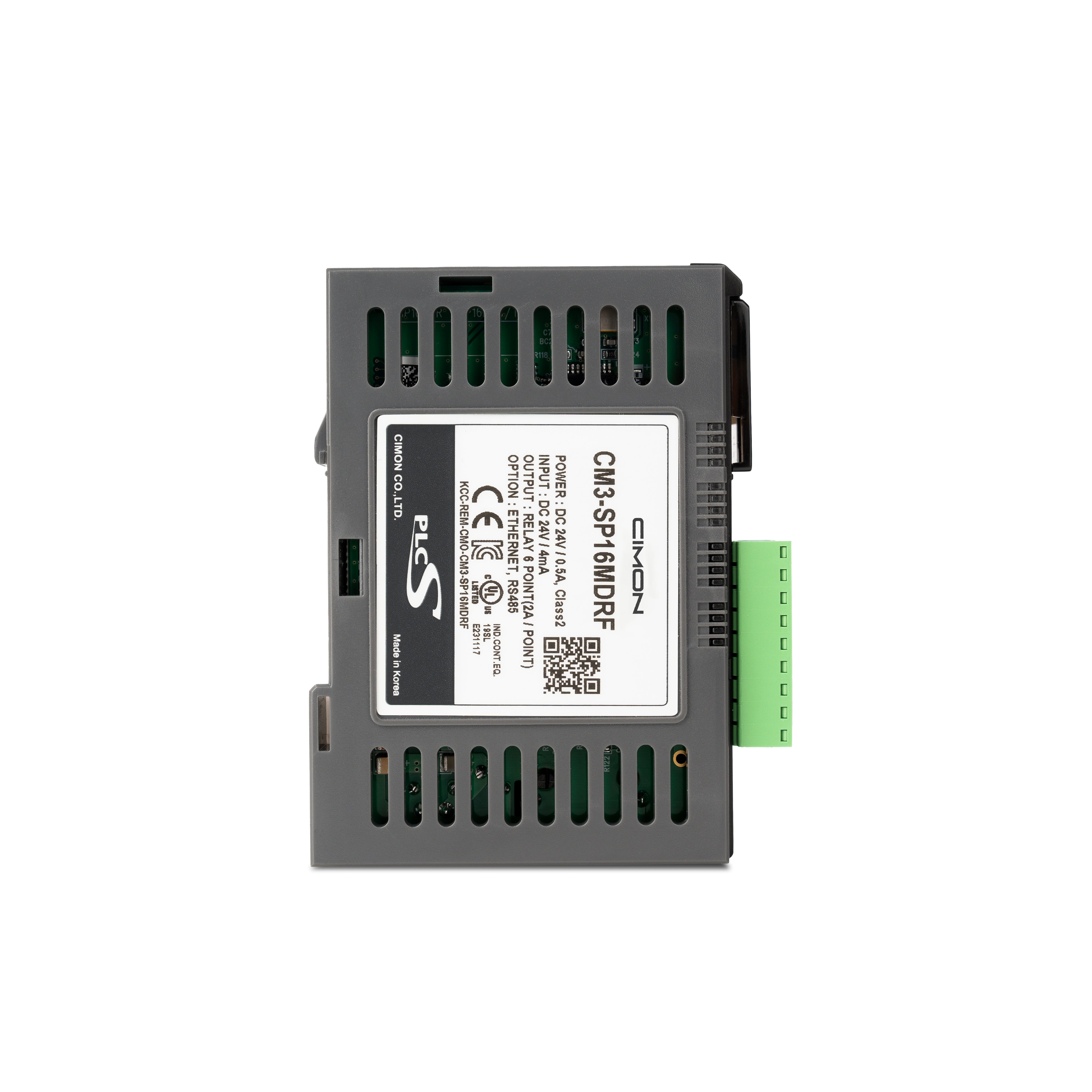

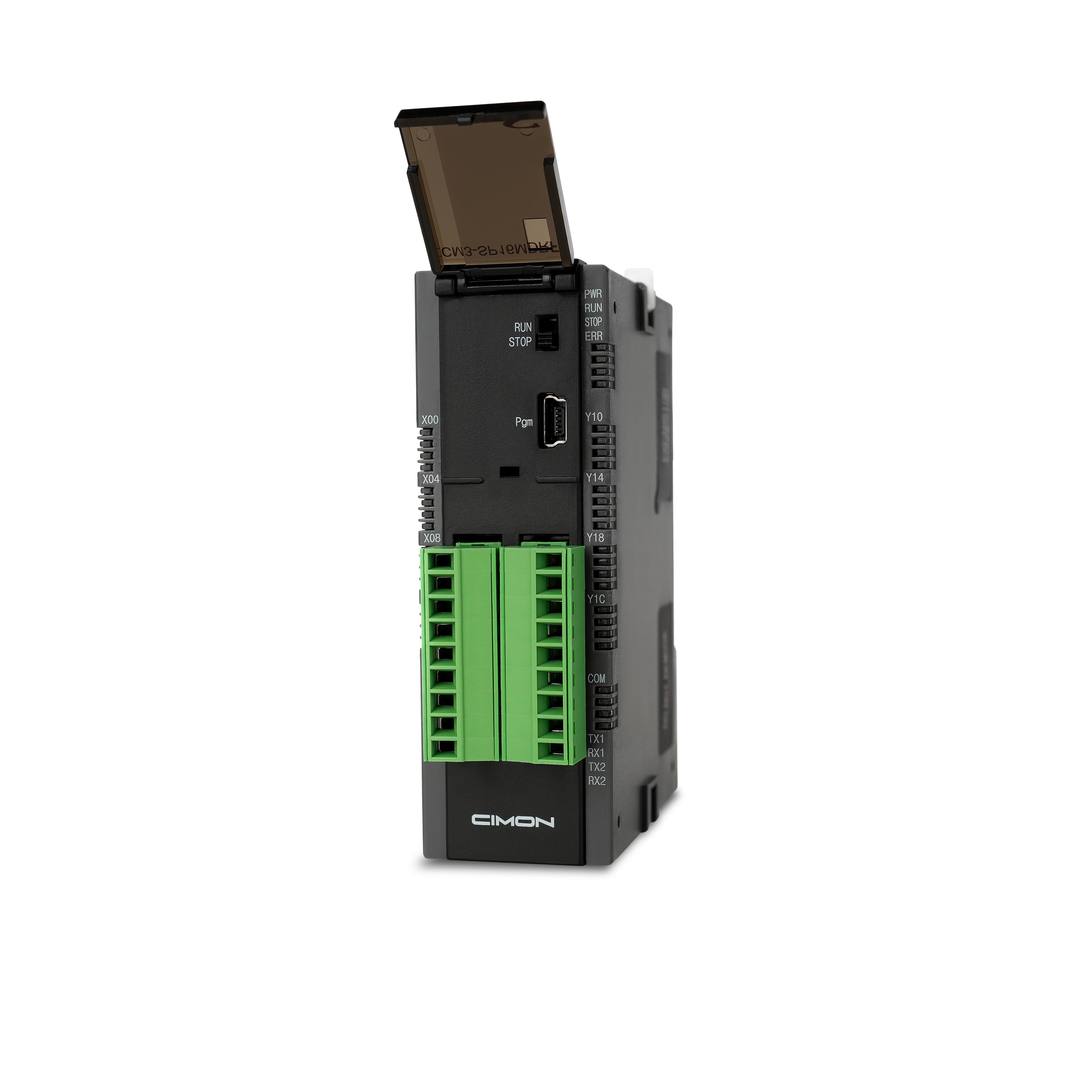

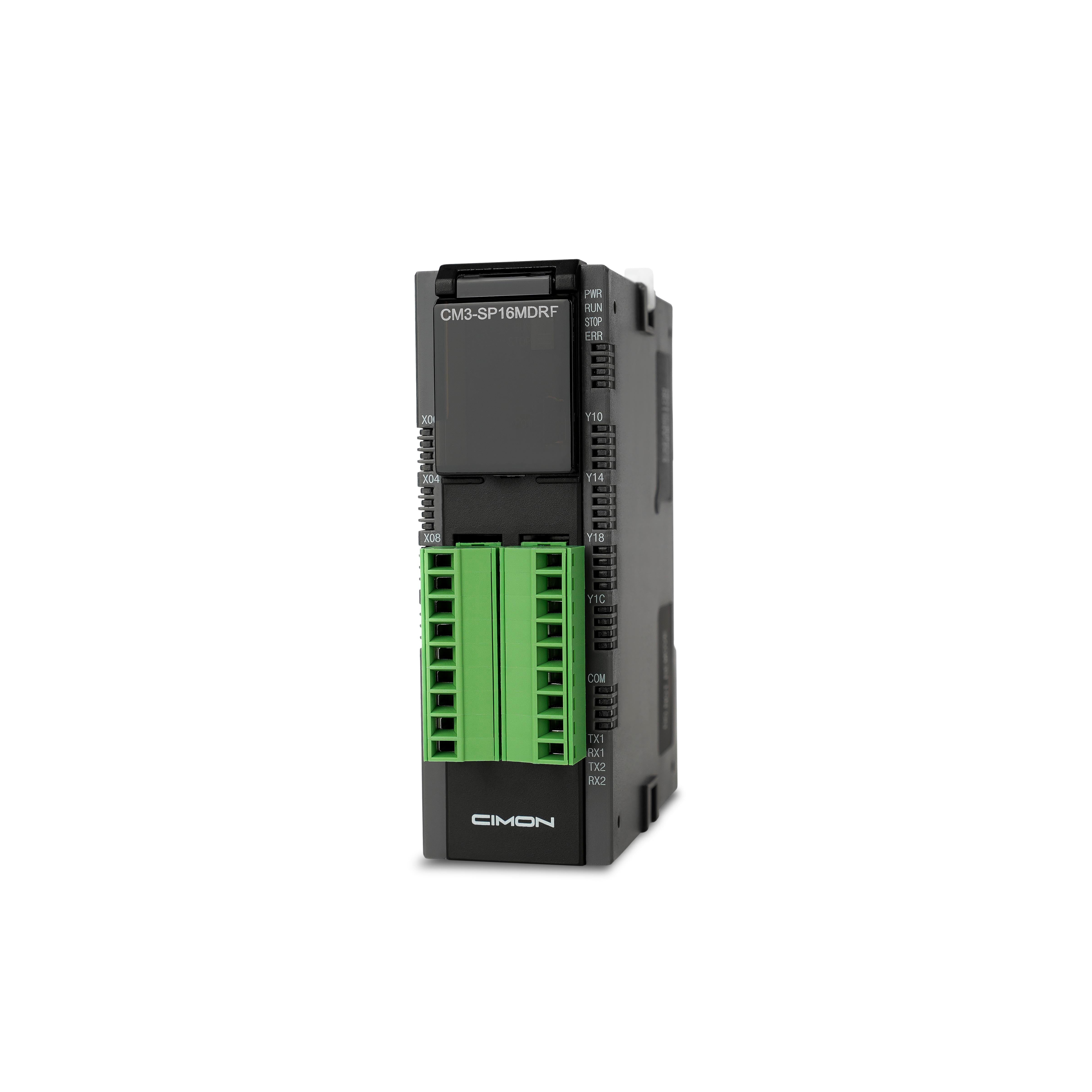

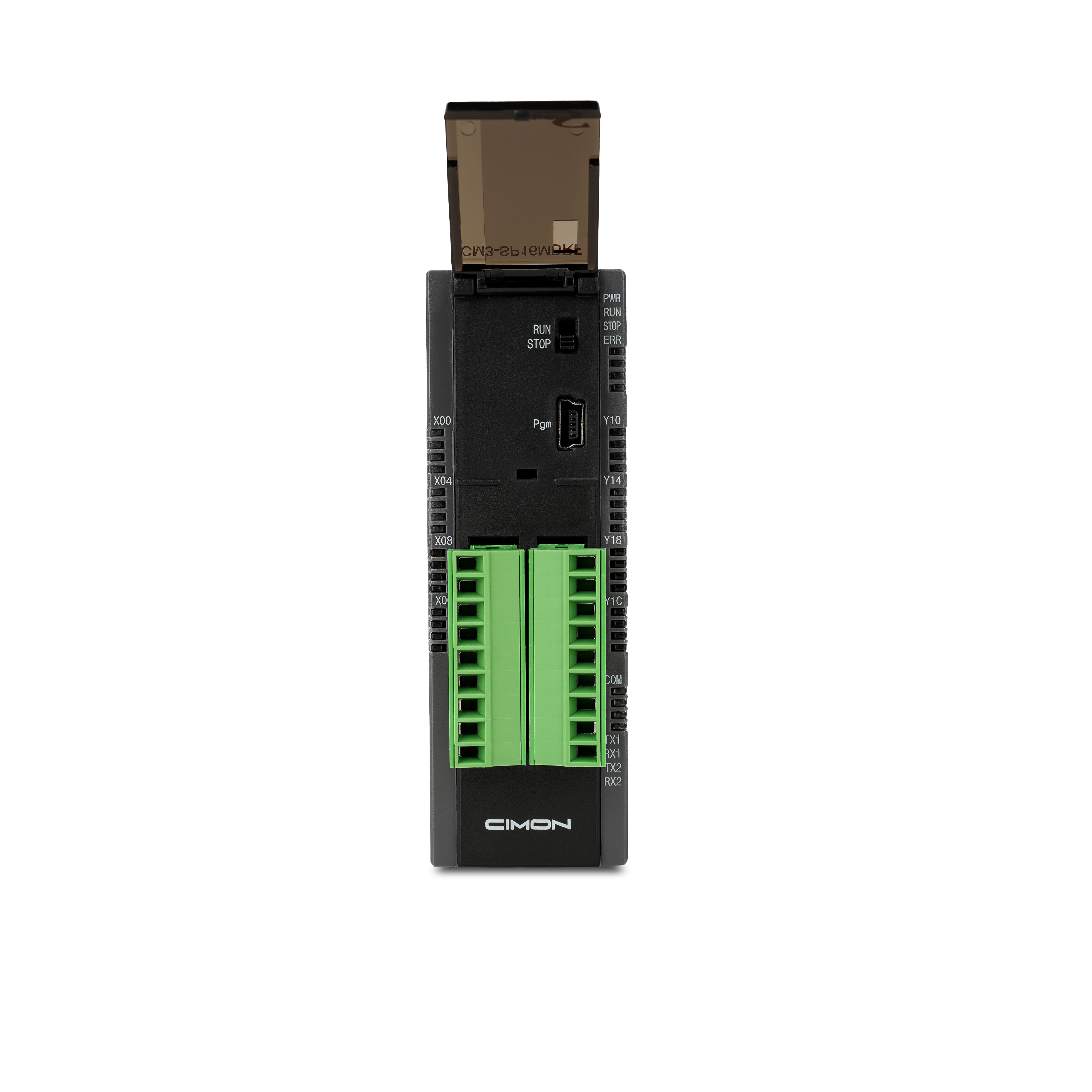

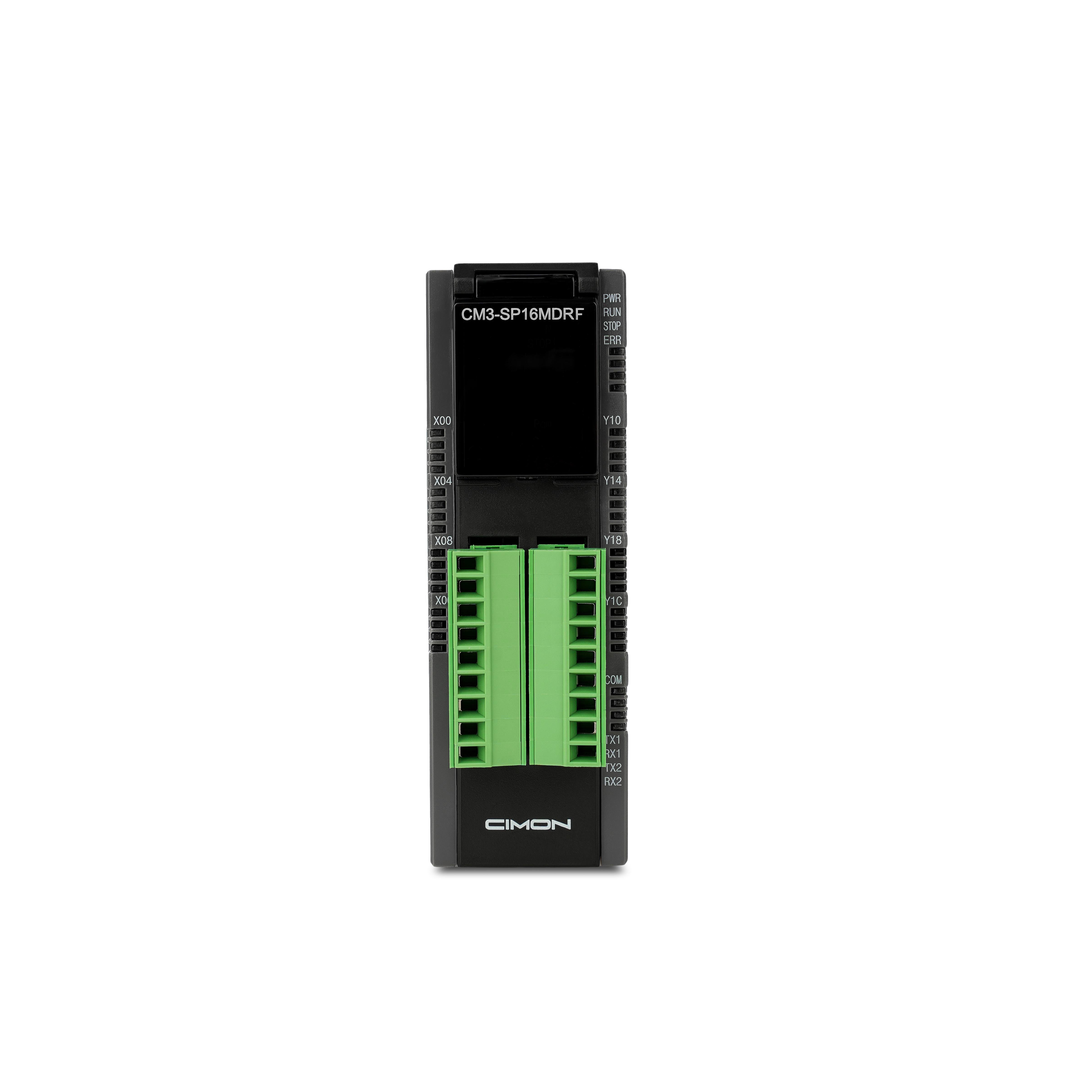

PLC-S CPU Module (14 I/O, Relay Output)

CM3-SP16MDRF

฿ 380.00

PLC-S Mini-Modular PLC
Power: 12/24 VDC
Expandable
(1) Ethernet
(2) Serial
(1) USB Mini-B Port
Discrete Input: 8 Point, 12/24 VDC, Sink/Source
Discrete Output: 6 Point, 24 VDC/240 VAC, Relay, 2 A/Point
Removable screw-based terminal blocks

Quantity:

฿ 380.00

Specifications

SKU	CM3-SP16MDRF
Power Consumption	12 W, 24 VDC, 0.5 A
Input Type	TR Sink/Source
Output Type	Relay
Number of Channels	8 Discrete Inputs, 6 Discrete Outputs (14 Total)
Rated Input Voltage	12 or 24 VDC (12 VDC used for HSC)
Rated Input Current	4 mA
Input Insulation Method	Photocoupler
Input Voltage/Current Thresholds	ON: CH1–4: 10 VDC / 4 mA CH5–8: 14 VDC / 4 mA OFF: CH1–4: 6 VDC / 1 mA CH5–8: 12 VDC / 1 mA
Rated Output Voltage	24 VDC, 250 VAC
Rated Output Current	1 point = 2 A, 1 COM = 5 A
Output Insulation Method	Relay Contact
Communication Ports	RS-232 (1 Channel) RS-422/485 (1 Channel) Ethernet (1 Port)
Utility/Program Port	Mini-B USB, Ethernet, RS-232/422/485

<div class="spec-table">
<table>
<tr><th>SKU</th><td>CM3-SP16MDRF</td></tr>
<tr><th>Power Consumption</th><td>12 W, 24 VDC, 0.5 A</td></tr>
<tr><th>Input Type</th><td>TR Sink/Source</td></tr>
<tr><th>Output Type</th><td>Relay</td></tr>
<tr><th>Number of Channels</th><td>8 Discrete Inputs, 6 Discrete Outputs (14 Total)</td></tr>
<tr><th>Rated Input Voltage</th><td>12 or 24 VDC (12 VDC used for HSC)</td></tr>
<tr><th>Rated Input Current</th><td>4 mA</td></tr>
<tr><th>Input Insulation Method</th><td>Photocoupler</td></tr>
<tr><th>Input Voltage/Current Thresholds</th>
<td>
<strong>ON:</strong><br>
CH1–4: 10 VDC / 4 mA<br>
CH5–8: 14 VDC / 4 mA<br><br>
<strong>OFF:</strong><br>
CH1–4: 6 VDC / 1 mA<br>
CH5–8: 12 VDC / 1 mA
</td>
</tr>
<tr><th>Rated Output Voltage</th><td>24 VDC, 250 VAC</td></tr>
<tr><th>Rated Output Current</th><td>1 point = 2 A, 1 COM = 5 A</td></tr>
<tr><th>Output Insulation Method</th><td>Relay Contact</td></tr>
<tr><th>Communication Ports</th>
<td>
RS-232 (1 Channel)<br>
RS-422/485 (1 Channel)<br>
Ethernet (1 Port)
</td>
</tr>
<tr><th>Utility/Program Port</th><td>Mini-B USB, Ethernet, RS-232/422/485</td></tr>
</table>
</div>
