PLC-S Plus

 • Class 1, Division 2 Rating*
 • Extended operating temperature: -20 to +70 °C
 • Under 20ns processing speed
 • Easy + secure DIN rail mounting
 • Add up to 15 PLC expansion modules
 • Up to 512 I/O
 • Dual ethernet ports
 • 24V DC power
 • Easy access run/stop control
• Micro SD card reader
 • USB-C loading port
 • RS232/RS422/485 serial ports
 • Push terminal type
 • Supported Protocols:

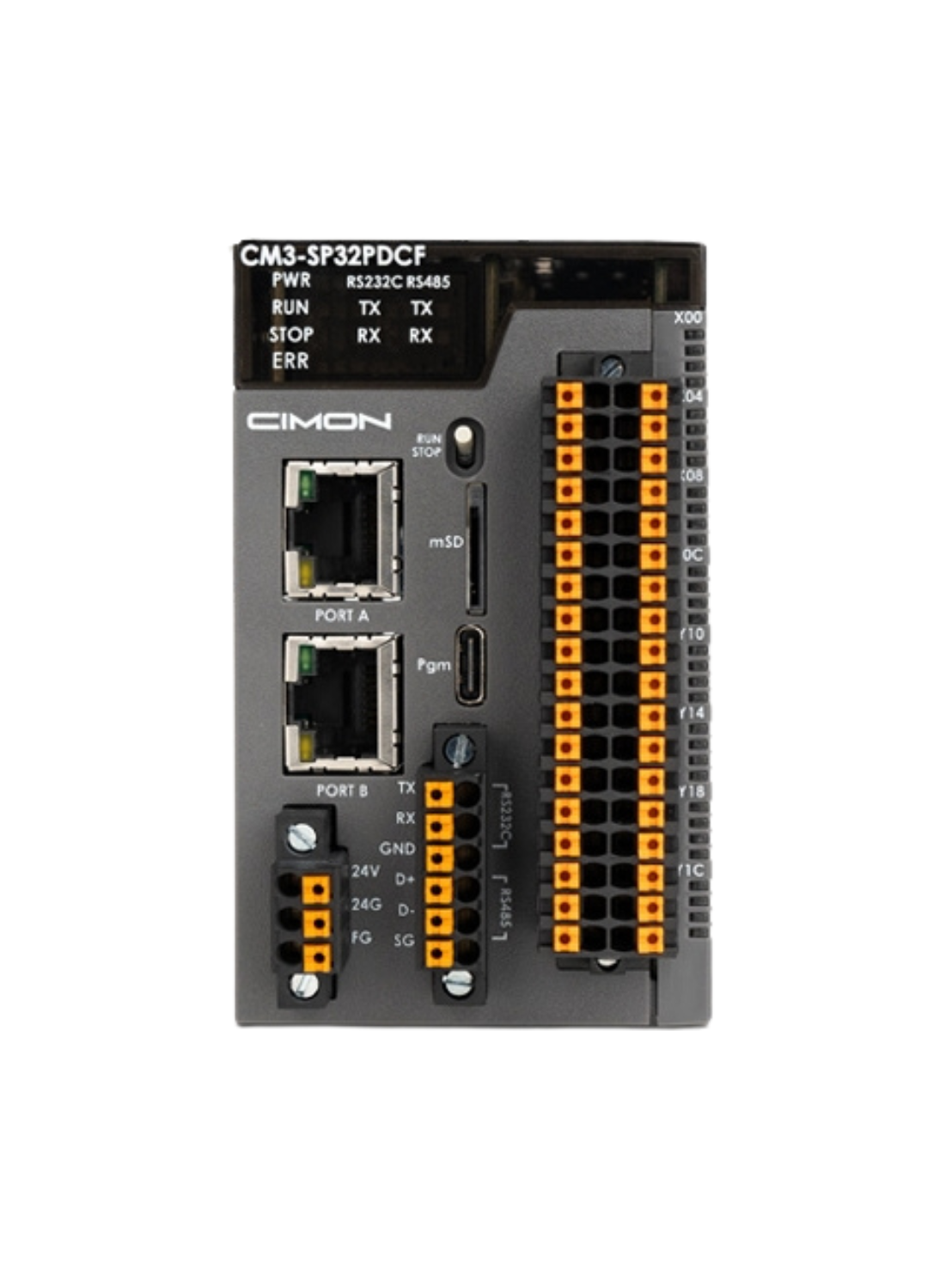

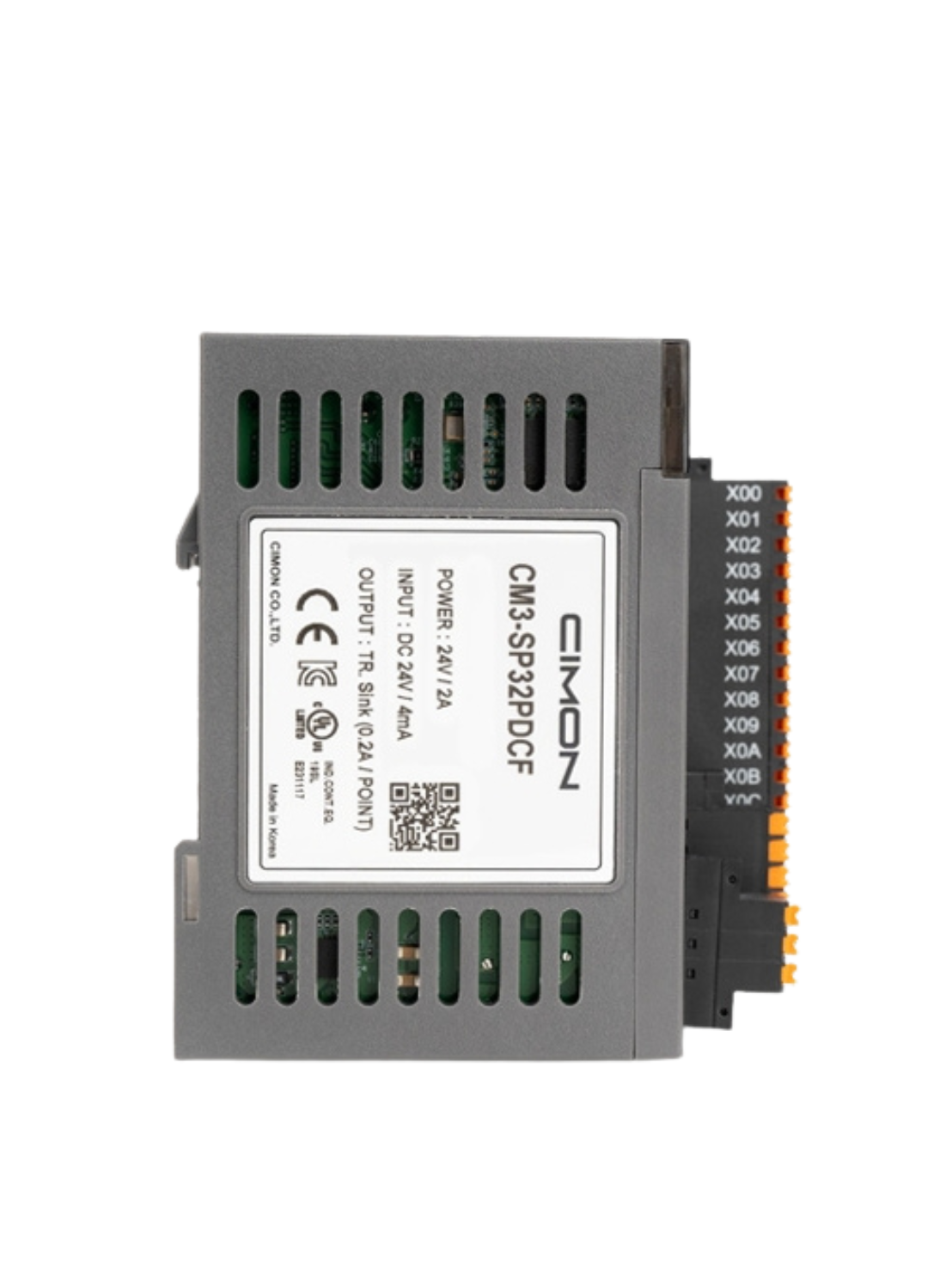

 SP32PDCF: 16 DI (SINK&SOURCE) & 16 DO (SOURCE)

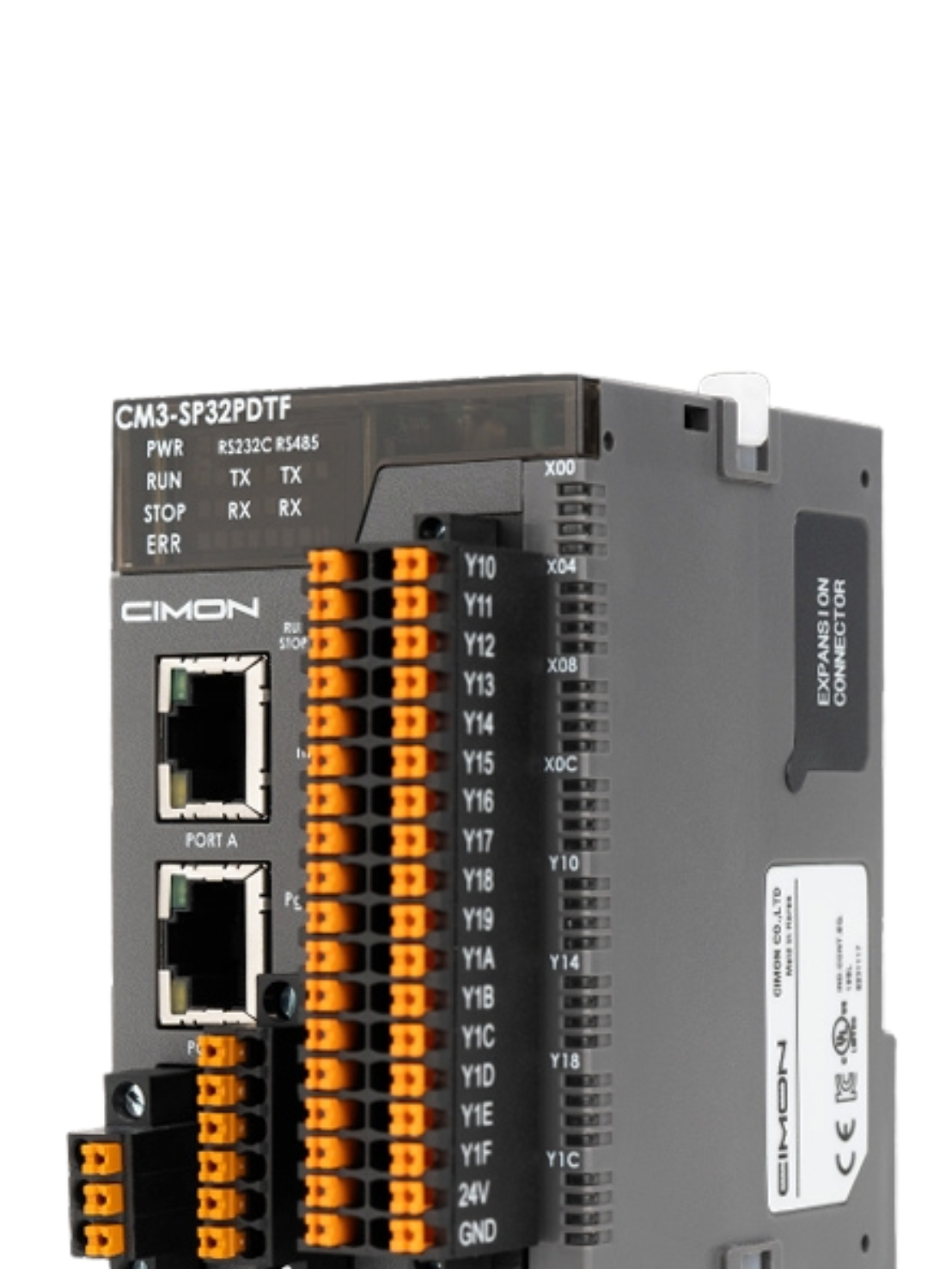

 SP32PDTF: 16 DI (SINK&SOURCE) & 16 DO (SINK)
 SP16PDRF: 8 DI (SINK&SOURCE) & 8 DO (RELAY)
 EtherNet/IP Server
 Modbus TCP/RTU Master/Slave
