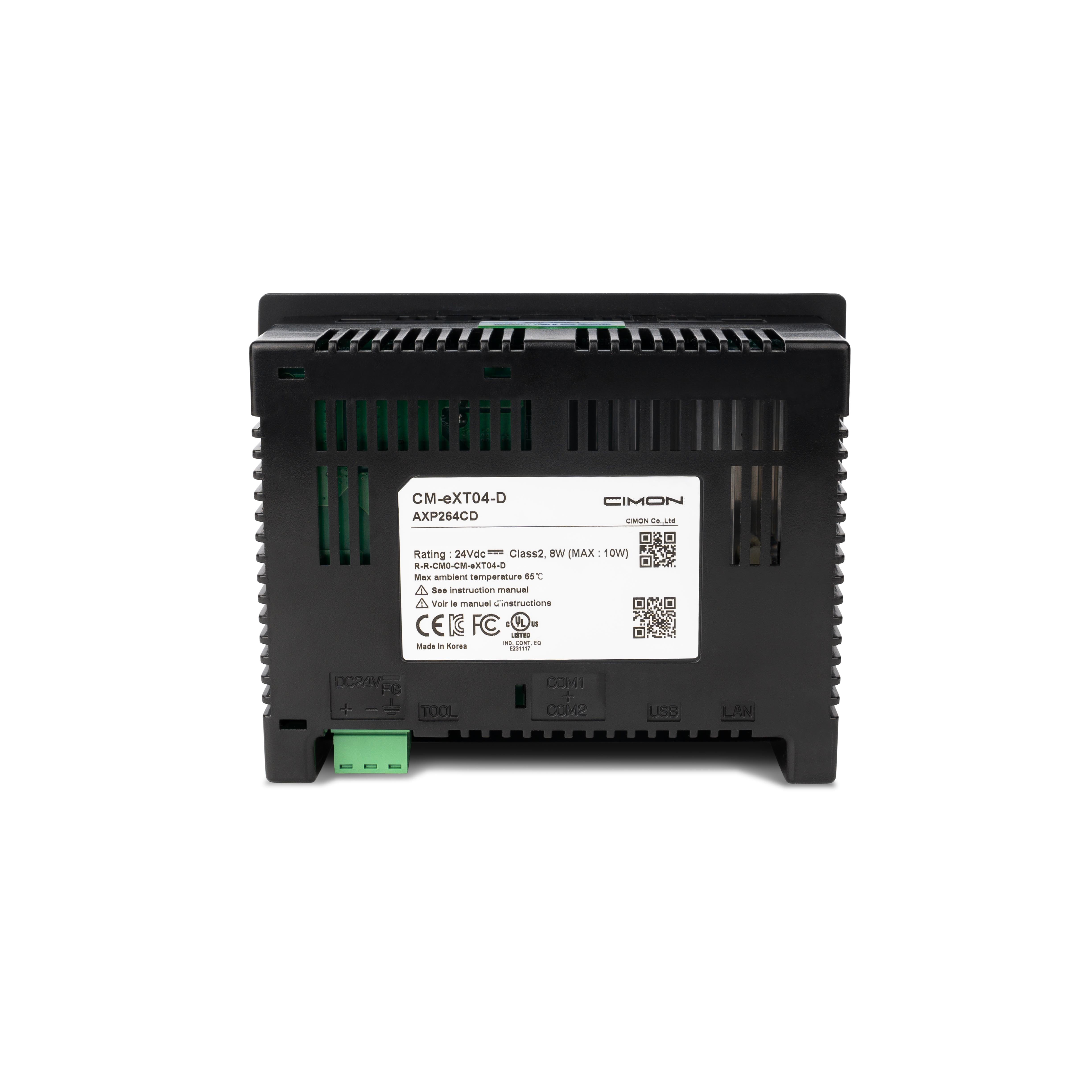

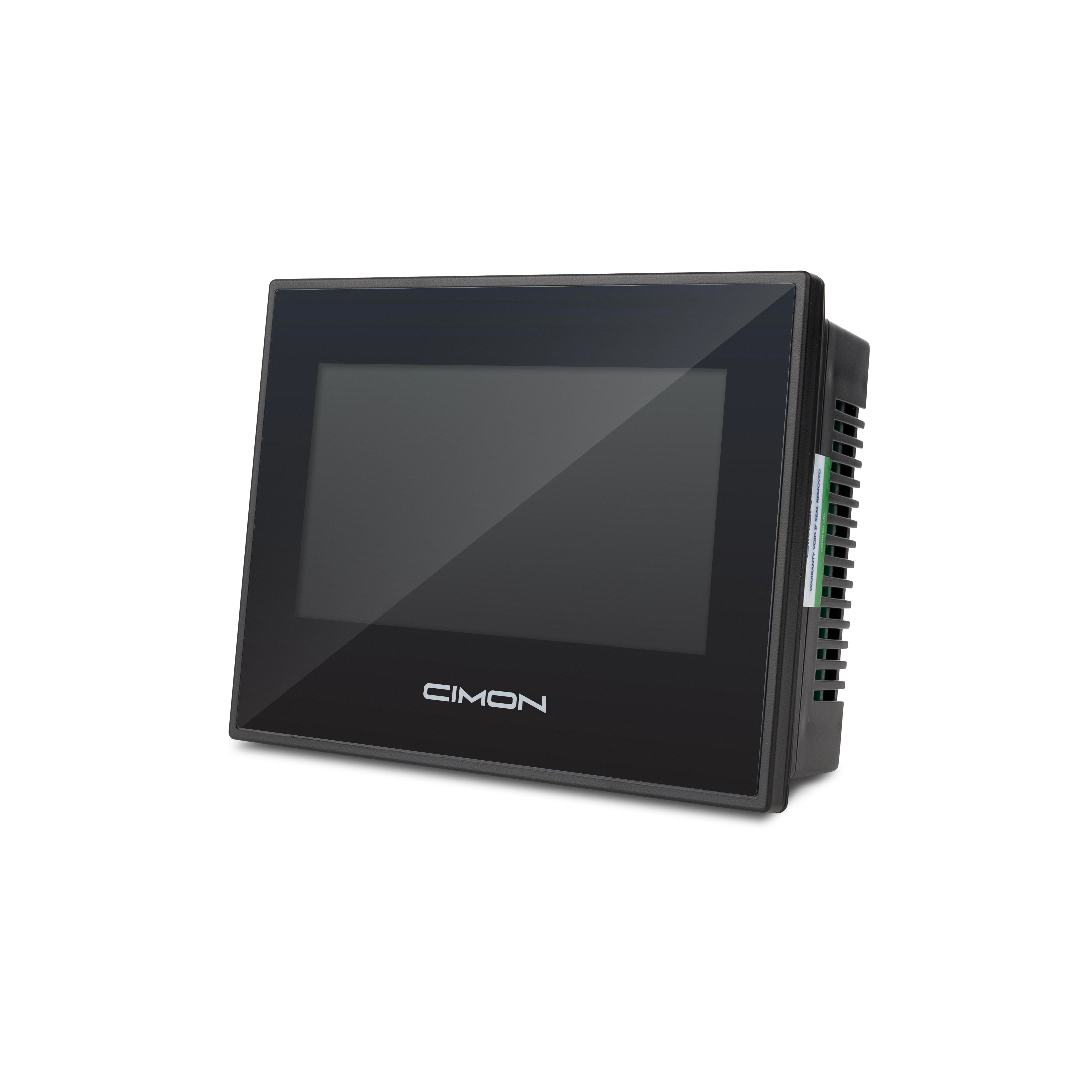

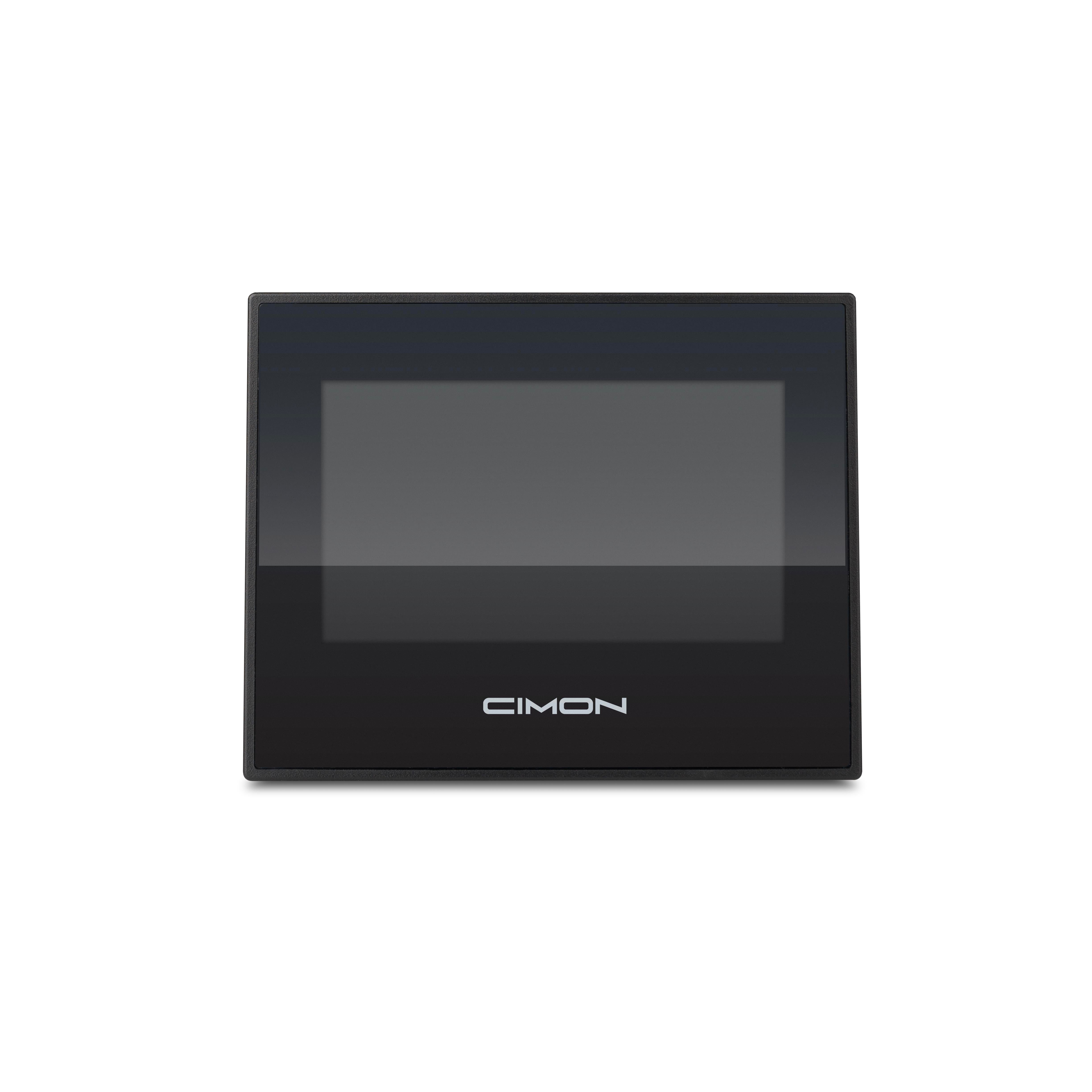

| SKU | CM-eXT04-D |
|---|
| LCD Size | 4.3 inch Wide TFT Color |
|---|
| Colors | 16.7M colors |
|---|
| Resolution | WVGA 800 × 480 |
|---|
| Backlight | LED |
|---|
| Luminance | 650 cd/m² |
|---|
| Backlight Life | 50,000 hours |
|---|
| Touch Panel | 4 Wire Resistive |
|---|
| Memory | 512 MB DDR3 |
|---|
| Storage | 8 GB eMMC |
|---|
| SD Card | N/A |
|---|

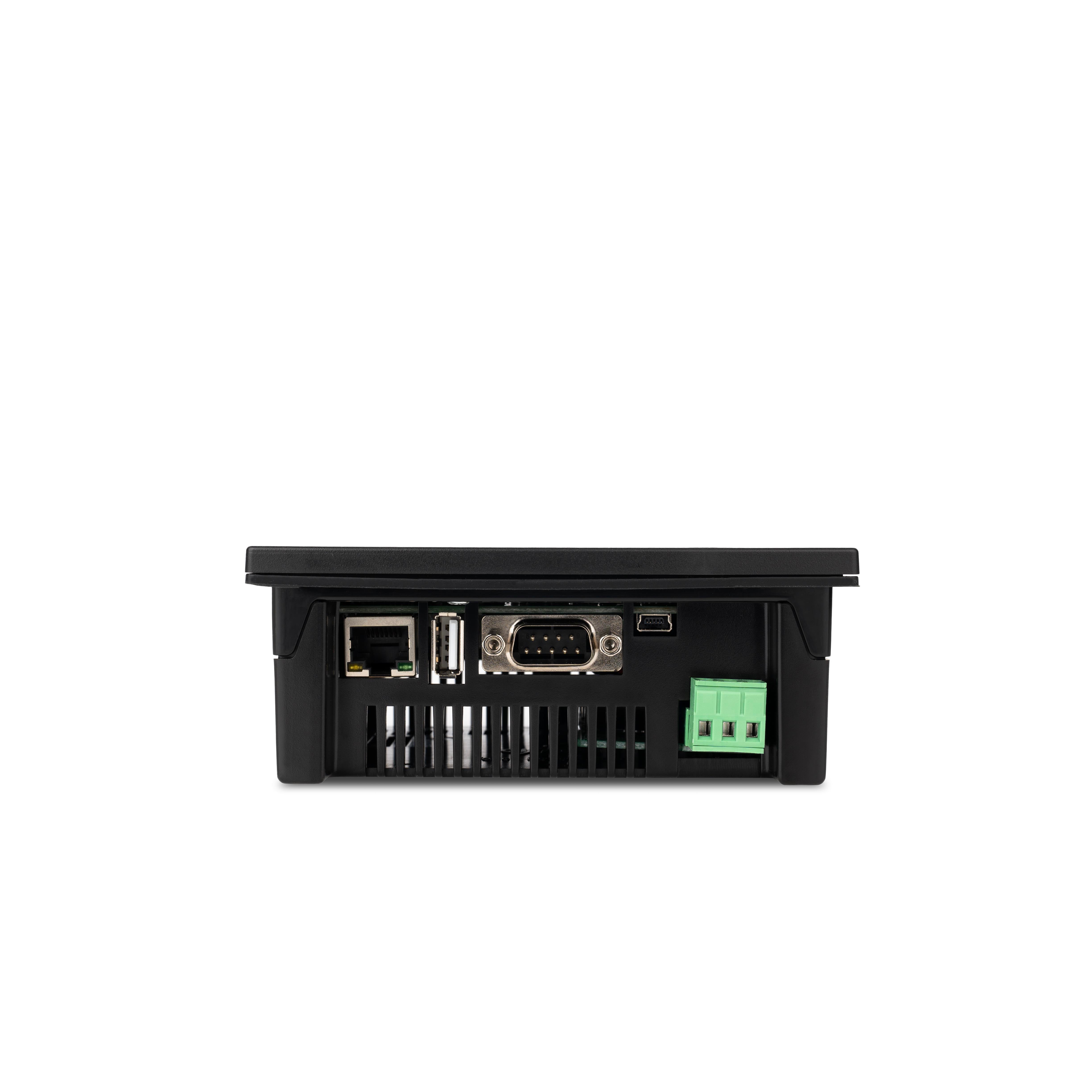

| COM1 | RS-422/485 |
|---|
| COM2 | RS-232 |
|---|
| Ethernet | Gigabit (RJ45), 1 port |
|---|
| USB Host | 1 port |
|---|
| Tool Port | 1 USB mini-B |
|---|
| Audio | N/A |
|---|
| Front Bezel | Plastic |
|---|
| Rated Voltage | -D: DC24 V (Class 2) |
|---|
| Power Consumption | 9W (MAX: 10W) |
|---|
| OS | Embedded Linux |
|---|
| Weight | 0.3 kg (0.66 lbs) |
|---|
| Dimension | 128 × 102 × 50 mm (5.04 × 4.02 × 1.97 in) |
|---|
| Panel Cut | 120 × 94 mm (4.72 × 3.7 in) |
|---|
| Operating Temperature | 0°C – 65°C (32°F – 149°F) |
|---|
| Storage Temperature | -20°C – 65°C (-4°F – 149°F) |
|---|
| Operating Humidity | 10–90% RH (below 29°C/84.2°F, not condensed) |
|---|
| Storage Humidity | 10–90% RH (below 39°C/102.2°F, not condensed) |
|---|
| Environment Condition | 800 hPa–1114 hPa (2000 m/6,500 ft or less) |
|---|
| Dust | ≤ 0.1mg/m³ (No conductive dust allowed) |
|---|
| Pollution Degree | ≤ Pollution Degree 2 |
|---|
| Operating Ambience | No corrosive gas or dust |
|---|
| Noise Resistance | Impulse, EFT/Burst, Surge, ±2 kV, 1 μs |
|---|
| Static Discharge Resistance | 4 kV (Contact), 8 kV (Air) (IEC 61000-4-2) |
|---|
| Concussion Resistance | 147 m/s², X/Y/Z ±3 times (Total 18) (JIS B 3502, IEC/EN 61131-2) |
|---|
| Vibration Resistance | 5–9 Hz: 3.5 mm, 9–150 Hz: 9.8 m/s² (X/Y/Z for 10 cycles, ~100 min) |
|---|
